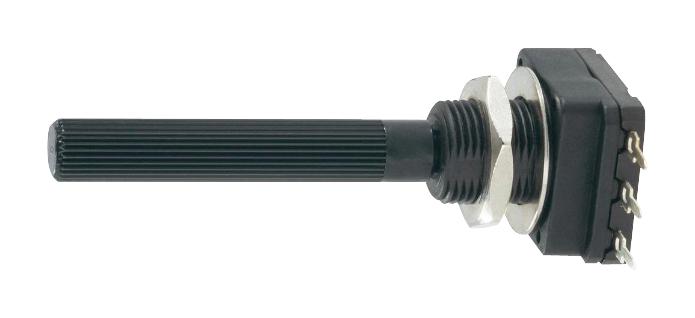

Product details
| Track Resistance:
10kohm
|
| No. of Turns:
1Turns
|
| Track Taper:
Linear
|
| Power Rating:
200mW
|
| Resistance Tolerance:
± 20%
|
| Product Range:
PC-16 Series
|
| Potentiometer Mounting:
Through Hole
|
| Shaft Diameter:
6mm
|
| No. of Gangs:
1
|
| Adjustment Type:
Knurled
|
| Shaft Length:
45mm
|
| Temperature Coefficient:
-
|
| Potentiometer Type:
Modular
|
| Resistor Technology:
Carbon Film
|
| Potentiometer Terminals:
Solder Lug
|
| Resistor Case / Package:
-
|
| Product Length:
53mm
|
| Product Width:
16mm
|
| Product Height:
20.5mm
|
| Operating Temperature Min:
-25°C
|
| Operating Temperature Max:
70°C
|
Other details
| Brand |
AMPHENOL PIHER SENSORS AND CONTROLS |
| Part Number |
PC16SH-10CP06-103A2020-TA |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
