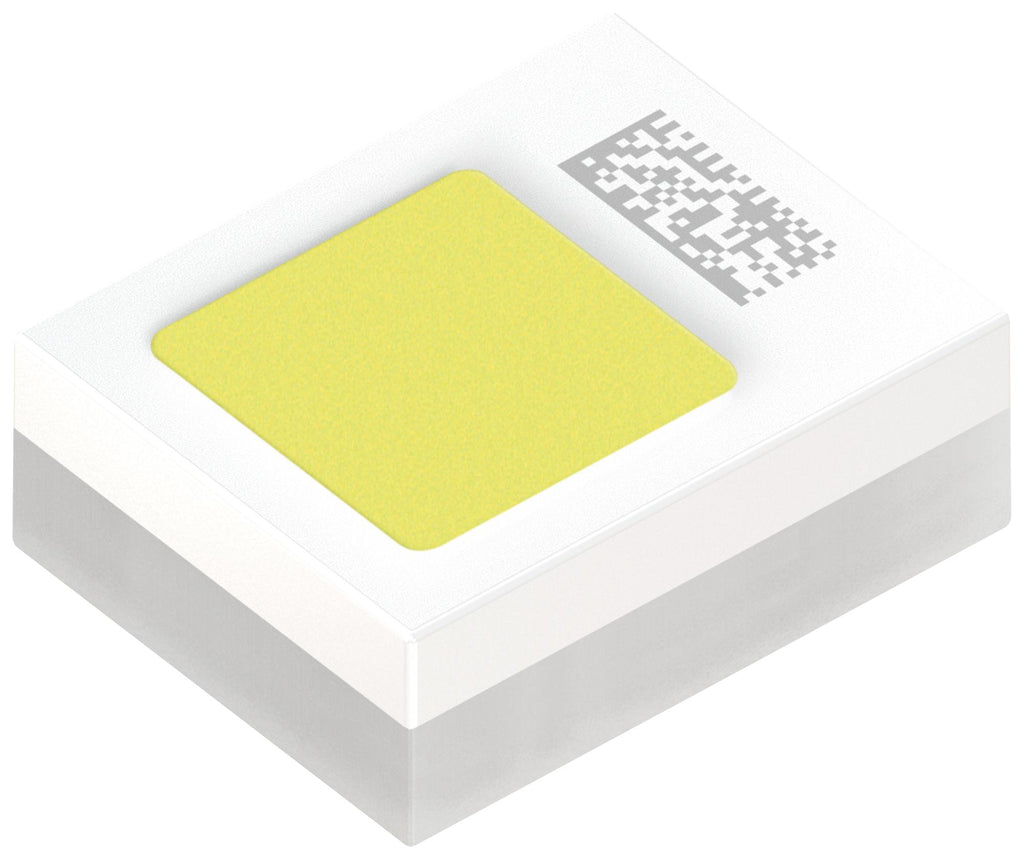

KW CELNM3.TK-S4S9-4L07M0-2686 is a OSLON® compact PL LED. This compact light source with isolated thermal pad for improved heat dissipation and small z-tolerance (+/- 35 µm). The OSLON compact PL product family meets both excellent brightness in combination with outstanding luminance. Application includes dynamic forward lighting, static forward lighting.
- UX:3 chip technology, 120° typical radiation (lambertian emitter)
- Cx = 0.316, Cy = 0.330 acc. to CIE 1931 colour (white)
- 3A corrosion robustness class
- AEC-Q102 qualified
- ESD 8kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
- Better than passus 3.7.2.1 of supplement proposal 7 to ECE reg. 128 colour over angle
- 395 to 535lm luminous flux (IF is 1000mA ΦV)
- Operating temperature range from -40 to 135°C
Product details
| Product Range:
OSLON Compact PL Series
|
| LED Colour:
White
|
| Viewing Angle:
120°
|
| Luminous Flux @ Test:
535lm
|
| CCT:
-
|
| Forward Current If Max:
1.5A
|
| Forward Voltage @ Test:
3.16V
|
| Forward Current @ Test:
1A
|
| Power Dissipation Pd:
-
|
Other details
| Brand |
AMS OSRAM GROUP |
| Part Number |
KW CELNM3.TK-S4S9-4L07M0-2686 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
