Description
ANDYCINE A6 PLUS Overview
The lightweight A6 Plus 5.5" 4K HDMI Input/Output Monitor is an on-camera monitor featuring 3D LUT import, a touchscreen interface, and multiple imaging tools. This versatile monitor can also power select cameras via its 8 VDC barrel output and a separately available DC coupler.

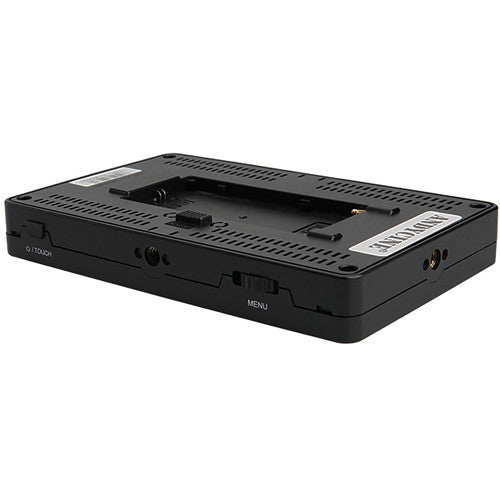

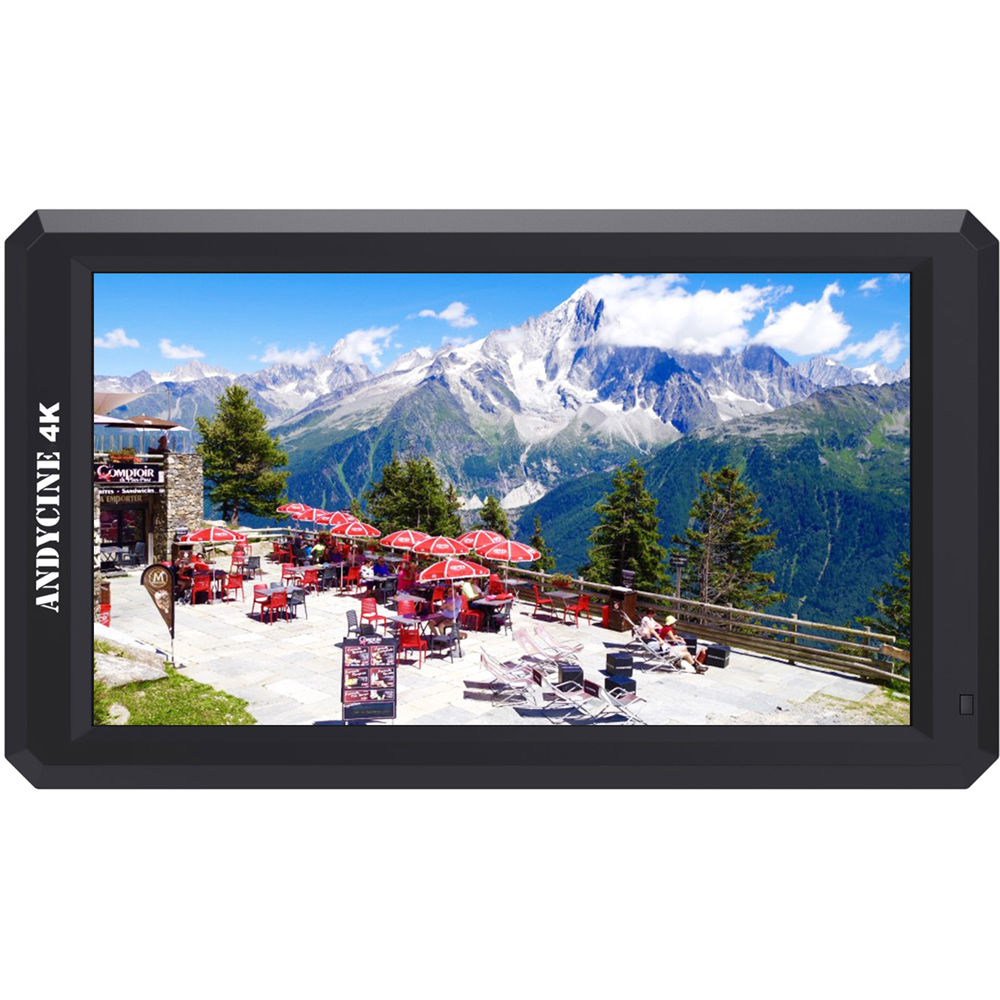

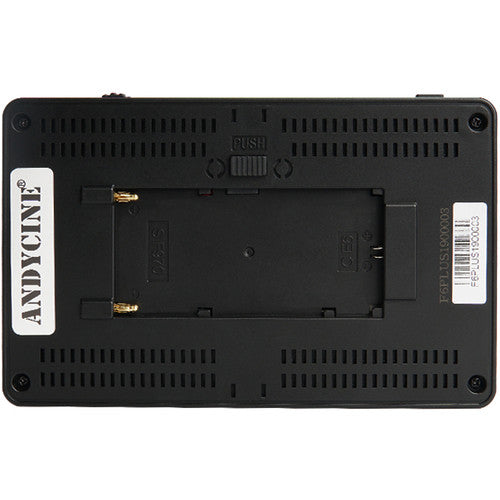

The A6 Plus supports up to DCI 4K video in addition to various HD and SD formats via a single full-size HDMI input and an HDMI loop-through output. The A6 Plus features a 500 cd/m² bright, 440 ppi, 1920 x 1080 IPS touchscreen with a 170° viewing angle. At the rear of the monitor a dual battery plate enables you to power the monitor using a single Sony L-series or Canon LP-E6 type battery. You can also power the A6 Plus using a separately available DC adapter.

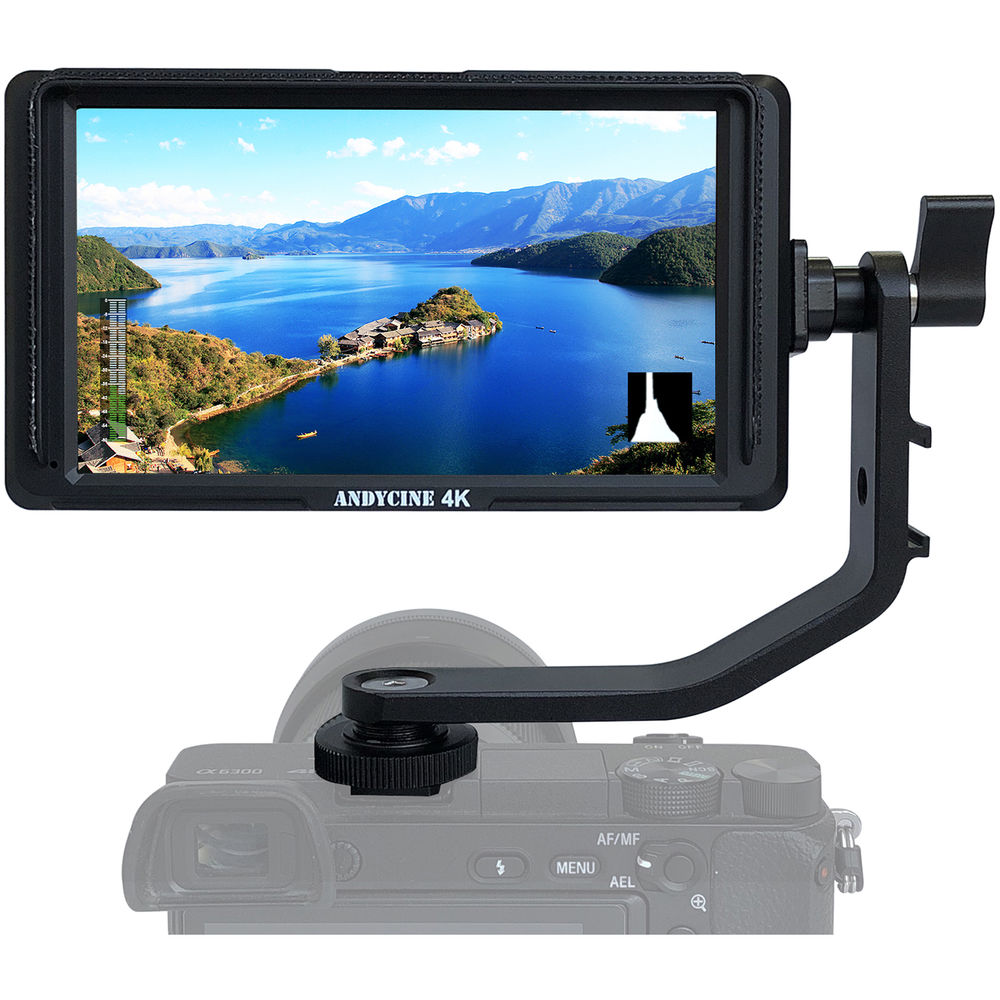

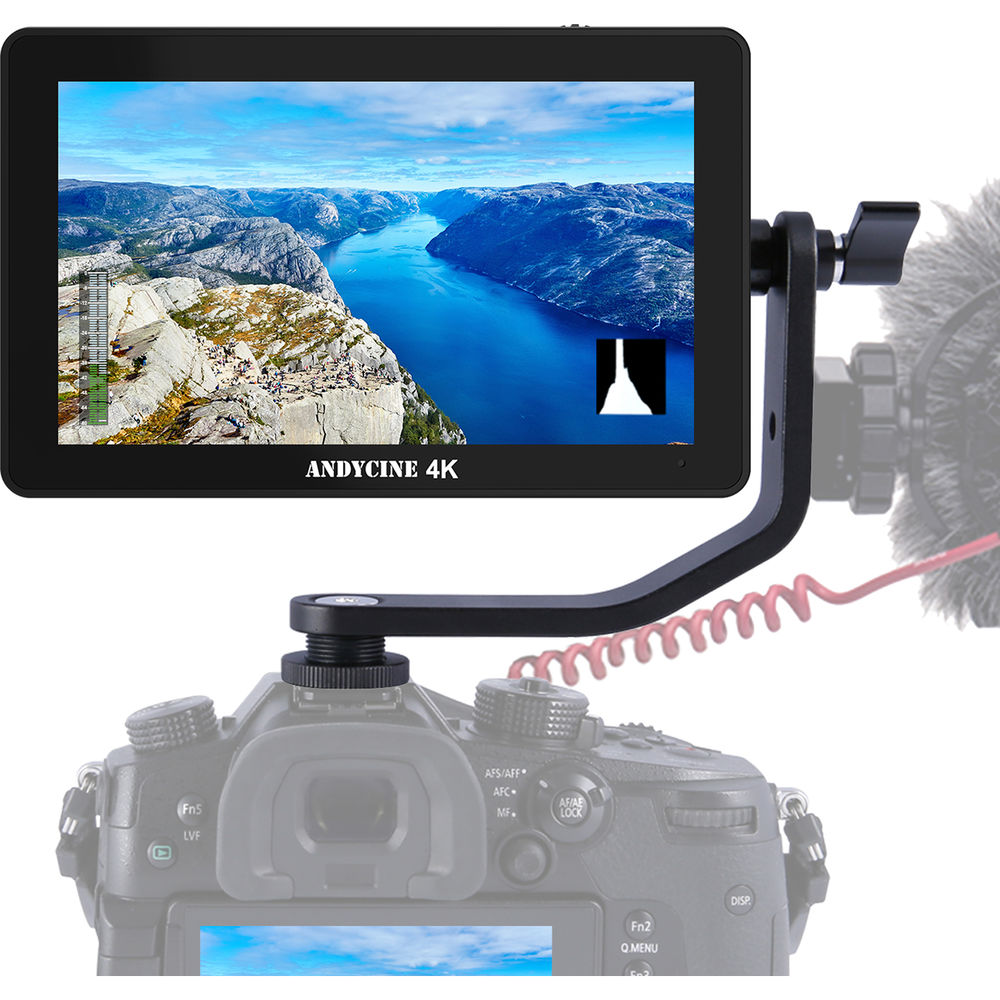

There are three 1/4"-20 threads on the monitor and one cold shoe on the included tilt arm which can be used to mount an accessory like a microphone or light. A sunshade and micro-HDMI cable are also included with the A6 Plus monitor.

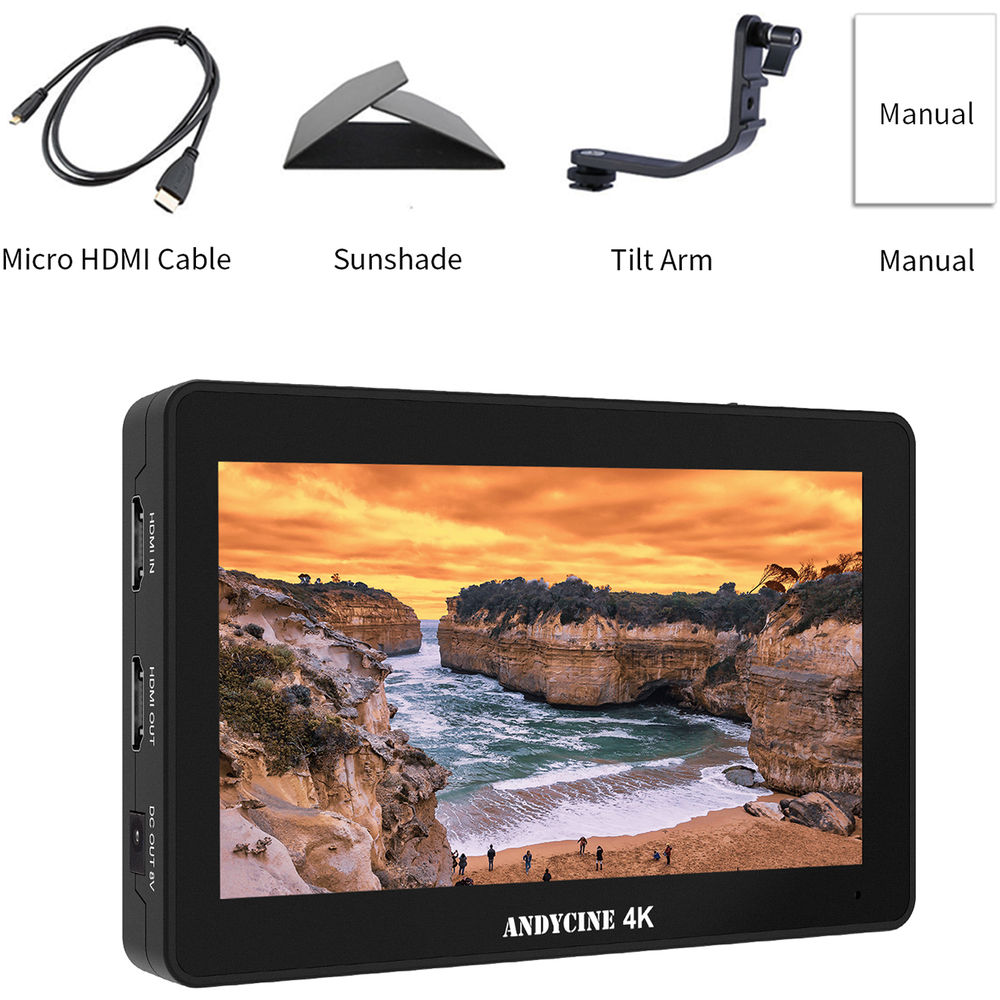

In the Box
- ANDYCINE A6 Plus 5.5" 4K HDMI In/Out 1920 X 1080 3D LUT Touchscreen Monitor
- Micro-HDMI Cable
- Sunshade
- Tilt Arm
- Limited 1-Year Warranty
ANDYCINE A6 PLUS Specs
| Panel Type | IPS-Type LCD |
| Display Size | 5.5" / 14.0 cm |
| Screen Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 170° (85/85) Vertical: 170° (85/85) |
| Touchscreen | Yes |
| Maximum Brightness | 500 cd/m 2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Pixels Per Inch (ppi) | 440 ppi |
| Color Gamut | 100% Rec. 709 |
| Real-Time LUT Monitoring | SDR |

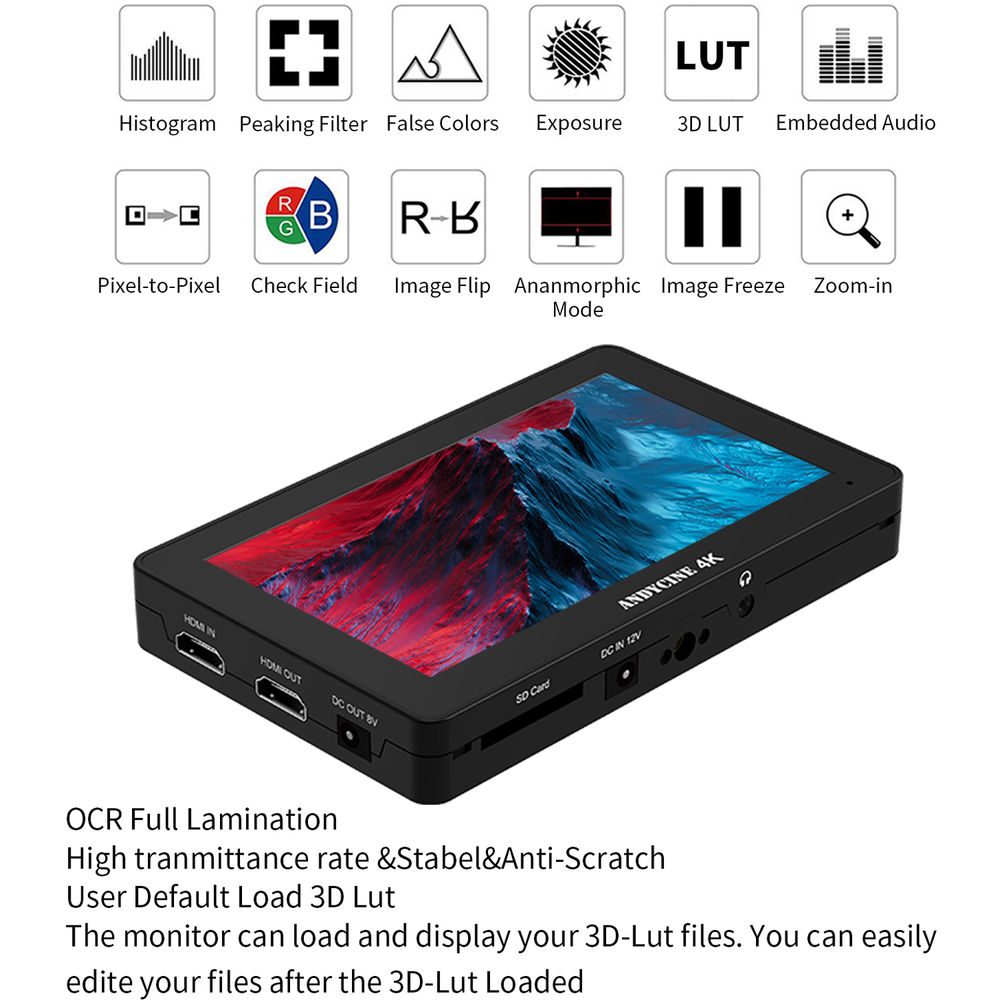

| Image Controls | Anamorphic De-Squeeze, Check Field, False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, Zebra |

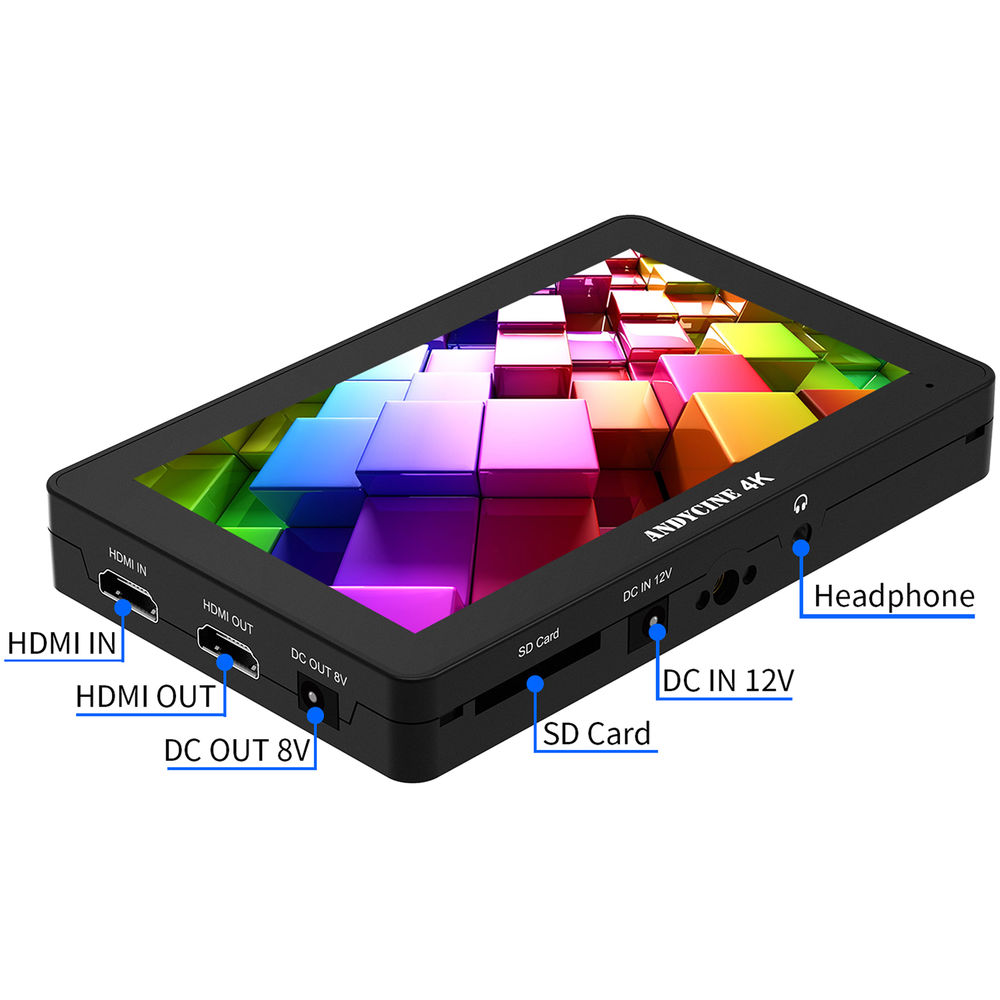

| Video | 1 x HDMI Type A Input 1 x HDMI Type A Output |
| Embedded Audio | HDMI |
| Audio | 1 x 3.5 mm Headphone Output |
| Built-In Speaker | None |

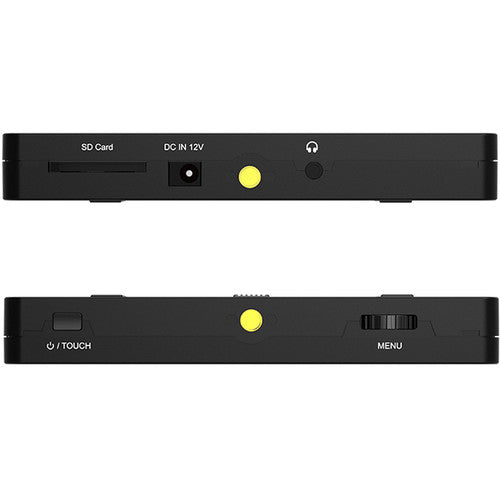

| Power | 1 x Barrel (12 VDC) Input 1 x Barrel (8 VDC) Output |
| Other I/O | 1 x USB 2.0 (USB Type-B) |
| Card Slot | 1 x SD |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i |
| Pulldown Conversion | None |
| Camera Trigger | None |
| DC Input Power | 12 VDC |
| Battery Type | 1 x LP-E6, L-Series (Interchangeable Mount) |
| Power Consumption | 10 W |
| Mounting | 3 x 1/4"-20 Female |
| Operating Temperature | -4 to 131°F / -20 to 55°C |
| Storage Temperature | -22 to 149°F / -30 to 65°C |
| Dimensions (W x H x D) | 5.83 x 3.66 x 0.79" / 148 x 93 x 20 mm |
| Weight | 0.52 lb / 235 g |
| Package Weight | 1.535 lb |
| Box Dimensions (LxWxH) | 7.4 x 4.9 x 4.2" |
