- Fits Ninja V, Ninja Flame, Ninja Inferno
- Fits Shogun Inferno
- Fits Sumo 19/19M with Adapter Handle
- Fits Shogun Studio with Adapter Handle
- 20% Smaller Than Average SSD
- 550/500 MB/s Read/Write Speeds
- Stable Stream Technology
- SATA III Connector

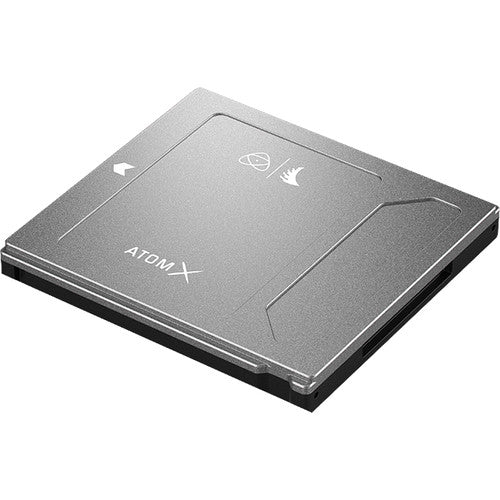

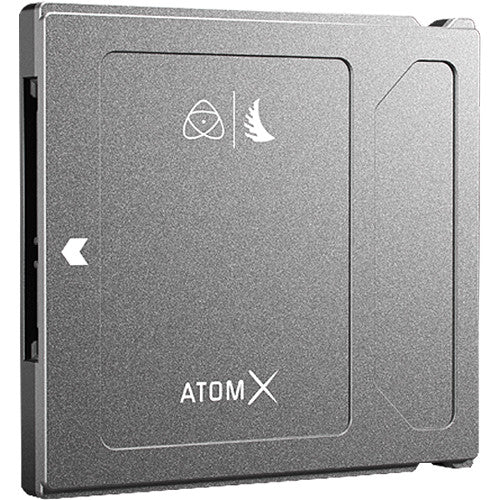

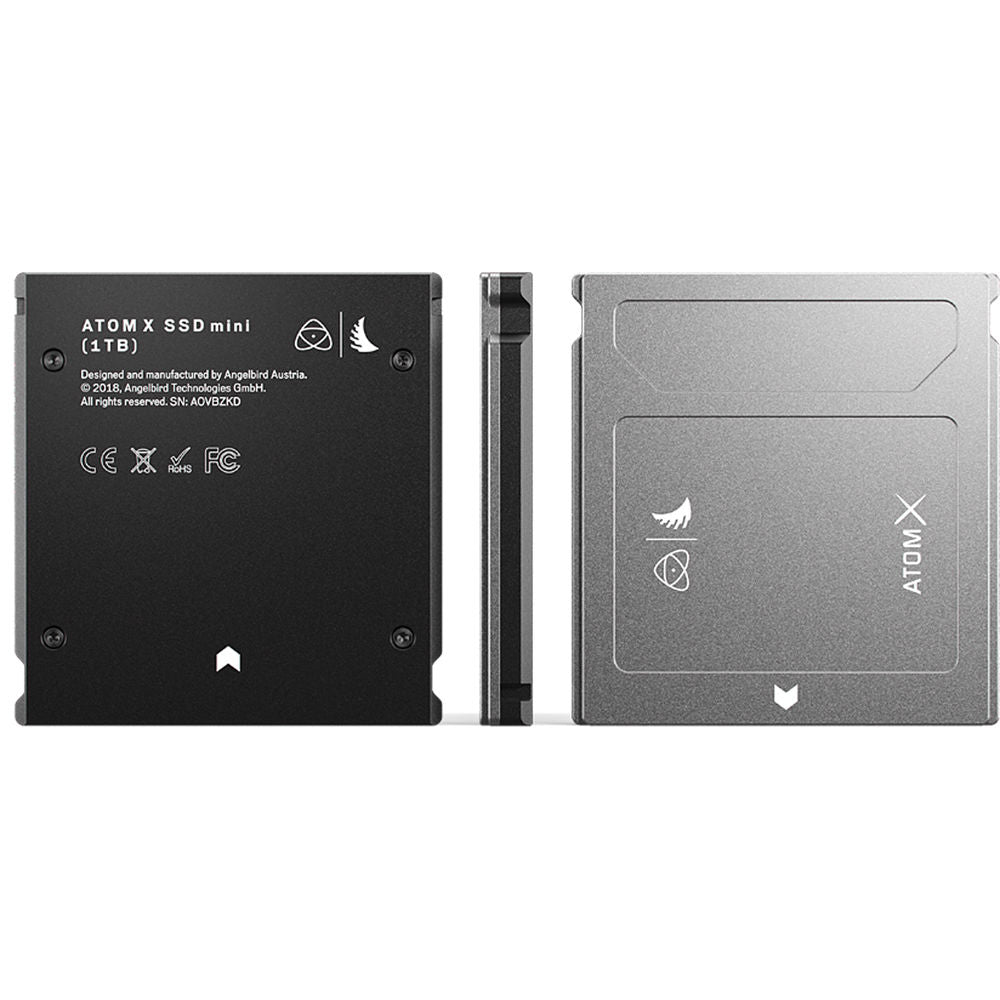

This 1TB Angelbird AtomX SSDmini is custom designed to fit into a variety of Atomos products, while maintaining high data throughput rates necessary for a 4K workflow. It fits perfectly into the Atomos Ninja V, Ninja Flame, Ninja Inferno, and Shogun Inferno. An optional adapter handle enables using this SSD with the Shogun Studio, Sumo 19, and Sumo 19M.
Although 20% smaller than an average SSD, the SSDmini makes no concession to size and features a formidable 550/500 MB/s read and write speeds. Incorporating Stable Stream technology so you don't drop any frames. The SATA III connector enables connecting to a standard SATA III port when it is time to transfer your footage.
- Supports capturing:
- CDNG up to 4K 30p
- ProRes RAW HQ 5.7K up to 30p
- 4K 60p and 2K 240p
- Supported Codecs:
- Apple ProRes: 4k60p and 2k240p
- Avid DNx: 4k60p and 2k240p
- Apple ProRes RAW: 5.7k30p, 4k60p and 2k240p
- CDNG: 4k30p
- Shock, temperature, X-Ray and magnetic proof
- Supports the entire Atomos range of Ninja and Shogun devices, plus-with the use of an adapter handle-even the Sumo19, Sumo19M and Shogun Studio
UPC: 812937023010
In the Box
Angelbird AtomX SSDmini (1TB)
Limited 3-Year Warranty with Product Registration within 30 Days
Angelbird ATOMX SSDMINI Specs
| Performance |
| Connections | 1 x SATA (SATA III) |
| Interface | SATA III (6 Gb/s) |
| Maximum Read Speed | 560 MB/s |
| Maximum Write Speed | 520 MB/s |
| Endurance (Total Bytes Written) | 3000 TB |
| Mean Time Between Failures (MTBF) | 2,400,000 Hours |
| Power |
| DC Input Power | 5 VDC |
| Power Consumption | 0.35 W (Idle)
3.5 W (Maximum) |
| Environmental |
| Certifications | CE, FCC, REACH, RoHS, as per Manufacturer |
| Operating Temperature | -4 to 158°F / -20 to 70°C |
| Storage Temperature | -40 to 185°F / -40 to 85°C |
| Operating Humidity | 5 to 95% |
| Operating Shock | 1000 G / 0.5 ms |
| Operating Vibration | 2.17 G |
| Physical |
| Dimensions | 3.15 x 2.97 x 0.37" / 80 x 75.5 x 9.3 mm |
| Weight | 3.2 oz / 90.0 g |
| Packaging Info |
| Package Weight | 0.265 lb |
| Box Dimensions (LxWxH) | 4.9 x 4.45 x 0.85" |
