Description
Provided by third party:
The perfect solution for mastering, recording and project studios, film-scoring, post-production and live sound. For over a decade, Antelope's legendary OCX Master Clock has been a dominant force in the audio world. This legacy now continues with the newest master clock by Antelope Audio - Isochrone OCX HD.
- Key Features
-
- Vast choice of clocking options
- All that you love about Antelope's cult Trinity Master Clock now in just 1U
- Access all OCX HD features via Antelope Audio's flexible software control panel
- Vast choice of clocking options
- OCX HD raises the bar yet again, delivering sample rate support of up to 768 kHz, Antelope's 4th generation Acoustically Focused Clocking (AFC) jitter management algorithm and oven-controlled crystal oscillator. OCX HD Master Clock offers a great variety of clocking options - 10 configurable in pairs Word Clock Outputs on BNC, four AES/EBU Outputs and two more on S/PDIF. This vast assortment of connectivity makes the OCX HD the most versatile audio master clock on the market, while proven, proprietary clocking technology delivers the most musical and reliable audio sync generation on the market.
- All that you love about Antelope's cult Trinity Master Clock now in just 1U
- Additionally, OCX HD offers two Word Clock Inputs and a Video Sync Input, which can resolve to a huge variety of SD and HD formats, as well as clock distribution with gear-boxing, and pull-up and pull-down rates, as featured in the triple clock powerhouse, Trinity Master Clock. A 10 MHz Input allows for syncing with Antelope's newest Atomic Clock - 10MX.
- Access all OCX HD features via Antelope Audio's flexible software control panel

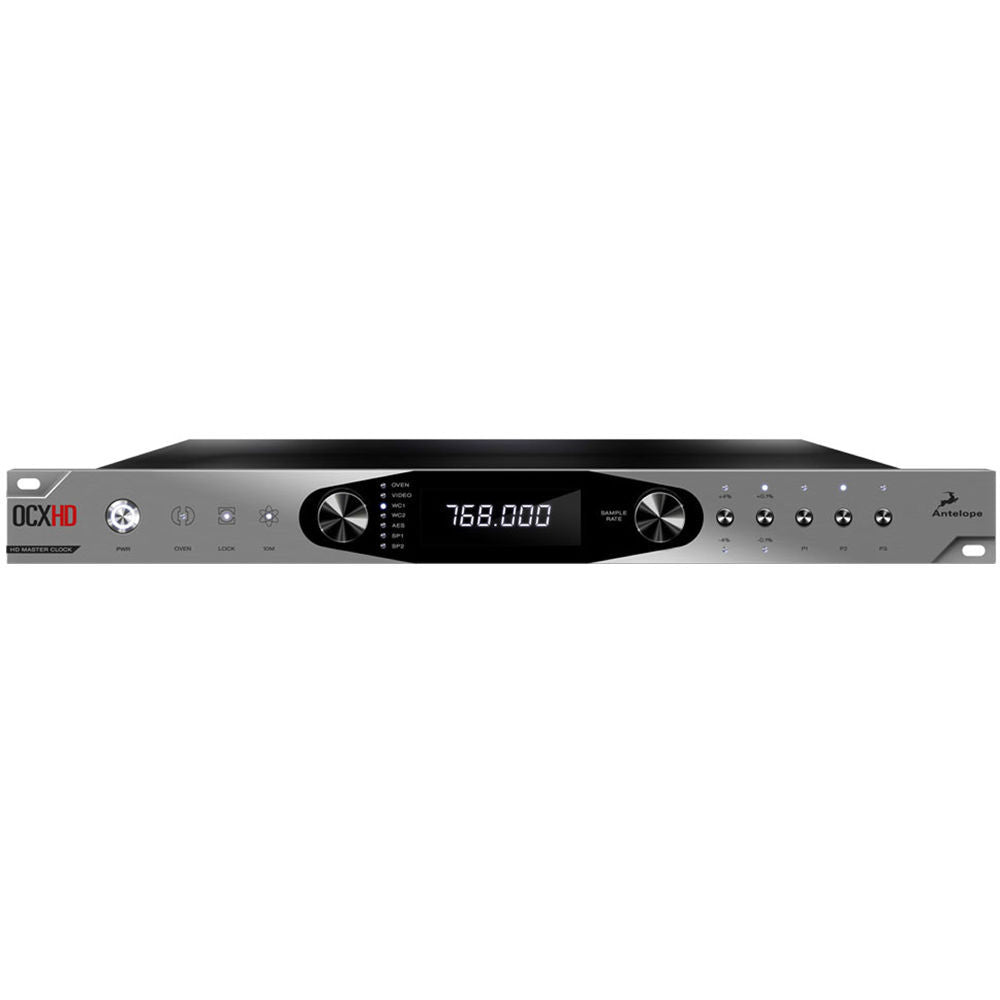

- Antelope's latest master clock benefits from flexible firmware update functionality, as featured in all modern Antelope products, allowing for fast and easy firmware updates on the user-friendly software control panel, available for both OS X and Windows. The desktop app provides convenient remote control to simplify project workflow. The device is also easily configurable from an elegant front panel, which will add a futuristic aesthetic to any gear rack.
UPC: 853744004342
| General | |
|---|---|
| Type | Master clock |
| Width | 19 in |
| Depth | 9.1 in |
| Height | 1.7 in |
| Weight | 5.84 lbs |
| Power | |
|---|---|
| Nominal Voltage | AC 120/230 V |
| Frequency | 50/60 Hz |
| Max Power Consumption | 20 W |
| Terminals | |
|---|---|

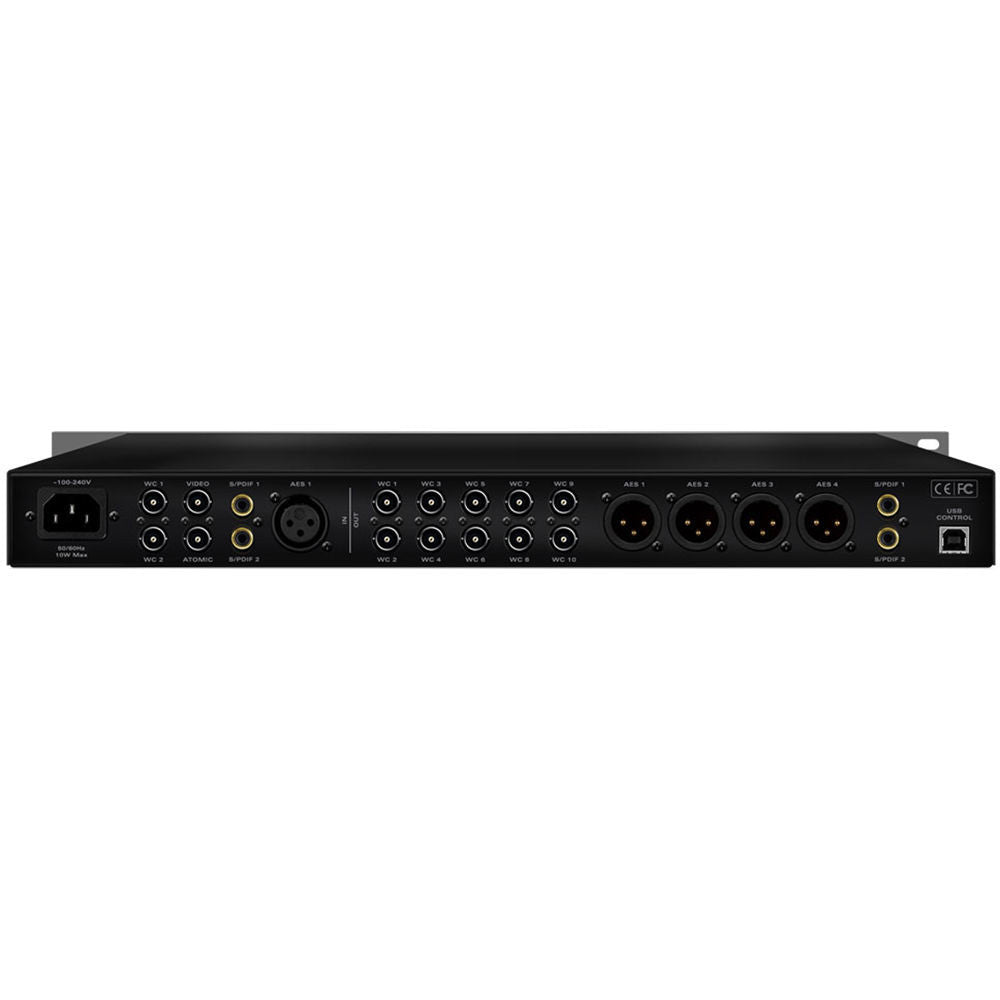

| Terminals | (2) x wordclock input - BNC (1) x composite video input - BNC (1) x atomic clock input - BNC (2) x SPDIF input - RCA (1) x AES / EBU input - XLR (10) x wordclock output - BNC (4) x AES / EBU output - XLR (2) x SPDIF output - RCA (1) x USB - 4 pin USB type A |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 32 �F |
| Max Operating Temperature | 122 �F |
| Humidity Range Operating | 30 - 80% (non-condensing) |
| Packaging Info | |
|---|---|
| Package Weight | 10.2 lb |
| Box Dimensions (LxWxH) | 25.25 x 13.5 x 4.4" |
