Description
Anton/Bauer DIONIC 26V Battery & Charger Kit Overview

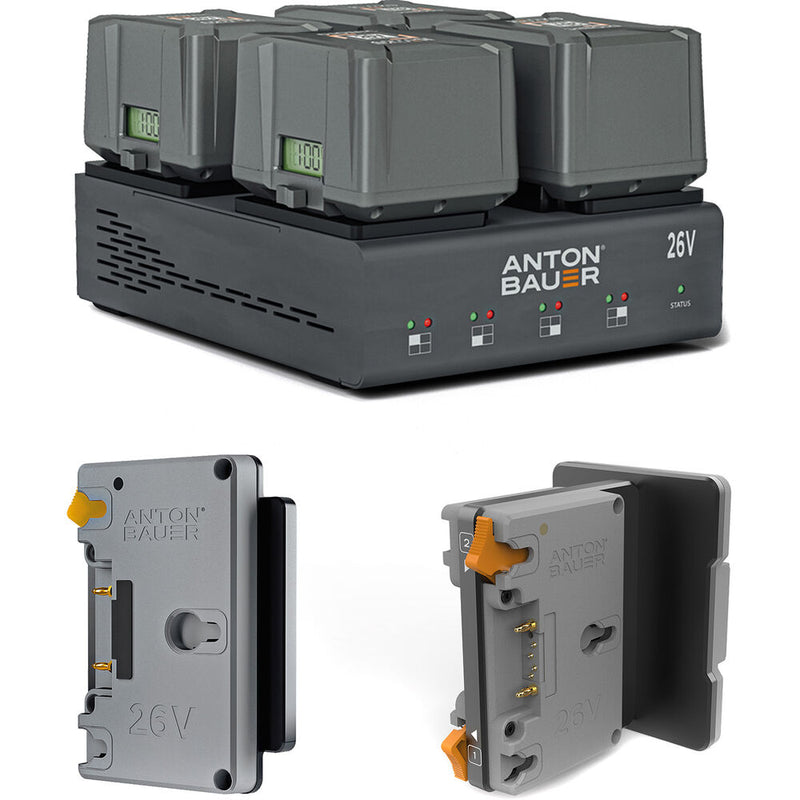

The 240Wh 26V 4-Battery Starter Kit for ARRI ALEXA 35 from Anton/Bauer provides a dedicated solution for powering your ALEXA 35 cinema camera. This kit comprises four Dionic 240Wh batteries, a quad charger, a Gold mount plate that mounts directly on the ALEXA 35, and a shark fin-type plate that enables battery hot swapping. Read more below about each item in this kit.
The 26V Gold Mount Plus Plate from Anton/Bauer enables you to power your ARRI ALEXA 35 camera with a single Dionic 26V battery. This Gold Mount Plus plate mounts directly on the back of your camera, saving space and weight on your rig. Full battery data is transmitted via the SMBus protocol and the plate's pogo pins.
Designed for power-hungry devices, the Dionic 240Wh 26V Gold Mount Plus Battery from Anton/Bauer can be used to power cine-style cameras like the ARRI ALEXA LF, Litepanels Gemini LED panels, and other high-draw pro video components. This battery's Gold Mount Plus interface provides a secure connection and reliable communication for your device.
This 240Wh battery supports up to a 12A constant draw and features overdischarge, overvoltage, short circuit, and thermal protection. Remaining runtime can be displayed on the integrated LCD panel and select camera viewfinders. Encased in a durable ABS/polycarbonate blend shell, the Dionic 240Wh 26V Gold Mount Plus Battery can withstand temperatures from -4 to 140°F.
The four-bay Dionic 26V LP4 Quad Gold Mount Plus Charger from Anton/Bauer features simultaneous charging, compatibility with 26 and/or 14.4V batteries, and a USB port for upgrading in the field. This rapid charger is compatible with a variety of battery chemistries, fits common battery/charger cases, and can withstand a wide range of operating temperatures.
Digital, Dionic HC, Dionic HCX
Dionic 26V, Dionic HD, Dionic XT
HyTron
Titon, Titon SL
Gain the ability to hot swap two mounted batteries with the Dionic 26V Gold Mount Plus Shark Fin Plate from Anton/Bauer. This dual-battery plate enables you to provide continuous power to your ARRI ALEXA LF, ALEXA 65, or ALEXA SXT camera plus P-Tap accessories. The hot swap function supports two Dionic 26V batteries, and its 2-pin Fischer input port is prioritized to also enable hot swapping when a block battery is attached.
The Shark Fin Plate's features include an OLED status screen that displays voltage data, battery capacity, and active source information. Its two 15V P-Tap accessory ports can be reset digitally through the plate's OLED screen if the current threshold is exceeded.
In the Box
- Anton/Bauer 26V Gold Mount + ARRI S35 Plate
- Limited 2-Year Manufacturer Warranty
- 4 x Anton/Bauer Dionic 240Wh 26V Gold Mount Plus Battery
- Limited 2-Year Manufacturer Warranty
- Anton/Bauer Dionic 26V LP4 Quad Gold Mount Plus Charger
- Limited 2-Year Manufacturer Warranty
- Anton/Bauer Dionic 26V Gold Mount Plus Shark Fin Plate
- Limited 1-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
Anton/Bauer DIONIC 26V Battery & Charger KitSpecs
| Camera Power Method |
Battery Plate Mount Type
|
| Plate Front / Battery Mount |
Gold Mount Plus
|
| Power Input |
26 VDC
|
| Camera Power Method |
Battery Plate Mount Type
|
| Plate Front / Battery Mount |
Gold Mount Plus
|
| Number of Battery Bays |
1
|
| Dimensions |
4.7 x 3.7 x 0.9" / 11.9 x 9.4 x 2.3 cm
|
| Weight |
6.3 oz / 180 g
|
| Package Weight |
0.475 lb
|
| Box Dimensions (LxWxH) |
9.65 x 4.45 x 1.95"
|
Anton/Bauer DIONIC 26V Battery & Charger KitSpecs
| Mount / Series Type |
Gold Mount
|
| Chemistry |
Lithium-Ion
|
| Battery Capacity |
12,000 mAh / 250 Wh
|
| Output Voltage |
26 VDC
|
| Maximum Load |
12 A
|
| Accessory I/O |
No
|
| Operating Temperature |
-4 to 140°F / -20 to 60°C
|
| Environmental Resistance |
No
|
| Dimensions (W x H x D) |
5.16 x 3.9 x 3.43" / 131 x 99 x 87 mm
|
| Weight |
3 lb / 1.36 kg
|
| Package Weight |
3.33 lb
|
| Box Dimensions (LxWxH) |
7.6 x 4.7 x 4.3"
|
Anton/Bauer DIONIC 26V Battery & Charger KitSpecs
| Charger Compatibility |
Gold Mount (26 V, 14 V)
|
| Charger Power Source |
AC Power (Cable Included)
|
| Charger Power I/O |
1x IEC Female Input
� 100 to 240 VAC, 50 / 60 Hz |
| Charger Other I/O |
1x USB-A Female Firmware Input
1x Mini-USB Female Firmware Input |
| Charger Included Adapter / Cable |
1x USA Type-A/B Plug to IEC Male Cable
|
| Charger Compatibility |
Gold Mount (26 V, 14 V)
|
| Number of Battery Bays |
4
|
| Multi-Bay Charging Modes |
Simultaneous
|
| Charger Power Source |
AC Power (Cable Included)
|
| Charger Power I/O |
1x IEC Female Input
� 100 to 240 VAC, 50 / 60 Hz |
| Charger Other I/O |
1x USB-A Female Firmware Input
1x Mini-USB Female Firmware Input |
| Charger Included Adapter / Cable |
1x USA Type-A/B Plug to IEC Male Cable
|
| Recharge Time |
1.5 Hours (98 Wh Batteries)
|
| Indicator |
LED
|
| Dimensions |
12.2 x 9 x 3.6" / 31 x 22.9 x 9.1 cm
|
| Weight |
4.7 lb / 2.1 kg
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Package Weight |
6.32 lb
|
| Box Dimensions (LxWxH) |
15.9 x 12.7 x 4.4"
|
Anton/Bauer DIONIC 26V Battery & Charger KitSpecs
| Camera Power Method |
Battery Plate Mount Type
|
| Plate Front / Battery Mount |
Gold Mount
|
| Hot-Swap Support |
Yes
|
| Power Input |
26 VDC
|
| Camera Power Method |
Battery Plate Mount Type
|
| Inputs/Outputs |
1x Fischer 2-Pi
|
