Description

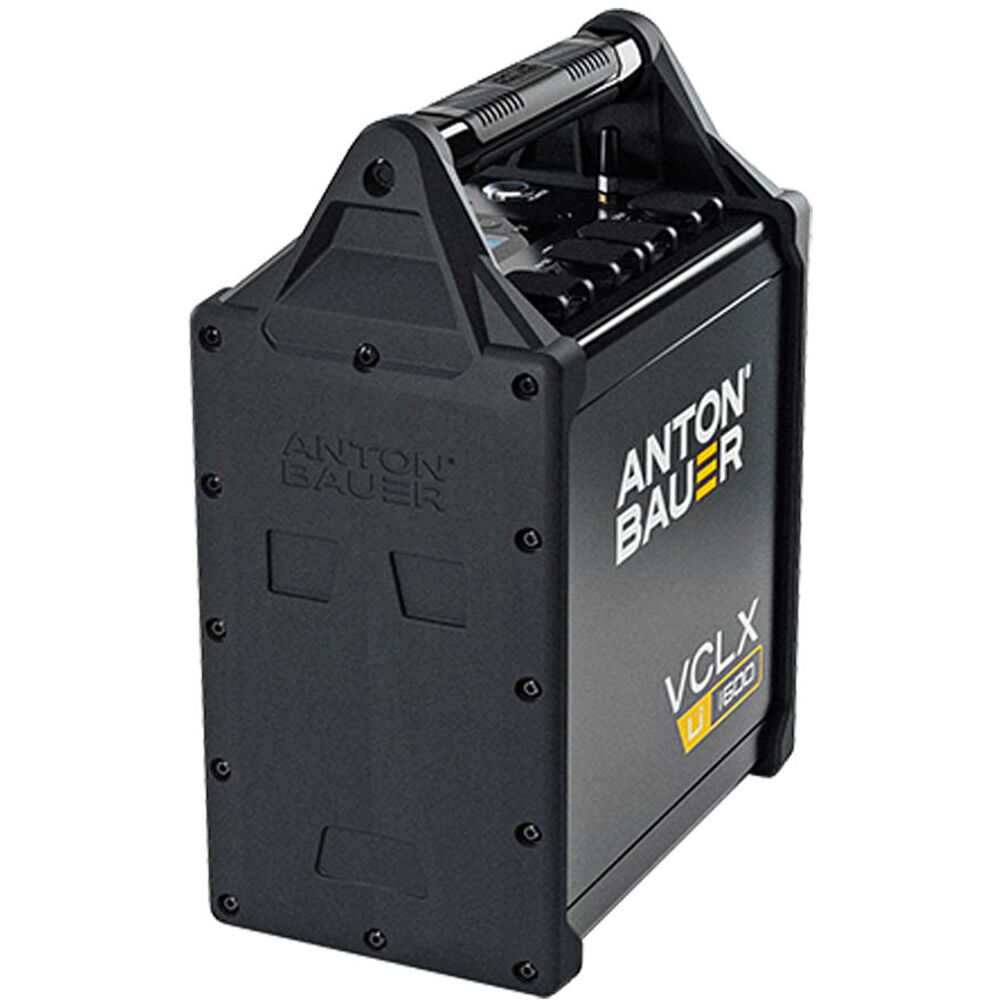

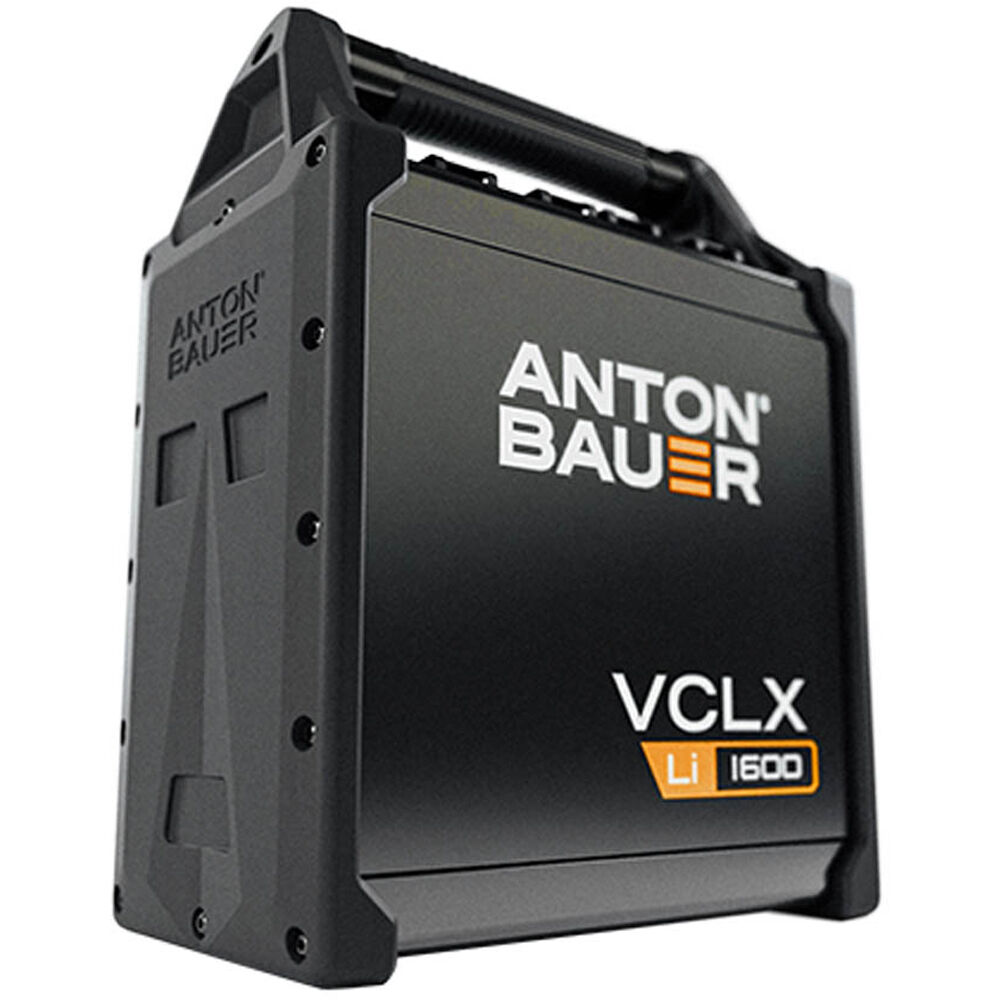

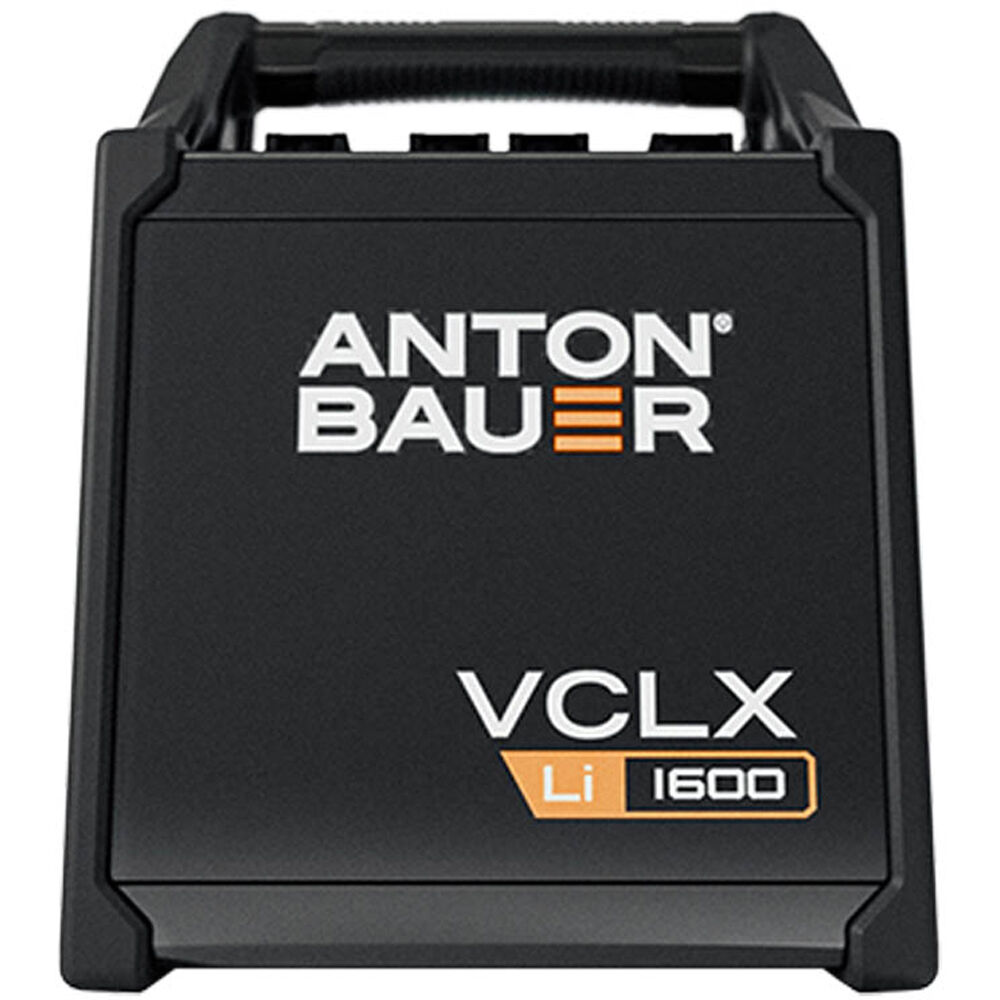

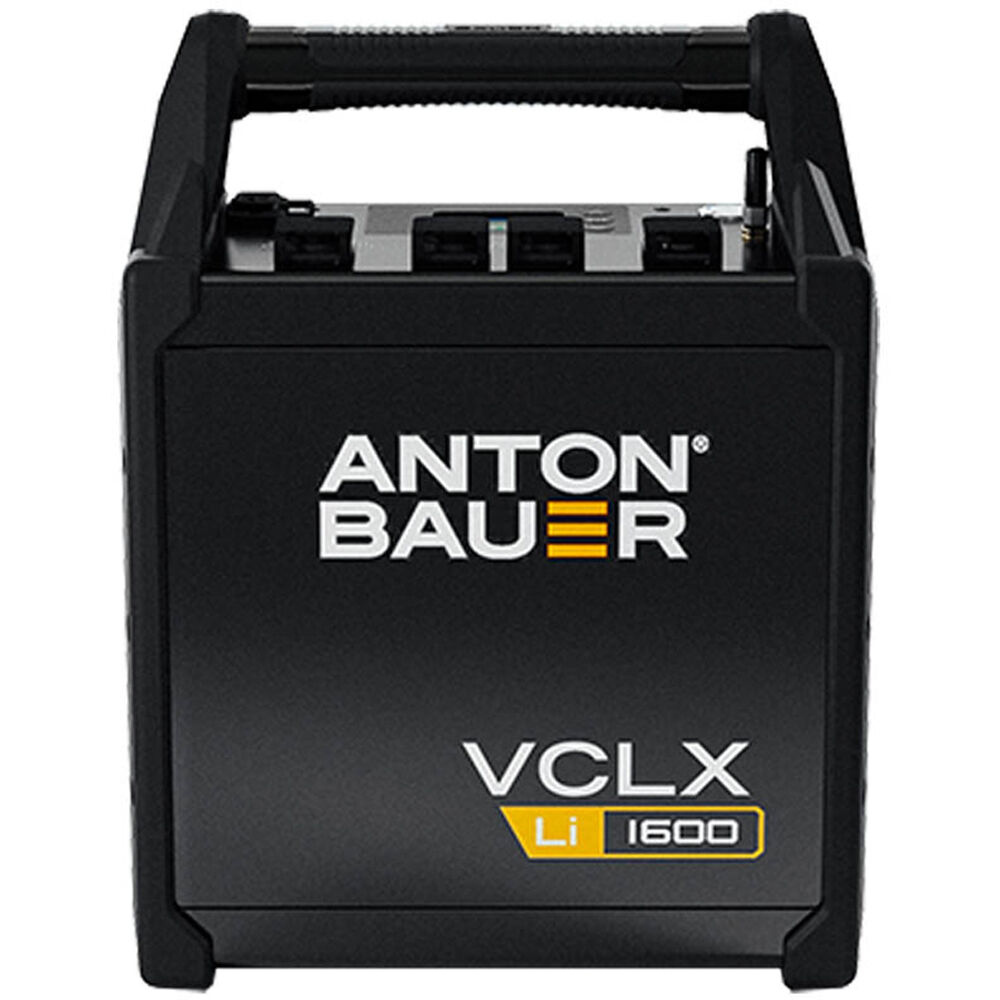

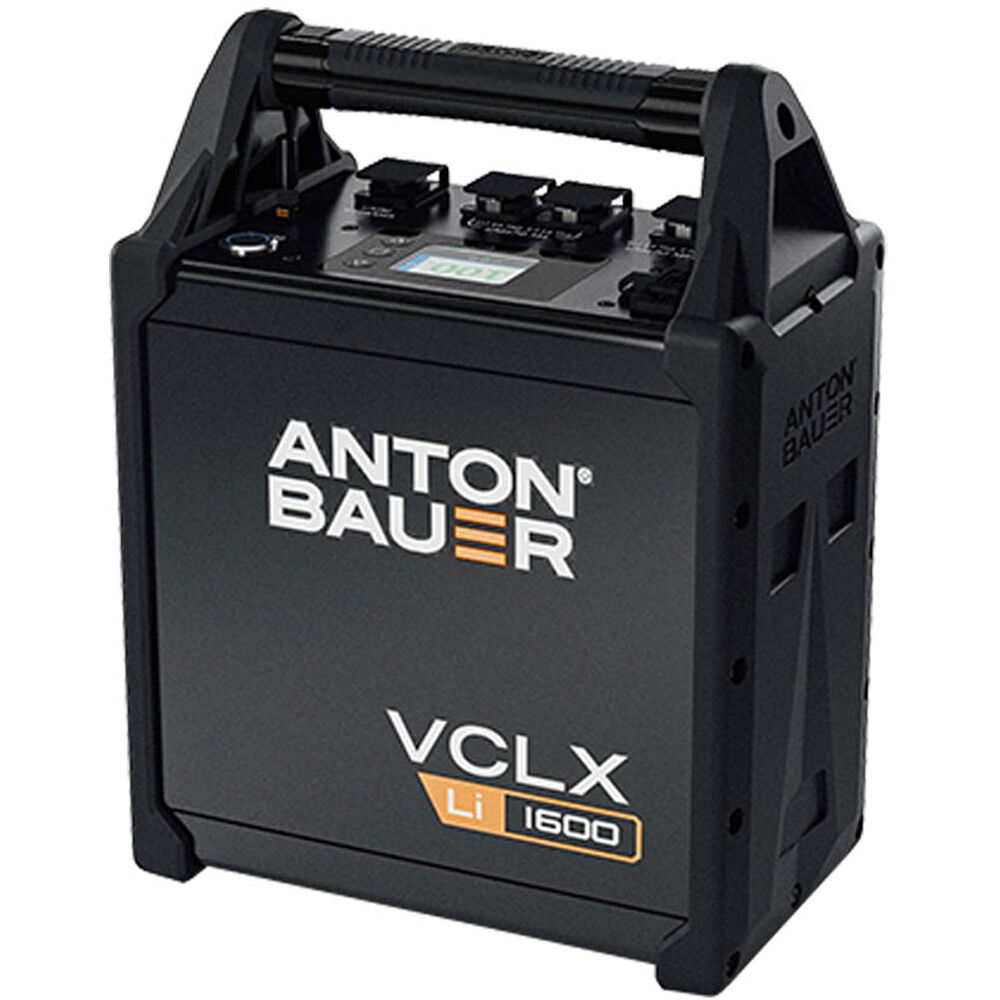

Anton/Bauer VCLX LI Overview

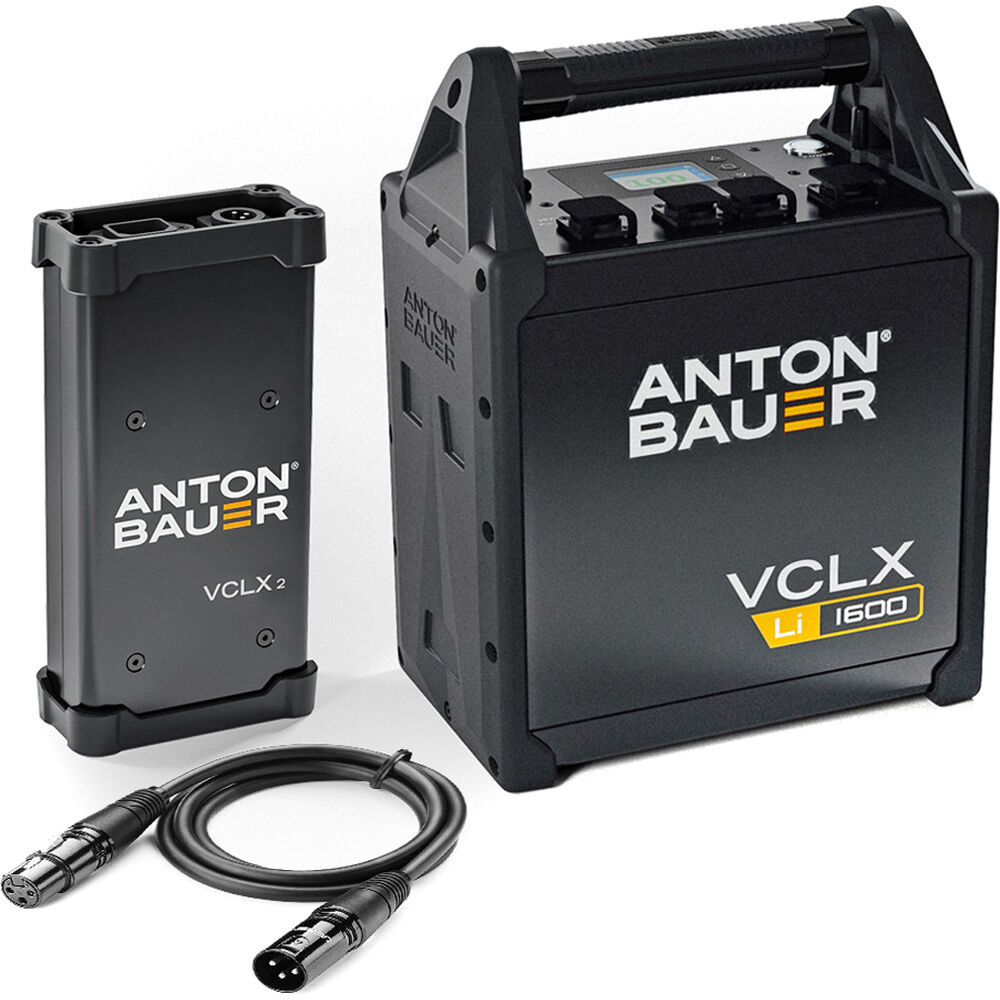

The VCLX LI Kit from Anton/Bauer includes a VCLX LI freestanding battery, a VCLX 2 charger, and a 48" charging cable. The battery features a 1642Wh capacity and a freestanding design with multiple I/O ports to power equipment on set. The charger attaches to the battery magnetically and recharges it in 8 hours. Use the 48" 3-pin XLR charging cable to connect the charger and the battery.
For long-lasting power, the Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery has dual 14.4V outputs and a single switchable 28/48V output, providing a single solution that can handle a wide variety of camera needs. This 1642Wh lithium-ion battery provides dual simultaneous outputs and is ideal for high-current applications. Power is outputted via two 4-pin XLR connectors for 14.4V at 12A and one 3-pin XLR connector for selectable 28 or 48V at 16A.

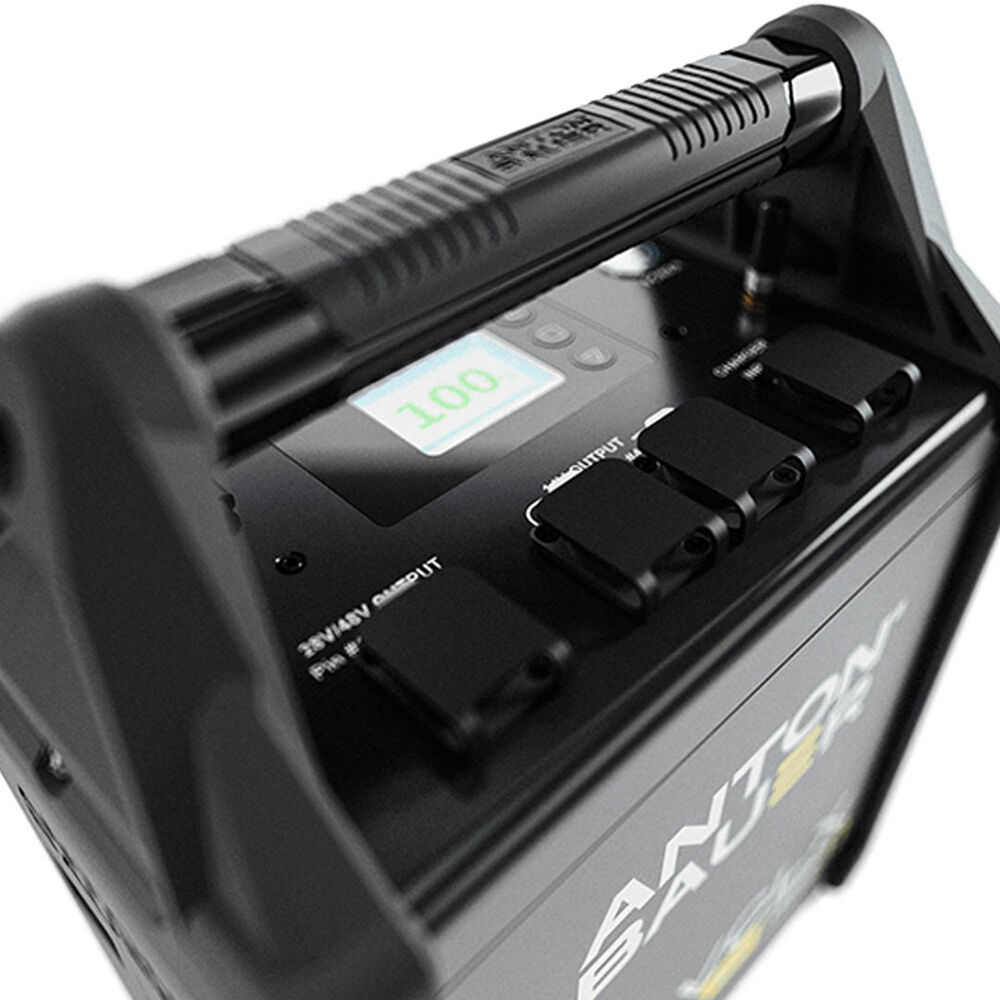

A USB-A port outputs 5V to charge peripheral accessories on set. A 2.4" LCD screen offers real-time monitoring, smart electronic fuses, and integrated Wi-Fi for easy data management using the Anton/Bauer Fleet Management software. The battery is IP65 rated to withstand the elements for maximum durability on set. Once depleted, the battery recharges with the separately available VCLX 2 charger in eight hours.
The Anton Bauer VCLX 2 Charger features a slim and portable design and allows you to charge your Anton Bauer VCLX NM2 battery. It mounts magnetically onto the battery for a slim package, and it charges your battery in approximately five hours using an advanced charging algorithm that provides the fastest possible charge.
While the charger includes a US IEC power cable, it supports 90 to 240 VAC input power, so you can power it throughout the world using an optional IEC power cable of your choice. A built-in 3-pin XLR connector allows you to charge your battery using an optional 3-pin XLR cable.
Made tough to stand up to the rigors of the production day while handling the extremes of temperature, the 48" Anton/Bauer XLR Charging Cable for VCLX 2 Charger is made specifically to link your VCLX NM2 battery to the charger. Featuring one male and one female 3-pin XLR connector, and 14 AWG wire gauge cable, you can safely charge your battery with this cable.
Items Included
- Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
- Limited 2-Year Manufacturer Warranty
- Anton/Bauer VCLX 2 Charger for VCLX NM2 Battery
- IEC US Power Cord
- Limited 2-Year Manufacturer Warranty
- Anton/Bauer XLR Charging Cable for VCLX 2 Charger (48")
- Limited 2-Year Manufacturer Warranty
Additional Resources
Anton/Bauer VCLX LI Specs
| Power I/O |
2 x 4-Pin XLR
1 x 3-Pin XLR 1 x USB-A |
| Display |
2.4" LCD
|
| IP Rating |
IP65
|
| Battery Chemistry |
Lithium-Ion
|
| Battery Capacity |
1642 Wh
|
| Output Voltage |
14.4 VDC
28 VDC 48 VDC |
| Charging Power |
850 W(48 VDC / 16 A)
|
| Recharge Time |
8 Hours
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Charging Temperature |
23 to 95°F / -5 to 35°C
|
| Discharging Temperature |
32 to 122°F / 0 to 50°C
|
| Dimensions |
12.99 x 10.04 x 6.02" / 32.99 x 25.5 x 15.29 cm
|
| Weight |
25.49 lb / 11.56 kg
|
| Package Weight |
31.06 lb
|
| Box Dimensions (LxWxH) |
18.1 x 12.3 x 8.1"
|
Anton/Bauer VCLX LI Specs
| Charger Compatibility |
Anton/Bauer CINE VCLX NM2 Power Station
|
| Charger Power Source |
AC Power (Cable Included)
|
| Charger Power I/O |
1x IEC Female Input
� 90 to 240 VAC, 50 / 60 Hz 1x XLR 3-Pin Male Output |
| Charger Included Adapter / Cable |
1x USA Type-A/B Plug to IEC Male Cable
|
| Charger Compatibility |
Anton/Bauer CINE VCLX NM2 Power Station
|
| Charger Power Source |
AC Power (Cable Included)
|
| Charger Power I/O |
1x IEC Female Input
� 90 to 240 VAC, 50 / 60 Hz 1x XLR 3-Pin Male Output |
| Charger Included Adapter / Cable |
1x USA Type-A/B Plug to IEC Male Cable
|
| Recharge Time |
5 Hour
|
| Indicator |
No
|
| Features |
Diagnostics Function
|
| Dimensions |
9.4 x 4.9 x 2.5" / 24 x 12.4 x 6.3 cm
|
| Weight |
3 lb / 1.36 kg
|
| Operating Conditions |
-4 to 140°F / -20 to 60°C
|
| Package Weight |
4.35 lb
|
| Box Dimensions (LxWxH) |
14.5 x 8.75 x 3"
|
Anton/Bauer VCLX LI Specs
| Compatibility |
Anton/Bauer VCLX NM2
|
| Connector 1 |
1x 3-Pin XLR Male
|
| Connector 2 |
1x 3-Pin XLR Female
|
| Operating Temperature |
-4 to 140°F / -20 to 60°C
|
| Color |
Black
|
| Material of Construction |
14 AWG Cable
|
| Cable Length |
11.8" / 30 cm
|
| Package Weight |
0.435 lb
|
| Box Dimensions (LxWxH) |
9.35 x 5.25 x 1.95"
|
