- 24 x NEMA 5-20R Outlets
- 0U Rackmount Form Factor
- NEMA L5-30P Plug
- Input: 100 & 120 VAC
- Output: 120 VAC
- Load Capacity: 2880 VAC
- Vertical Mounting
- 10' Power Cord

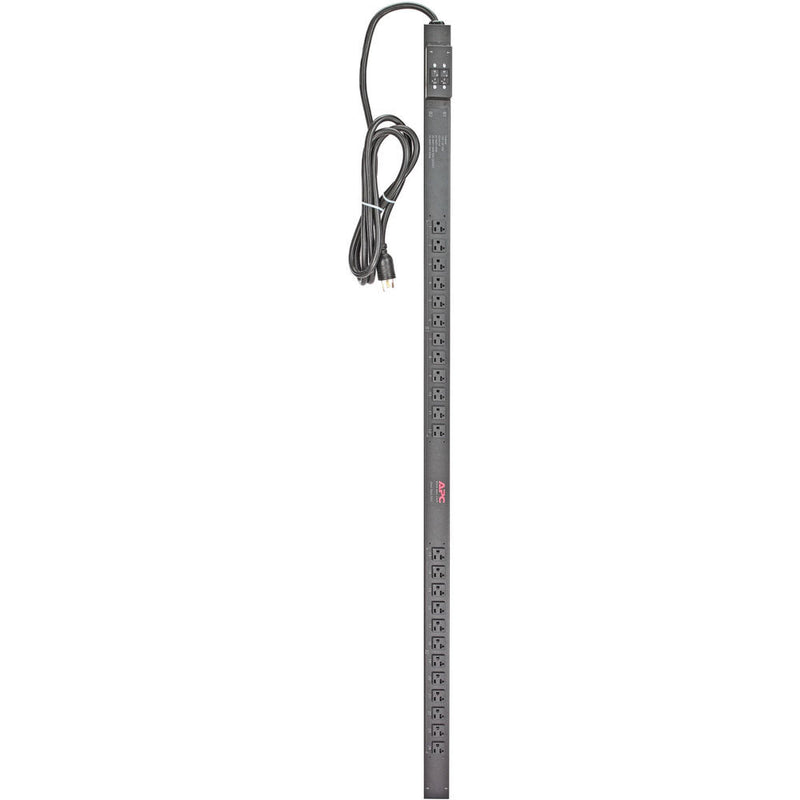

The AP7532 Basic Rack Power Distribution Unit from APC is a power strip designed for use in rackmount environments. It features a 0U rackmount form factor and 24 x NEMA 5-20R outlets, drawing its power via its NEMA L5-30P plug. It is designed to be installed vertically inside the rack.
This PDU operates using a 100 & 120 VAC input, a 120 VAC output, and has a load capacity of 2880 VAC. Its operational frequency is 50/60 Hz. A 10' power cord provides power to the PDU.
AP7532 Features
- Resettable Circuit Breakers
- Helps enable a quick recovery from overload events
- Toolless Rack Mounting Capabilities
- Server cases do not require additional tools to mount into NetShelter Enclosures, which helps users to quickly and easily mount units in the rear of the enclosure
- Vertical Mounting Capabilities
- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures
Basic Rack PDU Features & Benefits
- Rack Mountable
- This model employs a vertical mount and puts power where it is needed most - in the racks near the equipment
- Single-Input Power Source
- Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections
- Product Distribution
- Anguilla, Antigua And Barbuda, Argentina, Aruba, Bahamas, Barbados, Belize, Bermuda, Bolivia, Brazil, Canada, Chile, Colombia, Costa Rica, Cuba, Dominica, Dominican Republic, Ecuador, El Salvador, Falkland Islands (Malvinas), Grenada, Guadeloupe, Guatemala, Guyana, French Guiana, Haiti, Honduras, Jamaica, Madagascar, Martinique, Mauritius, Mayotte, Mexico, Netherlands Antilles, Nicaragua, Panama, Paraguay, Peru, Puerto Rico, Reunion, Saint Kitts And Nevis, Saint Lucia, Saint Vincent And The Grenadines, Trinidad And Tobago, Turks And Caicos Islands, United States, Uruguay, Venezuela, Virgin Islands (United States)
UPC: 731304225522
In the Box
APC AP7532 Basic Rack Power Distribution Unit
| Output |
| Nominal Output Voltage | 120 VAC |
| Maximum Total Current Draw per Phase | 24 A |
| Output Connections | 24 x NEMA 5-20R |
| Overload Protection | Yes |
| Input |
| Nominal Input Voltage | 100 & 120 VAC |
| Input Frequency | 50/60 Hz |
| Regulatory Derated Input Current | 24 A |
| Input Connections | NEMA L5-30P |
| Cord Length | 10.01' / 3.05 m |
| Number of Power Cords | 1 |
| Maximum Input Current per phase | 30 A |
| Load Capacity | 2880 VAC |
| Environmental |
| Operating Environment | 32 to 113�F / 0 to 45�C |
| Operating Relative Humidity | 0 - 95% |
| Operating Elevation | 0.0 - 9,842.5' / 0.0 - 3,000.0 m |
| Storage Temperature | -13 to 149�F / -25 to 65�C |
| Storage Relative Humidity | 0 - 95% |
| Storage Elevation | 0.0 - 49,212.6' / 0.0 - 15,000.0 m |
| Conformance |
| Regulatory Approvals | cUL Listed, CSA C22.2 No. 60950-1-03, UL 60950-1, UL Listed |
| RoHS | Compliant |
| Physical |
| Dimensions | 63.7 x 2.2 x 1.7" / 1,619.0 x 56.0 x 44.0 mm |
| Weight | 12.28 lb / 5.57 kg |
| Packaging Info |
| Package Weight | 17.2 lb |
| Box Dimensions (LxWxH) | 84.0 x 7.0 x 5.0" |
