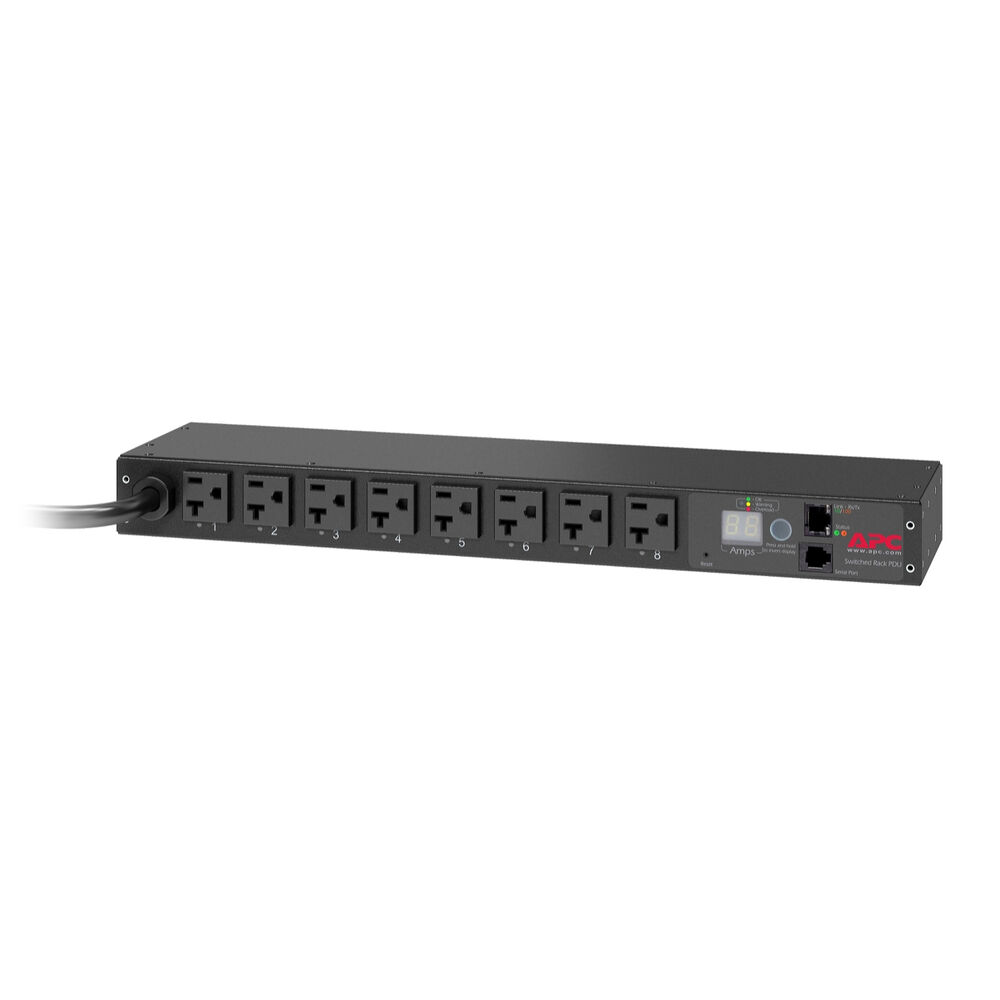

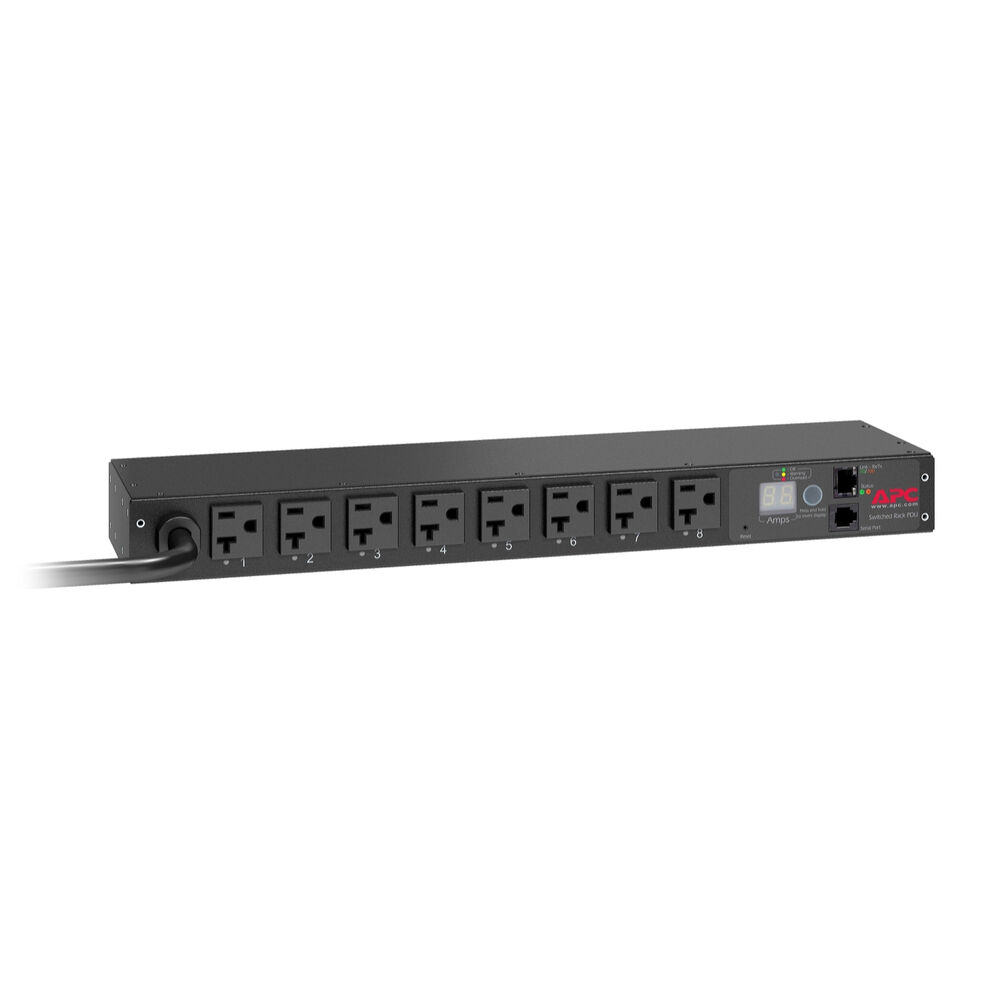

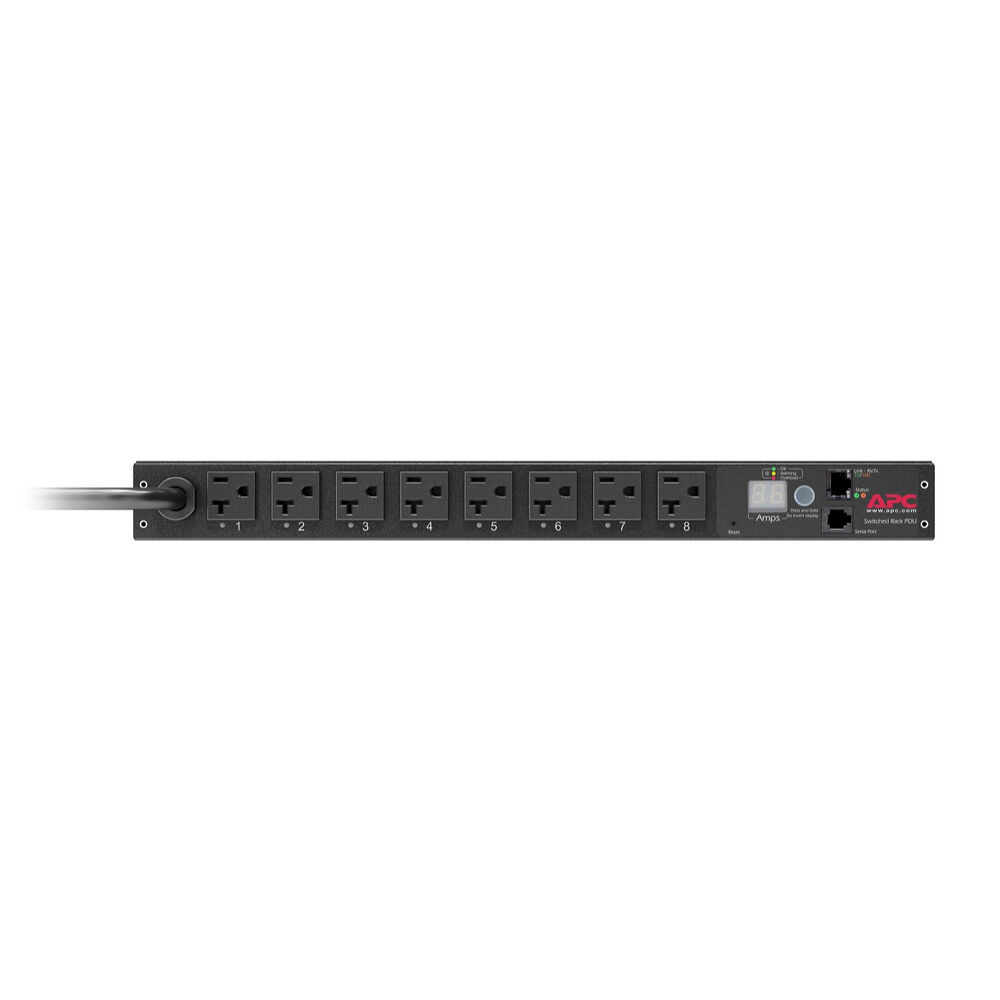

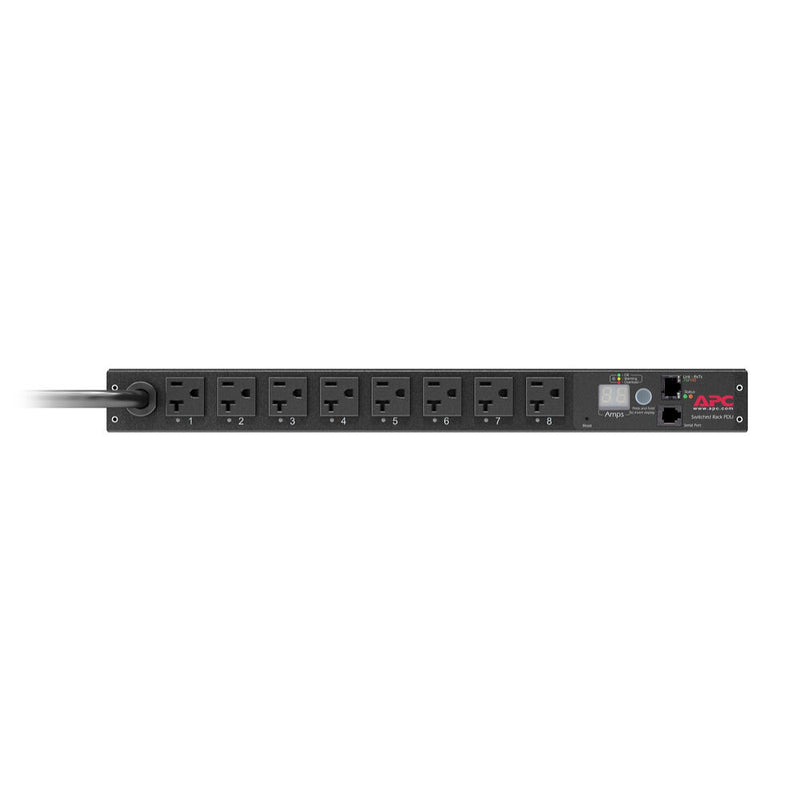

APC AP7901B 8-Outlet Switched 1 RU Rack PDU (20A, 120V)

8 x NEMA 5-20R Outlets

1 x NEMA L5-20P Input Connection

Base-T Ethernet & RJ12 Serial Interface

1900VA Load Capacity

Take advantage of outlet-level control with the AP7901B 8-Outlet Switched 1 RU Rack PDU (20A, 120V) from APC . Sporting eight NEMA 5-20R outlets, this switched power distribution unit uses a NEMA L5-20P plug. Base-T Ethernet and an RJ12 serial connection allow you to remotely monitor power use and control the on/off status of individual outlets. Visual and network alarms can be user-defined, ensuring circuits don't become overloaded. Featuring a 1900VA load capacity, this PDU can handle a maximum power input of 20A at 120V. Thanks to a 1 RU form factor, the APC AP7901B can be installed in server racks and comes with a 12' power cord.

Remote Management Capabilities Network management interfaces provide standards-based management via web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. Integrates with StruxureWare Data Center Expert An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video, and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network Flash Upgradeable Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. Local Current Monitoring Display The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. Alarm Thresholds Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. Input and Output Connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allows users to adapt to varying power requirements. Single Input Power Source Supply power from one branch whip to multiple pieces of rackmount equipment. Saves time and money during installation by using one branch whip and standard connections. Rack-Mountable Includes horizontal mounting hardware. UPC: 731304331575

Wall Plug Type	NEMA L5-20P
Outlets	8 x NEMA 5-20R
USB Ports	None
Ethernet	1
Coaxial	None
RJ11	None

AC Input Power	120 VAC, 60 Hz at 20 A
Load Capacity	1900 W
Rated Current	20 A
Circuit Breaker	No

Certifications	CE, RoHS, VDE, as per Manufacturer
Operating Temperature	32 to 113°F / 0 to 45°C
Operating Humidity	0 to 95%
Storage Temperature	-13 to 149°F / -25 to 65°C

Cable Length	12' / 3.66 m
Cable Management	None
Dimensions (L x W x H)	4.3 x 17.5 x 1.7" / 109.2 x 444.5 x 43.2 mm
Weight	5 lb / 2.27 kg
