Description
- 2700 Watt / 3000 VA Output Power
- 230 V Nominal Output Voltage
- Line Interactive Topology
- Sine Wave Output
- 208 V Nominal Input Voltage
- 4 x IEC 320 C13 Output Connections
- 2 x IEC 320 C19 Output Connections
- 2 x NEMA L6-20R Connections
- 2 x IEC Jumpers

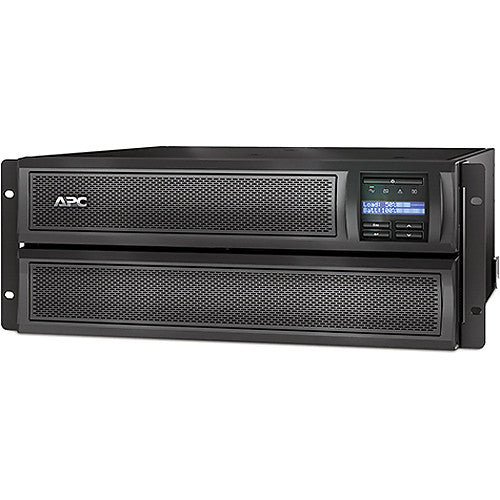

The Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD from APC features a 2700 Watt / 3000 VA maximum configurable output power capacity and a 230 V nominal output voltage ensuring you can power a variety of devices such as servers, PCs, and more. This smart uninterrupted power supply comes equipped with four IEC 320 C13, two IEC 320 C19, two NEMA L6-20R outlets and two IEC jumpers. Along with output power capabilities of the UPS, you also benefit from a 208 V nominal input voltage along with an input voltage range of 141 to 255 V and 160 to 280 V. The included user replaceable sealed lead-acid battery ensures reliable backup power with a 3 hour recharge time.
Managing this Smart-UPS has also been simplified as it comes with an integrated LCD display along with the ability to remotely manage the UPS over a network connection. Accompanying the integrated LCD display are LED status indicators to provide an additional visual element to display the power status of the unit.
- Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic Restart of Loads after UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Network Manageable
- Provides remote management of the UPS over the network.
- Audible Alarms
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- LED Status Indicators
- Quickly understand unit and power status with visual indicators.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Hot-swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Resettable Circuit Breakers
- Enables a quick recovery from overload events.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
UPC: 731304292630

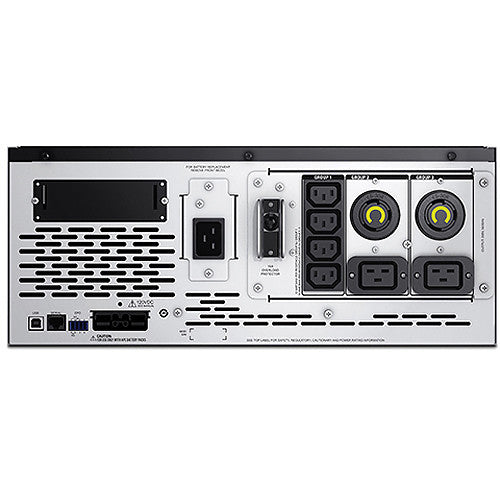

| Output | Output Power Capacity: 2700 Watts / 3000 VA Max Configurable Power: 2700 Watts / 3000 VA Nominal Output Voltage: 230V Output Voltage Distortion: Less than 5% Output Frequency (sync to mains): 50-60 Hz ± 3 Hz Other Output Voltages: 208, 220, 240 Crest Factor 3:1 Topology: Line Interactive Waveform Type: Sine wave Output Connections: 4 x IEC 320 C13, 2 x IEC 320 C19, 2 x IEC Jumpers, 2 x NEMA L6-20R |
| Input | Nominal Input Voltage: 208 V Input Frequency: 50-60 Hz ± 3 Hz Input Connections: IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A Cord Length: 6 feet / 1.83 meters Input voltage range for main operations: 141-255, 160-280 V Other Input Voltages: 220, 230, 240 Transfer Time: 2-4 ms |
| Batteries & Runtime | Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leak-proof Typical Recharge Time: 3 hours Replacement Battery: APCRBC117 RBC Quality: 1 |
| Communications & Management | Interface Port(s): Smart-Slot Available SmartSlot Interface Quantity: 1 Control panel: LED status Display with On Line: On Battery: Replace Battery and Overload indicators, Multi- function LCD status and control console Audible Alarm Alarm when on battery: Distinctive Low battery alarm: Configurable delays Emergency Power Off (EPO): Yes |
| Surge Protection and Filtering | Surge energy rating: 645 Joules Filtering: Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time Meets UL 1449 |
| Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C Operating Humidity: 0 to 95% Operating Elevation: 0 to 10,000 ft / 0 to 3,000 m Storage Temperature: 5 to 113°F / -15 to 45°C Storage Humidity: 0 to 95% Storage Elevation: 0 to 50,000 ft / 0 to 15,000 m Audible noise at 3 ft / 1 m from surface 55.00 dBA of unit Online Thermal Dissipation: 184.00 BTU/hr |
| Conformance | Regulatory Approvals: C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE RoHS compliant REACH: Contains no SVHCs |
| Dimensions (HxWxD) | 17.00 x 7.00 x 19.00" / 43.2 x 17.8 x 48.3 cm |
| Weight | 85.00 lb / 38.64 kg |
| Packaging Info | |
|---|---|
| Package Weight | 107.5 lb |
| Box Dimensions (LxWxH) | 25.0 x 23.0 x 13.0" |
In the Box
APC Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD (208V)
- CD with Software
- Documentation CD
- Rack Mounting Brackets
- Smart UPS Signaling RS-232 Cable
- USB Cable
- Limited 2-Year Manufacturer Warranty for Battery
- Limited 3-Year Manufacturer Warranty
