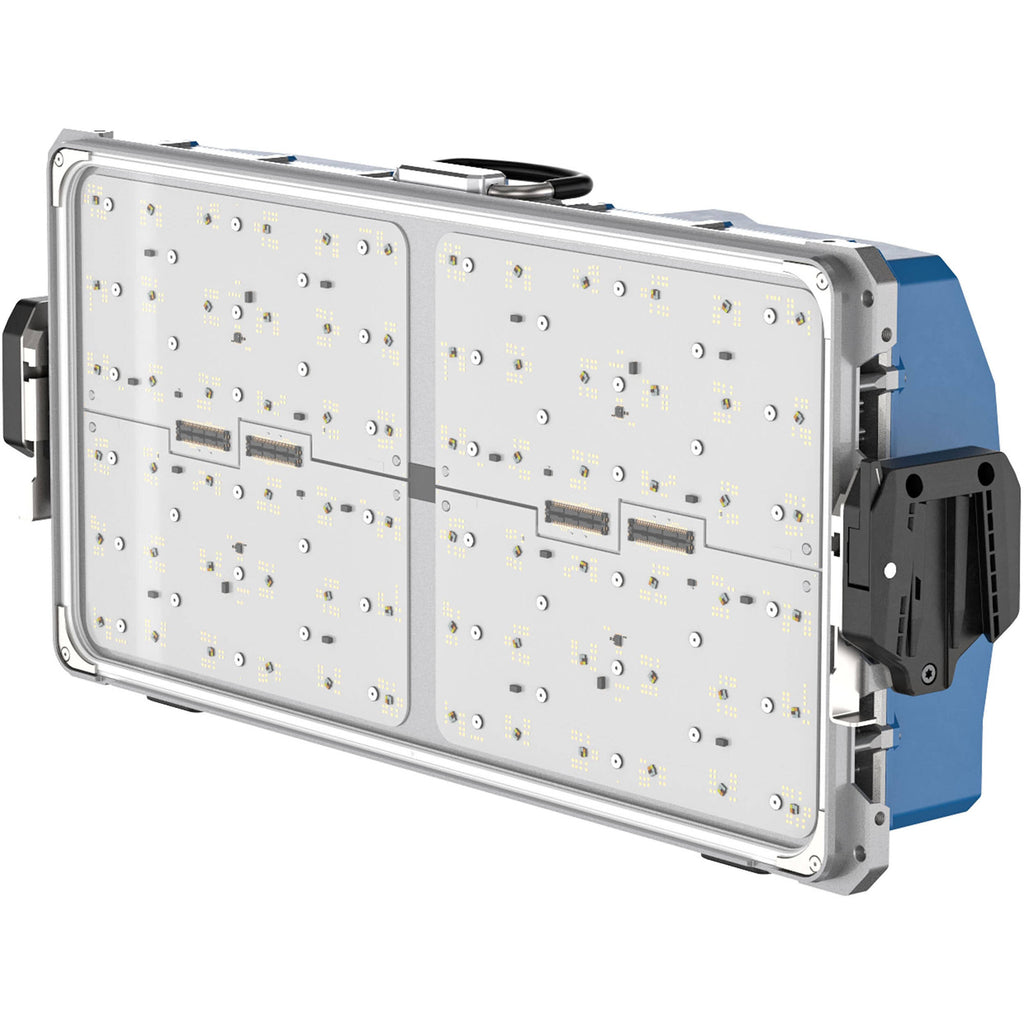

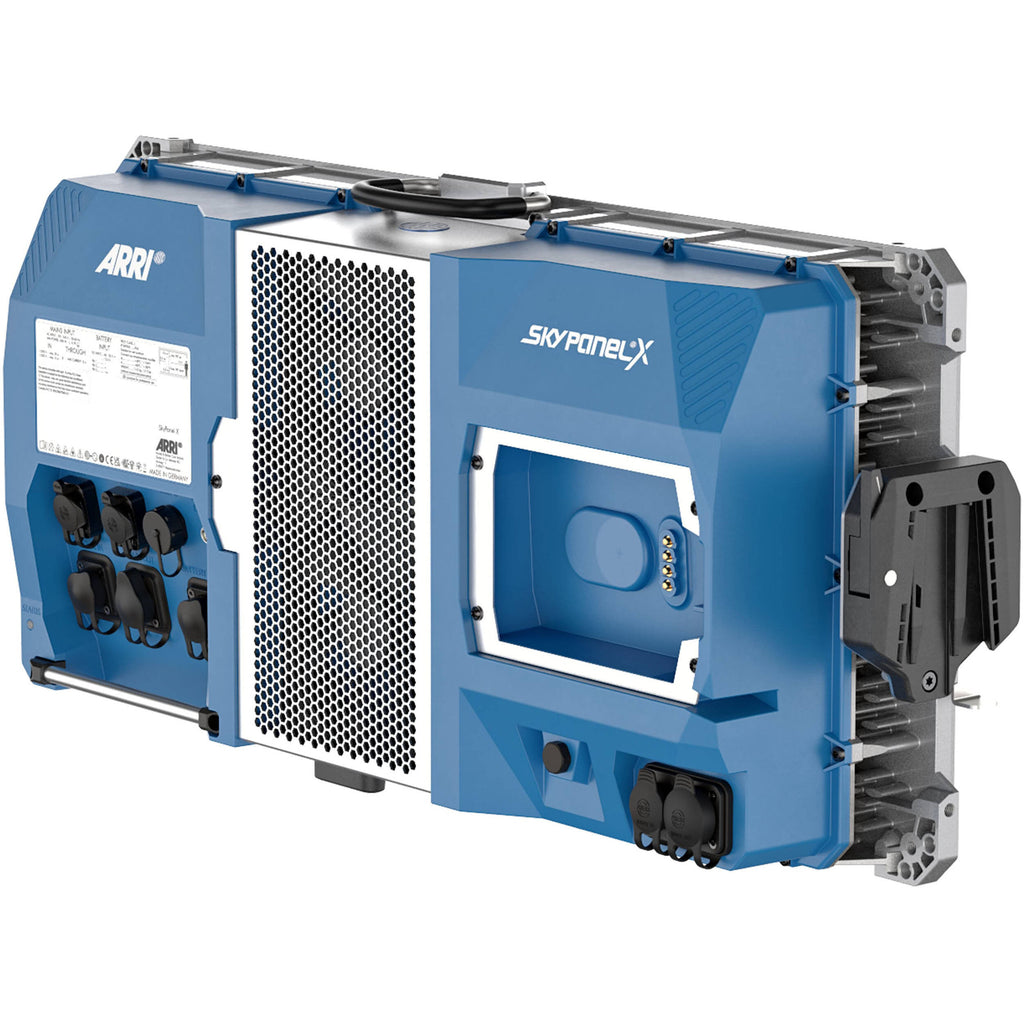

ARRI SkyPanel X21 Modular LED Panel

Add a powerful, all-weather LED panel to your production with the SkyPanel X21 Modular LED Panel from ARRI. Based on the S60 SkyPanel, this modular LED panel provides hard and soft lighting options with new dimming, color science, and output quality that enhances medium to long throws with up to 20x greater output than other soft lights. The modular design supports native soft light using the included dome and hard light using open-face lighting and the optional HyPer Optic lens, and multiple panels can be used together to work as a single fixture in 2x1 (X21), 2x2 (X22), and 2x3 (X23) configurations.

This 2x1 panel measures 29.1 x 13.3" and features a full-spectrum RGBACL color engine, 1500-20,000K CCT range, accurate color rendition, numerous wired and wireless control options, and it sports an IP66 rating for performance in all weather conditions. It also features a built-in power supply unit for portability, and power can be daisy-chained with other SkyPanel X units to create expanded lighting grids. The SkyPanel X is also compatible with all S60 accessories using an optional adapter.

The SkyPanel X is your all-weather lighting solution. Engineered and IP66 certified for resilience against rain, storms, and cold water pressure washers, these lights embody innovation, reliability, and durability.

• High-lumen output
• Flicker-free low-end dimming from 100 to 0% for close-ups
• Adaptable for traditional SkyPanel techniques and includes the new X21 Dome
• Create 8-pixel patterns for effects
• Efficient and simplified workflow for quick and easy setup

• The light outputs an optimal rounded beam with maximum punch and quality
• Create a long-throw fixture with the optional high-performance SkyPanel X HyPer Optic
• Higher output than a 2.5kW open-face HMI lamp when used in the X23 configuration
• Unique pixel looks
• Ideal on a cherry picker, through windows, or bounced

• Upgrade your lighting setup easily with modular SkyPanel X units
• Get a reliable power supply for all lights via a single daisy-chained power cable
• Benefit from toolless frames with a quick-lock system
• Maximum control capabilities in only one DMX profile

Explore the multiple control options for SkyPanel X, including the robust all-weather control panel, ARRI's new LiCo App for Bluetooth control, LumenRadio's wireless integration, DMX-512A, RDM, Art-Net 4, sACN, LAN IP, CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BLE, and Native Bluetooth 5.0.

With LiOS3, many new software features away, such as one single DMX profile when used in X22 or X23 configurations, new DMX presets, and new ARRI ALEXA modes.

ARRI's SkyPanel X digital twin represents the forefront of digital innovation, offering precise virtual lighting simulations. ARRI's digital twin technology transforms cinematic lighting workflows from preproduction to postproduction.

Featuring 3D models, authentic characteristics, and intuitive interfaces, it equips filmmakers with advanced tools. Visualize, manage, and collaborate effortlessly, boosting efficiency, consistency, and creativity in film production.

The X21 can be used with soft light close to the talent in low-end, flicker-free dimming conditions while adjusting the X21's color science to the ALEV 3 and ALEV 4 sensors of ARRI ALEXA cameras with the ARRI ALEXA modes.

The SkyPanel X when paired with the HyPer Optic delivers a punchy light source, ideal through windows with diffusion. It offers an alternative to traditional point-source lights since you get the punch and rounded beam but with all the advantages of LED lights.

ARRI X21Specs

Item Type	1x COB LED Light Panel
Included Storage Case	No
Photometrics	5600K: 1543 fc / 16,602 Lux at 3.3' / 1 m  171 fc / 1839 Lux at 9.8' / 3 m 43 fc / 462 Lux at 19.6' / 6 m 15 fc / 161 Lux at 32.8' / 10 m *Standardized Measurement Supplied by the Manufacturer 3200K: 1458 fc / 15,688 Lux at 3.3' / 1 m  162 fc / 1743 Lux at 9.8' / 3 m 40 fc / 430 Lux at 19.6' / 6 m 15 fc / 161 Lux at 32.8' / 10 m *Standardized Measurement Supplied by the Manufacturer 5600K: 1263 fc / 13,589 Lux at 3.3' / 1 m (with Filter)  140 fc / 1506 Lux at 9.8' / 3 m (with Filter) 35 fc / 376 Lux at 19.6' / 6 m (with Filter) 13 fc / 139 Lux at 32.8' / 10 m (with Filter) *Standardized Measurement Supplied by the Manufacturer 3200K: 1198 fc / 12,890 Lux at 3.3' / 1 m (with Filter)  133 fc / 1431 Lux at 9.8' / 3 m (with Filter) 33 fc / 355 Lux at 19.6' / 6 m (with Filter) 12 fc / 129 Lux at 32.8' / 10 m (with Filter) *Standardized Measurement Supplied by the Manufacturer
Color Temperature	1500 to 20,000K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 99 TLCI 93
Dimming	Built-In Dimmer (Continuous)  � 0 to 100%
Front Accessory Mount	Proprietary
Wireless Remote Control Type	Art-Net Bluetooth 5.0 Wireless CRMX Wireless DMX (G3 / G4 / G4S / G5)
Power Source	AC Power (Cable Not Included) *Requires Power Supply/Controller (Included) Battery (Not Included)
Input Power	100 to 240 VAC, 50 / 60 Hz 48 VDC
Power Consumption	800 W
Fixture Mounting	1x 1.1" / 28 mm Unthreaded Hole (Via Yoke Mount) Proprietary

Item Type	1x COB LED Light Panel
Included Filters	Diffusion
Included Storage Case	No
Lumens	51,809 (at 5600K) 48,253 (at 3200K)
Photometrics	5600K: 1543 fc / 16,602 Lux at 3.3' / 1 m  171 fc / 1839 Lux at 9.8' / 3 m 43 fc / 462 Lux at 19.6' / 6 m 15 fc / 161 Lux at 32.8' / 10 m *Standardized Measurement Supplied by the Manufacturer 3200K: 1458 fc / 15,688 Lux at 3.3' / 1 m  162 fc / 1743 Lux at 9.8' / 3 m 40 fc / 430 Lux at 19.6' / 6 m 15 fc / 161 Lux at 32.8' / 10 m *Standardized Measurement Supplied by the Manufacturer 5600K: 1263 fc / 13,589 Lux at 3.3' / 1 m (with Filter)  140 fc / 1506 Lux at 9.8' / 3 m (with Filter) 35 fc / 376 Lux at 19.6' / 6 m (with Filter) 13 fc / 139 Lux at 32.8' / 10 m (with Filter) *Standardized Measurement Supplied by the Manufacturer 3200K: 1198 fc / 12,890 Lux at 3.3' / 1 m (with Filter)  133 fc / 1431 Lux at 9.8' / 3 m (with Filter) 33 fc / 355 Lux at 19.6' / 6 m (with Filter) 12 fc / 129 Lux at 32.8' / 10 m (with Filter) *Standardized Measurement Supplied by the Manufacturer
Color Temperature	1500 to 20,000K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 99 TLCI 93
Dimming	Built-In Dimmer (Continuous)  � 0 to 100%
Cooling System	No
Expected Lamp Life	50,000 Hours
Beam Angle	120° Unmodified 106° with Included Diffuser
Built-In Flash	No
Umbrella Mount	No
Front Accessory Mount	Proprietary

Wireless Remote Control Type	Art-Net Bluetooth 5.0 Wireless CRMX Wireless DMX (G3 / G4 / G4S / G5)
Mobile App Compatible	Yes: Android & iOS App Name: ARRI LiCo

Power Source	AC Power (Cable Not Included) *Requires Power Supply/Controller (Included) Battery (Not Included)
Inputs/Outputs	Light Fixture 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output 2x etherCON/RJ45 DMX/Network Input/Output 1x USB-C Remote/Service Input 1x XLR 3-Pin Battery Input (48 VDC) To Light Fixture: 1x powerCON TRUE1 TOP Power Input 1x Unspecified Remote Input
Input Power	100 to 240 VAC, 50 / 60 Hz 48 VDC
Inline Switch	No
Power Pass-Thru	Yes
Power Consumption	800 W

Fixture Mounting

1x 1.1" / 28 mm Unthreaded Hole (Via Yoke Mount) Proprietary

Environmental Resistance	Dust/Water-Resistant (IP66)
Operating Temperature	104°F / 40°C

Display	Yes
Certifications	CE, CB, ENEC, cNRTLus, FCC, UKCA, ICES, PSE, KC
Dimensions	29.1 x 13.3 x 6.1" / 73.8 x 33.9 x 15.4 cm (Fixture)
Weight	33.1 lb / 15 kg (Fixture) 39.7 lb / 18 kg (Overall Kit)

Package Weight	44.38 lb
Box Dimensions (LxWxH)	33.5 x 18.5 x 12"
