Description

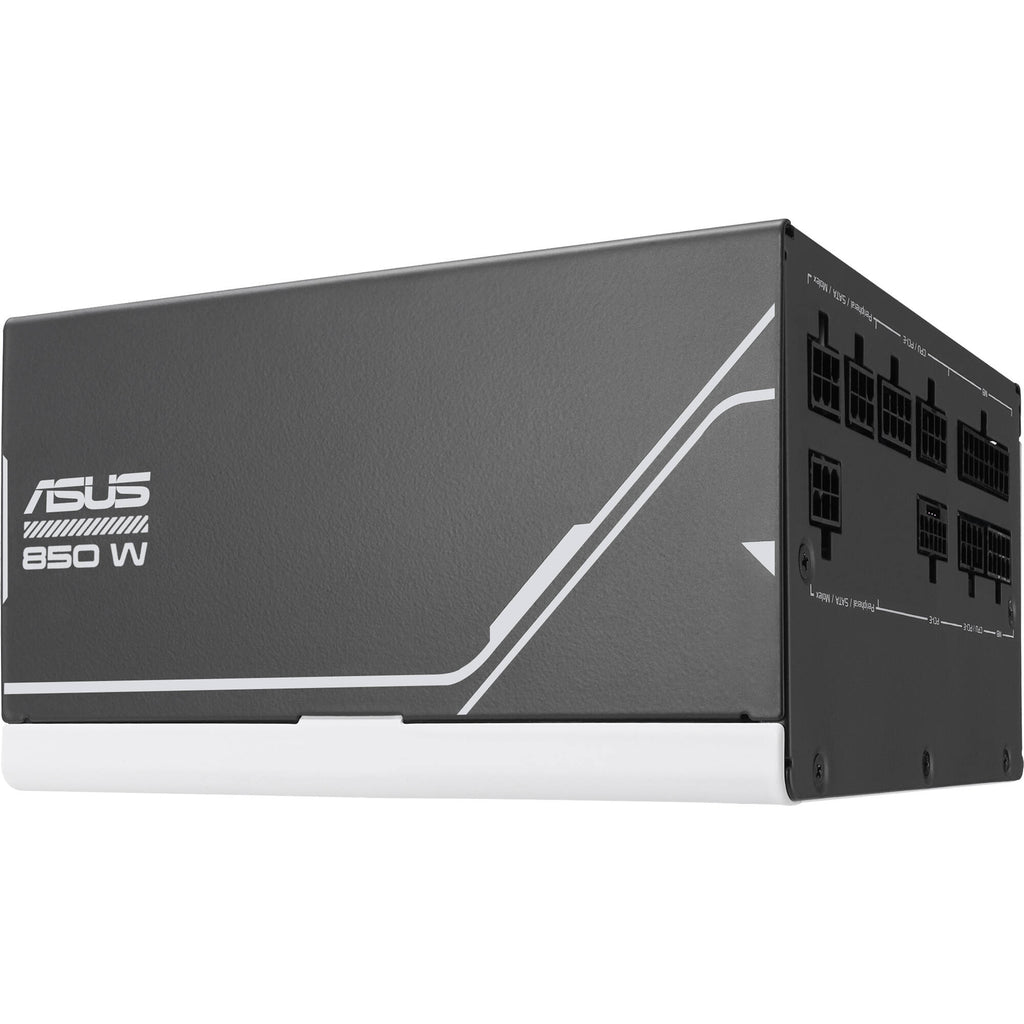

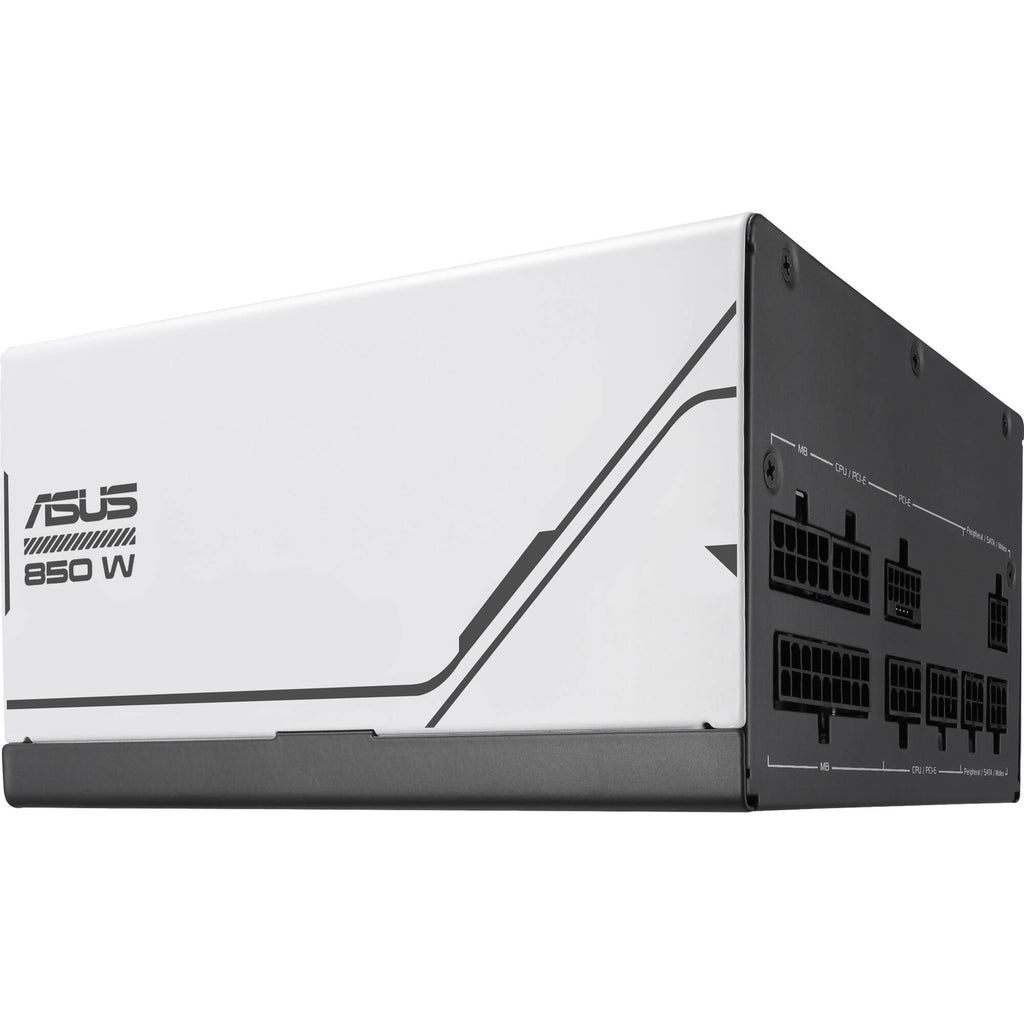

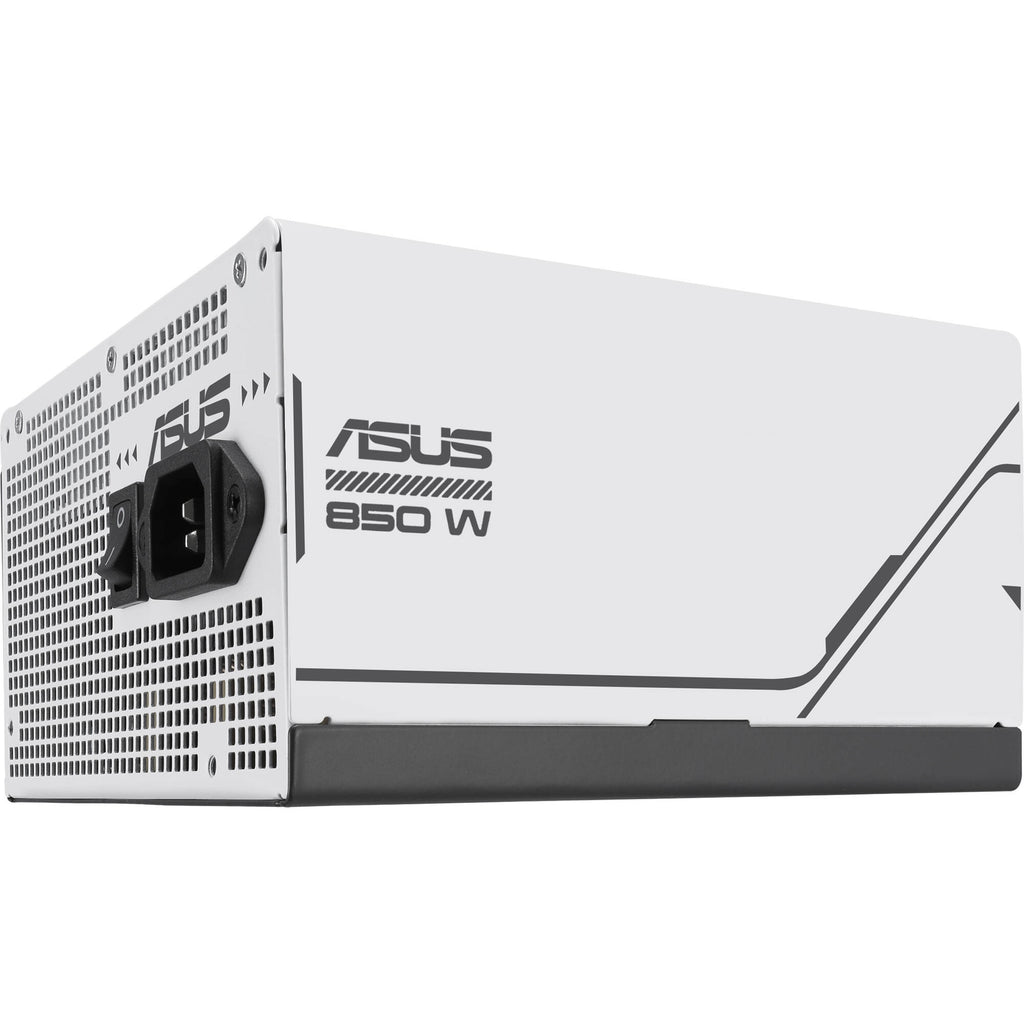

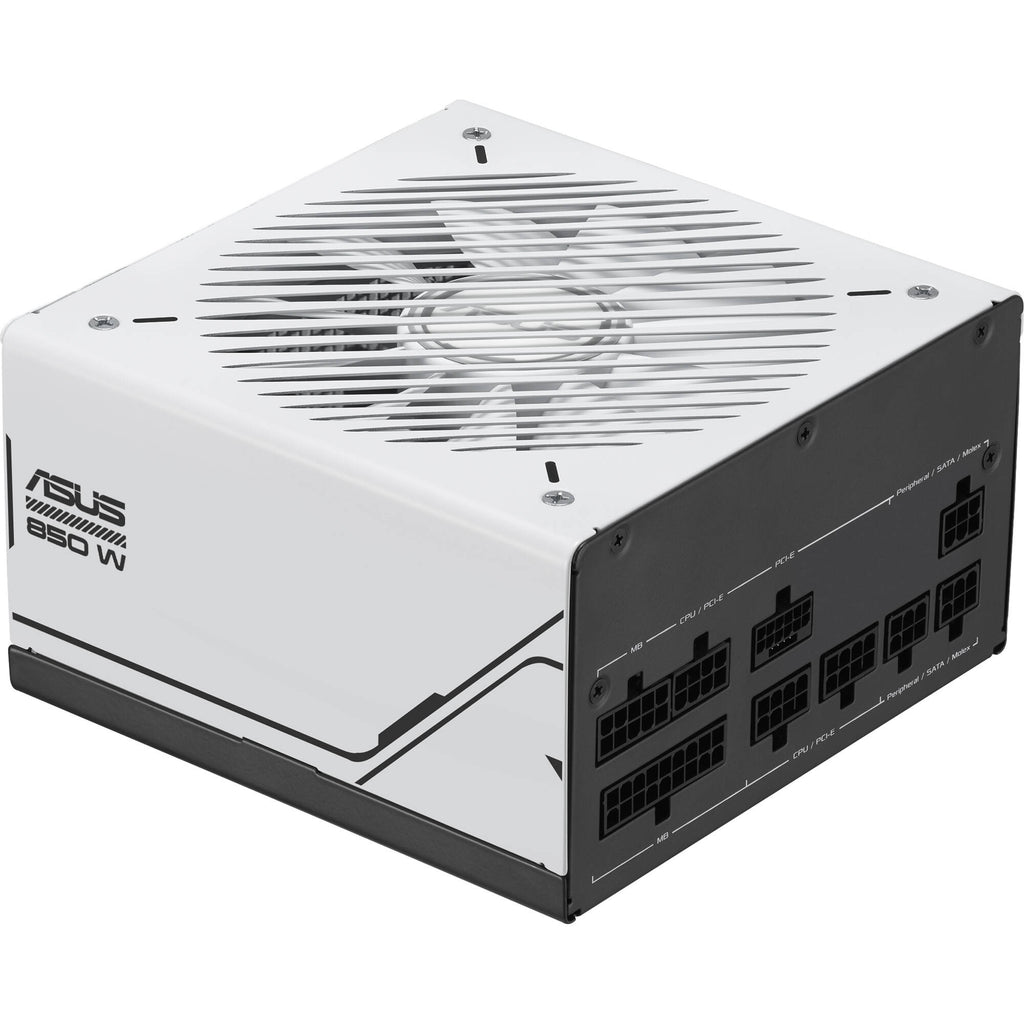

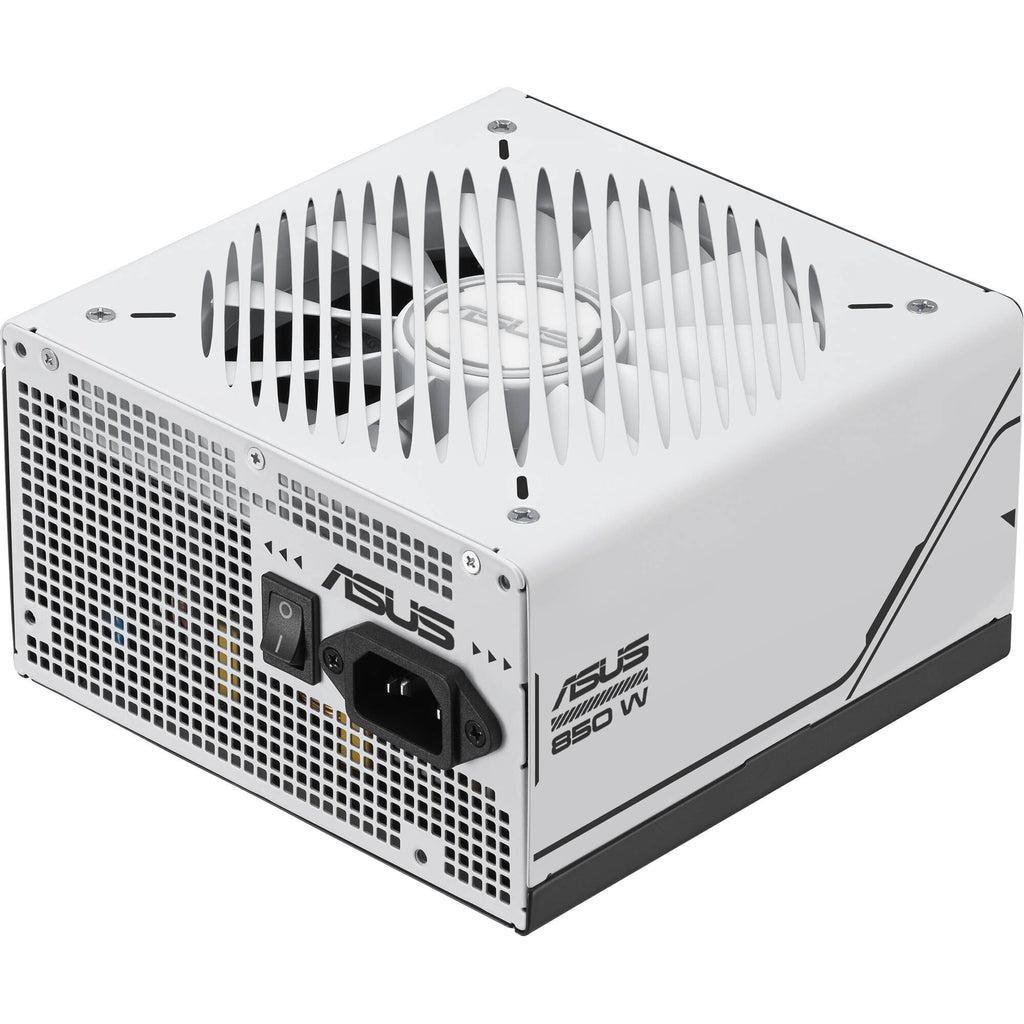

ASUS AP-850G Overview
Outfit your workstation with the power you need to run your applications and more with the ASUS Prime 850W 80 Plus Gold Modular Power Supply. Intended for productivity machines, this power supply gives you ample power for your motherboard's operations while also supporting most mid-range graphics cards.
Sporting a single 850W +12V rail, you can support a wide range of components such as your motherboard, graphics card, storage drives, and more. A modular design allows you to pick and choose which cables you need, which reduces clutter within the case and also promotes airflow. You get multiple PCIe, SATA, and peripheral connectors that deliver power to an assortment of components while a single 16-pin 12VHPWR connector is reserved for various NVIDIA graphics cards. Obtain high-efficiency with the 80 Plus Gold certification, offering up to 90% and 87% efficiency at half and full operating loads, respectively. Keeping your system cool is a 135mm internal fan which leverages a dual ball bearing setup to deliver an extended lifespan for long-lasting performance.
In the Box
- ASUS Prime 850W 80 Plus Gold Modular Power Supply
- Power Cable
- Motherboard Power Cable
- 2 x CPU Cable
- PCIe Gen 5 16-Pin 12HPWR Cable
- PCIE 16-Pin to 2 x 8-Pin Cable
- PCIe 1-to-1 Cable
- SATA 1-to-2 Cable
- SATA 1-to-3 Cable
- Peripheral 1-to-3 Cable
- Limited 8-Year Manufacturer Warranty
Additional Resources
ASUS AP-850GSpecs

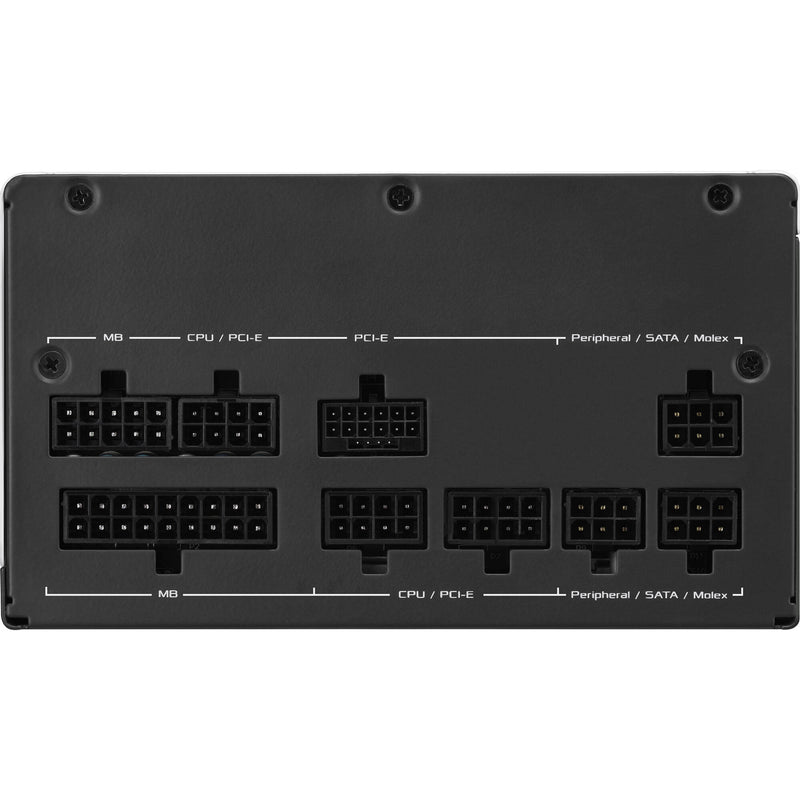

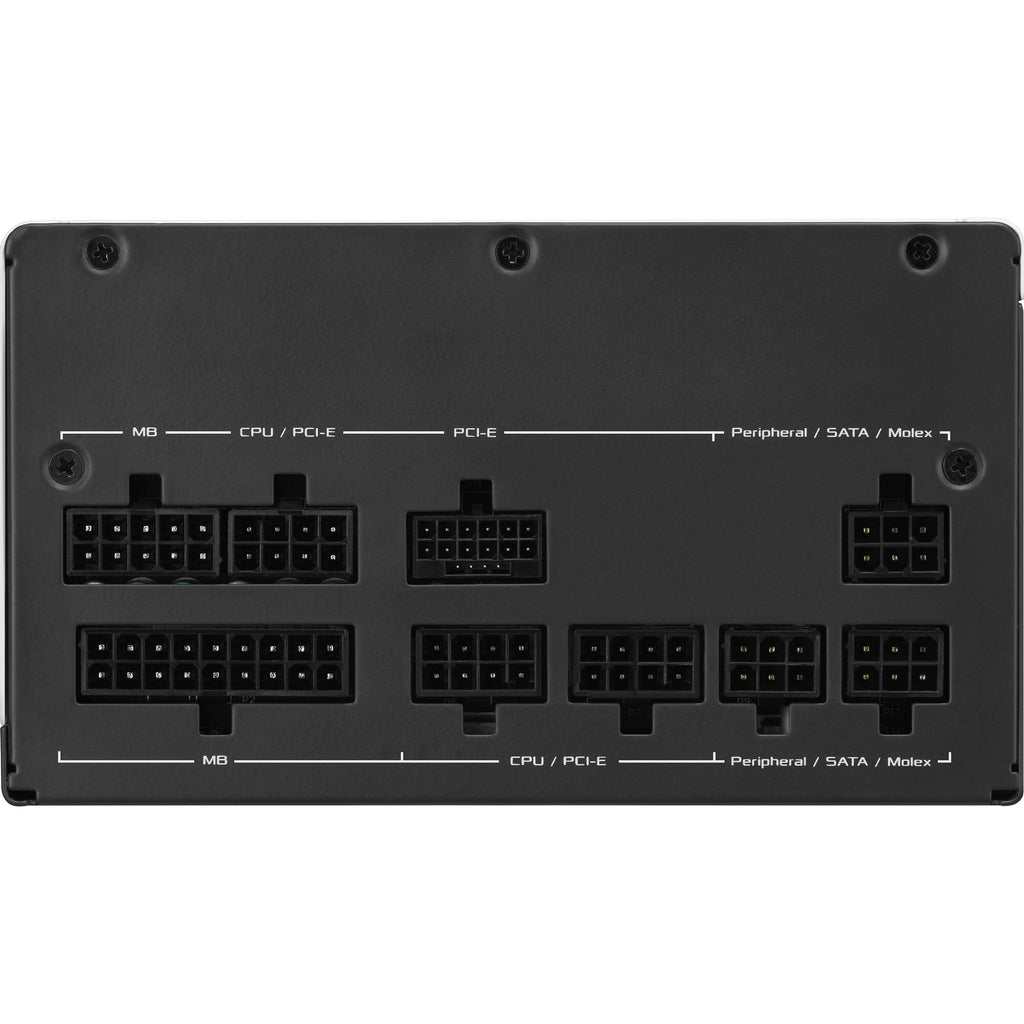

Total Connectors |
1x 20+4-Pin ATX Motherboard
2x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 3x 8-Pin PCIe 5x 15-Pin SATA 3x 6-Pin SATA / Peripheral |
Cable Design |
Modular
|
Total Wattage |
850 W
|
Number of +12 V Rails |
1
|
Efficiency Rating |
80 PLUS Gold
|
Form Factor |
ATX
|
Total Connectors |
1x 20+4-Pin ATX Motherboard
2x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 3x 8-Pin PCIe 5x 15-Pin SATA 3x 6-Pin SATA / Peripheral |
Cable Design |
Modular
|
PCIe Connector Distances |
26.6" / 675 mm
|
SATA Connector Distances |
15.7" / 400 mm
20.5" / 520 mm 25.2" / 640 mm |
Peripheral Connector Distances |
15.7" / 400 mm
21.7" / 550 mm 27.6" / 700 mm |
ATX Connector Distance |
24" / 610 mm
|
EPS Connector Distances |
25.6" / 650 mm
|
Total Wattage |
850 W
|
Number of +12 V Rails |
1
|
Combined Power for +12 V |
846 W
|
Max Load for +12 V |
70.5 A
|
Combined Power for +3.3/+5 V |
110 W
|
Max Load for +3.3 V |
20 A
|
Max Load for +5 V |
20 A
|
Max Power for +5 Vsb |
12.5 W
|
Max Load for +5 Vsb |
2.5 A
|
Max Power for -12 V |
3.6 W
|
Max Load for -12 V |
0.3 A
|
AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Efficiency Rating |
80 PLUS Gold
|
Active Power Factor Correction |
Yes
|
Efficiency |
91% at 25% Load
91% at 50% Load 90% at 75% Load 89% at 100% Load |

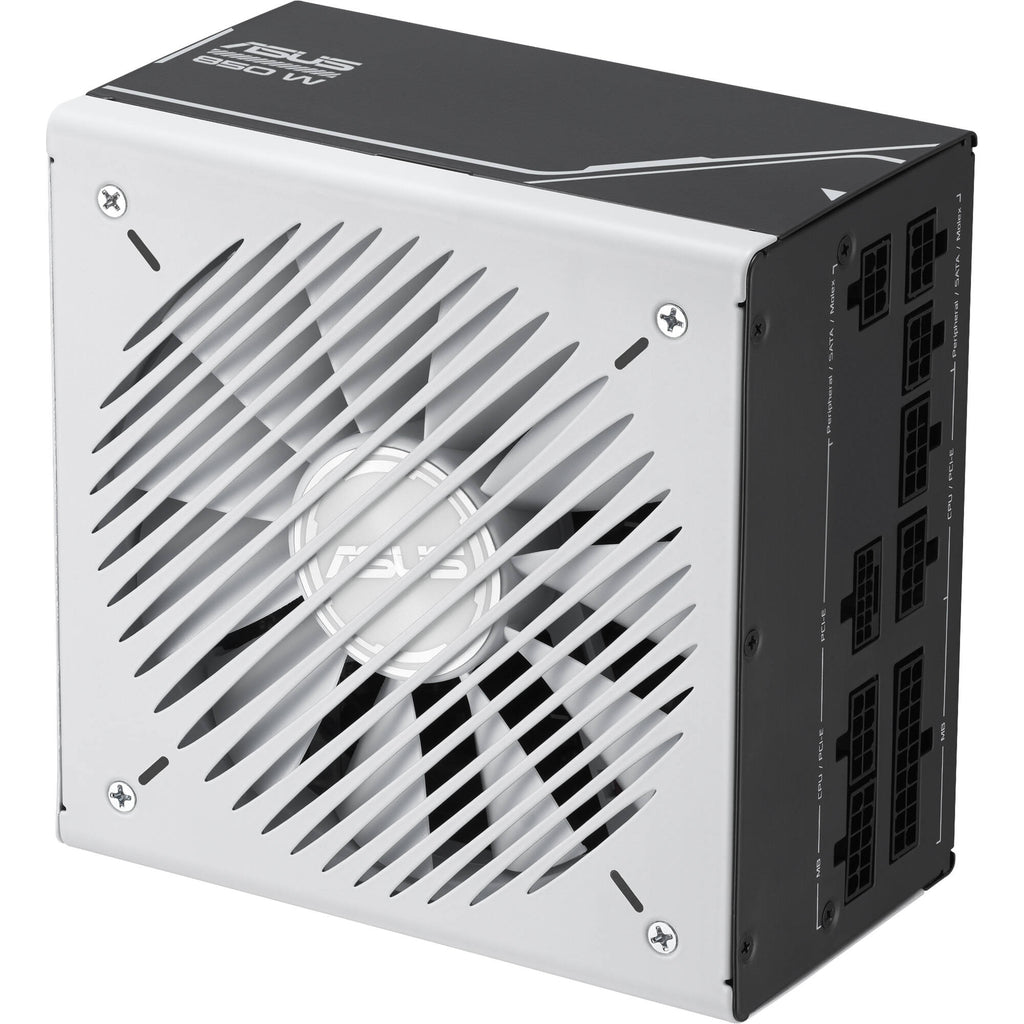

Fan Size |
135 mm
|
Bearing Type |
Ball
|
Operating Temperature |
32 to 122°F / 0 to 50°C
|
Operating Humidity |
20 to 80%
|
Form Factor |
ATX
|
Compliance |
ATX 12 V v3.0
|
Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
|
Certifications |
RoHS
|
Dimensions |
5.9 x 3.4 x 5.9" / 150 x 86 x 150 mm
|
Weight |
3.3 lb / 1.5 kg
|
Package Weight |
6.625 lb
|
Box Dimensions (LxWxH) |
14 x 8.7 x 5.8"
|
