Description

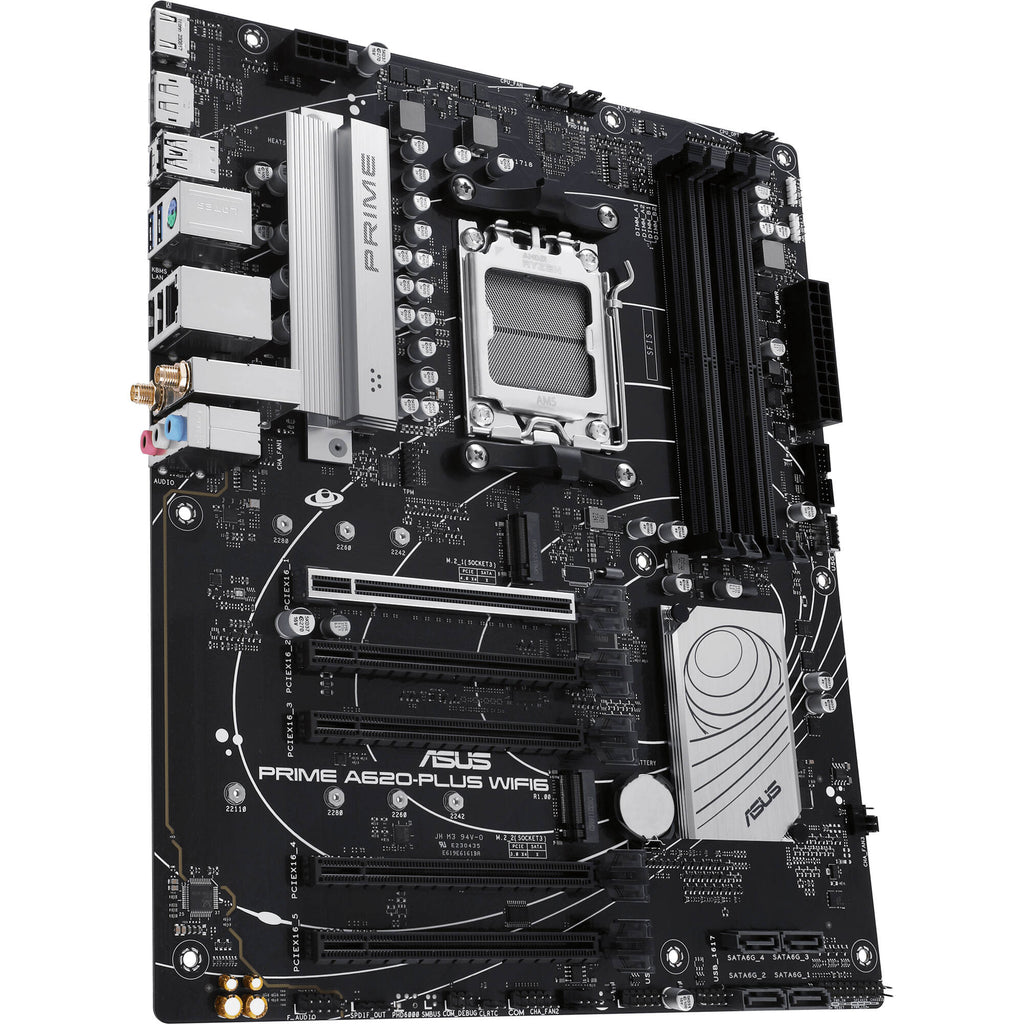

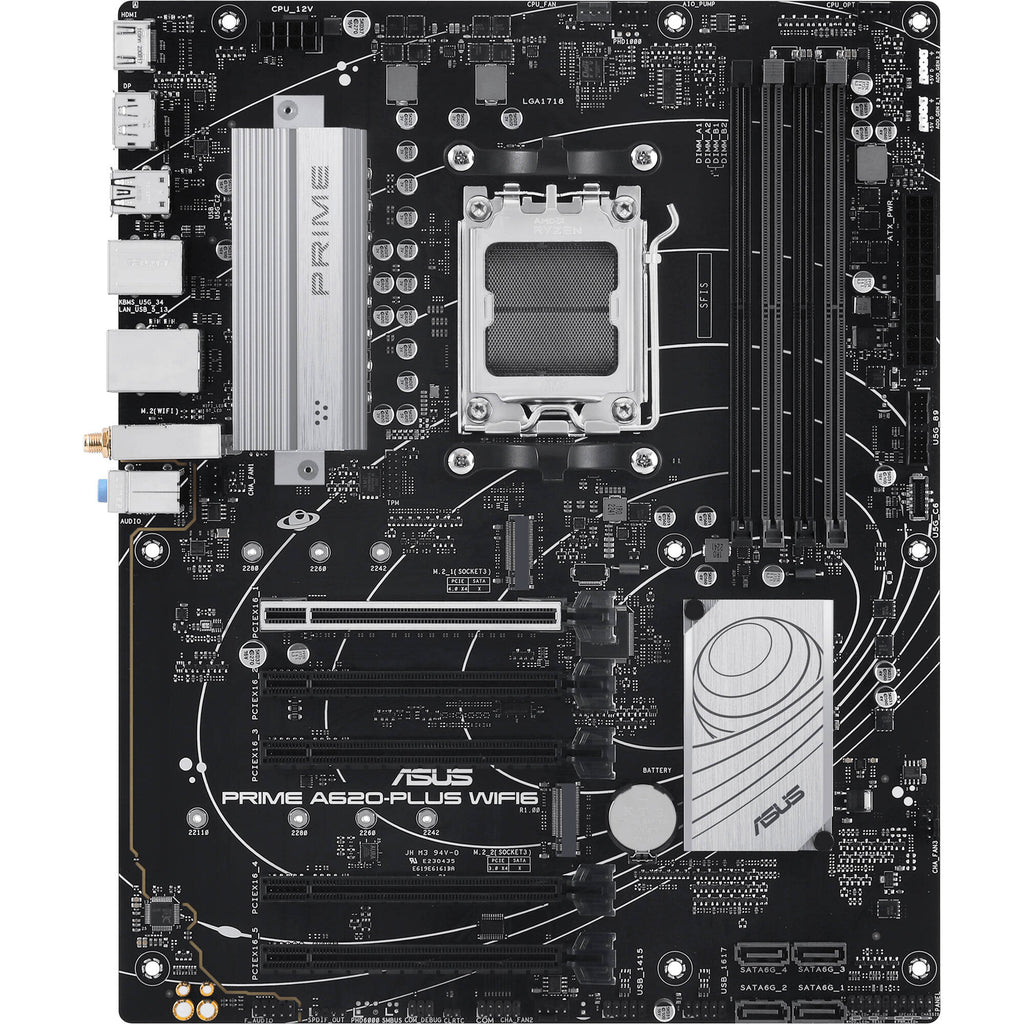

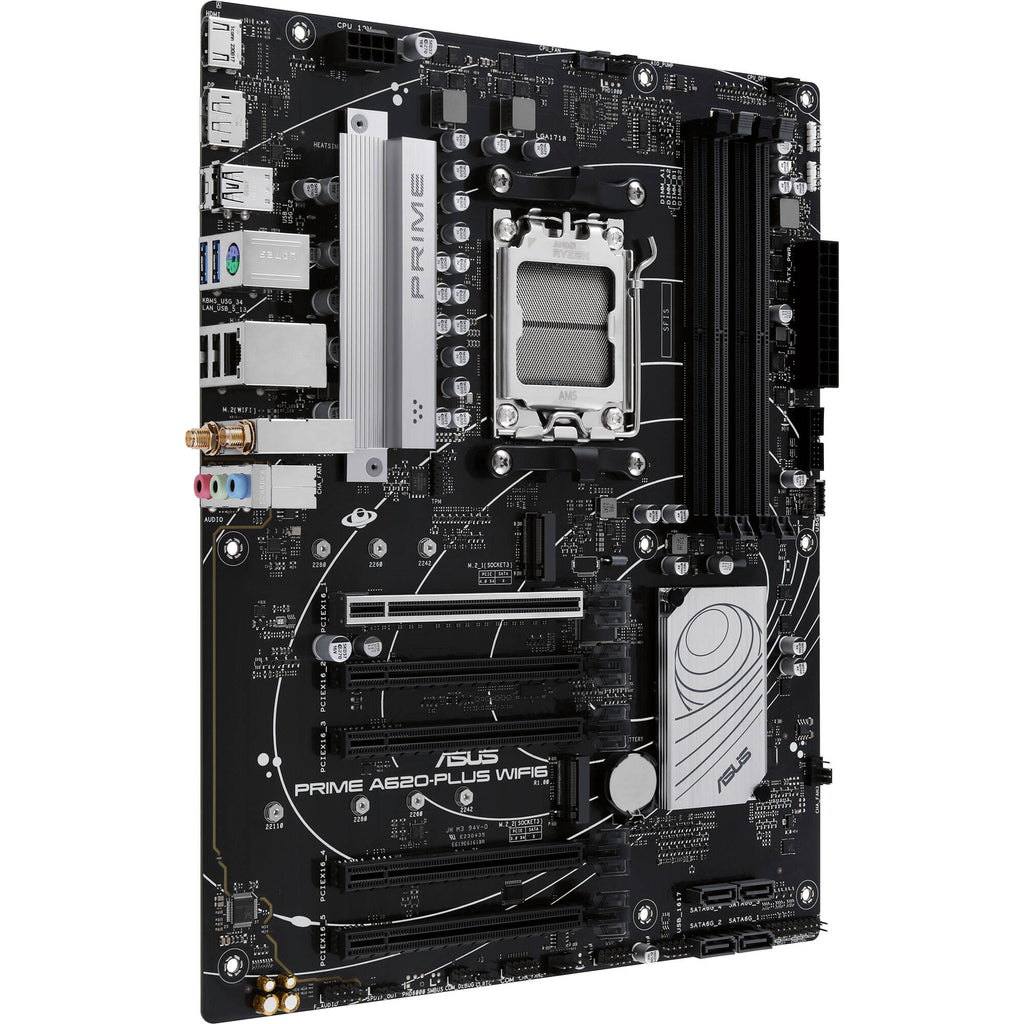

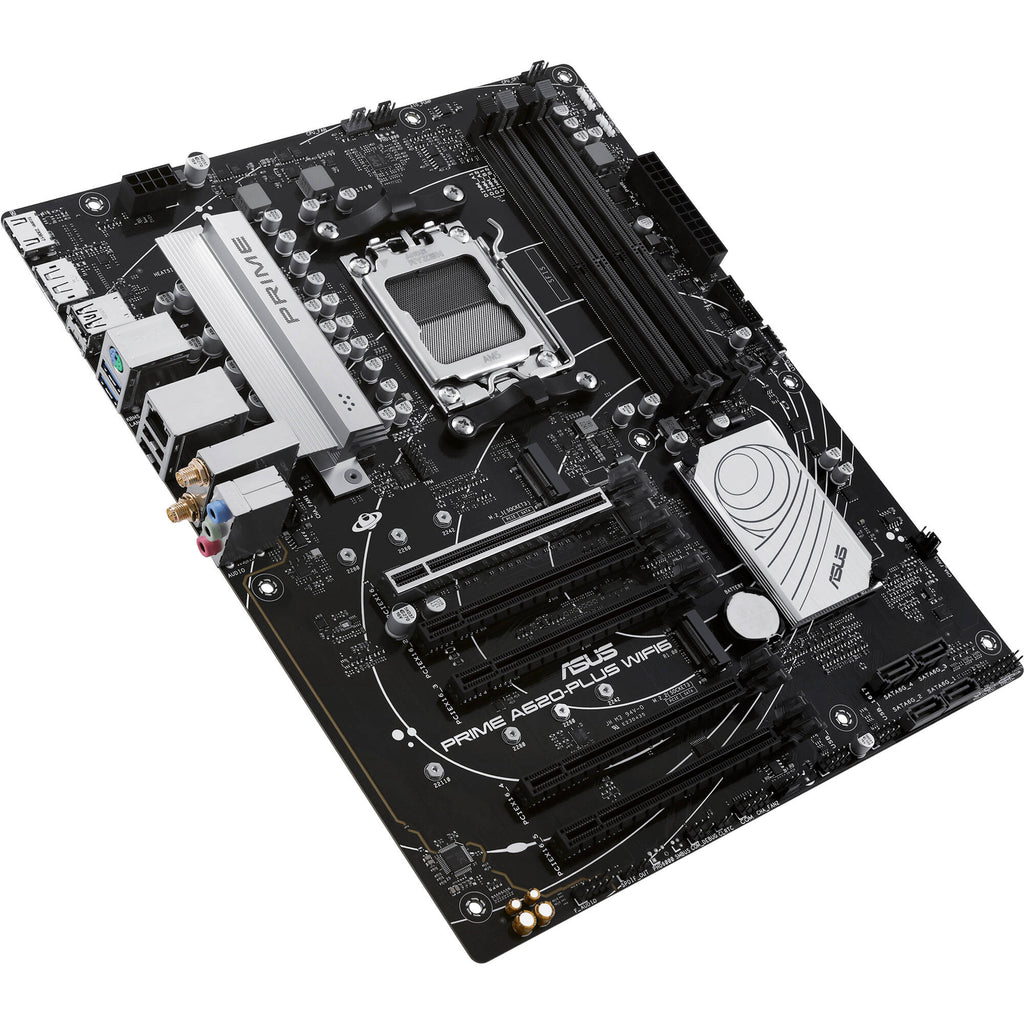

ASUS A620-PLUS WIFI6 Overview
Whether you need a motherboard replacement or looking to build a whole new system within your IT department, the ASUS PRIME A620-PLUS WIFI AM5 ATX Motherboard can assist with a wide range of connectivity options and support for business and legacy components.
At the heart of the PRIME A620-PLUS WIFI motherboard is AMD's AM5 socket, allowing you to add a variety of Ryzen 7000 and 8000 Series processors. Four DDR5 RAM slots allow you to install up to 192GB of memory to enhance multitasking and render speeds. Four SATA III and two M.2 PCIe SSD interfaces can support a wide range of storage drives that allow quicker data transfer speeds. Between back-panel connections and internal headers, you get USB 2.0 and 3.2 Gen 1 support, designed for devices such as keyboards and mice as well as resource-demanding devices like audio interfaces, external storage arrays, and more. Support a wide range of legacy components with the built-in PS/2 combo adapter, internal serial header, and more.
Performance Enhanced
The PRIME provides users with a solid foundation, leveraging AMD's 7000 and 8000 Series Ryzen processors and DDR5 memory modules to produce enhanced computing, multitasking, and rendering performance across the board. M.2 storage interfaces sport 4.0 speeds for storage drives, leading to quicker loading times. Three expansion slots use PCIe 4.0 and 3.0 technology with one 4.0 x16 slot and four 3.0 x16 slots (in x1 mode), allowing you to utilize a wide range of graphics and utility cards with ease. You also get a USB-C 3.2 Gen 1 internal header for instant front-panel access for resource-demanding peripherals such as external drives. Connect to your wired network with Gigabit Ethernet, giving you access to your business' cloud storage and NAS setups.
Intelligent Control
Optimizing performance for your various applications, the PRIME leverages a variety of intelligent control options to streamline productivity and system management. Power Saving and Digi+ VRM Control enhance electrical loads and frequencies by reducing electrical loads for greater throughput. Flexible cooling Fan Xpert 2+ software provides comprehensive controls over your fans, ensuring your system remains cool even under heavy loads.
Cooling
Integrated VRM and thermal pad heat sinks provide ample passive cooling for your components, transferring heat from the MOSFETs and chokes. Multiple PCB layers optimize heat management for critical components and provide more headroom for overclocking.
Customization
While focused on business tasks, you still have various customizable elements that allow you to express yourself. Enhanced Realtek 7.1-channel audio utilizes shielding technology and dedicated PCB layers to isolate left and right tracks, while premium audio capacitors provide a deep and immersive sound that can be fine-tuned to your liking. ASUS Amory Crate and Aura Sync features allow you to adjust various settings and integrate LED RGB lighting with ease. You also get easy troubleshooting capabilities with Q-LED Core and easy BIOS management with BIOS FlashBack. SafeSlot Core+ enhances the PCIe 4.0 x16 slot with a fortified anchor that can withstand heavier graphics cards by utilizing the reinforced solder points.
UPC: 197105520714

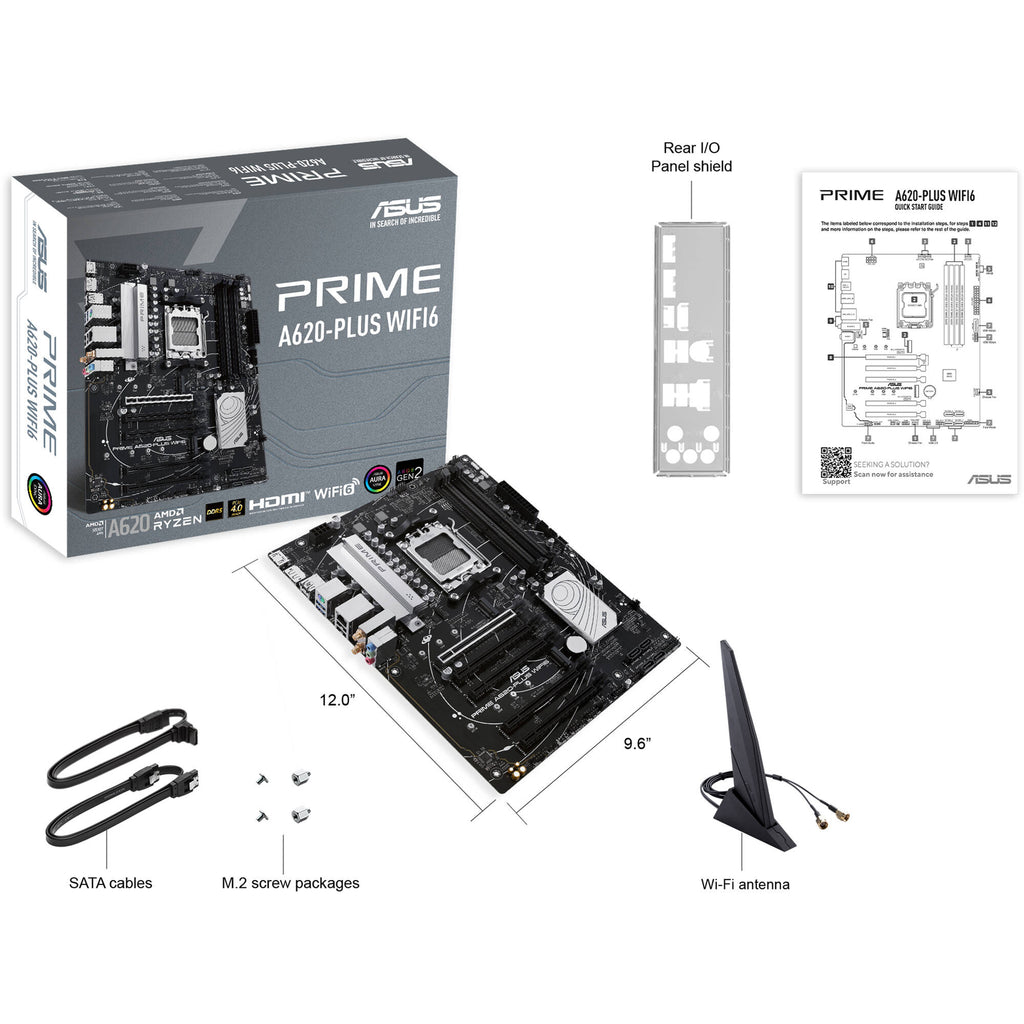

Items Included
- ASUS PRIME A620-PLUS WIFI AM5 ATX Motherboard
- 2 x SATA Cables
- Wi-Fi Antenna

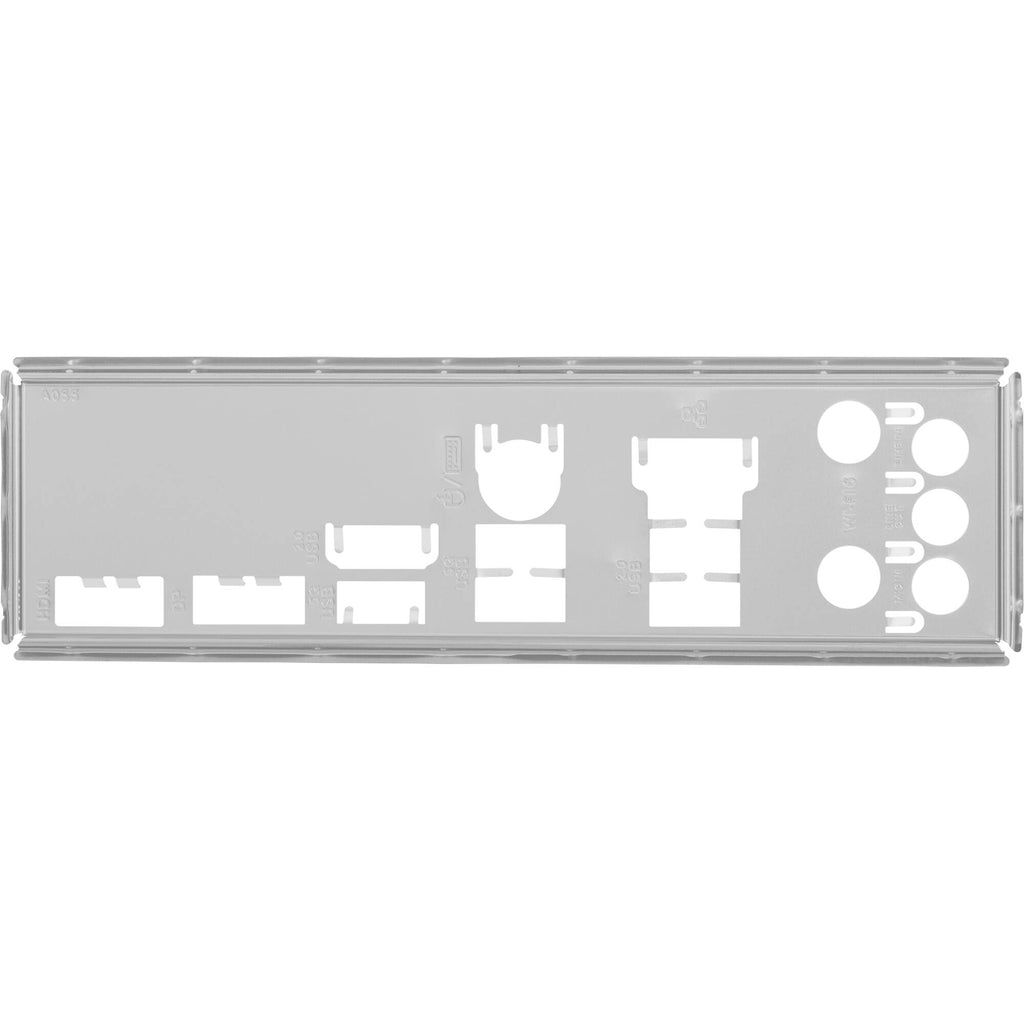

- I/O Shield
- Screw Package for M.2 SSD
- Limited 3-Year Manufacturer Warranty
Additional Resources
ASUS A620-PLUS WIFI6 Specs
Key Specs
| Chipset |
AMD A620
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600 MT/s
|
| Storage Slots |
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2) |
| Expansion Slots |
1x PCIe 4.0 x16
4x PCIe 3.0 x16 (x1 mode) |
| Wi-Fi |
Wi-Fi 5 (802.11ac) with MU-MIMO Support
|
| Form Factor |
ATX
|
CPU
| Chipset |
AMD A620
|
| CPU Socket |
AM5
|

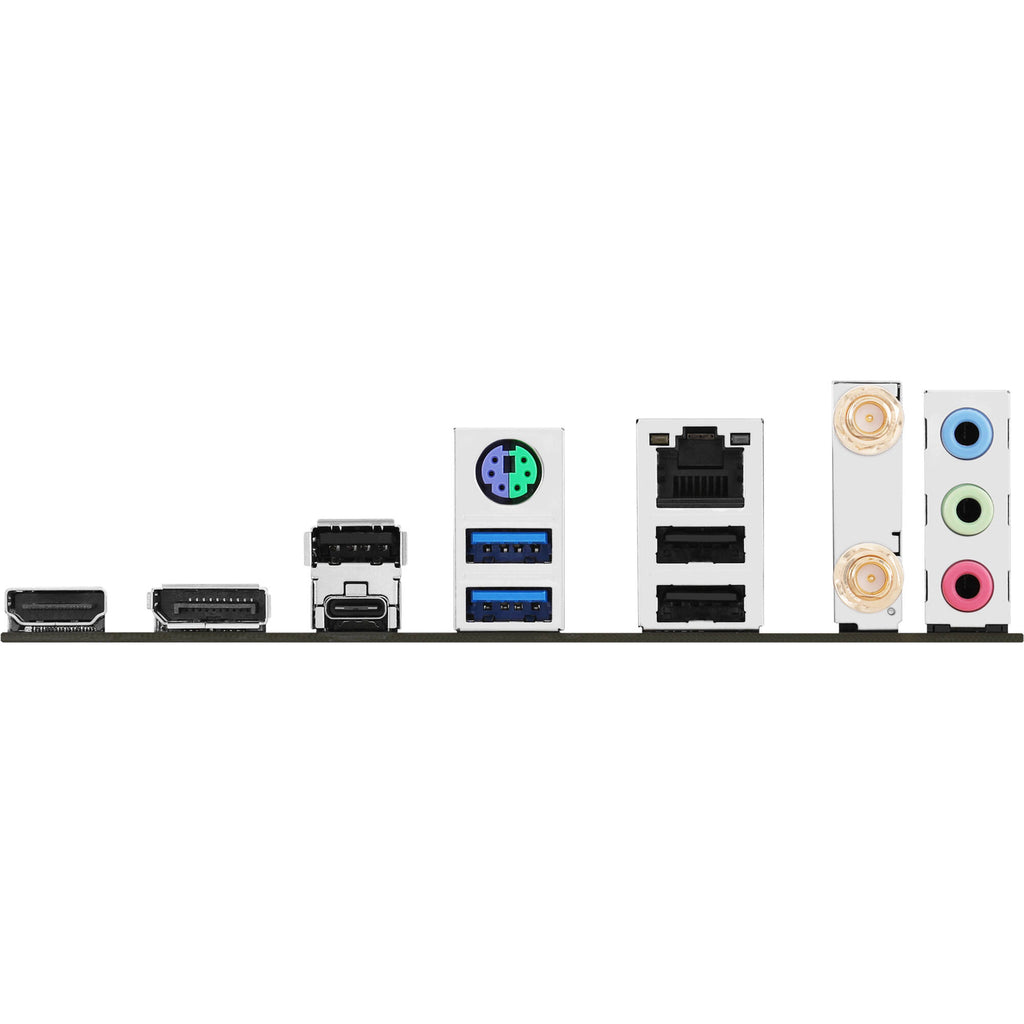

Back Panel I/O
| USB |
1x USB-C (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 3x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x DisplayPort
1x HDMI |
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Realtek Gigabit
|
| PS/2 |
1x Combo
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600 MT/s
|
| Maximum Capacity |
192 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC, ECC (Non-ECC Mode) Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| Storage Slots |
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2) |
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1, 10 (SATA)
RAID 0, 1, 10 (M.2) |
Internal I/O
| Expansion Slots |
1x PCIe 4.0 x16
4x PCIe 3.0 x16 (x1 mode) |
| USB |
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
1x 4-Pin CPU
2x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
1x 8-Pin CPU |
| Security |
Chassis Intrusion, TPM Header
|
| LED Header |
2x RGB
|
| Audio |
1x S/PDIF
|
| Diagnostics |
Clear CMOS
|
| Legacy |
1x Parallel
1x Serial |
BIOS
| ROM |
256 Mb
|
Front Panel I/O
| Front Panel I/O |
USB 3.0 / 3.1/3.2 Gen 1
|
Audio
| Audio Codec |
Realtek (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 5 (802.11ac) with MU-MIMO Support
|
| Bluetooth |
5.0
|
Software
| OS Compatibility |
Windows 10 to 11 (64-Bit Only)
|
Physical
| Form Factor |
ATX
|
| Dimensions |
9.6 x 12.0" / 24.4 x 30.5 cm
|
Packaging Info
| Package Weight |
3.13 lb
|
| Box Dimensions (LxWxH) |
14.1 x 10.8 x 2.7"
|
