Description

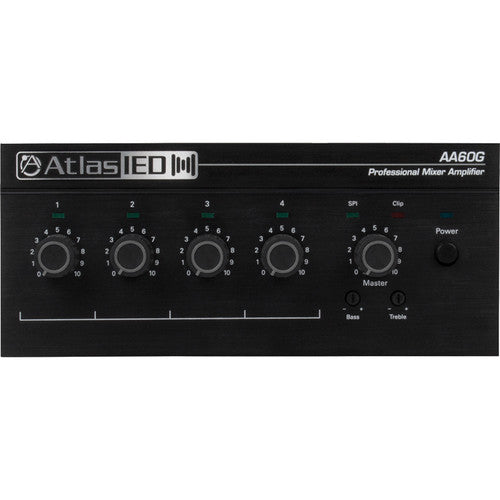

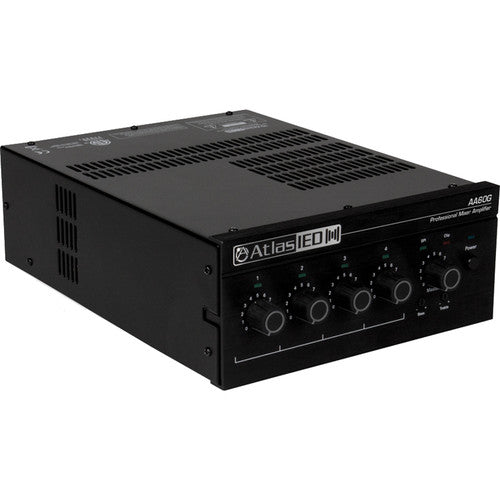

Atlas Sound AA60G Overview
Powering 60W into 70V, 100V, and 8 Ohms systems, the Atlas Sound AA60G is a four-input mixer amplifier designed for distributed business paging, background music systems (BGM), small-to-medium speech-privacy systems, or any situation in which Music on Hold (MOH) plus paging is required. It accommodates a variety of input sources including paging microphones, CD players, digital music players, satellite receivers, and more.
The AA60G is equipped with a balanced microphone/line input that provides 15V phantom power to condenser mics and three, stereo unbalanced line inputs summed to mono. In addition to the amplifier outputs, it offers a pre-master, level-line output to connect the signal to a secondary amplifier and a Zone 2 output, which allows you to play music over a phone line while the caller is on hold.
You can maximize the AA60G's versatility using the configuration DIP switch to set the priority or VOX (Voice-Activated) background music muting modes or to create a Zone 2 mix from any or all the input sources. Other features include bass and treble controls on the master output, signal presence LED indicators, and a universal power supply.
- Ideal for paging, background music, and Music-on-Hold applications
- Accommodates a variety of input sources including paging microphones, CD players, and digital music receivers
- Four inputs, each with a front panel volume control and a single output channel
- 60W into 70V, 100V, or 8 Ohms output
- Output power matches AtlasIED FAP, SM, SD, and GD Series loudspeakers (available separately)

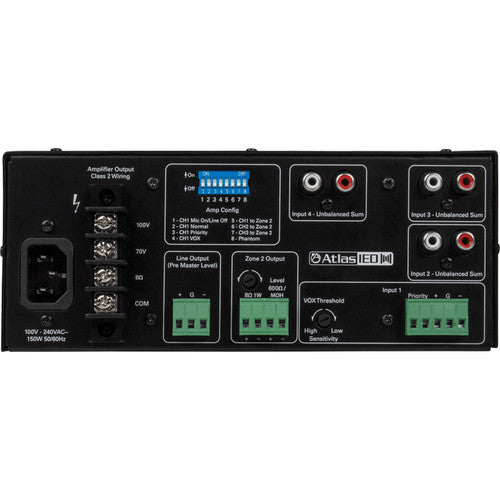

- Five-terminal Euroblock connector for balanced mic/line input
- Three unbalanced stereo line-level RCA-type connectors, summed to mono
- Priority muting by VOX or external switch
- Dip switch selectable matrix allows the creation of a Zone 2 mix from any or all the input sources
- Secondary Zone 2 output 1W & 600 Ohms/MOH (Music on Hold)
- Bass and treble controls on master output
- Pre-master, line-level output to connect signal to a secondary amplifier
- Universal AC power supply for use in any 120 to 240V country
- 15V phantom power for condenser microphones
- Signal presence LED indicators
Atlas Sound AA60G Specs
| Form Factor/Type | Tabletop |
| Number of Channels | 3 |
| Power Rating | 8 Ohms / 70 V / 100 V: 60 W (1 kHz, 0.5% THD) |
| Frequency Response | 50 Hz to 20 kHz ±1 dB |
| Input Sensitivity | Mic: 3 mV Line: 800 mV RCA: 400 mV |
| I/O Impedance | Mic Input: 2.2 Kilohms Line Input: 10 Kilohms RCA Input: 10 Kilohms |
| Output Level | Line Output: 1 V (10-Kilohm Load) |
| SNR | Mic: > 58 dB Line: > 60 dB Telephone: > 60 dB Aux: > 78 dB |
| THD+N | < 0.5% (at Rated Power, 1 kHz) < 0.1% (at 5 W, 1 kHz) |
| Crosstalk | -82 dB (1 kHz) |
| Phantom Power | 15 VDC |
| AC Input Power | Universal: 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 150 W |
| Cooling | Convection |
| Operating Temperature | 68 to 104°F / 20 to 40°C |
| Storage Temperature | -4 to 185°F / -20 to 85°C |
| Operating Humidity | 0 to 95% |
| Dimensions | 8.2 x 3.5 x 11.6" / 210.0 x 90.0 x 295.0 mm |
| Weight | 9.4 lb / 4.3 kg |
| Package Weight | 12.43 lb |
| Box Dimensions (LxWxH) | 15.65 x 11.05 x 6.95" |
