Description

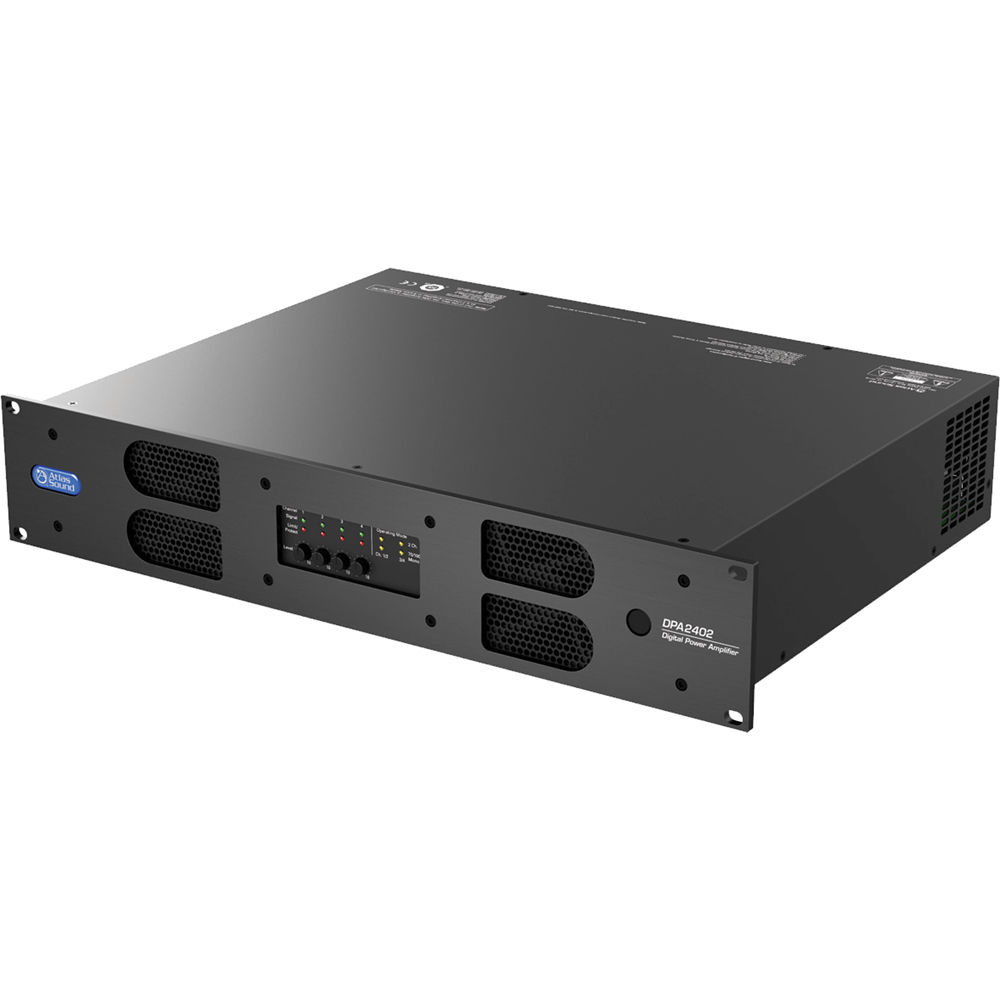

Atlas Sound DPA2402 Overview
Designed to power audio signals in large-scale presentation rooms, training facilities, conference centers, and other situations in which background/foreground music is required, the Atlas Sound DPA2402 is a 2400W multi-channel power amplifier featuring a network-based configuration for remote-web monitoring, as well as on-board DSP. Its four-channel setup can be configured in three different arrangements to meet the needs of any large-scale situation.
The unit is factory set to operate in a two-channel 70V mode, though it is designed to operate with low-impedance amplification as well; in those cases, you can configure the amplifier to handle loads of 4 or 8 Ohms. Additionally, the DPA2402 can be tweaked to simultaneously work in low- and high-impedance situations, allowing you to utilize 70 or 100V channels for background and paging, while dual 4 or 8 Ohm channels carry audio material in the foreground.
While the unit comes with four balanced line inputs, there's also an accessory slot which, if utilized, allows you to either add more analog inputs or route the unit into a Dante system. All inputs can be mixed into any amplifier channel, with each channel featuring an array of DSP tools such as EQs and limiters to tailor the sound for any room. Furthermore, outputs can be controlled through built-in pots or via the on-board GUI, and when networked, proprietary software will allow you to control various aspects of the DPA2402, or indeed, any DPA amplifier patched into the network. This unit takes up 2 RU of rack space.
- 2 x 1200W 70V/100V (Factory Default)
- 4 x 500W at 4 Ohms
- 1 x 1200W 70V/100V & 2 x 500W at 4 Ohms
- No computer required to operate
- Networkable
- Configurable DSP via GUI
- PC based DPA site manager software with LAN IP auto-discovery, fault reporting, input and output status, standby status and amplifier remote activation via a scheduler timer
- On-board web browser GUI for remote monitoring of status and levels
- User page with assignable level control, post contractor settings, password protected
- Mute assignments triggered via audio signal or contact closure
- Audio-sense auto power down (APD)
- DSP parameters per output, parametric EQ, high- and low-cut filters, delay, limiter
- 4 x balanced inputs, expandable with accessory card
- Optional accessory card slot for a DPA-DAC4 4-channel Dante receiver or a DPA-AMIX card
- PC-, iOS- & Android-controllable
- Assignable level controls, onboard GUI (security password protected) or by front panel pots with tamper deterring covers
- 4 x GPIO control ports assignable in GUI for mute or remote level
- Controllable from third-party controllers
In the Box
- Atlas Sound DPA2402 2400 Networkable Multi-Channel Power Amplifier
- Power Cord
Atlas Sound DPA2402 Specs
| Type | 2400 W 4-Channel configurable-network digital-commercial power amplifier |
| Power Supply Type | Switch mode with universal power supply |
| Amplifier Class | Class AB Hybrid-BASH |
| Number of Inputs | 4 x fixed inputs, balanced, expandable to 8 via accessory card 4 x Accessory inputs |
| DSP | Internal |
| Network | Ethernet |
| Card Slot | 1 x for Dante receiver card or DPA-AMIX |
| Channels | 2 x 1200 W at 70.7 V 2 x 1200 W at 100 V 4 x 500 W at 4 Ohms 4 x 300 W at 8 Ohms 1 x 1200 W at 100 V + 2 x 600 W at 4 Ohms 1 x 1200 W at 70.7 V + 2x 600 W at 4 Ohms |
| Input Impedance | 40 kOhms |
| Input Sensitivity | 750 mV balanced, 0 dBu |
| Maximum Input Level | 14 dBu, 3.82 V |
| Connection Type | 3.5 mm Euro Block |
| Accessory Slot Cards | 4-input Dante digital card (DPA-DAC4) or 4-input analog Mic/Line analog card (DPA-AMIX) |

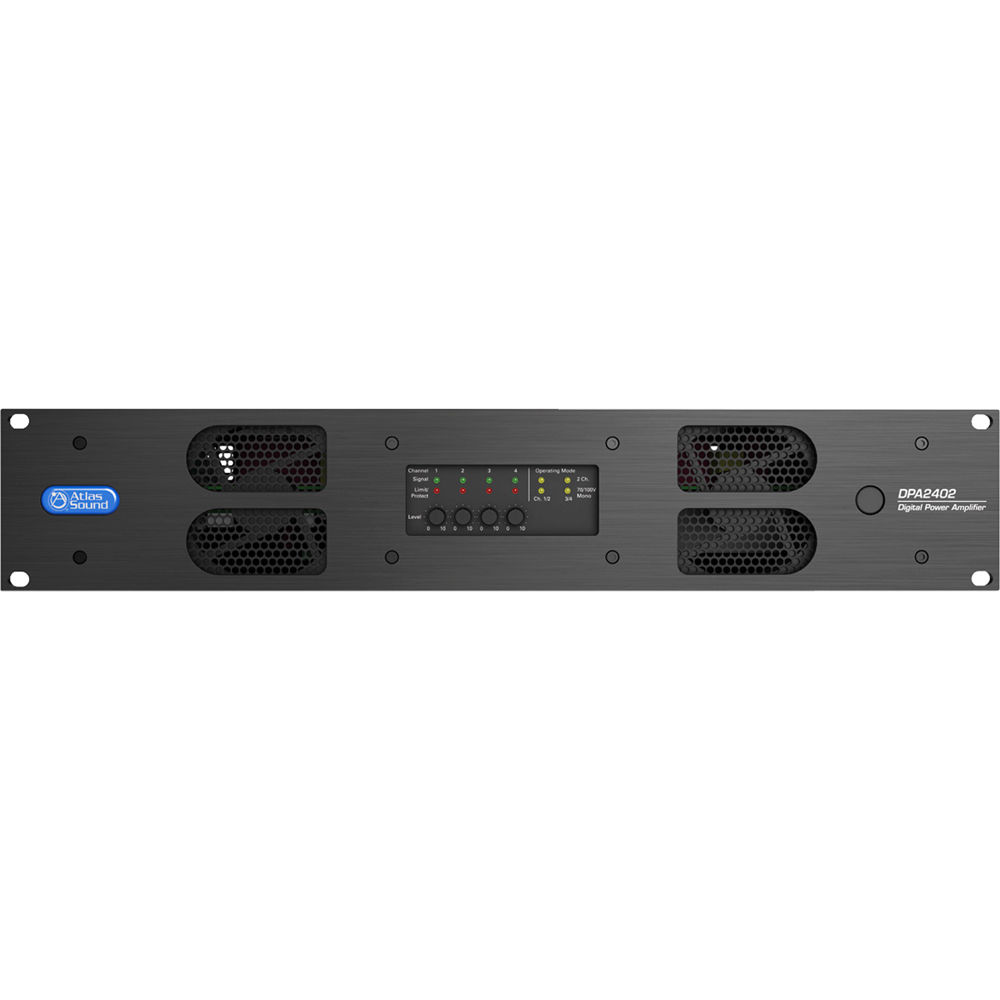

| Front Panel | Removable knobs and security cover |
| GUI | PC (requires Ethernet cable), iPhone, Android, using a standard web browser |
| Status Indicators | Power: Blue indicator Standby (Remote turn on): Blinking blue indicator, front panel only Output signal: Green indicator LED bar meter: GUI only Output limit / protect: Red indicator 2-channel operation, 4/8 Ohms: Yellow indicator on channels 1/2 and 3/4 70V / 100V operation: Yellow indicator on channels 1/2 and 3/4 Output mute status: Flashing red indicator |
| DSP | IO routing: Matrix mixer High- and low- pass filters: One per output, adjustable slopes (6, 12, 18, 24 dB per octave) and frequencies EQ: 5 parametric filters per output Delay: 60 ms per output Limiter: Each output up to 12 dB of assignable limiting DSP frequency type: 48 kHz / 24-bit |

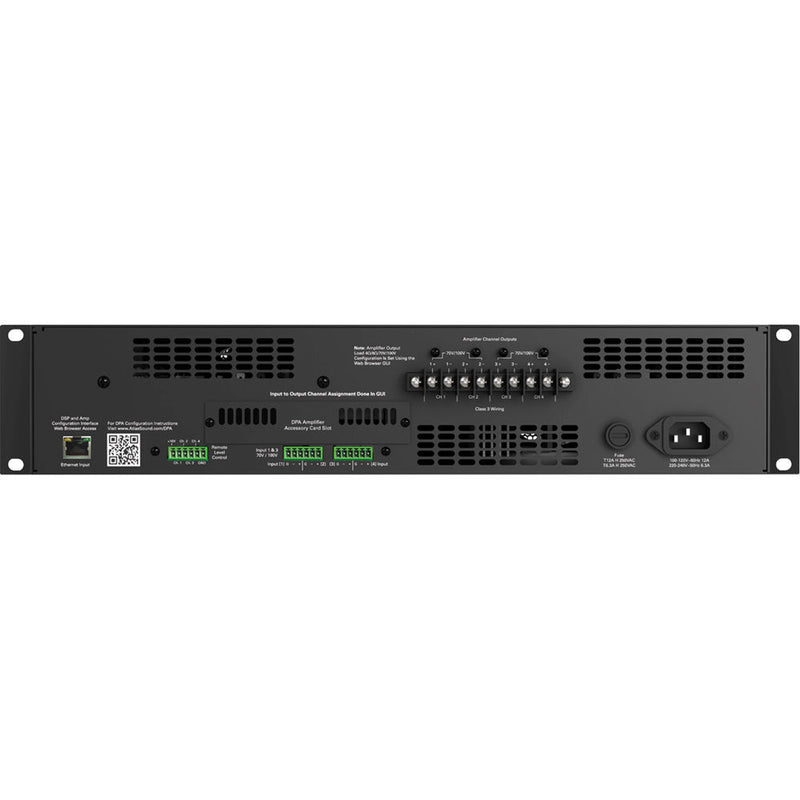

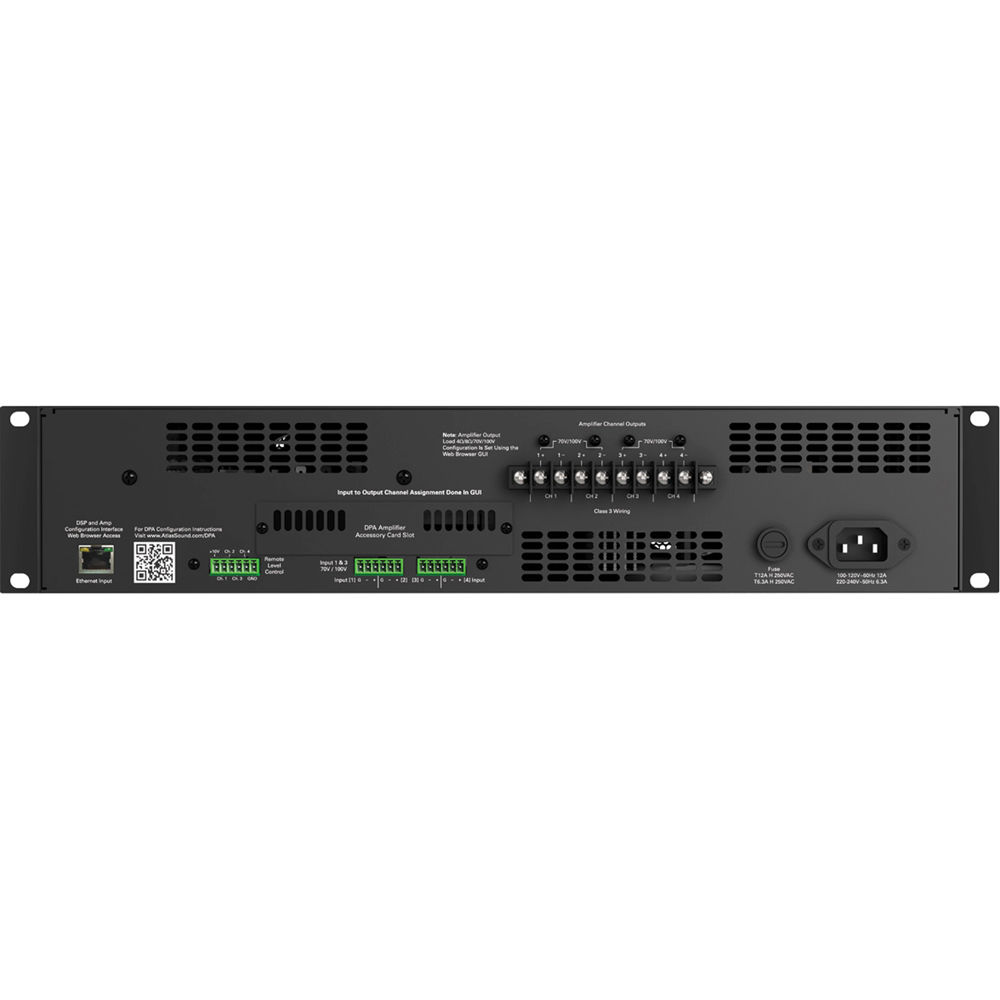

| Control Ports | 4 x PHX, remote and mute functions, assignable (rear panel) 1 x RJ45 Ethernet for GUI access (rear panel) |
| Output Terminals | Output connectors type: screw terminal barrier strip with cover Output connectors number of terminals: 8x Output connectors fixed or removable: Fixed Wire size: 18 to 10 AWG when using yellow spade lug 0.250 terminal, 8x included (Class 3 wiring required) Terminal spacing: 0.300" / 7.62 mm Current rating: 25 A per terminal |
| Defaults | Amplifier configuration: 2-channel 70 V Mode (channels 1/2 = 70 V, channels 3/4 = 70 V) Level controls: front panel assigned, channels 1 and 3 levels active GPIO control ports (rear panel): Remote level, C1 assigned to channels 1/2 at 70 V, C3 assigned to channels 3/4 at 70 V I/O matrix: Input 1 Routed to Output CH 1/2, Input 3 Routed to Output CH 3/4 Auto power down (APD): Disabled |
| THD | 0.03% at 1 kHz and 1 dB below rated power |
| Signal to Noise Ratio | > 100 dB below-rated output, A-weighted |
| Frequency Response | 20 Hz to 20 kHz (DSP filters set flat) |
| Damping Factor | 20 Hz to 400 Hz: 78.46 |
| Crosstalk | Channels 1/2 and 2/1: 73 dB |
| Peak Output Voltage | At 8 Ohms per channel: 55 V At 4 Ohms per channel: 11.5 A |
| Slew Rate | > 6 V/µS |
| Protection | High/low input voltage, thermal, short, over current |
| Power Requirements | Operating voltage: 110 V to 120 V & 220 V to 230 V at 50/60 Hz, auto sense Minimum power-up voltage: 90 V Maximum operating voltage: 264 V |
| Mains Power | IEC 15A receptacle |
| Power Cord | Included: 4.9' / 1.5 m, IEC C13 to NEMA 5-15P plug, 18 AWG |
| Power Consumption and Current Draw | Sleep mode: 94 mA, 2.2 W, 12 BTU Standby APD mode: 199 mA, 19 W 65 BTU Idle active mode: 246 mA, 26 W, 88 BTU Average power at 4 Ohms, all channels driven: 3.2 A, 375 W, 426 BTU Average power at 70 V, all channels driven: 3.5 A, 415 W, 446 BTU Maximum power at 4 Ohms, all channels driven: 10.2 A, 1189 W, 775 BTU Maximum power at 70 V, all channels driven: 9.5 A, 1245 W, 1818 BTU |
| Cooling System | Idle: convection In use: Signal-sense variable-speed fan assist Air flow direction: Rear to front |
| Rackmount Space | 2 RU |
| Dimensions | 19.0 x 3.5 x 14.5" / 48.3 x 8.9 x 36.8 cm |
| Weight | 20.8 lb / 9.5 kg |
| Package Weight | 25.32 lb |
| Box Dimensions (LxWxH) | 24.5 x 19.1 x 5.5" |
