- Dual Cone Speaker
- 4W 70.7/25V Tansformer
- CRS Baffle
Atlas Sound's SD72W Dual Cone Ceiling Speaker with Baffle is a high-quality speaker/baffle combination for use in a variety of venues from restaurants to schools. The speaker used in the SD72W is very similar to the preceding C-Series speakers. The similarity in the sonic qualities ensures that contractors and designers who have worked with the Atlas Sound C-Series in the past will know exactly what to expect when they use the SD72W.

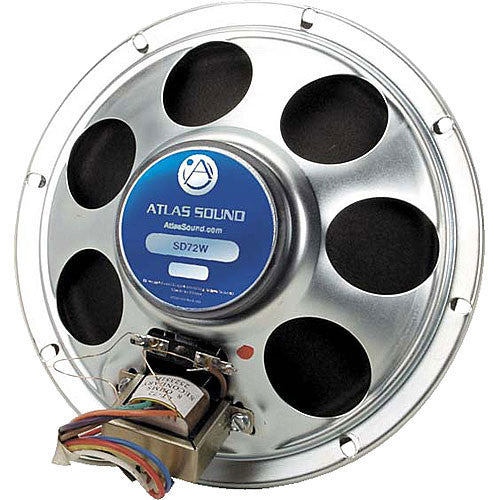

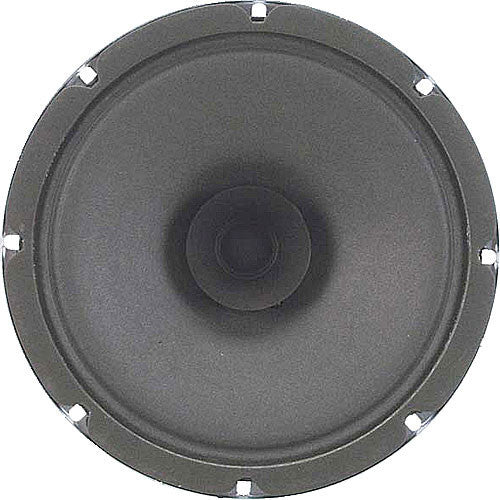

Model SD72W is a dual cone, 25 watt 8" (205mm) loudspeaker with a 10oz. (260g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts. Model SD72W operates within a frequency response range of 45Hz - 19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°.

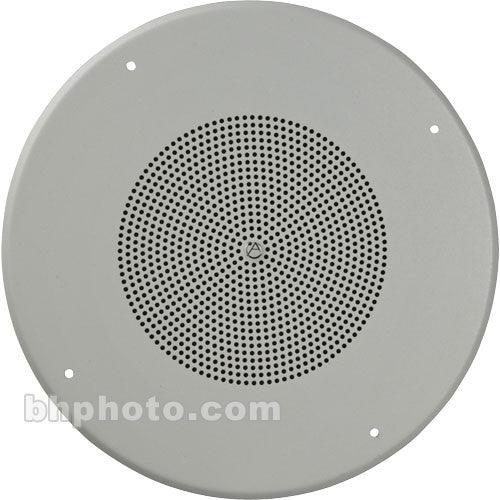

The SD72W includes a factory installed CRS baffle with concealed loudspeaker mounting studs and includes screw mount hardware. The SD72W baffle features standard mounting holes to accommodate the majority of Atlas Sound 8" tile bridges, mounting rings and enclosures. When specifying mounting hardware, be advised that the dimensions of the SD72W baffle match the Atlas Sound Model 62-8. The baffle finish is white powder coat epoxy.
- Quality Response and Performance
- This high-performance speaker is a dual-cone, 25W 8" loudspeaker treated for low harmonic distortion with a wide-dispersion angle for excellent sound coverage.
- CRS Baffle Included
- Included in this speaker package is a white powder-coat baffle with all necessary mounting hardware.
- Individually Packaged
- For stocking and ordering convenience, all speakers are individually packaged.
UPC: 612079179954
| Frequency Response | 45Hz-19kHz Nominal, 55Hz-8kHz |
| Maximum Power Handling | 25W Peak, 15W RMS |
| Power Taps | .25, .5, 1, 2, & 5 watts |
| Impedance | 70.7/25V (4W Transformer) |
| SPL | Not Specified By Manufacturer |
| Beamwidth | Not Specified By Manufacturer |
| Horizontal Beamwidth | Not Specified By Manufacturer |
| Vertical Beamwidth | Not Specified By Manufacturer |
| Sensitivity | 97 dB Average |
| Dispersion | 105° (2 kHz Octave Band, -6 dB Points) |
| Construction | Treated Paper |
| UL Listed | 1480, 2043 |
| Magnet | 10 oz. Ceramic Magnet |
| Voice Coil | 1" (25 mm) Copper |
| Dimensions (HxWxD) | Diameter: 8.1" (205 mm)
Depth: 2.9" (73 mm) |
| Weight | 32 oz. (908 g) |
| Packaging Info |
| Package Weight | 4.5 lb |
| Box Dimensions (LxWxH) | 14.1 x 14.0 x 3.6" |
In the Box
Atlas Sound SD72W Dual Cone Ceiling Speaker with Baffle (White)
- Mounting Screws
- Five-Year Warranty
