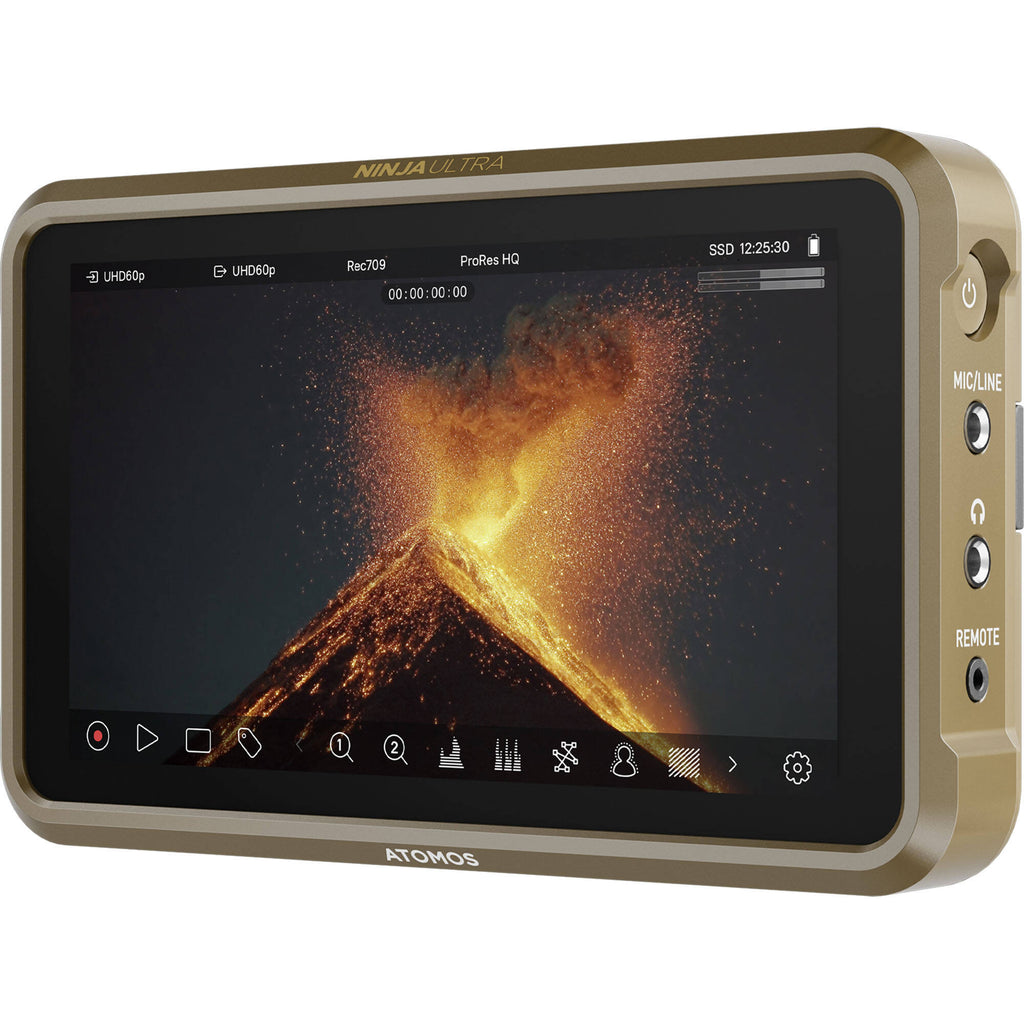

Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor

With an updated operating system, HDR monitoring, and RAW recording capabilities, the Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor is a 5.2" on-camera monitor and recorder ideal for use on your next set. This monitor supports DCI 4K HDMI footage and can even record ProRes RAW up to 8K with compatible cameras. The Ninja Ultra retains the same form factor as its predecessors to be compatible with most Atomos monitor accessories for easy integration with your preexisting equipment.

Built for the new Ninja Ultra, the AtomOS 11 operating system equips your monitor with new features along with an improved icon interface for more intuitive operation. Focus Peaking, Zoom, Atomos and ARRI False Color, EL Zone colorized exposure, Safe Areas, RecordAssit, PlayBackAssist, SegmentPro, and Cine Guides are among the many monitor assist functions available. The AtomHDR processing engine allows for real-time Log to PQ/HLG previewing.

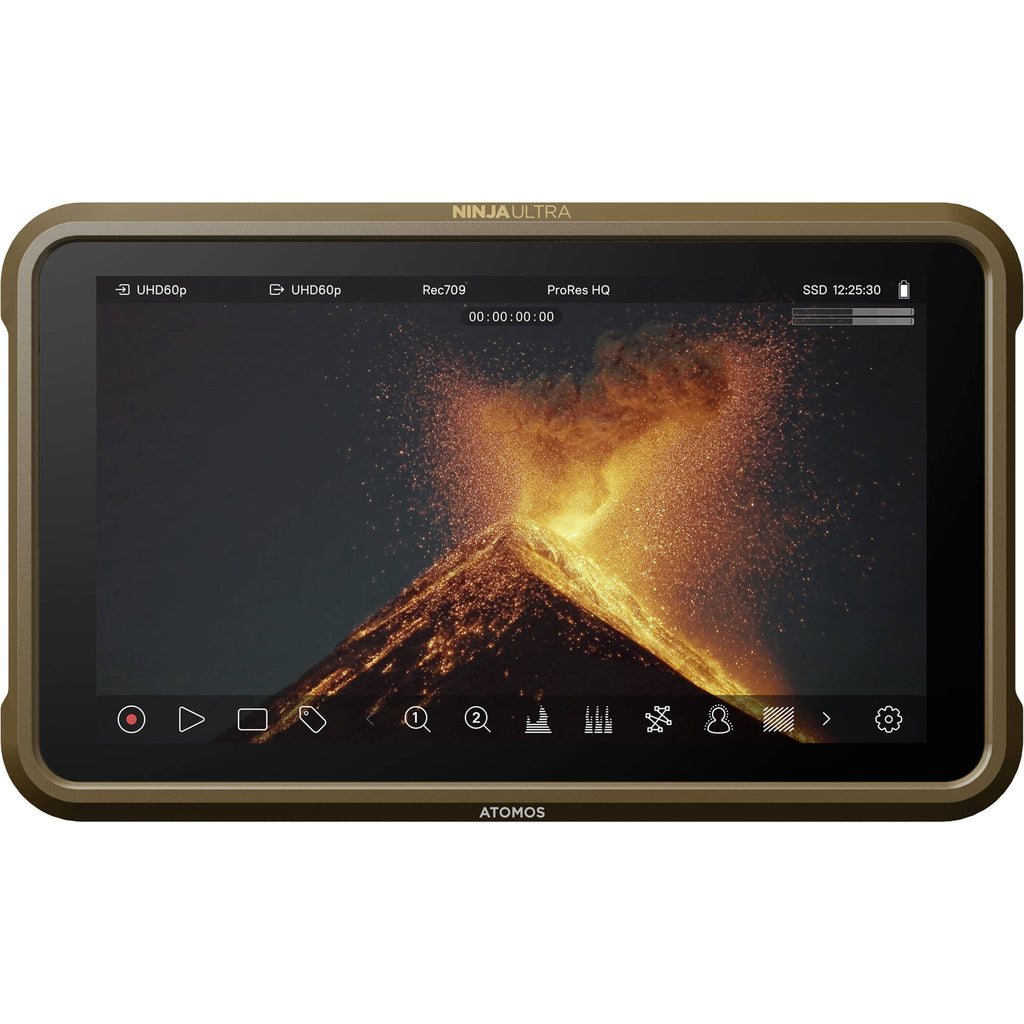

The 5.2" IPS touchscreen of the Ninja Ultra offers a 1920 x 1080 resolution with 1000 cd/m² brightness for viewing in broad daylight. The 10-bit color processing, Rec.709 color gamut, and Calibrite ColorChecker Display Pro/Plus calibration support ensure color-accurate, high-quality monitoring of your footage.

Comprehensive Color

The Ninja Ultra supports the use of select Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon log formats. Upload custom 3D LUTs to the monitor and output HDR conversion to Log, HLG, PQ, or Dolby Vision formats.

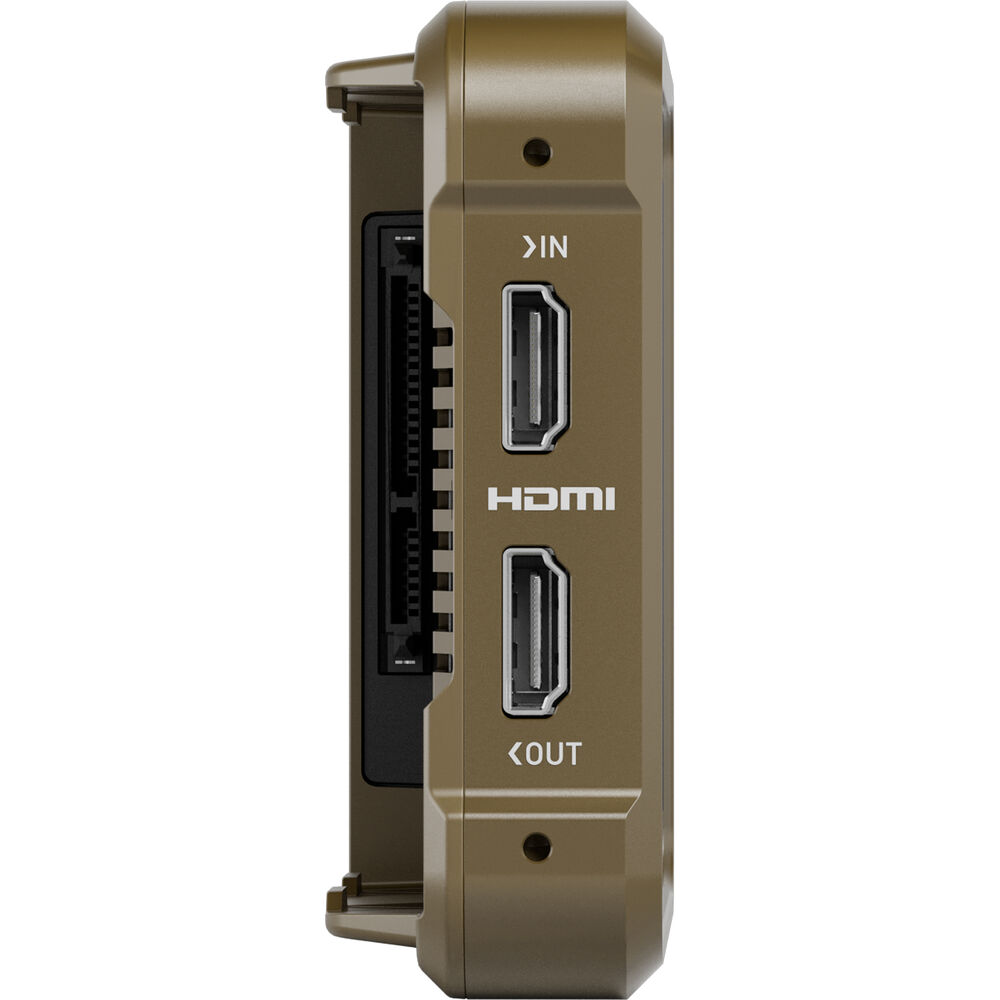

• The Ninja Ultra's HDMI input and output ports support up to DCI 4K video at 60 fps in monitoring, recording, and playback modes. 3.5K RAW at 60 fps footage is supported with select cameras.
• Over 55 different cameras support RAW recording over HDMI with the Ninja Ultra up to 8K at 30 fps.

The Ninja Ultra is compatible with the separately available Atomos CONNECT module to access cloud workflows like C2C, Atomos Edit, and Atomos RemoteView via Atomos Cloud Studio. The CONNECT module adds 12G-SDI connectivity, AirGlu wireless timecode and control, Wi-Fi 6, and GigE Ethernet to your monitor interface. This allows you to send video signals to live streaming platforms, via NDI, and to custom RTMP/S destinations. Functions unlocked that are specific to the Ultra include SDICine, enhanced metadata support, RAW recording via SDI, dual 4K60 ProRes RAW and 1080p60 H.265 dual recording codecs, and 4K C2C mode for higher quality uploads. You can also convert HDMI to SDI and SDI to HDMI video using the CONNECT module.

Use the AtomX CAST to transform your Ninja Ultra into a compact, fully featured production studio. This component enables advanced multi-input switching from four 1080p HDMI sources, the application of graphic overlays, and the ability to use a USB UVC webcam output for enhanced web conferencing and live streaming.

The Ninja Ultra is compatible with the Atomos Master Caddy II and Master Caddy III 2.5" hard drive units which support direct recording to the drives. You can also record onto compact AtomX SSDmini drives and CFAST II cards using a separately available adapter.

Power Options

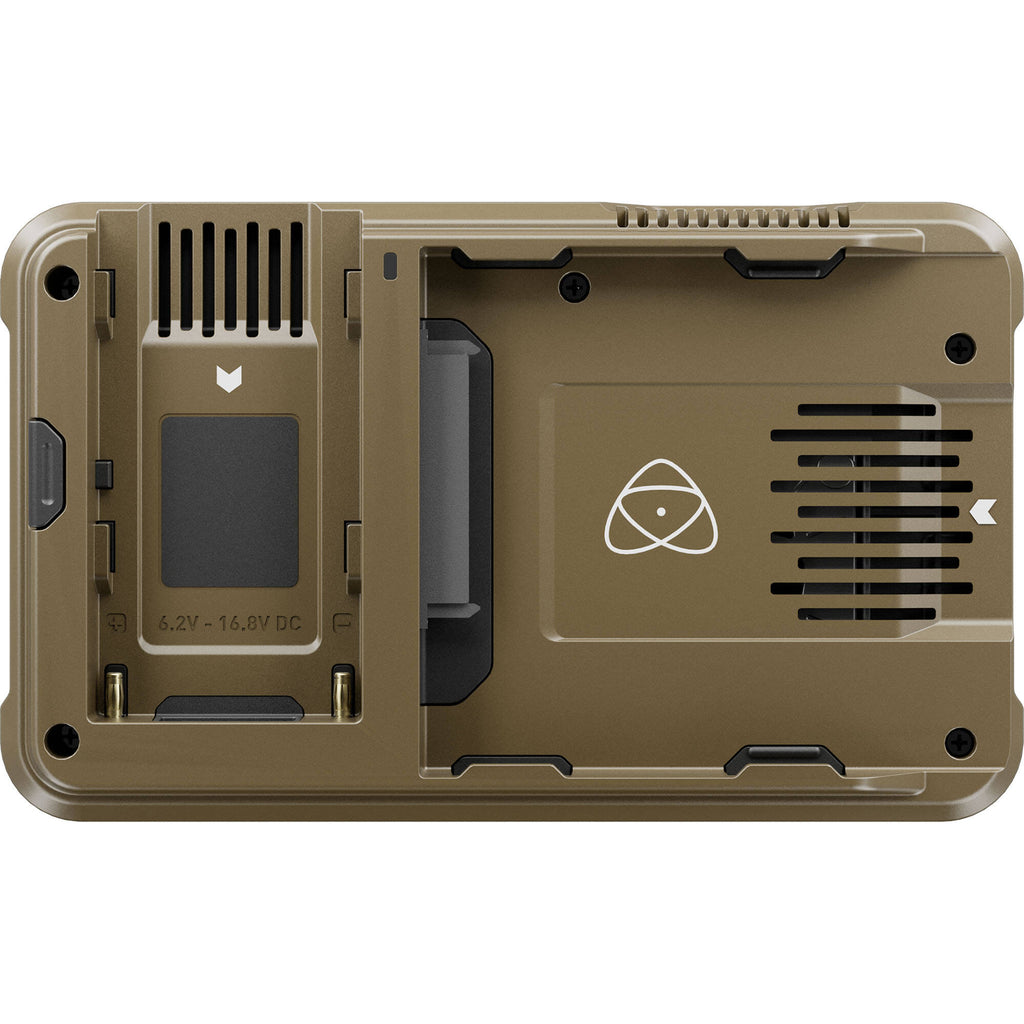

An L-series battery plate on the back of the Ninja Ultra can support NP-F L-series batteries outputting 5.8 to 7.2V. A USB-C port supports 30W PD power delivery with the included cable. Use the included dummy eliminator to power the monitor via DC power sources.

• Multifunction control buttons work in tandem with the touchscreen interface for intuitive onboard control.
• Auto HDMI camera trigger is supported by Canon and Sony cameras using Atomos Open Standard.
• Unlock Bluetooth and RF-driven remote control with the optional CONNECT module.
• LANC control and calibration can be accessed using a separately available USB-C to serial connection cable.

Atomos Ninja UltraSpecs

Display Size	5.2" / 13.2 cm
Native Resolution	1920 x 1080
Touchscreen	Yes
HDR Support	Yes, Hybrid Log Gamma
Video I/O	1x HDMI 2.0 Input 1x HDMI 2.0 Output
Media/Memory Card Slot	No
Video Format	HDMI (8/10/16-Bit 4:2:2) 8K Raw: 30 6K Raw: 60 3.5K Raw: 60 DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98 1080PsF 1080i: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50
Phantom Power	No
Built-In Battery	No
Battery Type	1x L-Series
Power Consumption	30 W

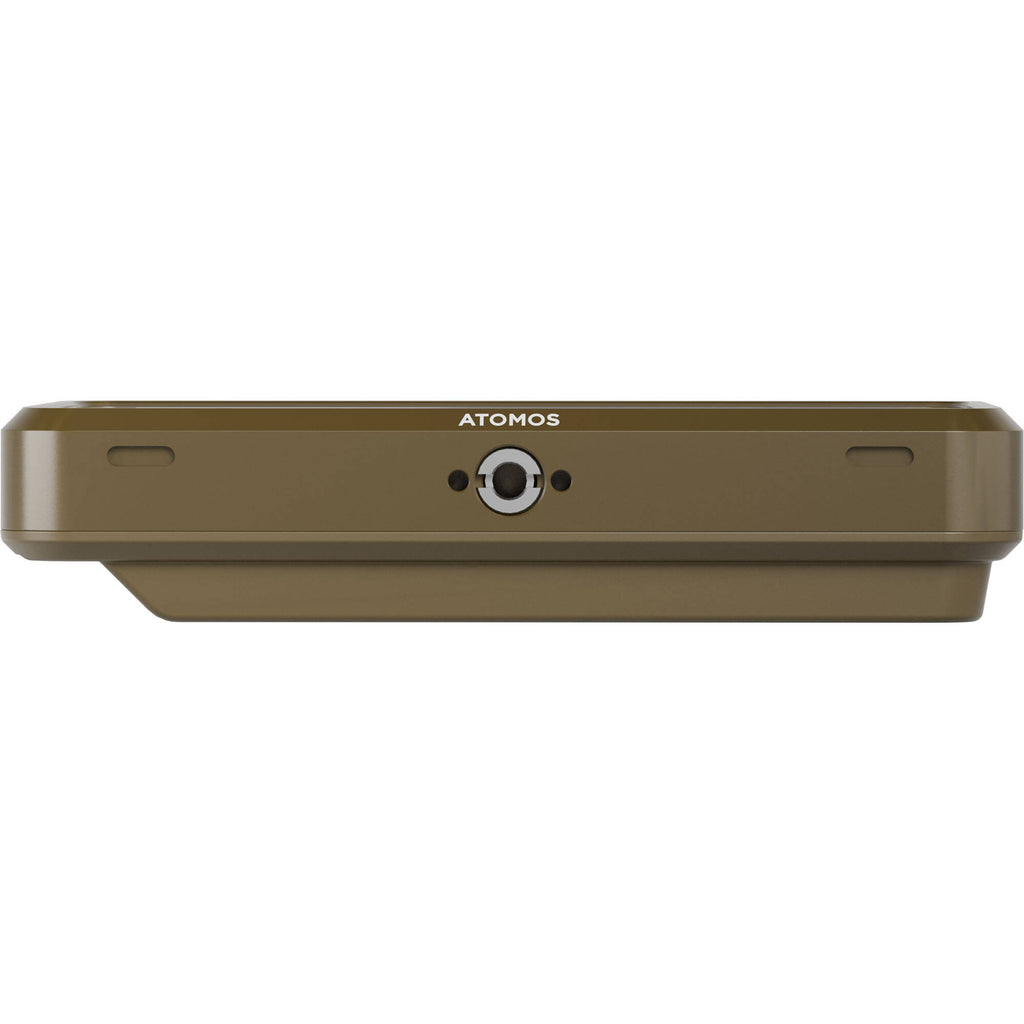

Mounting	1x ARRI Anti-Twist 1/4"-20 2x 3/8"-16 Female

Panel Type	IPS-Type LCD
Display Size	5.2" / 13.2 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Touchscreen	Yes
Maximum Brightness	1000 nits / cd/m2
Color Support	1.07 Billion Colors (8-Bit+FRC)
HDR Support	Yes, Hybrid Log Gamma
Pixels Per Inch (ppi)	427 ppi
LUT Support	HDR
Image Controls	Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

Video I/O	1x HDMI 2.0 Input 1x HDMI 2.0 Output
HDCP Support	No
Embedded Audio	HDMI

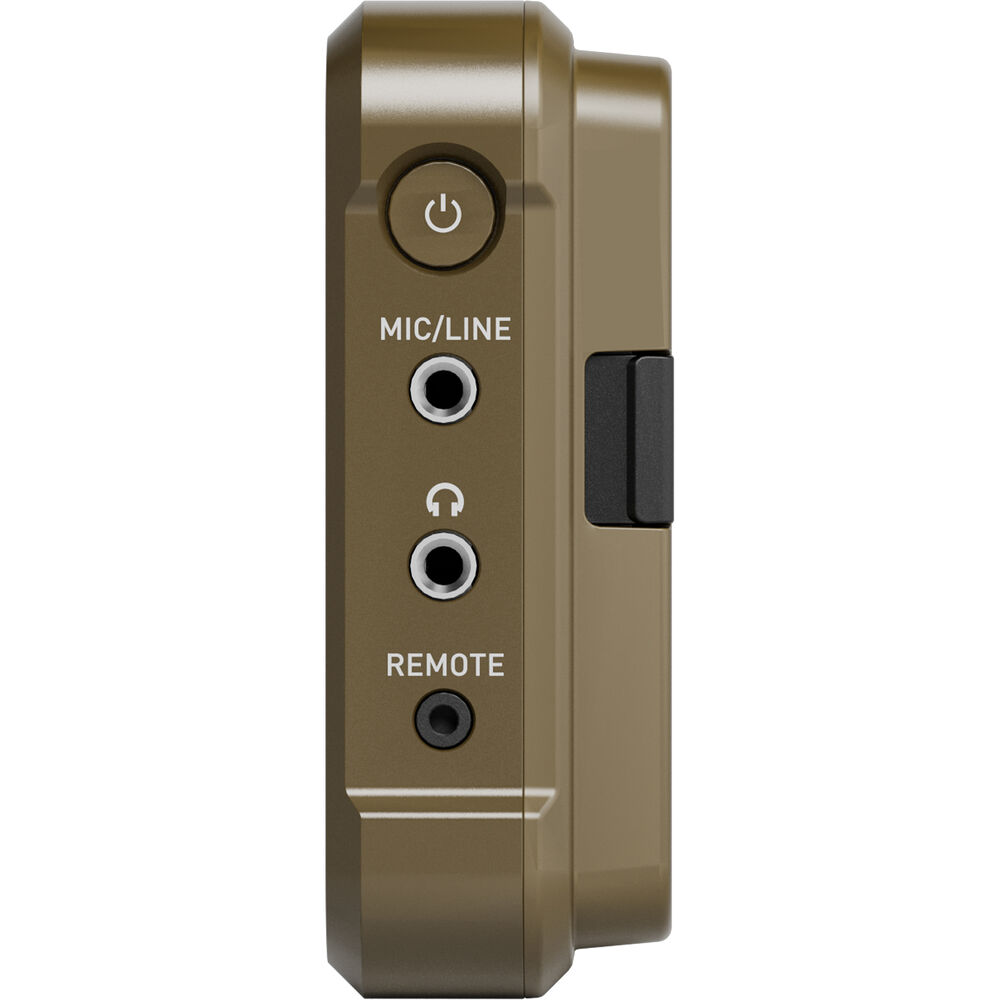

Audio I/O	1x 1/8" / 3.5 mm Input 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel Input
Other I/O	1x USB-C
Media/Memory Card Slot	No
File System Support	exFAT
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	Yes: iOS Only App Name: AtomRemote

Video Format	HDMI (8/10/16-Bit 4:2:2) 8K Raw: 30 6K Raw: 60 3.5K Raw: 60 DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98 1080PsF 1080i: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50
Gamma Curve	ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Log, Rec709, Sony S-Log, Sony S-Log 2, Sony S-Log 3
Timecode Support	Yes

Pulldown Conversion	2:2, 3:2
Camera Trigger	HDMI
Pre-Roll Record	Full HD: 8 Seconds 4K: 2 Seconds
Encoding Formats	x DNxHD DNxHR ProRes
Maximum Audio Tracks	8
Reference Input	No
Phantom Power	No

Input Power	6.2 to 16.8 VDC
Built-In Battery	No
Battery Type	1x L-Series
Power Consumption	30 W

Mounting

1x ARRI Anti-Twist 1/4"-20 2x 3/8"-16 Female

Operating Temperature

104°F / 40°C

Material of Construction	Aluminum, Plastic
Dimensions	5.9 x 3.6 x 1.2" / 151 x 91.5 x 31 mm
Weight	12.7 oz / 360 g

Package Weight	1.715 lb
Box Dimensions (LxWxH)	7.5 x 6.1 x 3.3"
