Description
- Wide Display for Master Series Prompters
- Mounts Right Below Teleprompter
- 1920 x 1080 HD Native Resolution
- 3000:1 Contrast Ratio
- SDI, DVI, VGA, S-Video, Composite Inputs
- SDI Output
- Selectable Color 5500K and 10000K
- Selectable Gamma 3.0 and 1.8

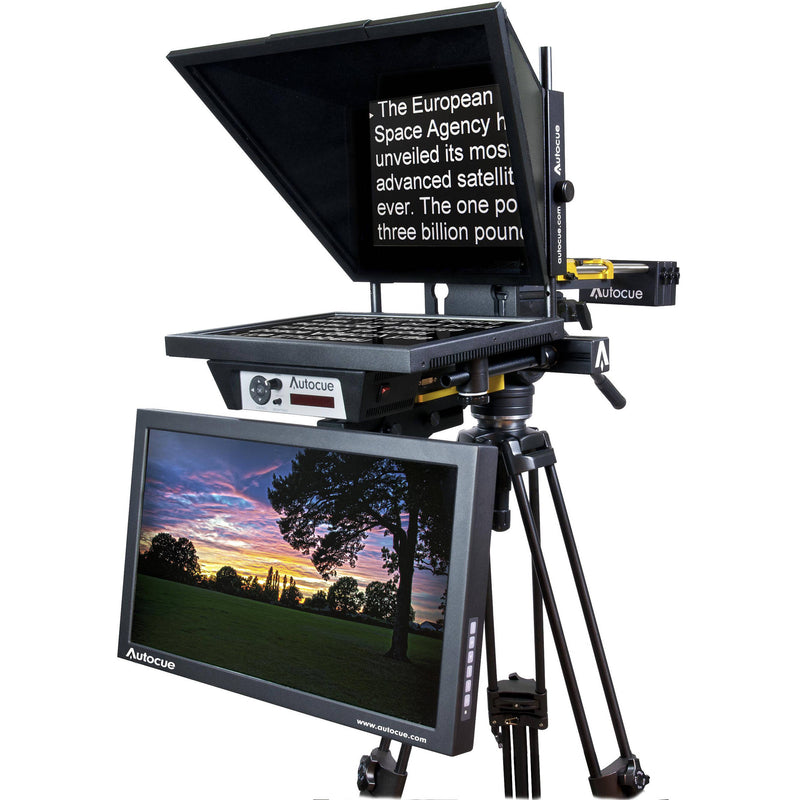

The Autocue/QTV 22" Talent Feedback Monitor is a widescreen SDI monitor for Autocue's Master Series teleprompters. A new mounting system enables conveniently attaching the monitor right below the teleprompter to let on-camera talent see their presentations live.
The monitor features HD-SDI, DVI, VGA, S-Video, and Composite inputs and an HD-SDI output. The native resolution is 1920 x 1080 HD and contrast ratio is 3000:1.
The OSD adjustment menu allows selecting color temperatures between 5500K and 10000K and a user-definable color within this range, and gamma is selectable between 3.0 and 1.8. Aspect ratio can be set as 5:4, 4:3, full, full aspect, native, and user defined, and if your input is by VGA, a screen adjustment feature helps find the one correct position for each display mode.
A power adapter and several connection cables come included.
- Key Features
-
- Widescreen monitor for Autocue's Master Series teleprompters
- Mounts right below the teleprompter
- HD-SDI, DVI, VGA, S-Video and Composite inputs; HD-SDI output
- 1920 x 1080 HD native resolution
- 3000:1 contrast ratio
- Color temperatures selectable between 5500K and 10000K
- Gamma selectable between 3.0 and 1.8
- 22" LCD Monitor
- Back Plate Mount
- Power Adapter
- D-Sub Cable
- DVI Cable
- S-Video Cable
- BNC Cable
- Power Cable
- User Manual
- 1-Year Limited Warranty
| Size | 21.5" wide display (54.6 cm) |
| Supported Resolutions | 1920 x 1080 @ 60 Hz (native resolution) 1280 x 1024 @ 60 Hz 1024 x 768 @ 60 Hz 800 x 600 @ 60 Hz 640 x 480 @ 60 Hz |
| Pixel Pitch | 0.248 x 0.248 mm |
| Viewing Angle | 170�/160� H/V |
| Brightness | 250 nit typ. |
| Contrast Ratio | 3000:1 typ. |
| Response Time | 25 ms typ. |
| Dot Frequency | 173 MHz (max) |
| Connections | Inputs: 1x HD-SDI 1x VGA 1x DVI-D 1x S-Video 1x CVBS Output: 1x HD-SDI |
| VESA Compatibility | 100 mm VESA spacing |
| Power Supply | 12 VDC |
| Power Consumption | 40 W max |
| Power Saving | EPA, VESA compliant |
| Operating Temperature | 32 to 104°F (0 to 40�C) |
| Storage Temperature | -4 to 149°F (-20 to 65�C) |
| Relative Humidity | 5 to 90%, non condensing |
| MTBF | > 50,000 hours (excluding backlight) |
| Dimensions | Without mount: 20.1 x 12.3 x 2.3" (51.2 x 31.4 x 6 cm) |
| Weight | With mount: 16.5 lb (7.5 kg) |
