Description
AVMATRIX PK3000 Overview
- 1Description
- 2IP and Serial Control
- 3Control up to 255 Cameras
- 44D Joystick
- 5Quick Controls
- 6Hardware and Power
The Professional IP & Serial PTZ Camera Joystick Controller from AVMATRIX provides serial and IP-based control for up to 255 PTZ cameras in a cross-protocol environment. The controller offers ONVIF and VISCA-over-IP modes and VISCA, Pelco-P, and Pelco-D serial modes supporting IP/RS-232/422/485 communication.

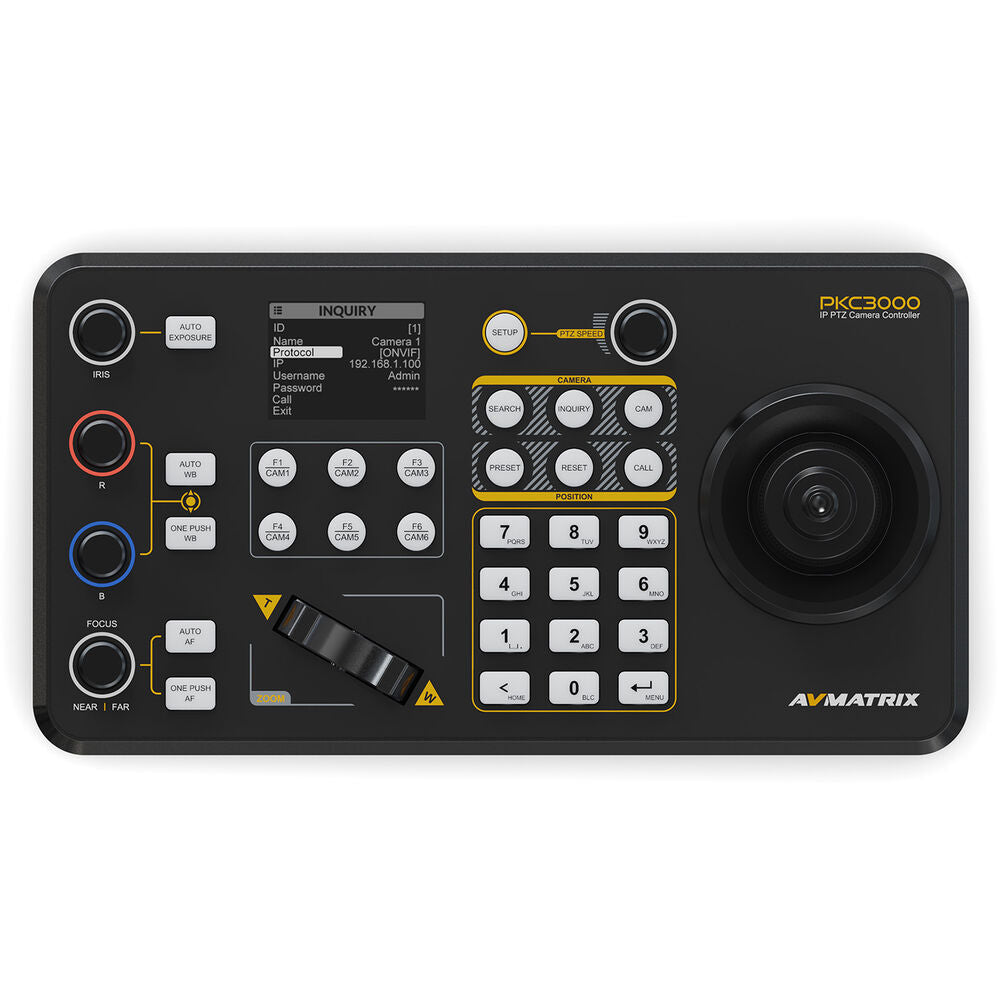

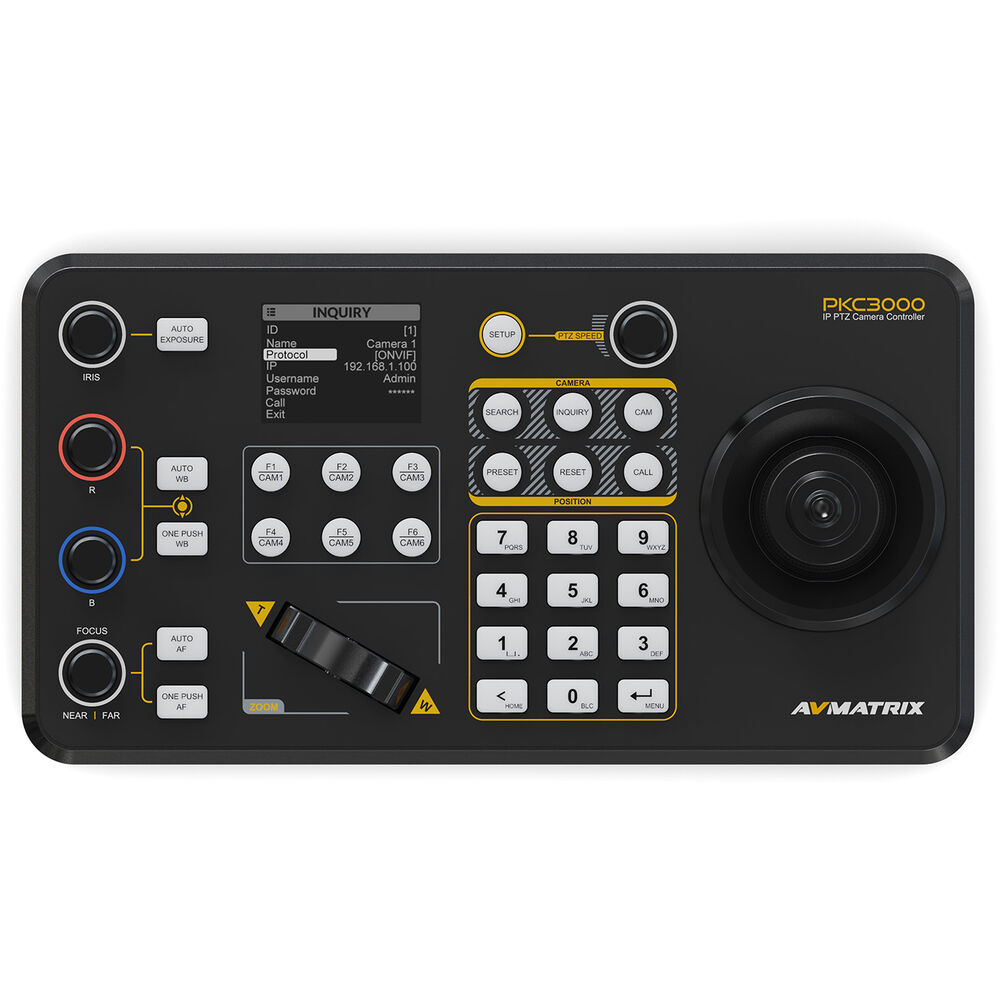

Its 4D joystick provides pan, tilt, zoom, and focus functions, and it features variable speed control. The illuminated, multicolor keys provide different function information, and there are six assignable keys, six camera quick keys, five knobs, and a zoom rocker to fine-tune your camera movements and settings. It features a clear 2.2" LCD screen to view the configuration, status, and menus, and it also provides tally output to the cameras. The controller is powered by the included power adapter, or it can be powered using an existing PoE network.
In the Box
- AVMATRIX Professional IP & Serial PTZ Camera Joystick Controller
- Power Supply
- Description
- IP and Serial Control
- Control up to 255 Cameras
- 4D Joystick
- Quick Controls
- Hardware and Power
AVMATRIX PK3000 Specs
| Number of Supported Cameras | 255 Channels |
| Supported Control Protocols | IP Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA |

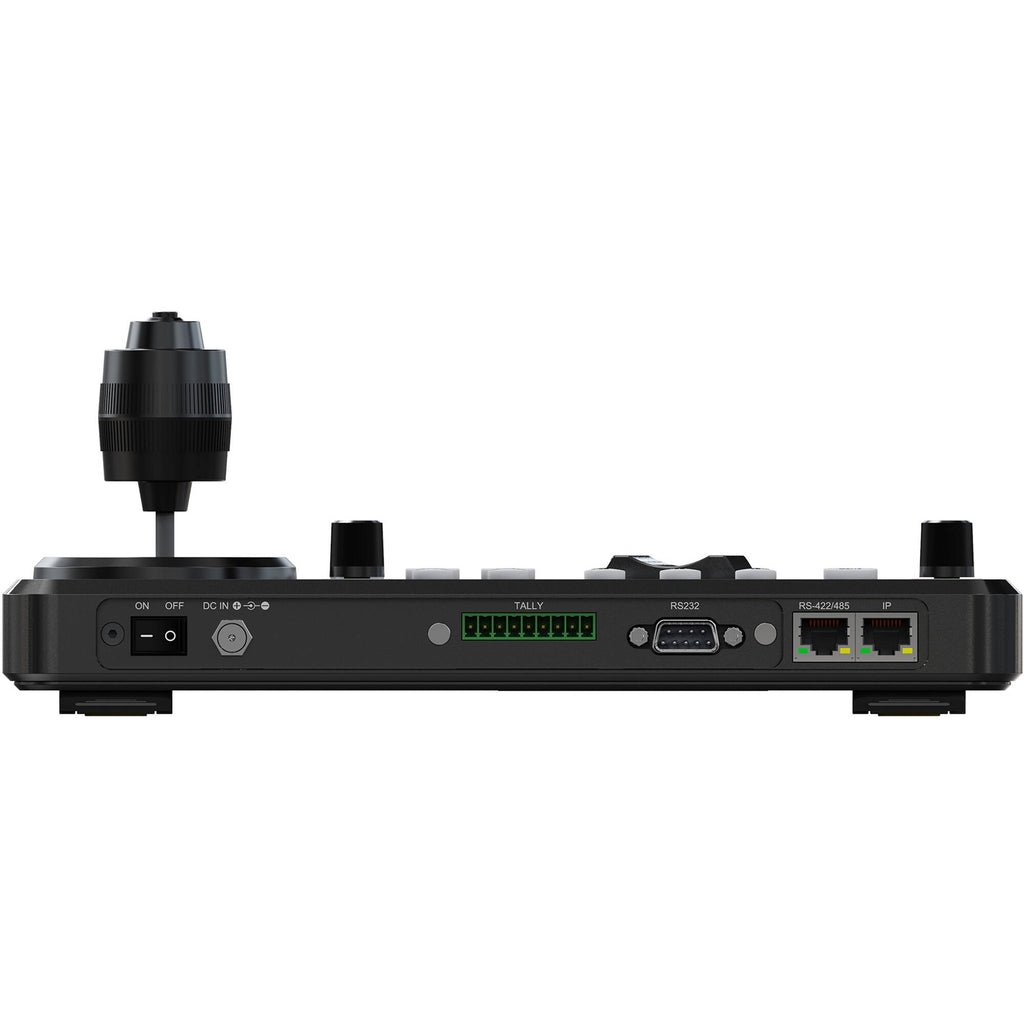

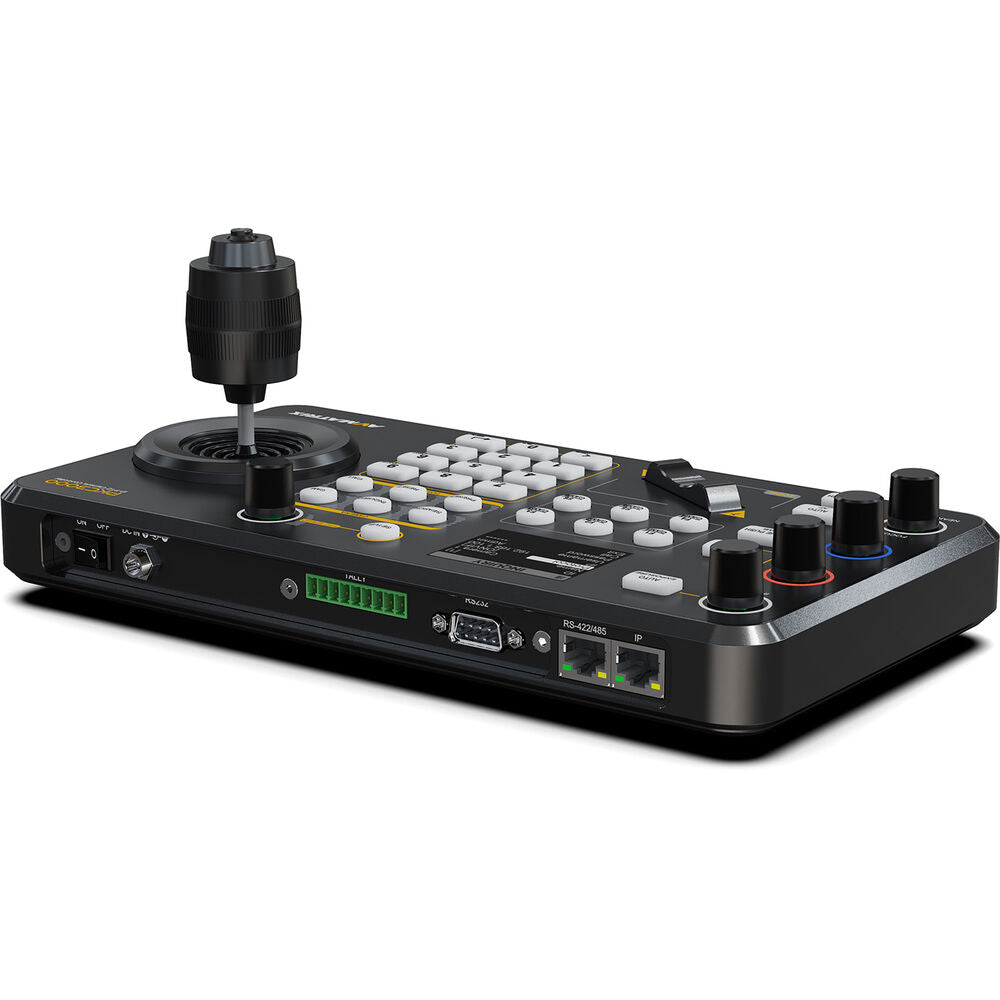

| Control I/O | 1 x Block 9-Pin Input 1 x RJ45 (IP Control) Output 1 x RJ45 (RS-422, RS-485) Output 1 x D-Sub 9-Pin (RS-232) Output |
| Controls | 6 x Programmable Buttons 1 x Pan/Tilt, Zoom Joystick 6 x Camera Selection Buttons 5 x Knobs 1 x Zoom Rocker |
| Presets | 255 via IP, RS-232, VISCA, Pelco-P, Pelco-D |
| Size | 2.2" |
| Touchscreen | No |
| PoE Support | Yes |
| Power Connectors | 1 x Barrel / Coaxial |
| Power Consumption | 5 W |
| DC Input Power | 12 VDC |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -40 to 176°F / -40 to 80°C |
| Security Lock Support | None |
| Dimensions | 106.3 x 57.1 x 11.6" / 270 x 145 x 29.5 cm 106.3 x 57.1 x 42" / 270 x 145 x 106.6 cm |
| Weight | 2.6 lb / 1.2 kg |
| Package Weight | 3.575 lb |
| Box Dimensions (LxWxH) | 12.4 x 7.6 x 5.7" |
AVMATRIX PK3000 Reviews
