![AVX 12105C335KAT2A SMD Multilayer Ceramic Capacitor, 1210 [3225 Metric], 3.3 µF, 50 V, ± 10%, X7R](http://www.tanotis.com/cdn/shop/products/1458900-40_2783d58b-77f3-4320-afd2-86a0e28e0611_{width}x.jpg?v=1575992956)
![AVX 12105C335KAT2A SMD Multilayer Ceramic Capacitor, 1210 [3225 Metric], 3.3 µF, 50 V, ± 10%, X7R](http://www.tanotis.com/cdn/shop/products/1458900-40_2783d58b-77f3-4320-afd2-86a0e28e0611_1024x.jpg?v=1575992956)
| ₹ 78.22 includes GST and import duties. | |
| B2B customers can avail ₹ 11.93 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

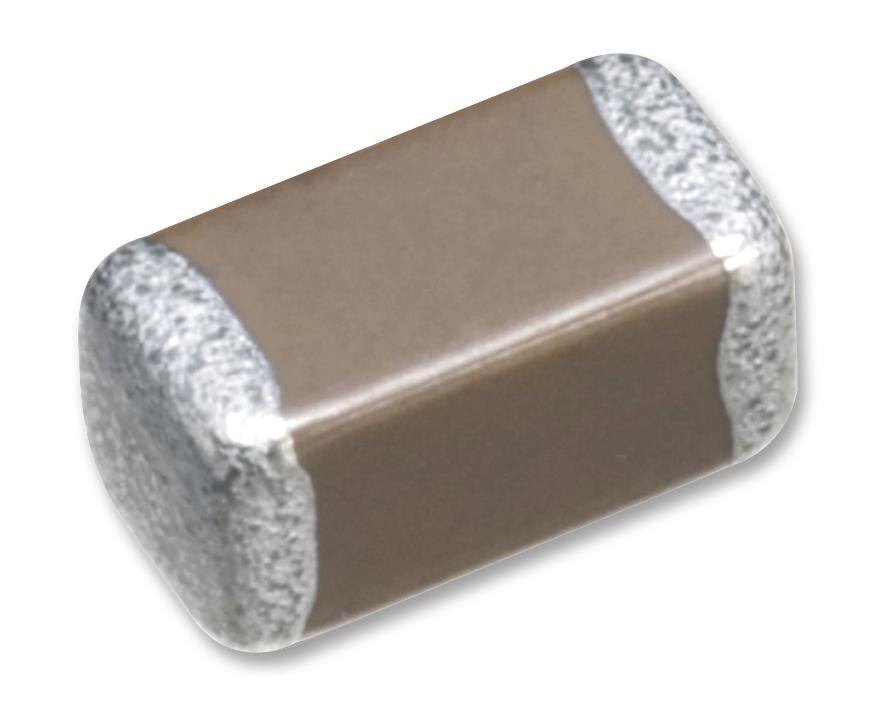

The AVX multilayer ceramic capacitors with EIA class II, X7R dielectric material are temperature stable ceramic chip capacitors. This multilayer ceramic capacitor is a monolithic block of ceramic containing two sets of offset, interleaved planar electrodes that extend to two opposite surfaces of ceramic dielectric. Capacitance for X7R dielectric varies under influence of electrical operating conditions such as voltage and frequency. X7R dielectric chip usage covers broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.
- Capacitance value ranges from 100pF to 100µF
- EIA 0101, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 1825, 2220, 2225 case sizes available
- Rated DC voltage of 4V, 6.3V, 10V, 16V, 25V, 50V, 100V, 200V, 500V
- ±5%, ±10% and ±20% tolerance
- Available in FLEXITERM/gold/Nickel (Ni) and tin (Sn) plated terminations
- Load life of 1000h at 125?C
- Operating temperature range from -55?C to 125?C
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Ceramic Capacitor Case | 1210 [3225 Metric] |
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 125°C |
| Voltage Rating | 50V |
| Product Range | - |
| Automotive Qualification Standard | - |
| Capacitance | 3.3µF |
| Capacitance Tolerance | ± 10% |
| Packaging | Cut Tape |
| Dielectric Characteristic | X7R |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | AVX |
| Part Number | 12105C335KAT2A |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
