Azden SGM-990 + I Overview
The SGM-990+i Shotgun Microphone for Mobile Device Recording from Azden is designed for capturing audio in several environments like meetings, weddings, and more. It is compatible with smartphones and tablets with a TRRS headset jack, and can be used on video camcorders, DSLR cameras, or field recorders to pick up your sound.
The SGM-990+i shotgun microphone features a supercardioid pickup pattern. It is built with a 2-position switch that allows you to select a long or short pickup pattern. The mic has a frequency response of 150 Hz to 18 kHz, and a pickup range of 35'. It is powered by one alkaline AAA battery.
Furthermore, the electret condenser microphone is equipped with a coiled cable that terminates to a 1/8" mini-jack connector, making it compatible with several cameras, field recorders, and mobile devices. The mic includes a windscreen, and shockmount mic holder.

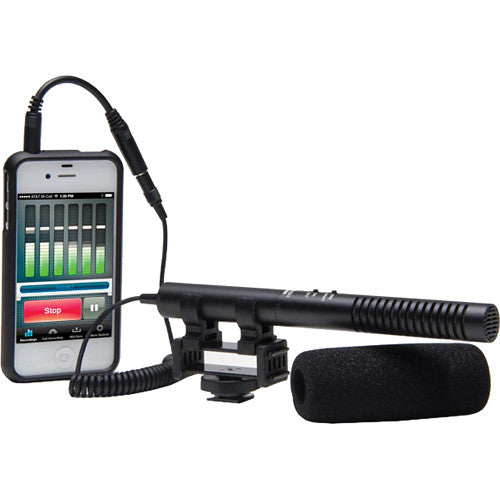

Supplied interface cable allows you to record audio to your iPhone 3/4/5/6, iPad (3rd generation and newer), Samsung Galaxy S 3/4/5, Galaxy Tab 3 and most Android devices.
Supercardioid pickup pattern focuses straight ahead, picks up your subject more clearly, and reduces side noise

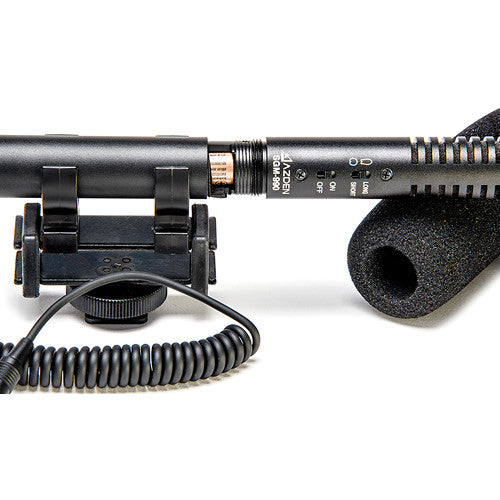

2-position switch allows you to change the pickup pattern from Long to Short
Included shockmount mic holder isolates the microphone from vibrations in your camera or boompole
3.5mm audio connection plugs into your DSLR or camcorder's audio input jack to record live audio directly into your camera, or field recorder
In the Box
- Azden SGM-990+i Shotgun Microphone for Cameras and Mobile Devices
- Azden WS-SLR Foam Windscreen
- 2" Adapter Cable, 1/8" Female TRS to 1/8" Male TRRS
- Azden SMH-X Universal Shockmount for Camera Shoes and Boompoles
Azden SGM-990 + I Specs
Microphone
| Sound Field |
Mono |
| Capsule |
Electret Condenser |
| Polar Pattern |
Cardioid, Supercardioid |
| Pattern Selection |
Switched |
| High-Pass Filter |
None |
| Gain Adjustment |
None |
| Windscreen |
Foam (Included) |
Performance
| Frequency Range |
150 Hz to 18 kHz |
| Maximum SPL |
100 dB SPL |
| Impedance |
Cardioid: 660 Ohms at 1 kHz
Supercardioid: 1.7 Kilohms at 1 kHz |
| Sensitivity |
Cardioid: 72 dB at 1 kHz
Supercardioid: 55 dB at 1 kHz |
| Signal-to-Noise Ratio |
40 dB |
Connectivity
| Output Connectors (Analog) |
1 x 1/8" / 3.5 mm TRS |
| Cable Length |
2" / 50.8 mm |
Power
| Battery Type |
1 x AAA (Not Included) |
Physical
| Mounting |
Camera/Shoe-Mount, Shockmount (Included) |
| Included Case |
None |
| Dimensions |
ø: 0.7 x L: 7" / ø: 17.78 x L: 177.8 mm |
| Weight |
2.1 oz / 59.54 g |
Packaging Info
| Package Weight |
0.39 lb |
| Box Dimensions (LxWxH) |
9 x 3.35 x 2.2" |
