Description
- For ALEXA Mini & Compatible Cameras
- Low-Noise Preamp, 100 dB Dynamic Range
- Allows for Recording Directly to Camera
- 2 x Transformer-Balanced XLR Inputs
- Balanced 5-Pin XLR Output for Cameras
- 3.5mm Output for External Recorders
- Mitigates Need for External Syncing
- Headphone & Loopback Monitoring
- 48V Phantom Power on Each Channel
- Included Bracket

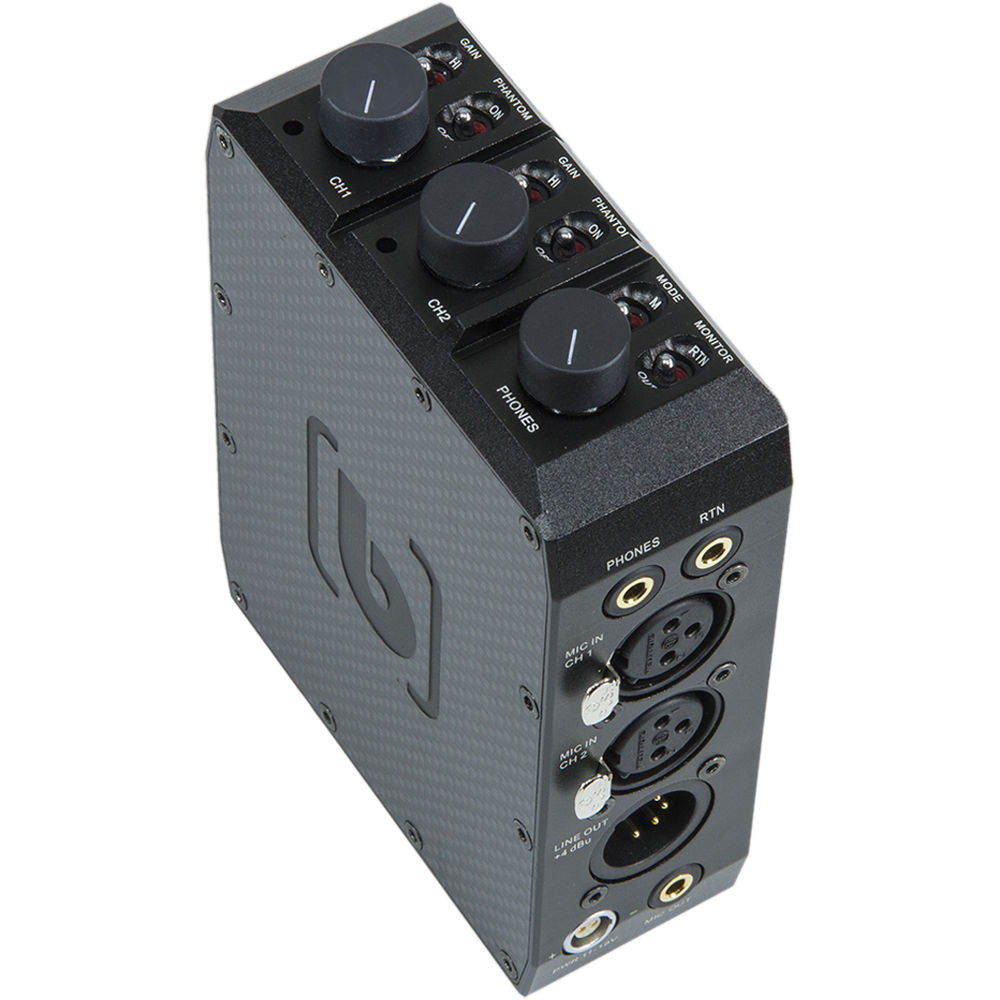

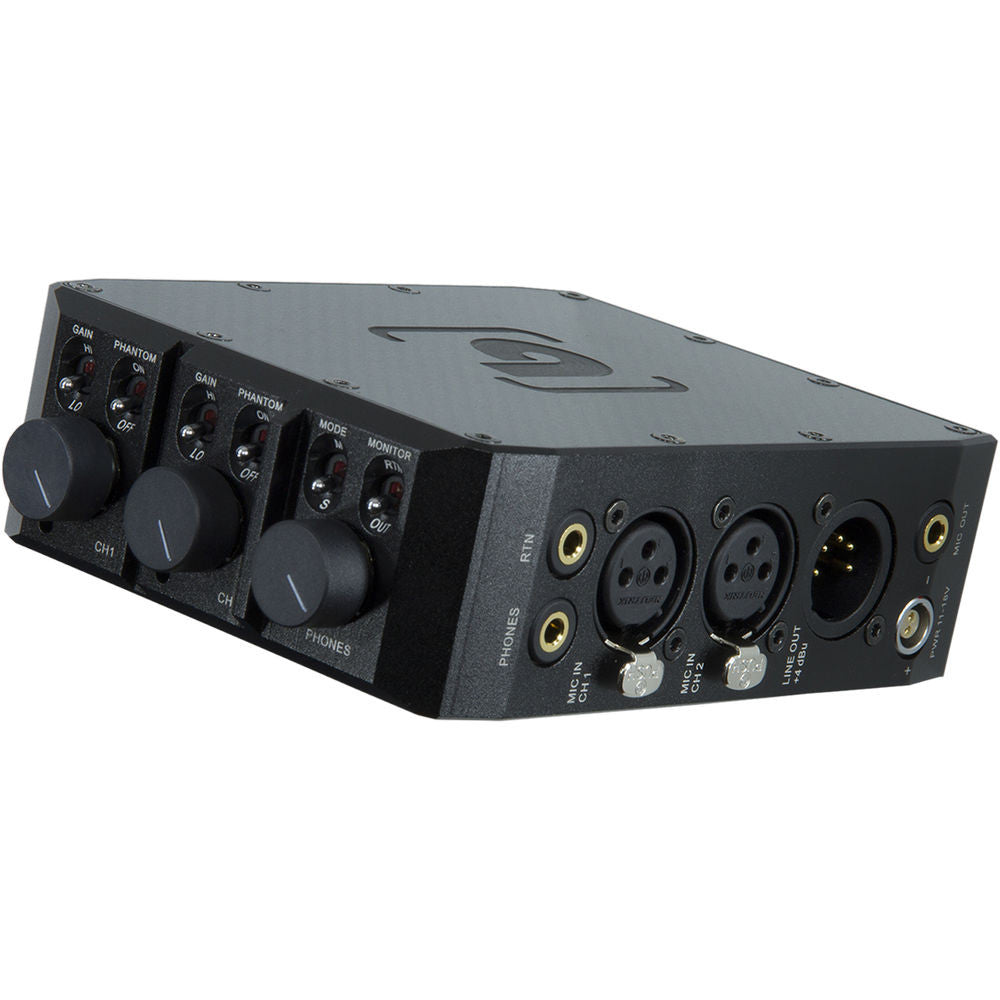

Designed primarily for the ALEXA Mini, but compatible with cameras such as the RED DSMC2, the Beachtek DXA-ALEXA is a low-noise preamplifier which connects directly to your camera, capturing audio through its transformer-balanced inputs and obviates the need for external syncing. The preamp itself sports a 100 dB dynamic range, and the construction of its inputs ensure galvanic isolation, as well as high common mode rejection in the face of common obstacles, such as electromagnetic interference.

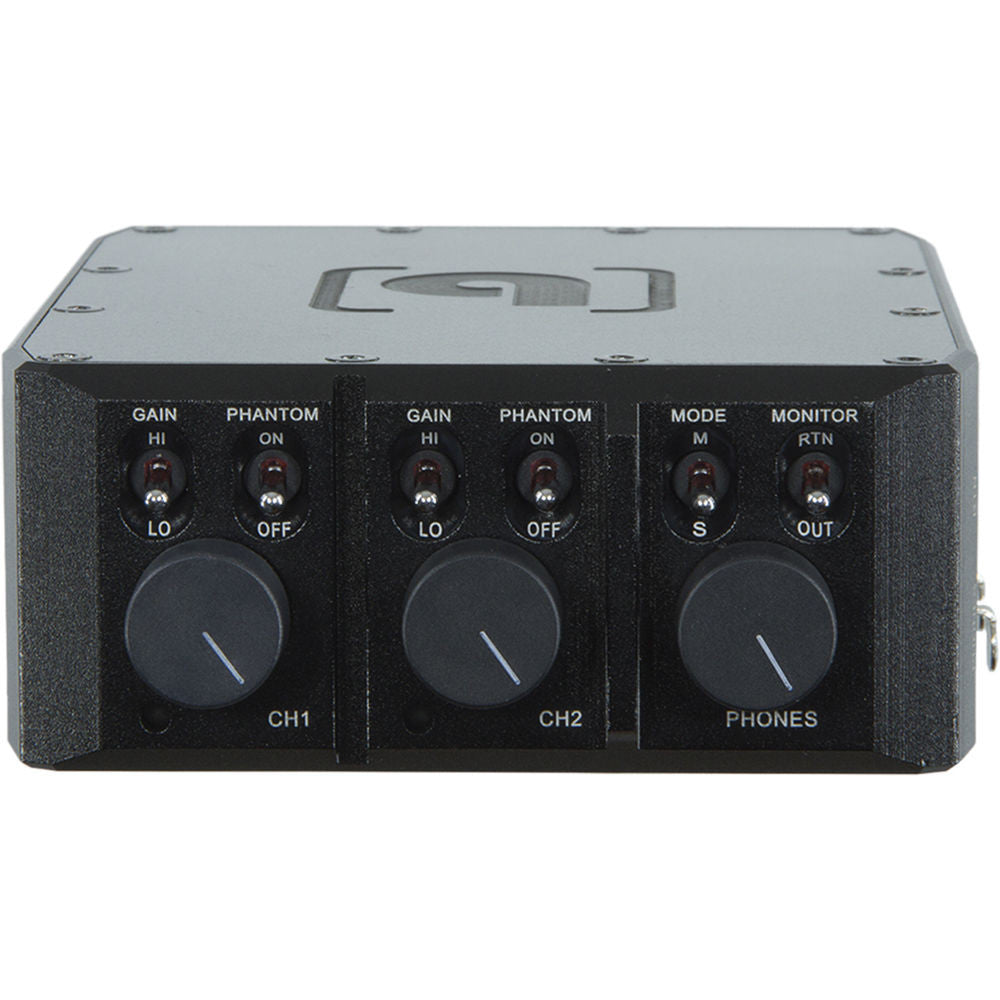

The DXA-ALEXA provides dual gain controls which are detented for precise settings, as well as high/low switches for microphone matching, switchable 48V phantom power for condenser mics, and easy-to-read LED level indicators which give you a good picture of your overall sound; green signifies a level between -40 and +16 dBu, yellow takes you all the way to +4, and red gives you an indication of overs.
A carbon fiber chassis is relatively lightweight at under a pound, while weather-resistant top-panel switches ensure reliability in wide variety of conditions. For outputs, the DXA-ALEXA gives you a balanced 5-pin XLR output that can connect directly to 5-pin LEMO inputs. You can also route signal to other recorders by means of an unbalanced 3.5mm jack. Connections are provided for headphone and loopback monitoring as well. The preamp itself draws power from your existing rig by means of a 2-pin LEMO connection. Thanks to the preamp�s three threaded 1/4"-20 holes, you can mount this unit on the rails of third-party brackets, though a bracket has been included for mounting to camera cages, such as the ARRI ALEXA Mini camera cage.
- Key Performance Features
-
- Records audio directly to camera, obviating the need for syncing
- 100 dB dynamic range, low-noise operation
- Headphone monitoring and loopback monitor for external devices
- Green, yellow, and red level indicators built-in for quick, overall level monitoring
- 48V phantom power offered on both inputs
- Transformer-balanced inputs provide galvanic isolation and high common mode rejection
- Dual mono recording or stereo recording
- Audio bracketing feature for backup
- 5-pin XLR 4 dBu line-level output matched to line-level input of camera
- High and Low switches for gain to match microphones
- Auxiliary unbalanced microphone output for attaching an audio recorder (suitable for MP3 transcription or backup)
- Key Physical Features
-
- Rugged chassis, easy operation
- Locking Neutrik XLR connectors
- Water-resistant top-panel switches
- Detented level controls for precise adjustments and recall
- Power switch provided on operator side, other controls situated on top and assistant side when situated in rear-rod mount position
- Multiple mounting options, with mounting bracket included
Beachtek DXA-ALEXA specs
| Connectors | Phones: 3.5 mm stereo headphone connector RTN: 3.5 mm stereo input for loopback from camera Mic In Channel 1: XLR balanced mic-level input for channel 1 Mic In Channel 2: XLR balanced mic-level input for channel 2 Line Out: 5-pin balanced output at +4 dBu Mic Out: 3.5 mm unbalanced auxiliary stereo output 2-pin LEMO 12 to 16 VDC power |
| Frequency Response | 20 Hz to 20 kHz (±1 dB) |
| Gain | Line Out: Low: 40 dB, High: 60 dB Mic Out: Low: 10 dB, High: 30 dB |
| Maximum Input Level | Low Gain: -15 dBu High Gain: -35 dBu |
| Output Clipping Level | Line Output: +25 dBu Mic Output: -5 dBu |
| Dynamic Range | 100 dB |
| THD+N | Low Gain: 0.012% (+4 dBu output, 1 kHz) High Gain: 0.06% (+4 dBu output, 1 kHz) |
| Channel Separation | Low Gain: 85 dB (+4 dBu output, 1 kHz) High Gain: 80 dB (+4 dBu output, 1 kHz) |
| Metering | Tri-Color LED: Green: -40 to 16 dBu Yellow: -16 to +4 dBu Red: Over +4 dBu |
| Powering | External DC input jack (12 to 16 V) Pin 1 = (-), Pin 2 = (+) |
| Dimensions | 5.0 x 3.8 x 1.6" / 126 x 96 x 40 mm |
| Weight | 0.8 lb / 374 g |
| Packaging Info | |
|---|---|
| Package Weight | 2.35 lb |
| Box Dimensions (LxWxH) | 9.9 x 7.8 x 3.9" |
- Mounting Bracket
- 5-Pin Lemo Output Cable
- D-Tap to 2-Pin Lemo Power Cable
- Limited 2-Year Warranty
