Description
Belden 4694RBUHD1 Overview

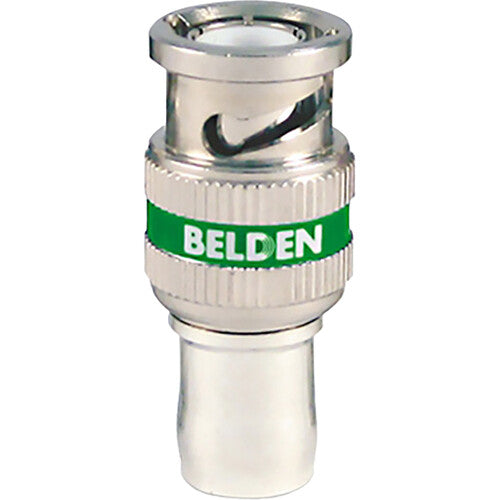

The Belden 12 GHz UHD BNC Compression Connector for 1694A RG6 Coax Cable (Single) is designed for use with Belden 1694A RG6 coax cable. It has an impedance rating of 75 ohms and delivers a minimum return loss of 4 to 15 dB at 5 to 12,000 MHz. This BNC connector is suitable for professional, high-definition broadcast audio and video applications. With its one-piece design, the nickel-plated brass connector offers a combination of durability, solid performance, and fast installation. The connector's design includes 360° compression rings, an improved insulator, and non-blind entry. The connector is color-coded with a green ring to identify its compatibility with Belden 1694A and 1694ANH RG6 coax cables.
In the Box
- Belden 12 GHz UHD BNC Compression Connector for 1694A RG6 Coax Cable (Single)
- Limited Lifetime Warranty (when Used with Belden Brilliance Cable)
- Limited 10-Year Warranty (when Used with Third-Party Cable)
Belden 4694RBUHD1 Specs
| Type | Coaxial |
| Connector | BNC Male |
| Termination | Compression |
| Construction Material | Nut: Nickel-Plated Brass Body: Nickel-Plated Brass Contact: Gold-Plated Brass Insulator: PTFE |
| Nominal Impedance | 75 Ohms |
| Return Loss | 5 to 1485 MHz: 15 dB 1485 to 3000 MHz: 10 dB 3000 to 6000 MHz: 7 dB 6000 to 12,000 MHz: 4 dB |
| Cable Diameter Limits | Cable Center Conductor: 0.3740 to 0.0401" / 0.9500 to 0.1019 cm Cable Dielectric: 0.1771 to 0.1850" / 0.4498 to 0.4699 cm Cable Outer Jacket: 0.2657 to 0.2854" / 0.6749 to 0.7249 cm |
| Standards | RG6 |
| Environmental Space | Indoor |
| Compliance | EU Directive 2000/53/EC (ELV) EU Directive 2011/65/EU (ROHS II) EU Directive 2012/19/EU (WEEE) EU Directive 2015/863/EU EU Directive 2003/11/EC (BFR) |
| Package Weight | 0.035 lb |
| Box Dimensions (LxWxH) | 4.2 x 1.8 x 0.65" |
