| ₹ 45375.0 includes GST and import duties. | |
| B2B customers can avail ₹ 6919.69 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Belden 1855A Overview

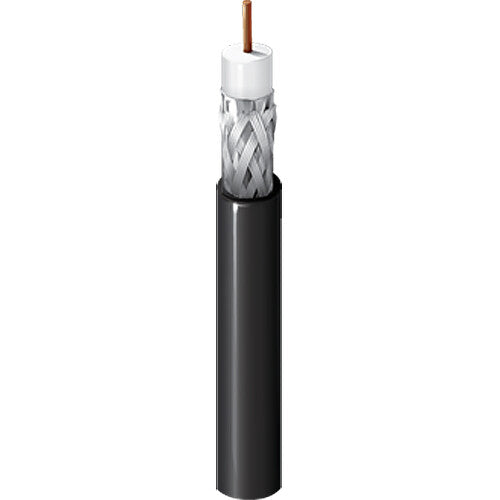

The Black Belden 1855A Sub Miniature Video Coax 23 AWG 1000 ft is a precision broadcast video cable for analog and digital signals. It can be used for narrow-band composite through wide-band SDI transmissions.
Stranding is solid and the conductor is bare copper. Insulation material is gas-injected foam high-density polyethylene, and the outer shield is of two layers, with layer 1 made of aluminum foil-polyester tape-aluminum foil and featuring 100% coverage and layer 2 made of tinned copper with 95% coverage.
Max pull tension is at 36 lb and bend radius at 1.5". Impedance is 75 ohms and overall diameter 0.159". Ten different colors are available to choose from, with black exclusively offering outdoor and aerial suitability.
- Precision broadcast video cable for analog and digital signals.
- For narrow-band composite through wideband SDI transmissions.
- Out of 10 available colors, this black alone is suitable for outdoor/aerial use.
Items Included
- Belden 1855A 23 AWG Miniature Video Coax Cable (500', Black)
- Limited 10-Year Manufacturer Warranty
Additional Resources
No additional resources available
Belden 1855A Specs
| Interface |
6G-SDI
|
| Coaxial Type |
Mini RG-59
|
| Cable Length |
500' / 152.4 m
|
| Maximum Resolution Support |
3840 x 2160
|
| Materials |
Conductor: Bare Copper
Jacket: Polyvinyl Chloride (PVC) |
| Color |
Black
|
| Shielded |
Yes
|
| Wire Gauge |
23 AWG
|
| Certifications |
EU, REACH, RoHS, WEEE
|
| Package Weight |
10.345 lb
|
| Box Dimensions (LxWxH) |
11.65 x 11.65 x 6.05"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 44467.5 |
| 3-5 | ₹ 44013.75 |
| 5-10 | ₹ 43106.25 |
| 10+ | ₹ 42198.75 |
Bulk discount will be automatically applied during checkout based on quantity.
