Description
Belden 1855A Sub Miniature Coax Cable Overview
The black, (50') Belden 1855A Sub Miniature Coax Black with BNC Connectors is a precision broadcast video cable with BNC connectors for narrow-band composite through wide-band SDI transmissions.

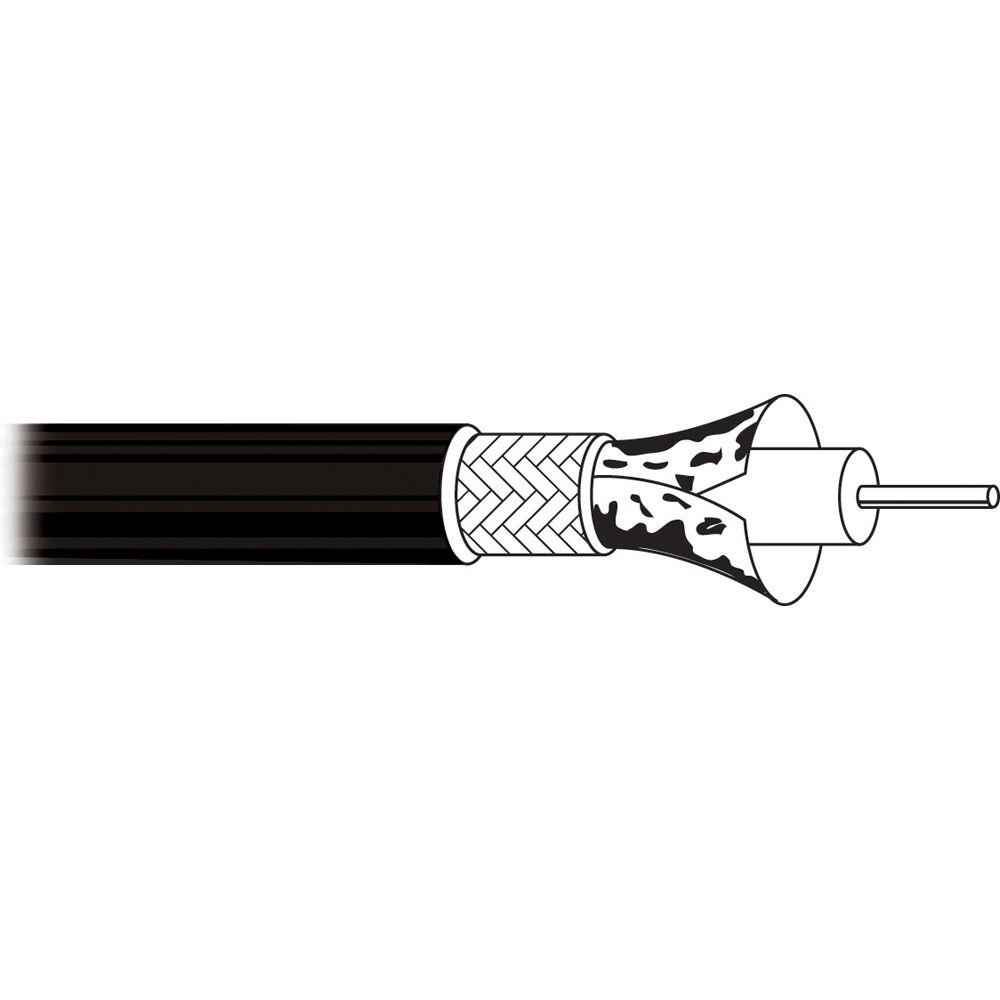

The cable is 23 AWG and features solid stranding, a bare copper conductor, and gas-injected foam HDPE insulation. The outer shield is of two layers, one with 100% coverage and the other with 95%.
In the Box
- Belden 1855A Sub Miniature Coax with BNC Connectors (Black, 50')
- Limited 10-Year Manufacturer Warranty
Belden 1855A Sub Miniature Coax Cable Specs
General
| Connector 1 |
1 x BNC
|
| Connector 2 |
1 x BNC
|
| Cable Length |
50' / 15 m
|
| Signal Type |
3G-SDI
|
| Coaxial Type |
RG-59 (1855A)
|
| Conductor Material |
Bare Copper
|
| Insulation Type |
Polyethylene
|
| Jacket Type |
Polyvinyl Chloride (PVC)
|
| Outer Diameter |
0.159" / 4 mm
|
| Shielding |
95% Tinned Copper Braid
100% Aluminum Foil |
| Wire Gauge |
23 AWG
|
Electrical
| Maximum Signal Loss |
22.8 dB at 4500 MHz over 100' / 30.5 m
|
| Capacitance |
16.3 pF/ft
|
Environmental
| Certifications |
RoHS
*as per Manufacturer |
| Operating Temperature |
-22 to 167°F / -30 to 75°C
|
Packaging Info
| Package Weight |
0.9 lb
|
| Box Dimensions (LxWxH) |
13 x 7.7 x 0.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
