| ₹ 86450.0 includes GST and import duties. | |
| B2B customers can avail ₹ 13183.63 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- 1000' (304.8 m) Plenum Cable
- Tape Separator
- Unshielded Outer Shield
- Bare Copper Conductors

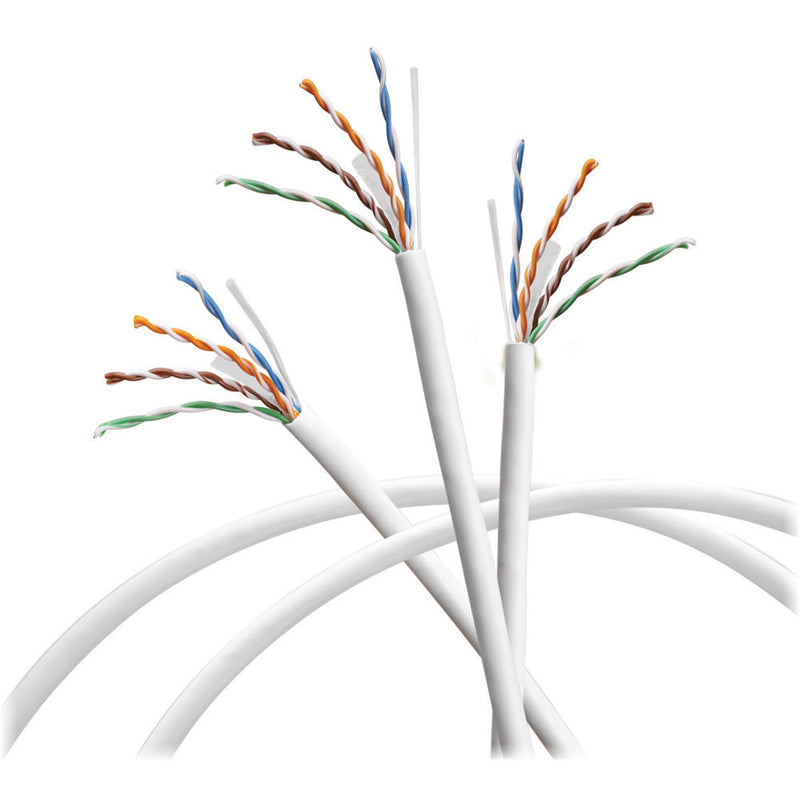

The 2413 Multi-Conductor - Enhanced Cat 6 Nonbonded-Pair Cable (White) from Belden is a 1000' (304.8 m) cable with 23 AWG solid bare copper conductors, dual FRPO/FEP insulation and a tape separator. This is a Plenum cable. It has a ripcord which is situated under the jacket of the cable. The cable is suitable for applications like premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM and 250 MHz Cat 6 cables.
- The cable is compatible with the following applications such as premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM and 250 MHz Cat 6 cables.
- The Cat 6 cable is made of flame retardant polyolefin/fluorinated ethylene propylene and has bare copper conductors.
UPC: 612825061571
In the Box
Belden 2413 Multi-Conductor - Enhanced Cat 6 Nonbonded-Pair Cable (White)
- 1 Year Warranty
| Pairs | 4 |
| AWG | 23 |
| Stranding | Solid |
| Color | White |
| Conductor Material | Bare copper |
| Compatibility | Premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, 250 MHz Cat 6. |
| Insulation Material | Flame retardant polyolefin/fluorinated ethylene propylene |
| Outer Shield Material | Unshielded |
| Outer Jacket Material | LS PVC (low smoke polyvinyl chloride) |
| Outer Jacket Diameter | 0.225" (0.57 cm) nominal |
| Outer Jacket Ripcord | Yes |
| Overall Cabling Separator Material | Dielectric tape |
| Overall Nominal Diameter | 0.225" (0.57 cm) |
| Pair Color Code Chart |
|
| NEC/(UL) Specification | CMR |
| Other Standards | ISO/IEC 11801 ed 2.1 (2008) Class E |
| EU CE Mark | Yes |
| EU Directive 2000/53/EC (ELV) | Yes |
| EU Directive 2002/95/EC (RoHS) | Yes |
| EU RoHS Compliance Date | 10/13/2004 |
| EU Directive 2002/96/EC (WEEE) | Yes |
| EU Directive 2003/11/EC (BFR) | Yes |
| CA Prop 65 (CJ for Wire and Cable) | Yes |
| MII Order #39 (China RoHS) | Yes |
| Telecommunications Standards | Cat 6 - TIA 568.C.2 |
| Other Specification | Third party verified to Cat 6 |
| Country Patent | US 5563377 US 6570095 US 6998537 US 7179999 CANADA 2144694 US 7977575 |
| Flame Test | NFPA 262 plenum flame test (UL910)(FT6) |
| C(UL) Flame Test | FT6 |
| CSA Flame Test | FT6 |
| Suitability | Indoor: YesOutdoor: No |
| Plenum | Yes |
| Velocity of Propagation | 70 VP (%) |
| Maximum Delay | 537 @ 100 MHz delay (ns/100 m) |
| Max. Delay Skew | 45 delay skew (ns/100 m) |
| Max Conductor DC Resistance | 8.2 DCR @ 68�F (20�C) (Ohm/100 m) |
| Max. Operating Voltage - UL | 300 V RMS |
| Maximum DCR Unbalanced | 5 DCR unbalance @ 68�F (20�C) (%) |
| Storage Temperature Range | 68 to 167�F (-20 to 75�C) |
| Installation Temperature Range | 41 to 122�F (5 to 50�C) |
| Operating Temperature Range | 32 to 167�F (0 to 75�C) |
| Max Recommended Pulling Tension | 40 lb (18.14 kg) |
| Min. Bend Radius/Minor Axis | 1" (2.54 cm) |
| Length | 1000' (304.8 m) |
| Weight | 27 lbs (12.24 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 27.2 lb |
| Box Dimensions (LxWxH) | 13.8 x 13.2 x 12.0" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 84721.0 |
| 3-5 | ₹ 83856.5 |
| 5-10 | ₹ 82127.5 |
| 10+ | ₹ 80398.5 |
Bulk discount will be automatically applied during checkout based on quantity.
