Description
Belden 4694R Overview

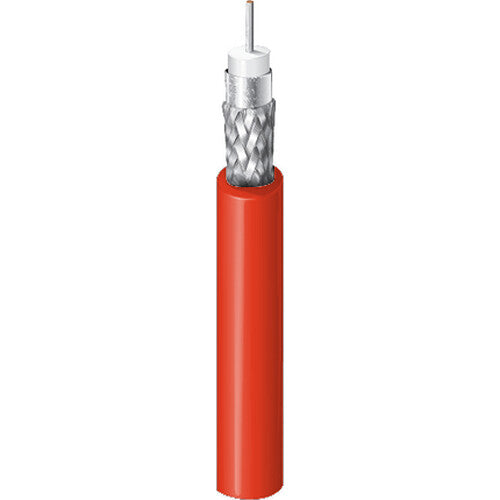

Designed with a red outer jacket and delivered on a reel, the 1000' 4694R RG6 12G-SDI 4K UHD 18 AWG Cable from Belden is suitable for indoor and UV-resistant applications with single-link UHD 4K, quad-link 8K, and 1080p HD-SDI signals. The 75-ohm RG6 coax cable features an 18 AWG solid silvered copper conductor, PE insulation, foil + 95% tinned copper braid shield, and a PVC jacket.
In the Box
- Belden 4694R RG6 12G-SDI 4K UHD 18 AWG Cable (1000', Red)
- Reel
- Limited 10-Year Warranty
Belden 4694R Specs
| Type | RG6 Coax |
| Conductor | 18 AWG Solid Stranding Silvered Coppered (SC) 0.04" / 0.1 cm Nominal Diameter |
| Insulation | Polyethylene (Foam) 0.18" / 0.46 cm Nominal Diameter |
| Outer Shield | Tape: Tri-Laminate (Aluminum/Poly/Aluminum) Duobond II 100% Coverage Braid: Tinned Copper (TC) 95% Coverage |
| Outer Jacket | Polyvinyl Chloride 0.274" / 0.7 cm Nominal Diameter |
| Return Loss | 5-1600 MHz: 23 dB 1600-4500 MHz: 21 dB 4500-12000 MHz: 15 dB |
| Attenuation | 1 MHz: 0.23 dB per 100' / 30.5 m 3.58 MHz: 0.44 dB per 100' / 30.5 m 5 MHz: 0.51 dB per 100' / 30.5 m 6 MHz: 0.56 dB per 100' / 30.5 m 7 MHz: 0.59 dB per 100' / 30.5 m 10 MHz: 0.70 dB per 100' / 30.5 m 12 MHz: 0.75 dB per 100' / 30.5 m 25 MHz: 1.04 dB per 100' / 30.5 m 55 MHz: 1.45 dB per 100' / 30.5 m 67.5 MHz: 1.58 dB per 100' / 30.5 m 71.5 MHz: 1.62 dB per 100' / 30.5 m 88.5 MHz: 1.78 dB per 100' / 30.5 m 100 MHz: 1.89 dB per 100' / 30.5 m 135 MHz: 2.10 dB per 100' / 30.5 m 143 MHz: 2.16 dB per 100' / 30.5 m 180 MHz: 2.44 dB per 100' / 30.5 m 270 MHz: 2.97 dB per 100' / 30.5 m 360 MHz: 3.45 dB per 100' / 30.5 m 540 MHz: 4.30 dB per 100' / 30.5 m 720 MHz: 5.00 dB per 100' / 30.5 m 750 MHz: 5.10 dB per 100' / 30.5 m 1000 MHz: 5.90 dB per 100' / 30.5 m 1500 MHz: 7.30 dB per 100' / 30.5 m 2000 MHz: 8.50 dB per 100' / 30.5 m 2250 MHz: 9.10 dB per 100' / 30.5 m 3000 MHz: 10.6 dB per 100' / 30.5 m 4500 MHz: 13.2 dB per 100' / 30.5 m 6000 MHz: 15.5 dB per 100' / 30.5 m 12000 MHz: 23.0 dB per 100' / 30.5 m |
| Electrical | Nominal Conductor DCR: 6.4 Ohms per 1000' / 305 m Nominal Outer Shield DCR: 2.8 Ohms per 1000' / 305 m Nominal Capacitance Cond-to-Shield: 15.9 pF/ft Nominal Impedance: 75 Ohms Nominal Velocity: 85% |
| UL Voltage | 300 V (CMR, CMG) |
| UL Rating | 140°F / 60°C |
| Operating Temperature | -4 to 167°F / -20 to 75°C |
| Bend Radius | 2.75" / 7 cm |
| Bulk Cable Weight | 41 lb / 18.6 kg per 1000' / 305 m |
| Maximum Pull Tension | 69 lb / 31.3 kg |
| Environment | Indoor, Indoor Riser, UV Resistance |
| Sustainability | CA Prop 65 |
| Flammability/Fire Resistance | UL1666 Vertical Shaft, FT4 |
| NEC/UL Compliance | CMR |
| CEC/C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 Amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 4694P |
