Description
- Bulk Video Cable
- 20 AWG
- 1000 ft
- 47 lbs Max Pull Tension

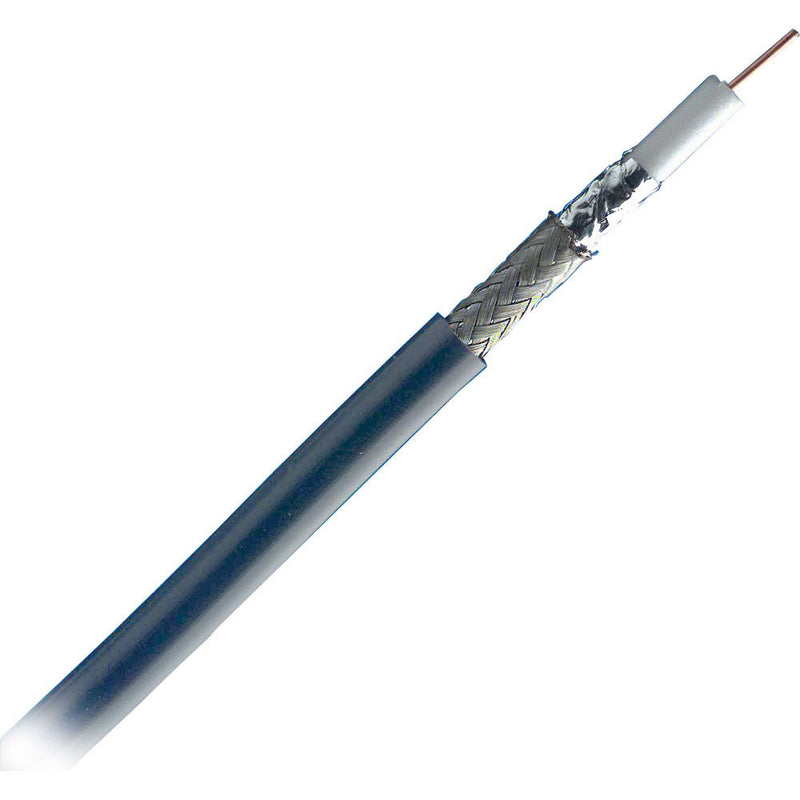

The Belden RG59 Digital Video Coax Cable 1000 ft Gray is a precision broadcast video cable for analog and digital signals.
It's 20 AWG thick and features a solid .032" bare copper conductor and gas-injected foam HDPE insulation. Its shield is made of Dufoil and tinned copper braid and has 95% coverage. Total length is 1000 ft and the weight comes to 31 lbs. Eight different colors are available to choose from and this one that you've clicked into is gray.
In the Box
Belden RG59 Digital Video Coax Cable 1000 ft Gray
- 10-Year Limited Warranty
| AWG | # coax: 1 AWG: 20 Stranding: solid Conductor: BC - bare copper Diameter: .032" (.08 cm) |
| Insulation | Material: gas-injected FHDPE - foam high density polyethylene Diameter: .145" (.36 cm) |
| Outer Shield | Layer 1: Outer shield trade name: Duofoil Type: tape Material: aluminum foil-polyester tape-aluminum foil Coverage: 100% Layer 2: Type: braid Material: TC - tinned copper Coverage: 95% |
| Outer Jacket | Material: PVC - polyvinyl chloride |
| Max. Recommended Pulling Tension | 47 lbs (21.3 kg) |
| Min. Bend Radius | (Install)/Minor Axis: 2.5" (6.35 cm) |
| Compliance | NEC/(UL) specification: CMR CEC/C(UL) specification: CMG EU CE mark: yes EU directive 2000/53/EC (ELV): yes EU directive 2002/95/EC (RoHS): yes EU RoHS compliance date: 01/01/2005 EU directive 2002/96/EC (WEEE): yes EU directive 2003/11/EC (BFR): yes CA prop 65 (CJ for wire and cable): yes MII order #39 (China RoHS): yes RG type: sub-miniature 59/U |
| Flame Test | UL flame test: UL1666 vertical shaft |
| Suitability | Indoor: yes Outdoor: (yes - black only) Aerial: (yes - black only, when supported by a messenger wire) |
| Plenum/Non-Plenum | Non-plenum |
| Impedance | 75 Ohm (tested in accordance with ASTM D-4566 paragraph 43.2, option 2 using a 75 Ohm fixed bridge and termination) |
| Inductance | (�H/ft): .107 |
| Capacitance | (pF/ft): 16.3 |
| Velocity of Propagation | 82% |
| Delay | (ns/ft): 1.240 |
| Conductor DC Resistance | DCR @ 68°F (20°C) (Ohm/1000 ft (304.8 m)): 10 |
| Outer Shield | DCR @ 68°F (20�C) (Ohm/1000 ft (304.8 m)): 3.8 |
| Attenuation | Freq. MHz: 1.000 = attenuation dB/100 ft (dB/30.48 m): .300 Freq. MHz: 3.600 = attenuation dB/100 ft (dB/30.48 m): .600 Freq. MHz: 5.000 = attenuation dB/100 ft (dB/30.48 m): .630 Freq. MHz: 6.000 = attenuation dB/100 ft (dB/30.48 m): .690 Freq. MHz: 7.000 = attenuation dB/100 ft (dB/30.48 m): .740 Freq. MHz: 10.000 = attenuation dB/100 ft (dB/30.48 m): .900 Freq. MHz: 12.000 = attenuation dB/100 ft (dB/30.48 m): .910 Freq. MHz: 25.000 = attenuation dB/100 ft (dB/30.48 m): 1.300 Freq. MHz: 67.500 = attenuation dB/100 ft (dB/30.48 m): 2.050 Freq. MHz: 71.500 = attenuation dB/100 ft (dB/30.48 m): 2.100 Freq. MHz: 88.500 = attenuation dB/100 ft (dB/30.48 m): 2.200 Freq. MHz: 100.000 = attenuation dB/100 ft (dB/30.48 m): 2.300 Freq. MHz: 135.000 = attenuation dB/100 ft (dB/30.48 m): 2.700 Freq. MHz: 143.000 = attenuation dB/100 ft (dB/30.48 m): 2.800 Freq. MHz: 180.000 = attenuation dB/100 ft (dB/30.48 m): 3.100 Freq. MHz: 270.000 = attenuation dB/100 ft (dB/30.48 m): 3.800 Freq. MHz: 360.000 = attenuation dB/100 ft (dB/30.48 m): 4.400 Freq. MHz: 540.000 = attenuation dB/100 ft (dB/30.48 m): 5.500 Freq. MHz: 720.000 = attenuation dB/100 ft (dB/30.48 m): 6.400 Freq. MHz: 750.000 = attenuation dB/100 ft (dB/30.48 m): 6.500 Freq. MHz: 1000.000 = attenuation dB/100 ft (dB/30.48 m): 7.600 Freq. MHz: 1500.000 = attenuation dB/100 ft (dB/30.48 m): 9.300 Freq. MHz: 2000.000 = attenuation dB/100 ft (dB/30.48 m): 10.900 Freq. MHz: 2250.000 = attenuation dB/100 ft (dB/30.48 m): 11.600 Freq. MHz: 3000.000 = attenuation dB/100 ft (dB/30.48 m): 13.400 Freq. MHz: 4500.000 = attenuation dB/100 ft (dB/30.48 m): 16.400 |
| Minimum Return Loss | Start freq. (MHz) 5: Stop freq. (MHz) = 1600 Min. RL (dB) = 23 Start freq. (MHz) 1600: Stop freq. (MHz) = 4500 Min. RL (dB) = 21 (Return loss tested in accordance with ASTM D-4566 paragraph 45.3 using a 75 Ohm fixed bridge and termination) |
| Sweep Testing | 100% sweep tested 5 MHz to 4.5 GHz |
| Operating Voltage | Max. - UL: 300 V RMS |
| Operating Temperature | -22 to 167�F (-30 to 75�C) |
| UL Temperature Rating | 167°F (75�C) |
| Overall Diameter | .233" (.59 cm) |
| Length | 1000 ft (304.8 m) |
| Weight | 31 lbs (14 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 35.9 lb |
| Box Dimensions (LxWxH) | 15.3 x 15.3 x 10.6" |
