- 22 lb (10 kg) Load Capacity
- 100mm Head
- Flat Base By Removing Tiedown Stud
- 5-Step Counterbalance
- Independent 4-Step Pan and Tilt Drag
- Manfrotto 501/504PL Type Sliding Plate
- 2-Stage Twin Leg Aluminum Tripod
- 29 to 64.4" Height Range
- Mid-Level Spreader
- Spike Feet & Removable Rubber Foot Pads

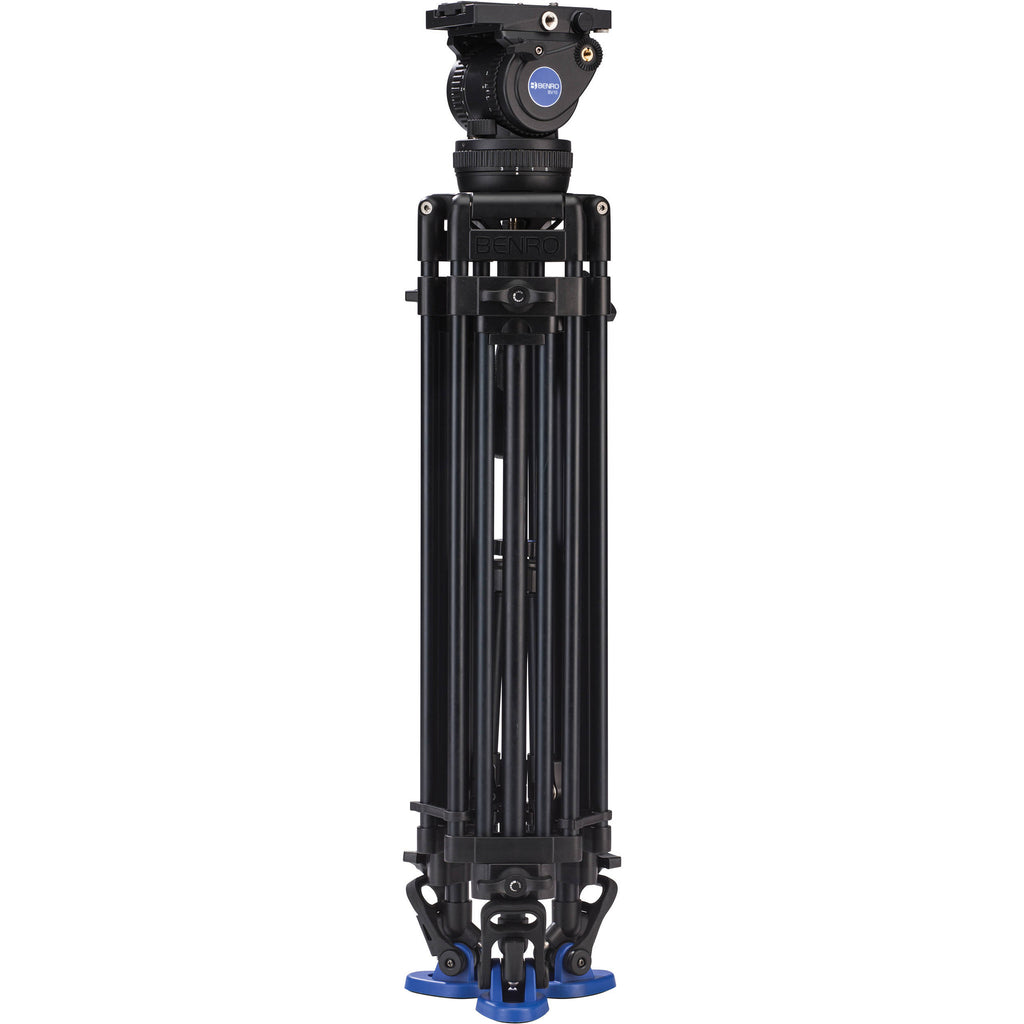

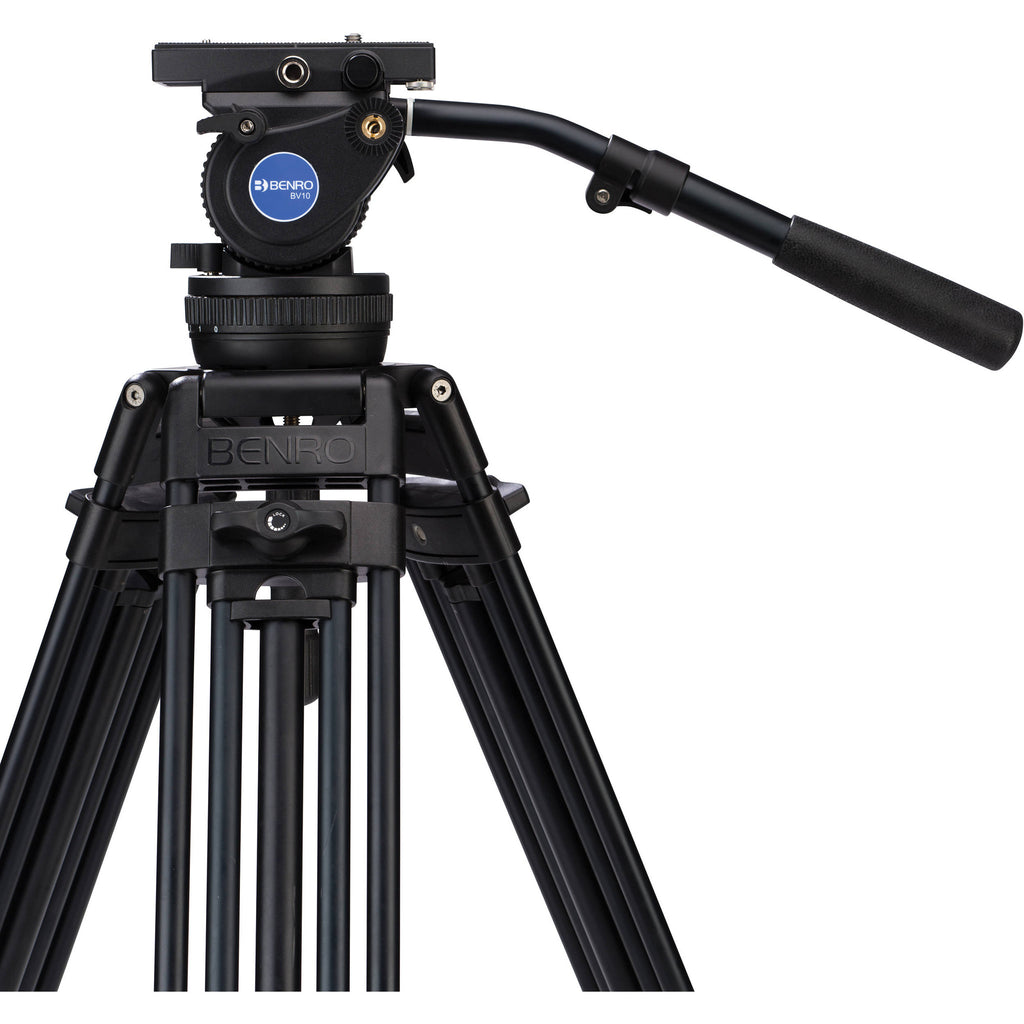

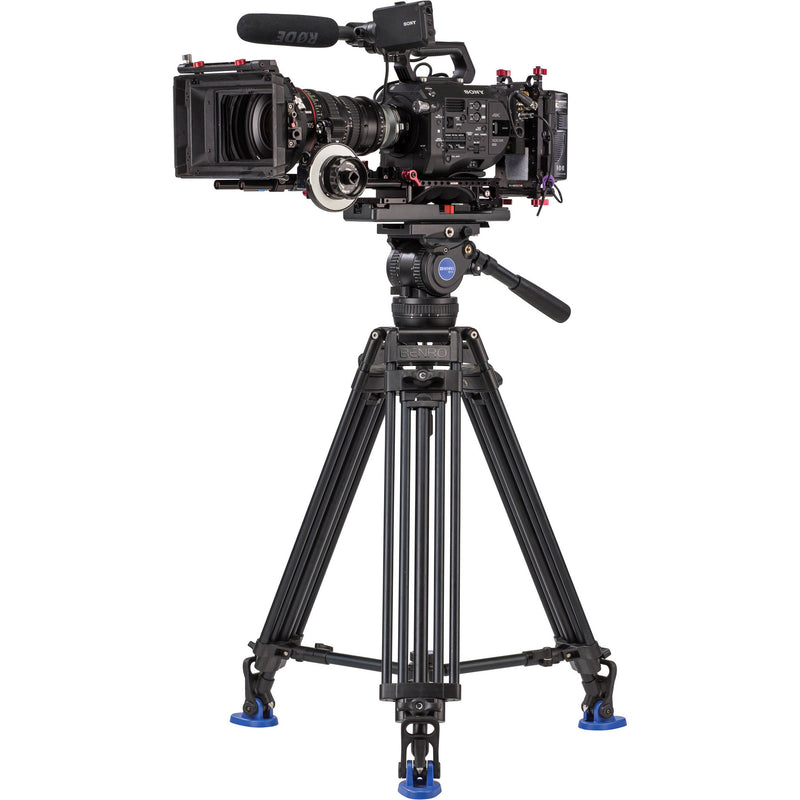

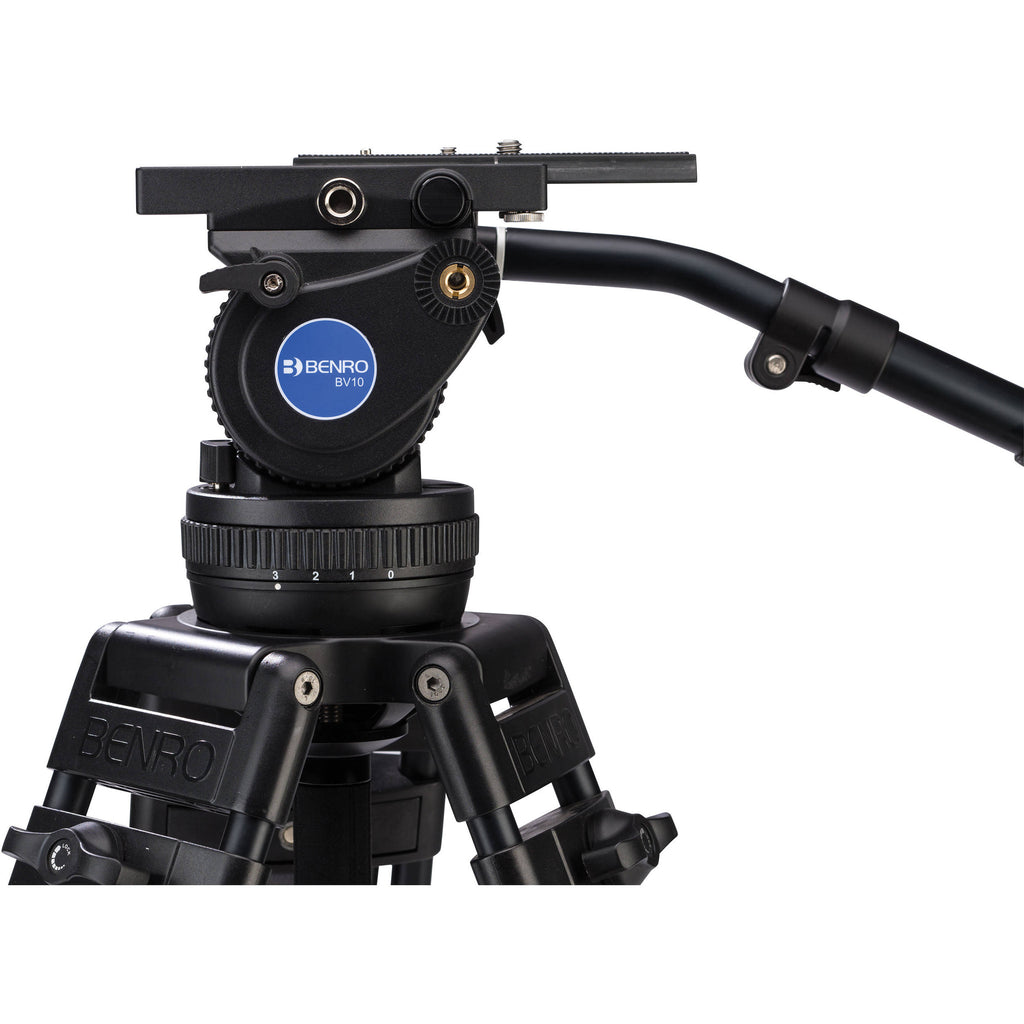

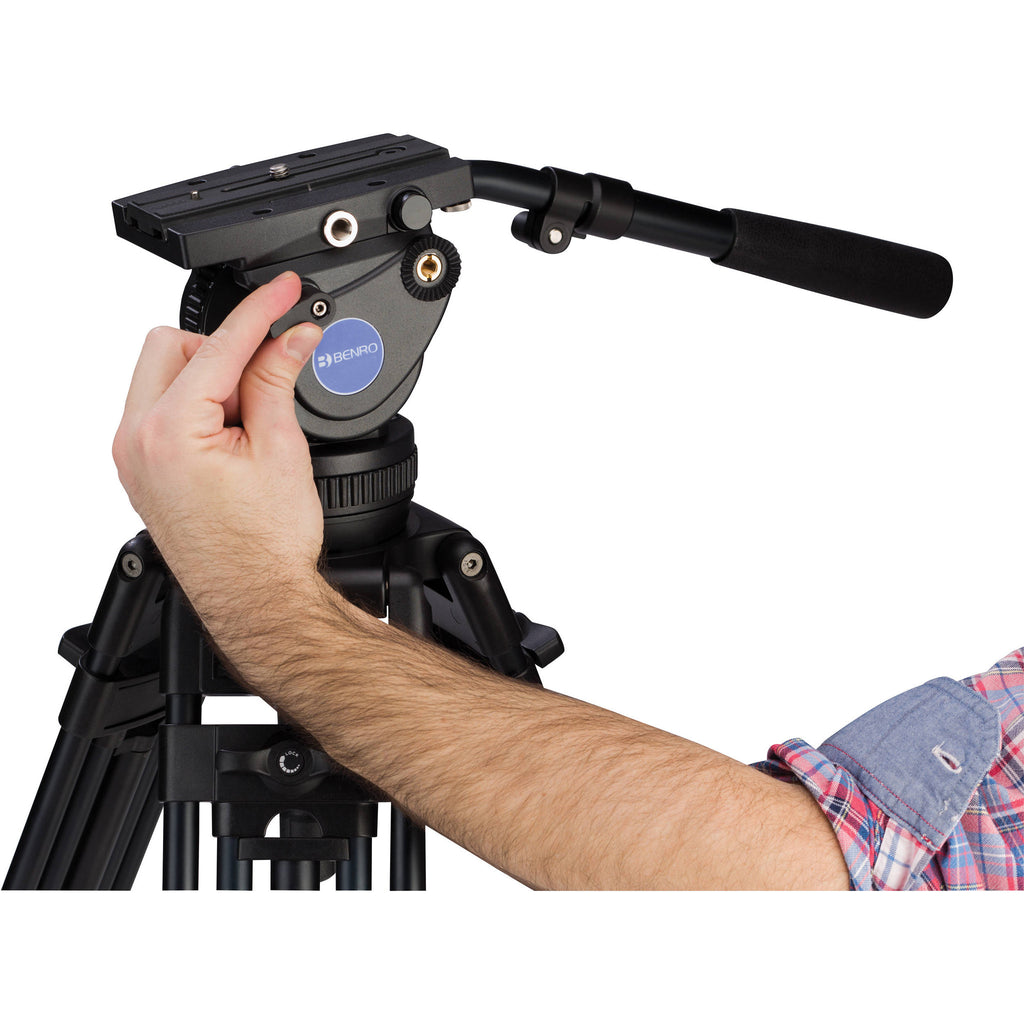

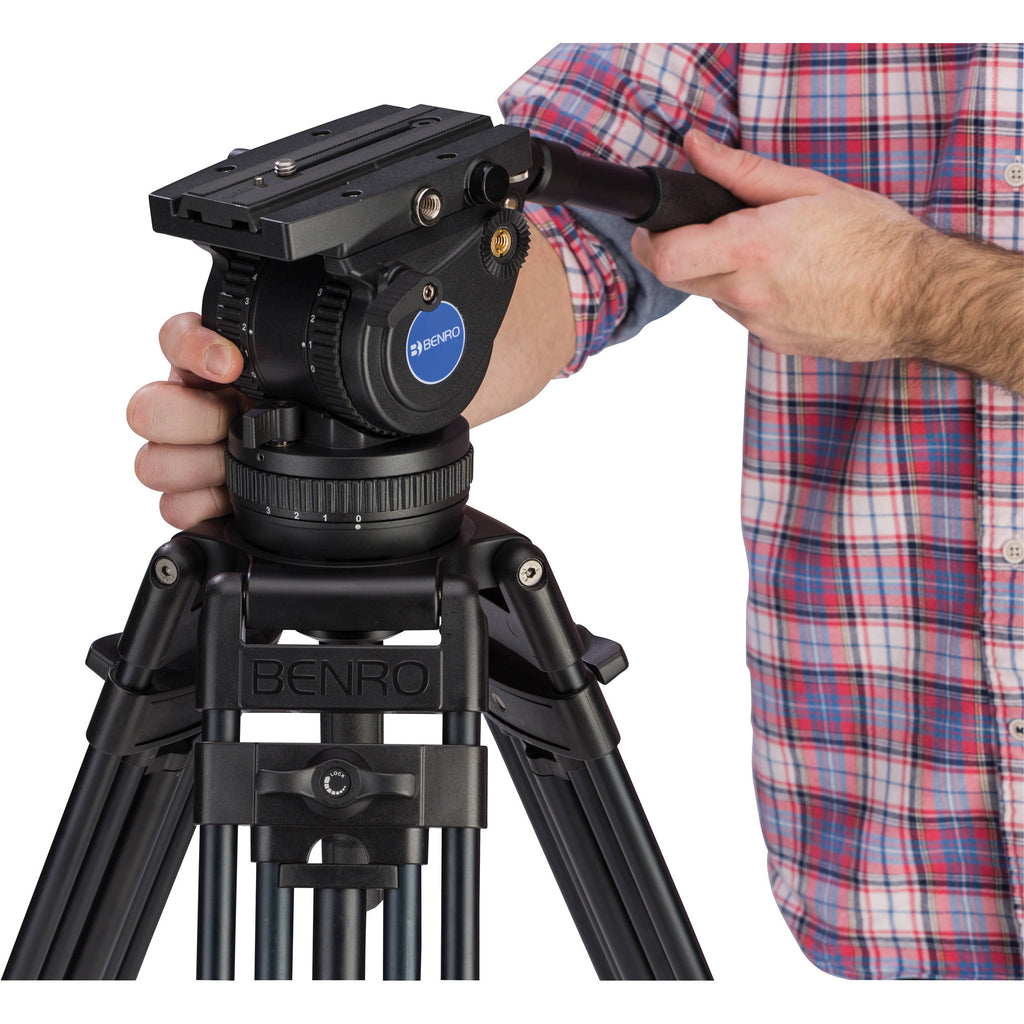

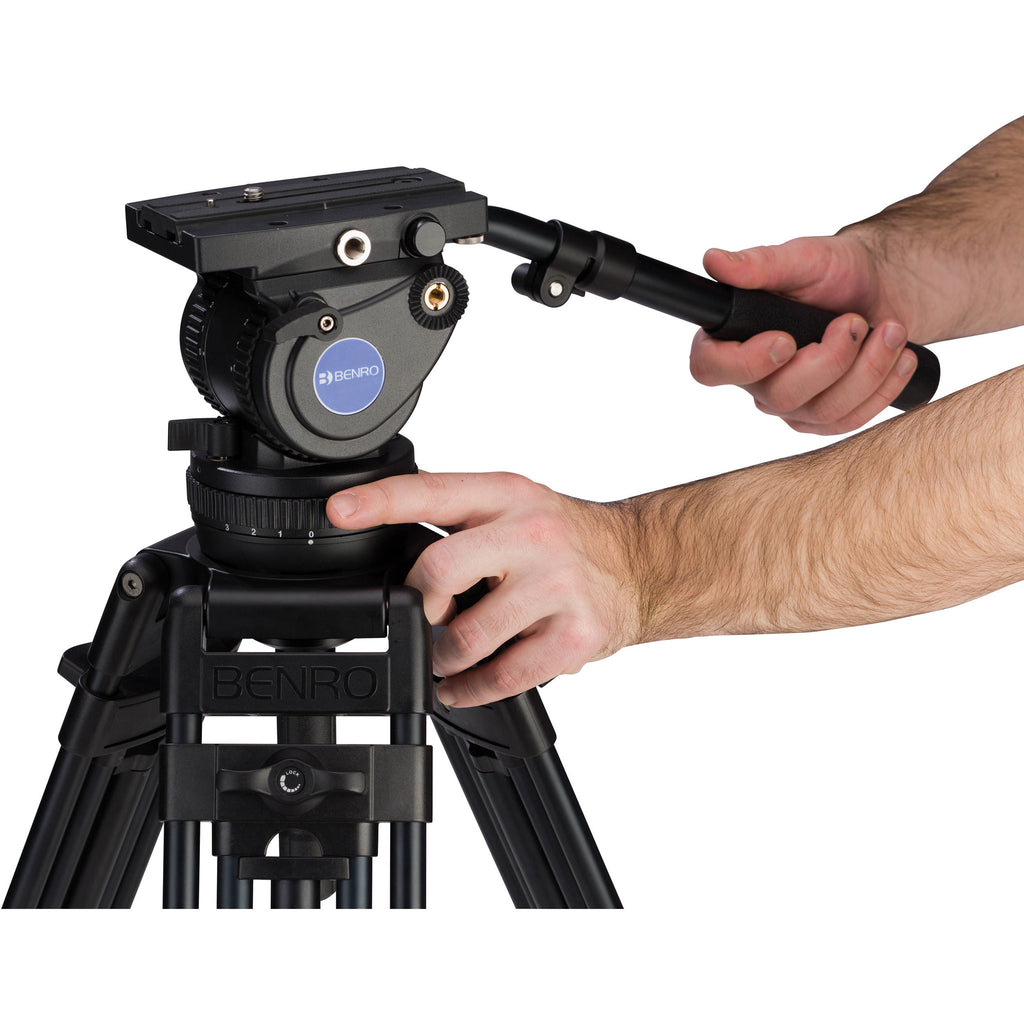

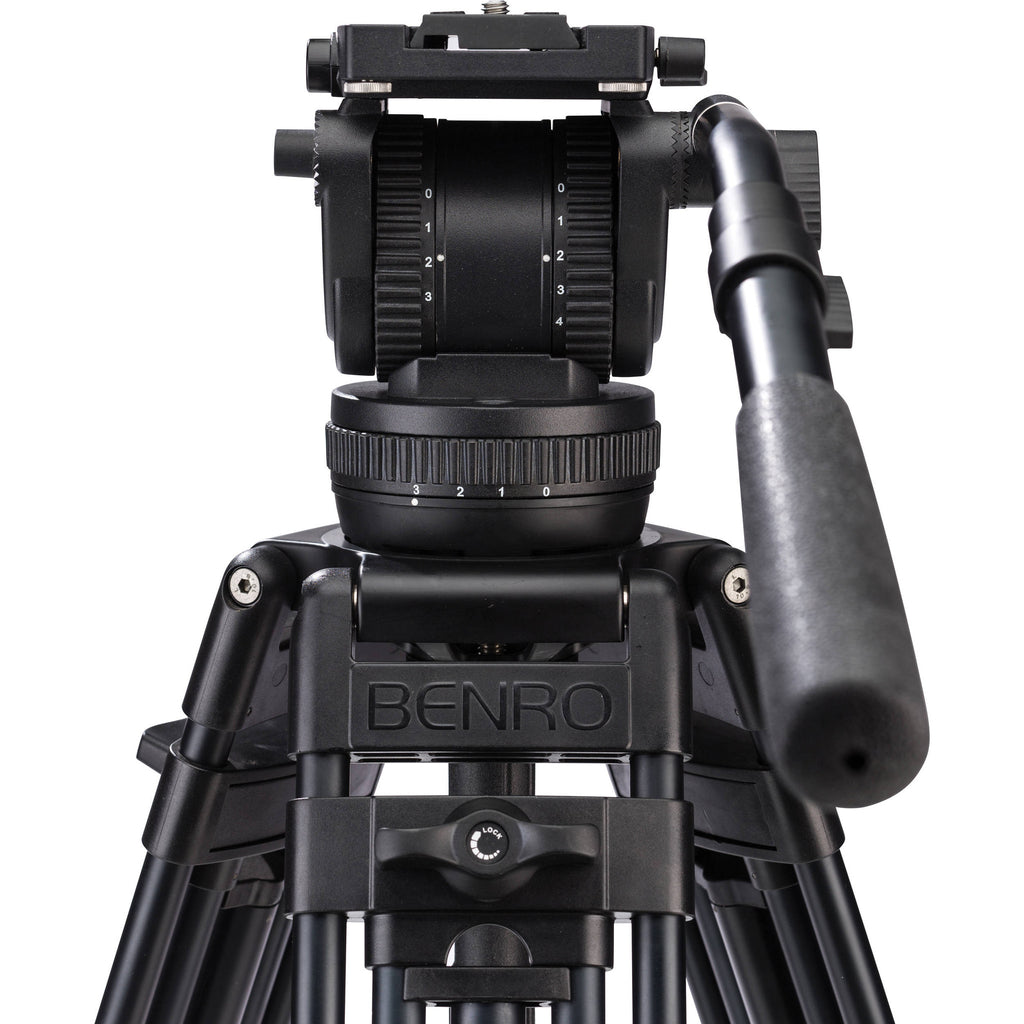

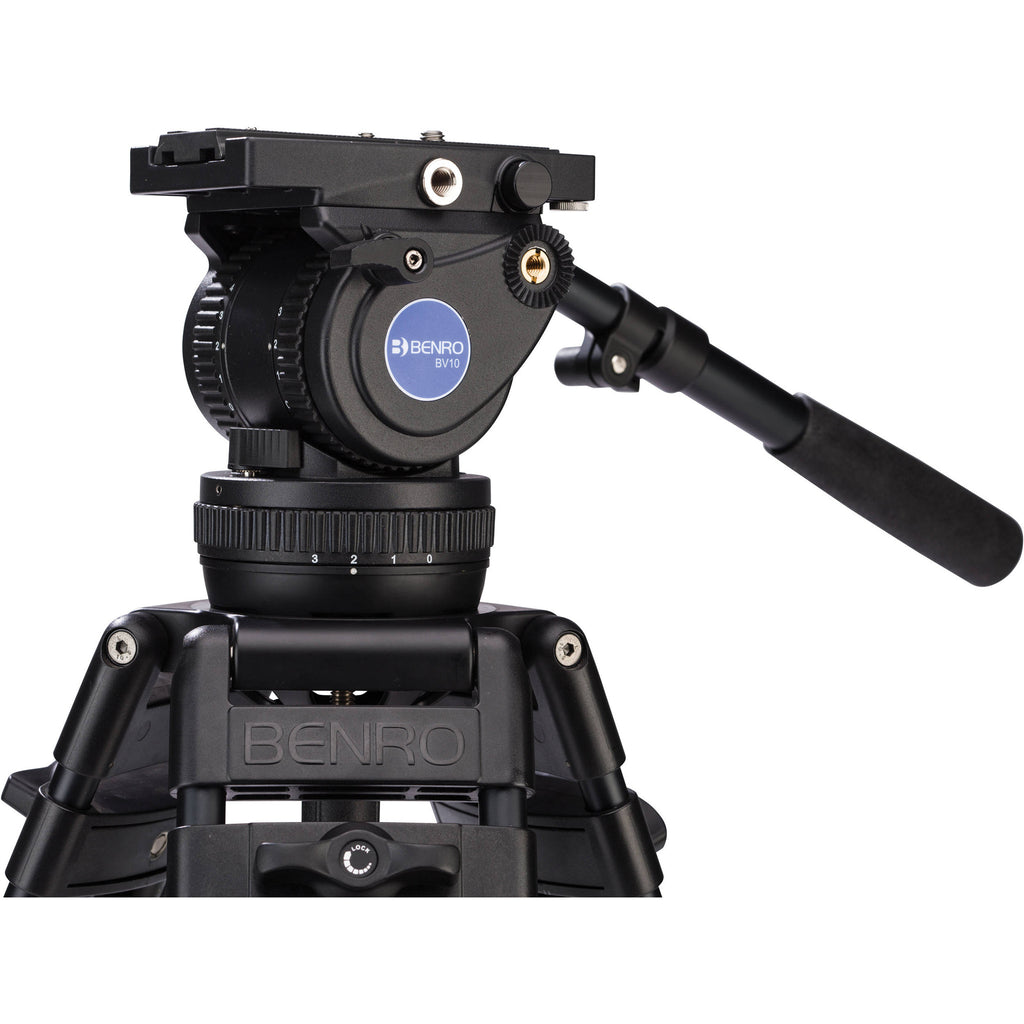

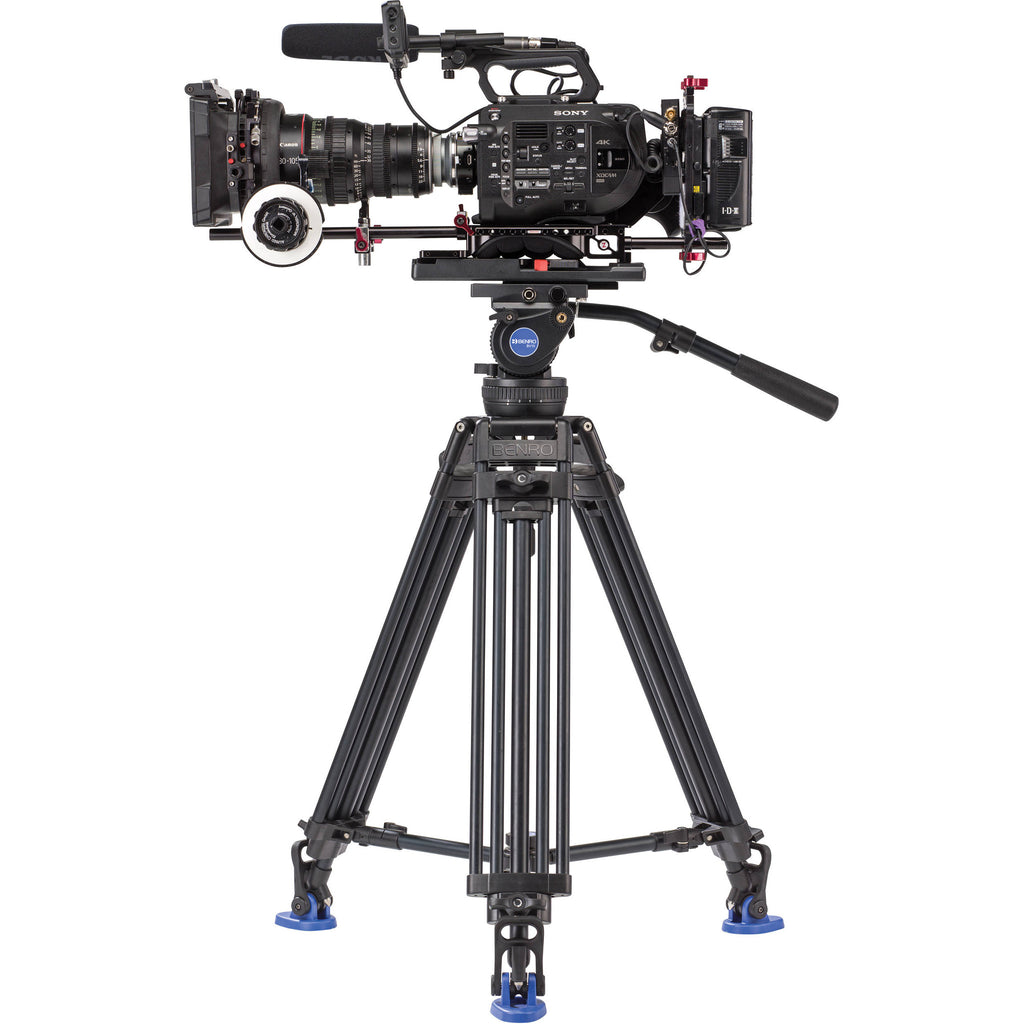

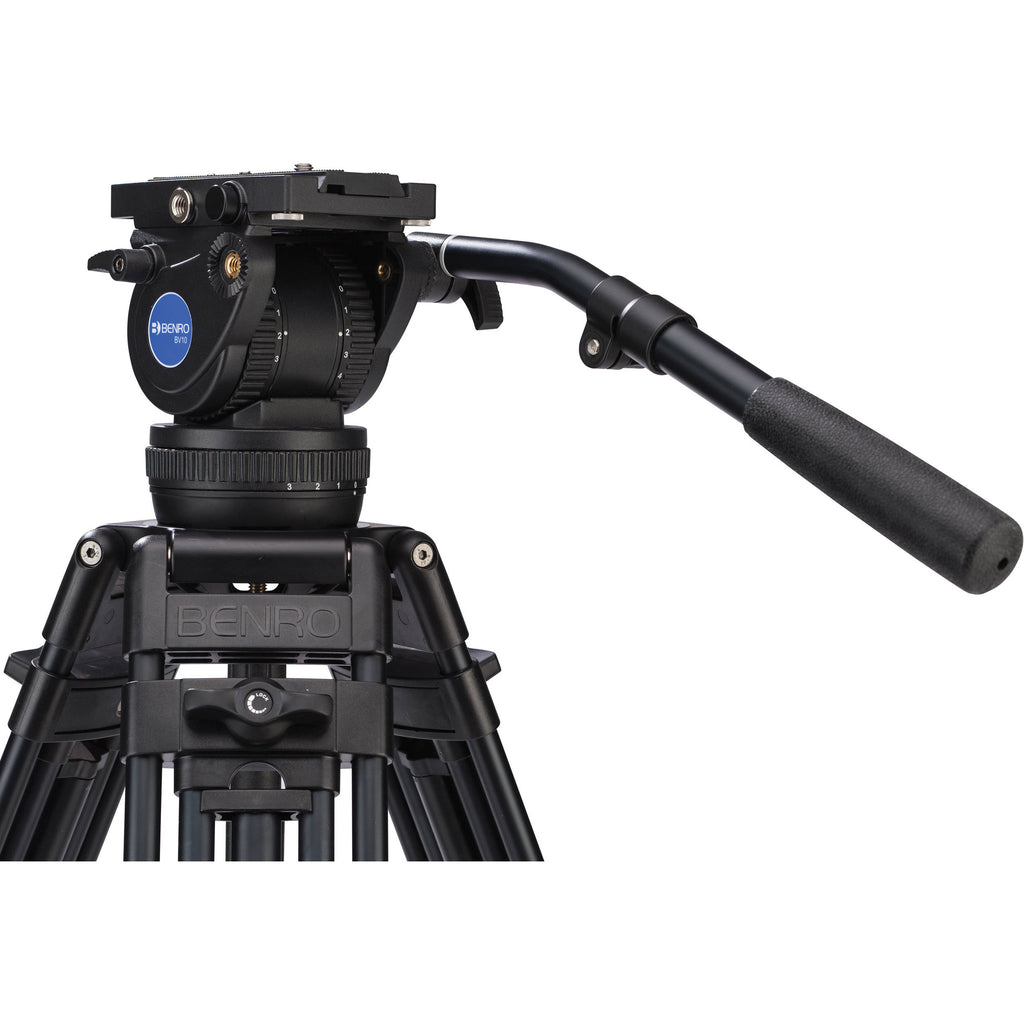

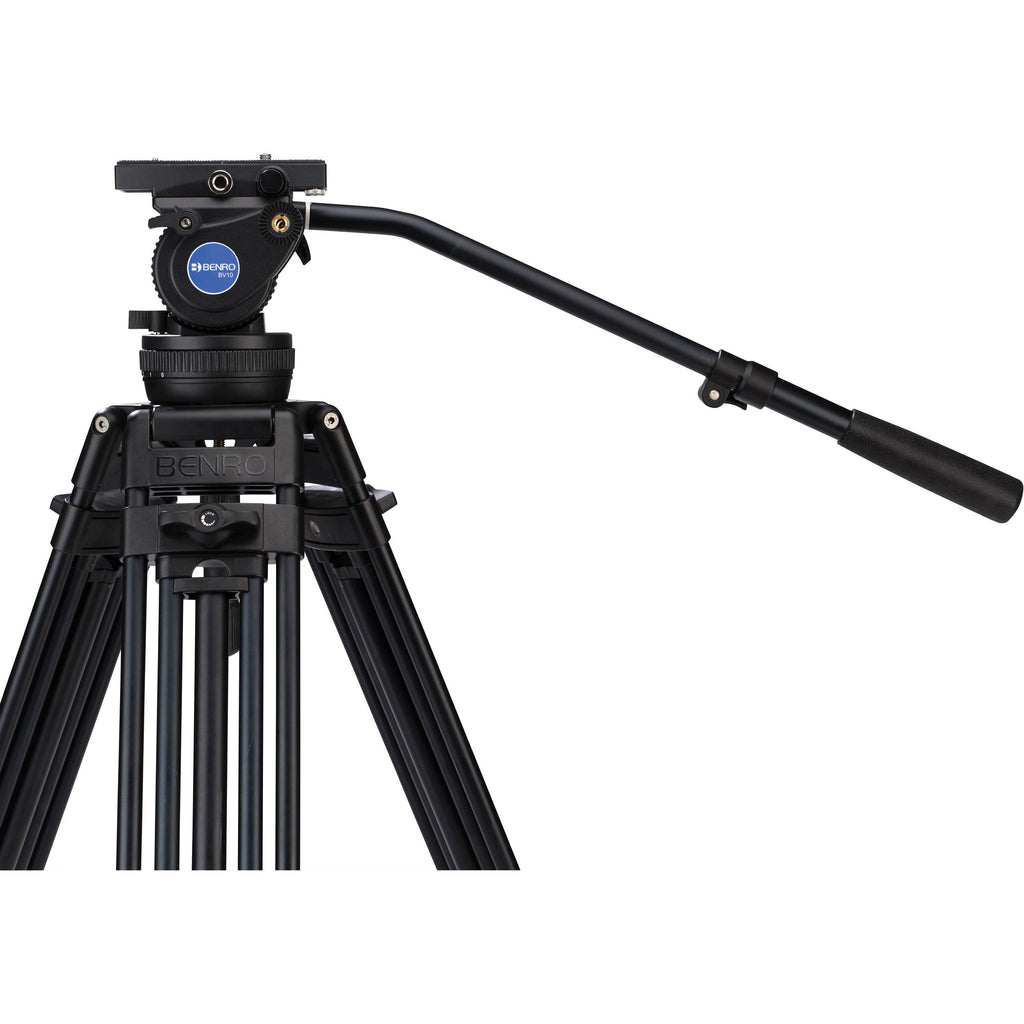

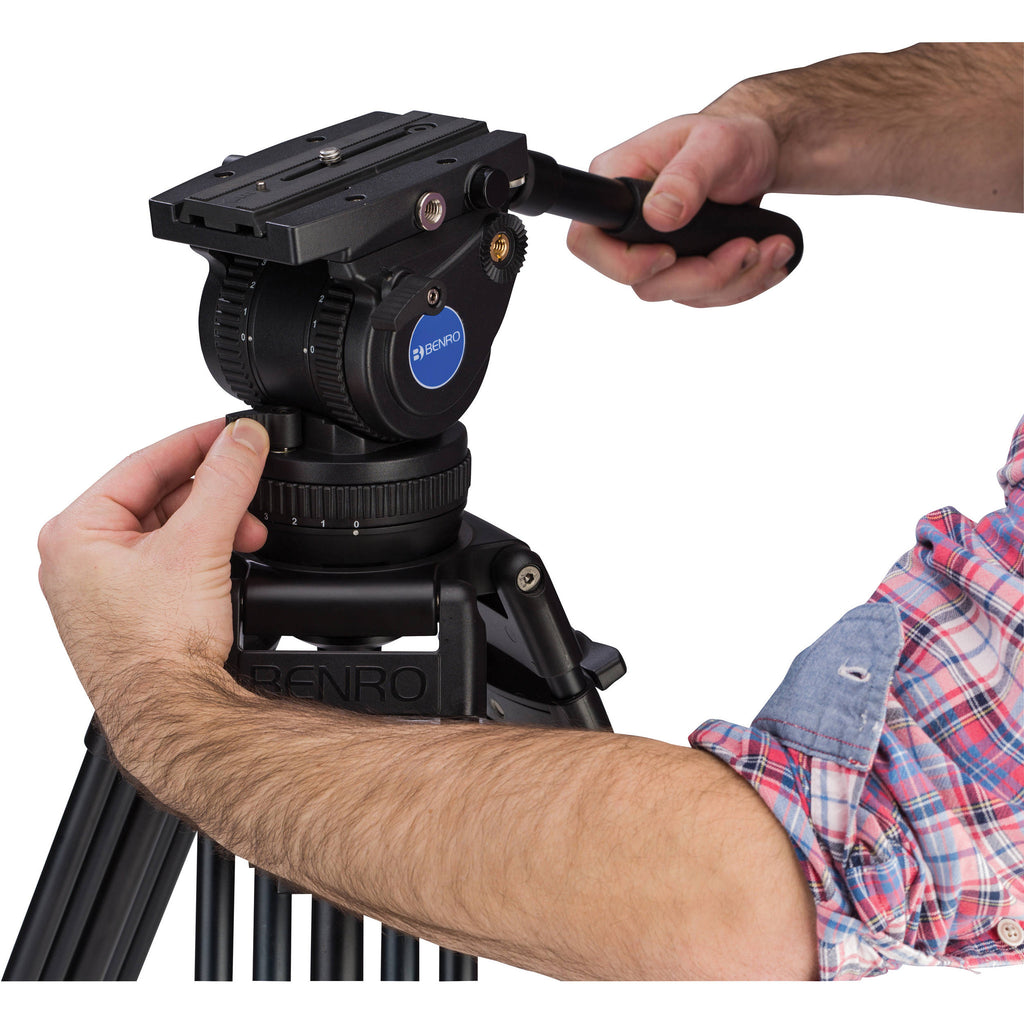

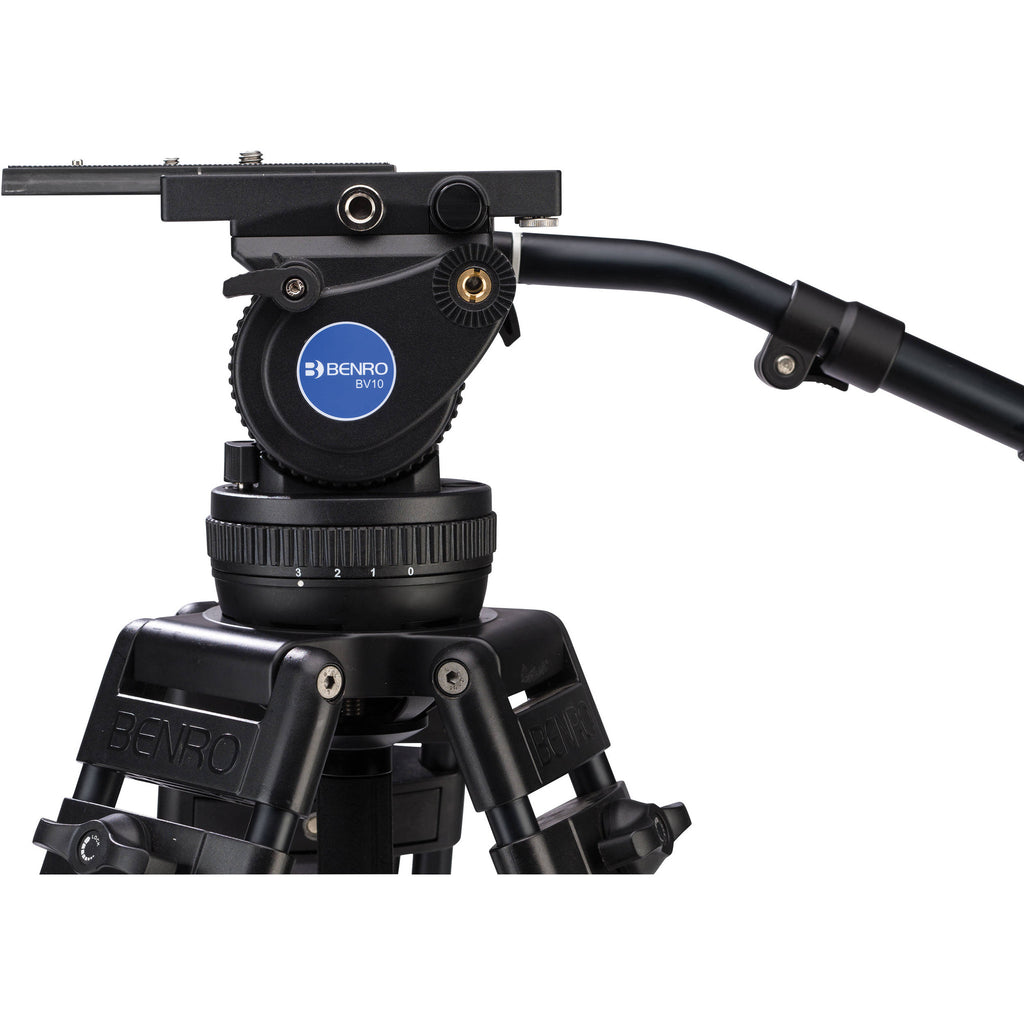

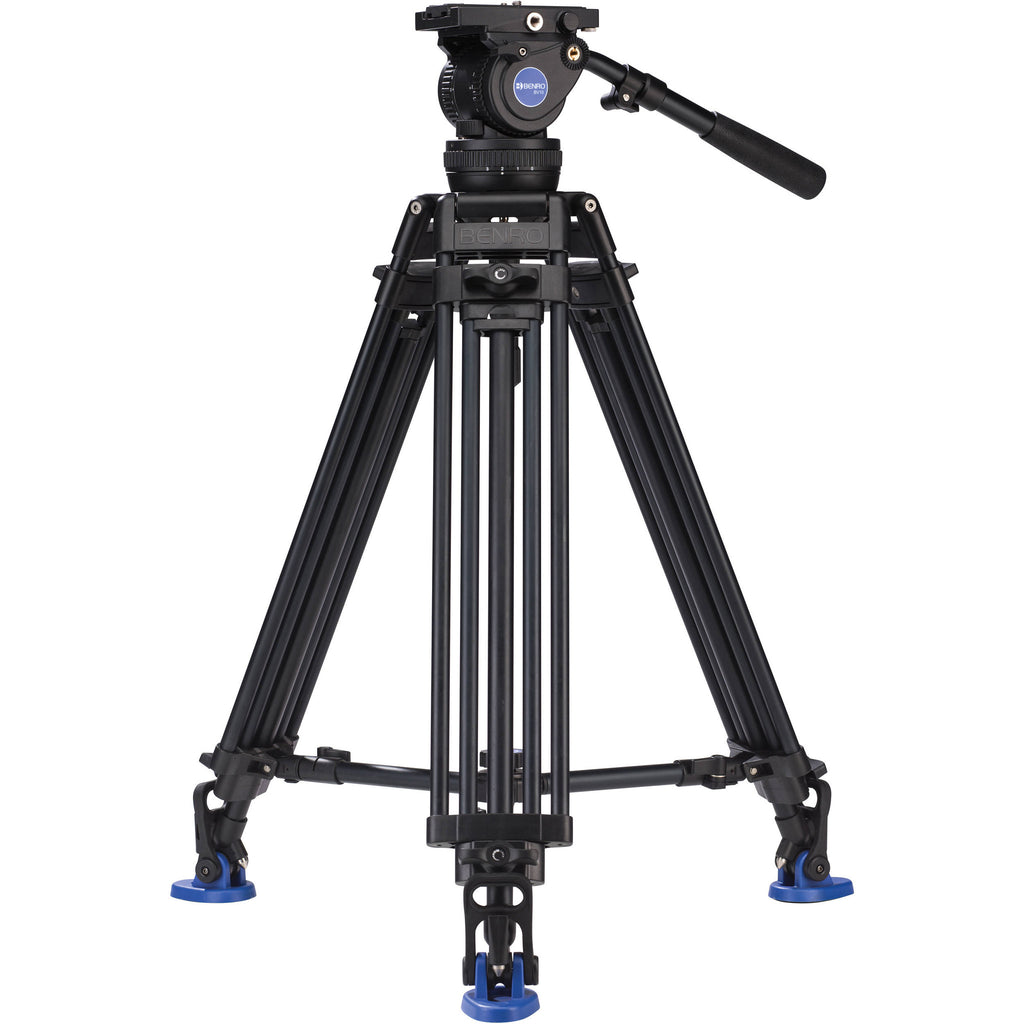

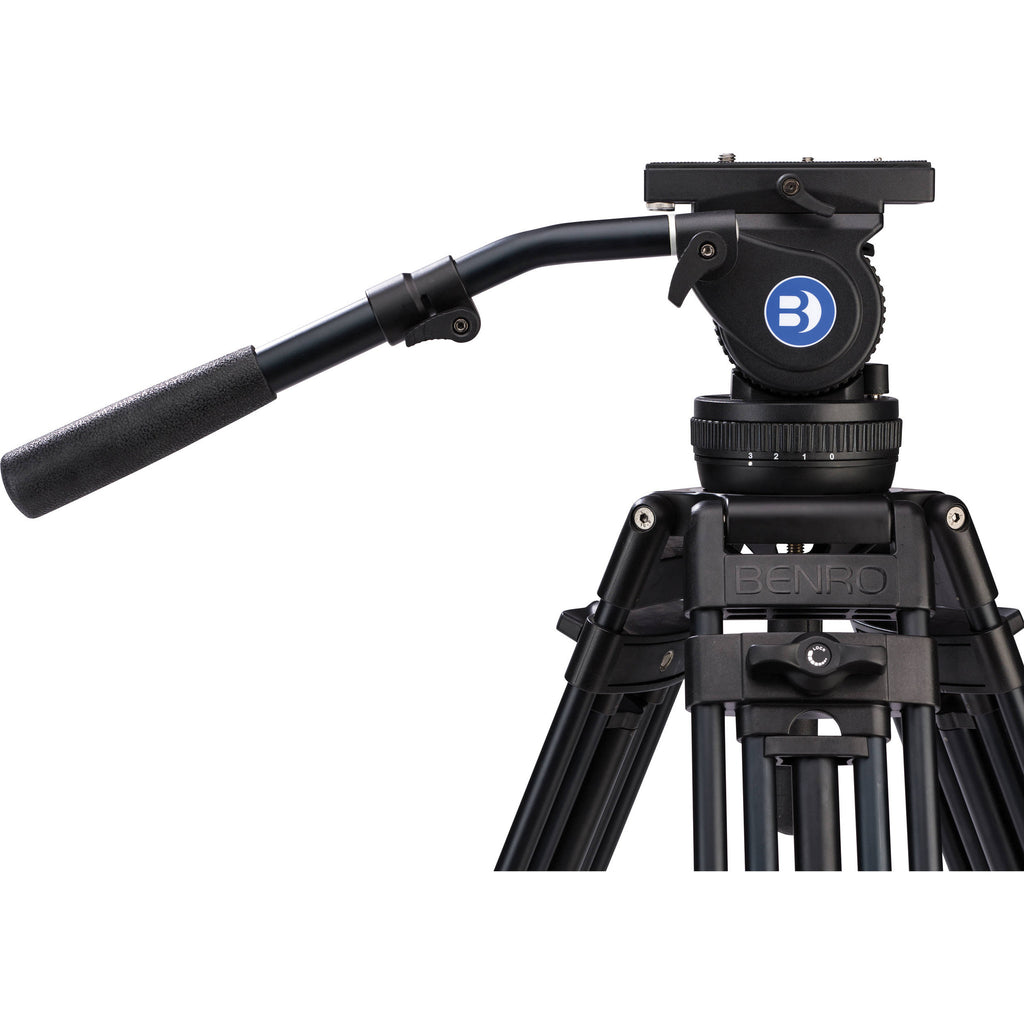

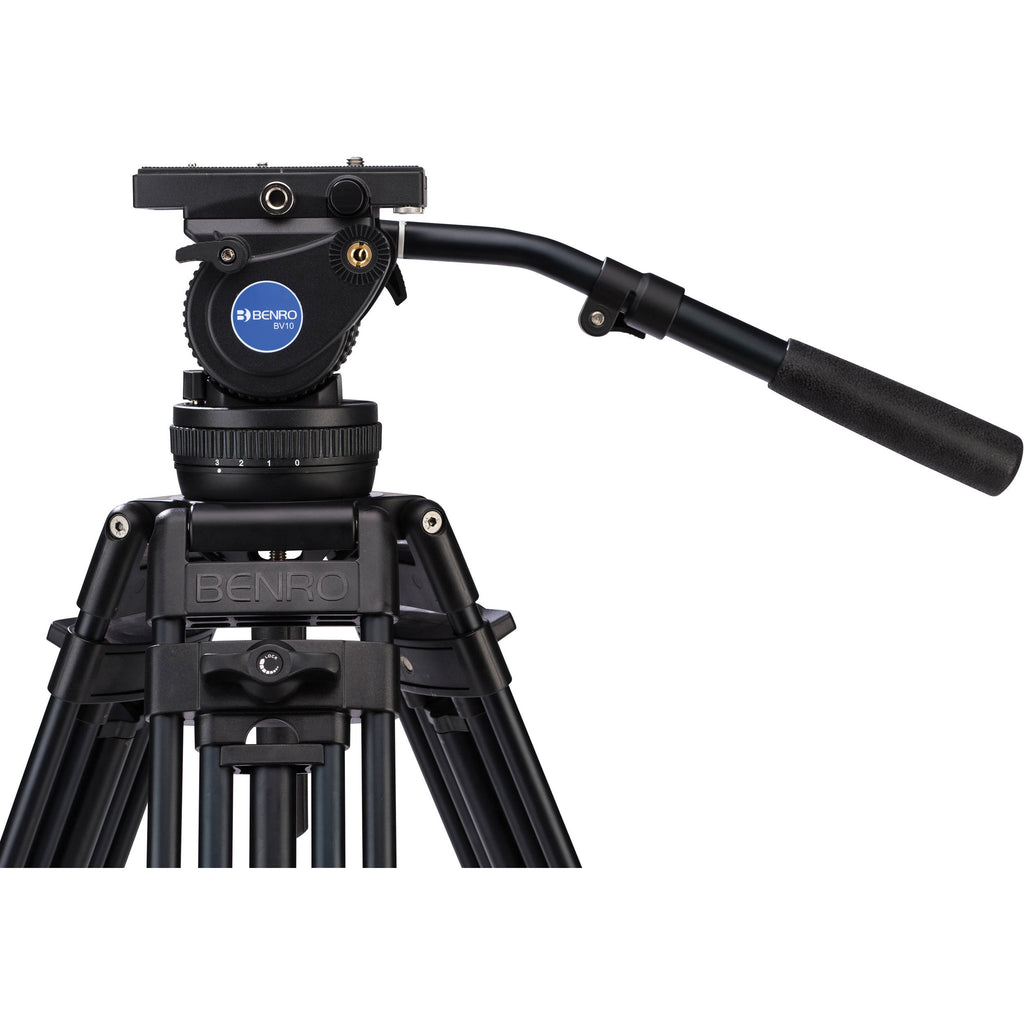

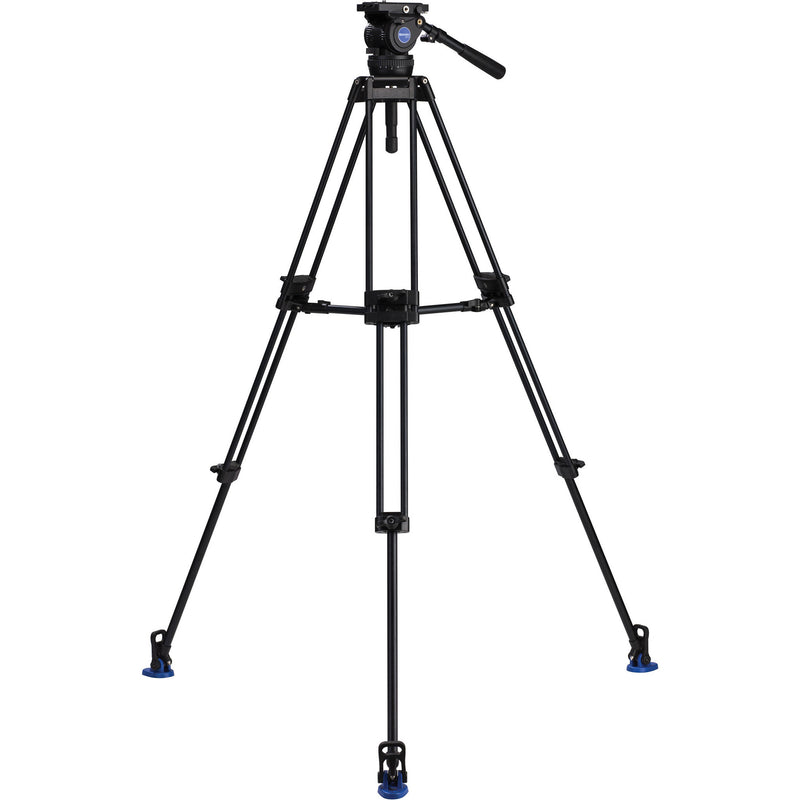

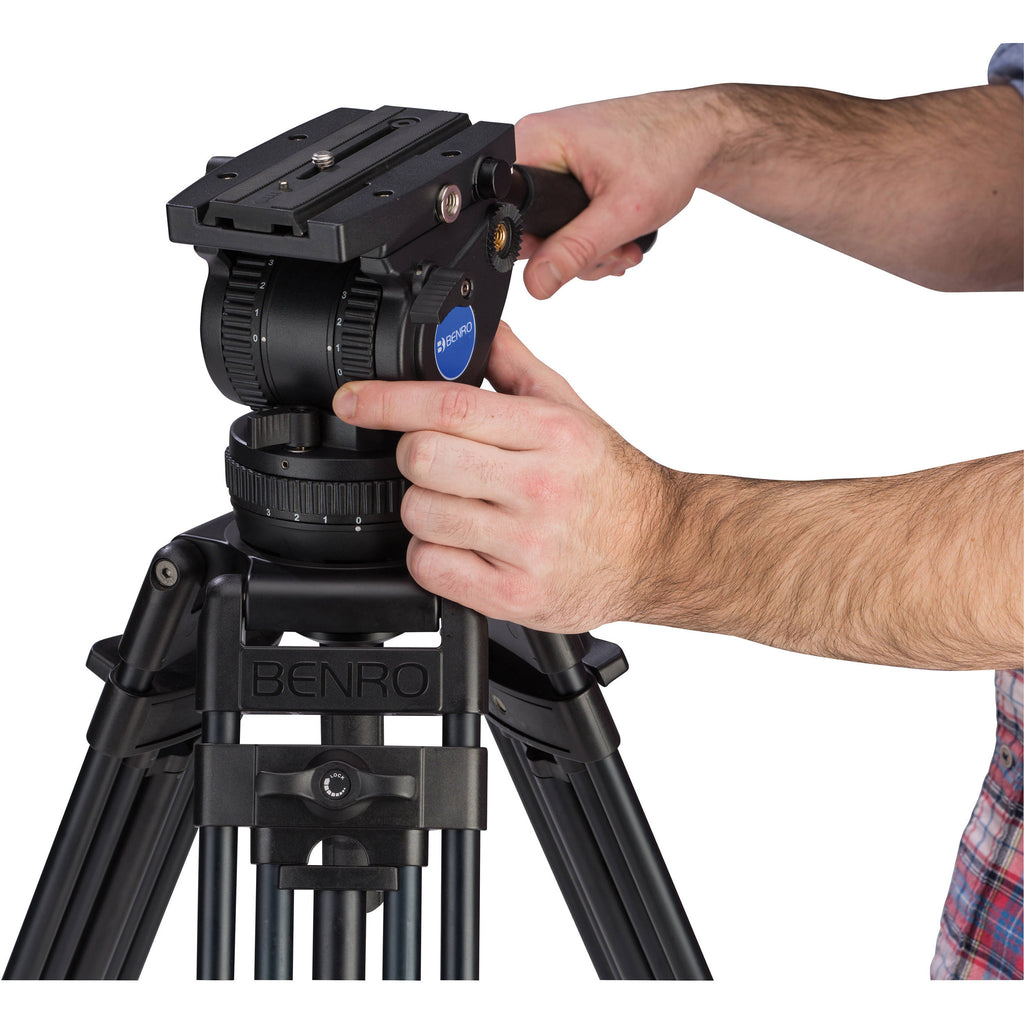

The Benro BV10 Twin Leg Aluminum Tripod Kit is a complete tripod system ideal for studio applications and handling larger, fully rigged cameras weighing up to 22 pounds. The kit pairs the 100mm-ball BV10 video head with a twin leg aluminum tripod. The BV10 head features a 5-step counterbalance system to dial in the correct amount for your set-up, and independent 4-step pan and tilt drag settings for precise control over camera movements. A Manfrotto 501/504PL compatible sliding quick-release plate is provided. All of the main controls, other than counterbalance, are located on the left side of the head making it easy to make adjustments with a single hand while operating the camera. For added versatility, the 100mm-ball tiedown stud is removable to convert the head to a flat base for use on a slider or other support device.

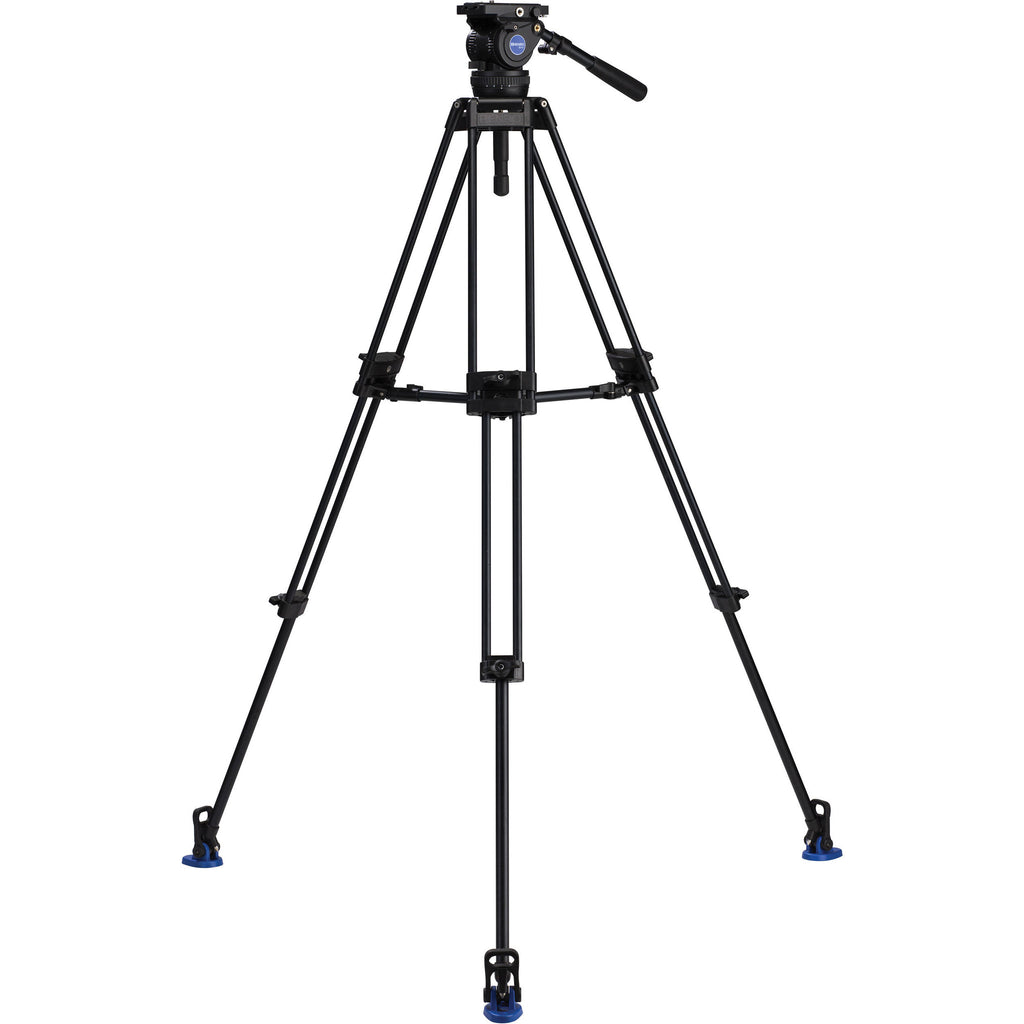

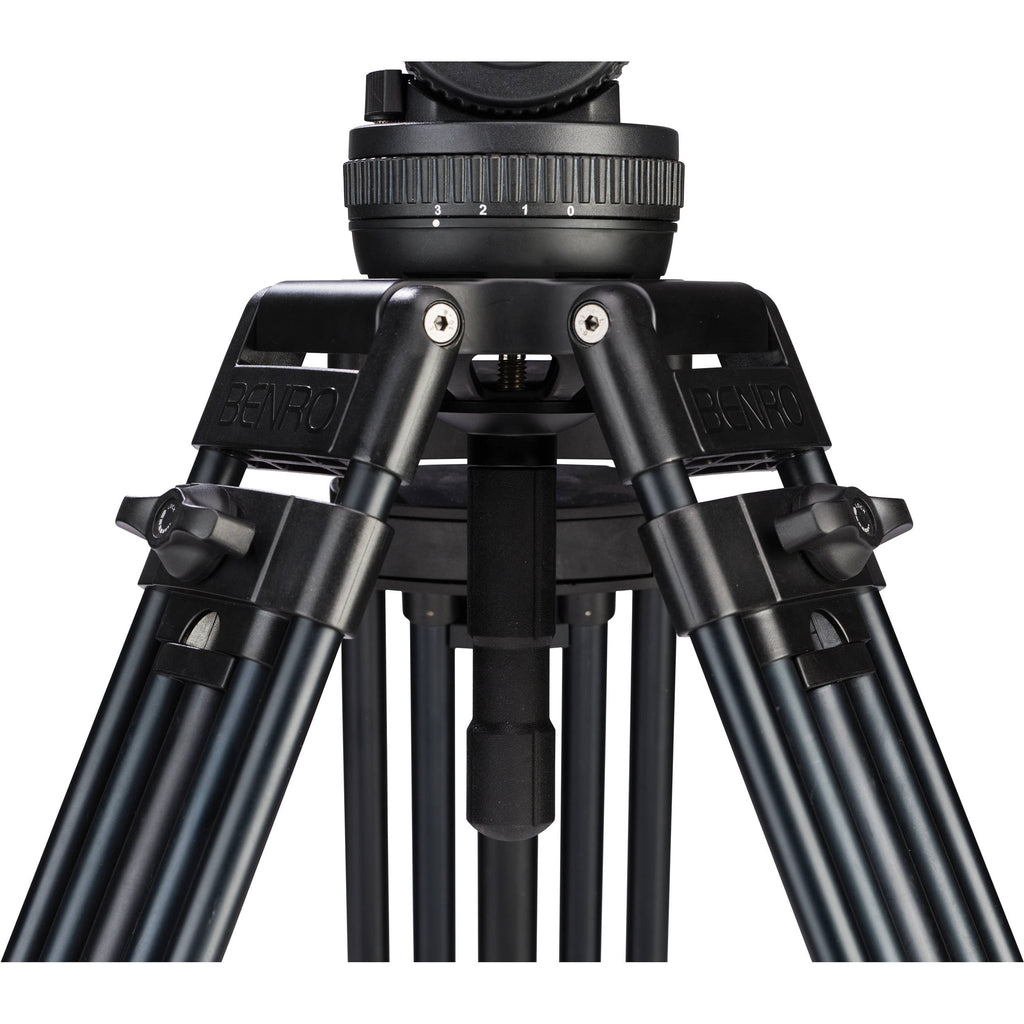

The 2-stage, 3-section twin leg aluminum tripod incorporates a 100mm bowl and offers sturdy support for the BV10 head. It features oversized quick positive leg locks for simple and fast setup, an adjustable/removable mid-level spreader, and dual spike feet with removable rubber pads. The tripod system extends to a maximum height of 64.4", while getting as low as 29". A carry case and shoulder strap are included.
- Head
-
- Supports up to 22 lb
- Removable tiedown stud to convert to flat base head

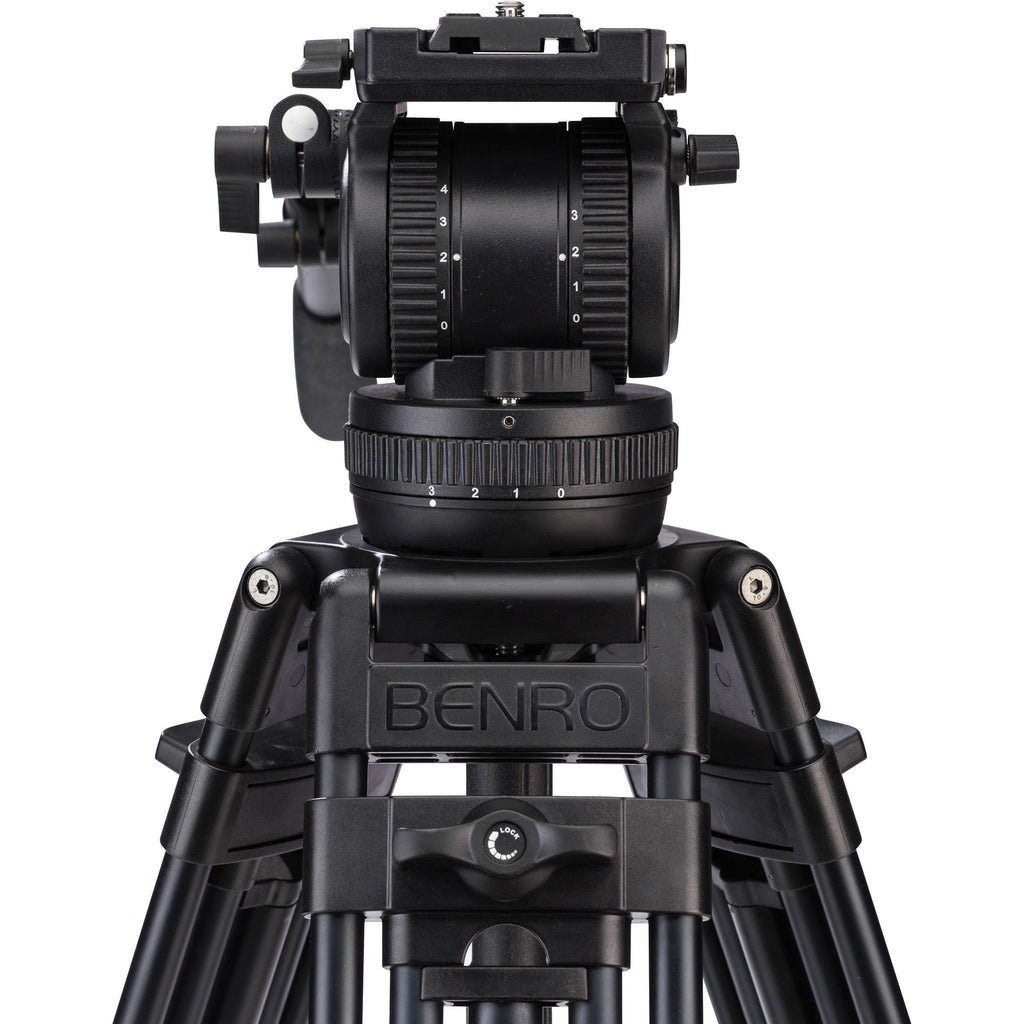

- 5-step (0 to 4) counterbalance

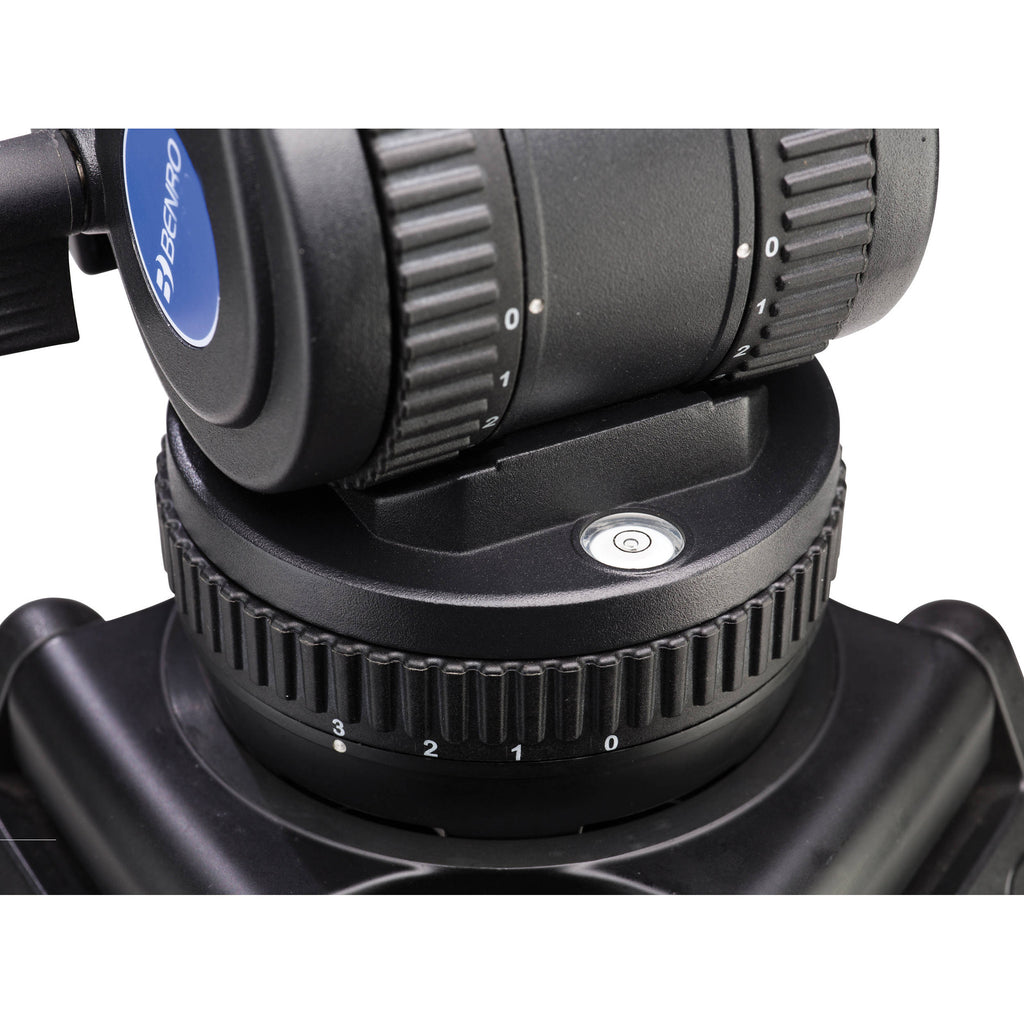

- Independent 4-step (0 to 3) pan and tilt drag
- -65° to +90° tilt range
- Manfrotto 501/504PL compatible sliding plate

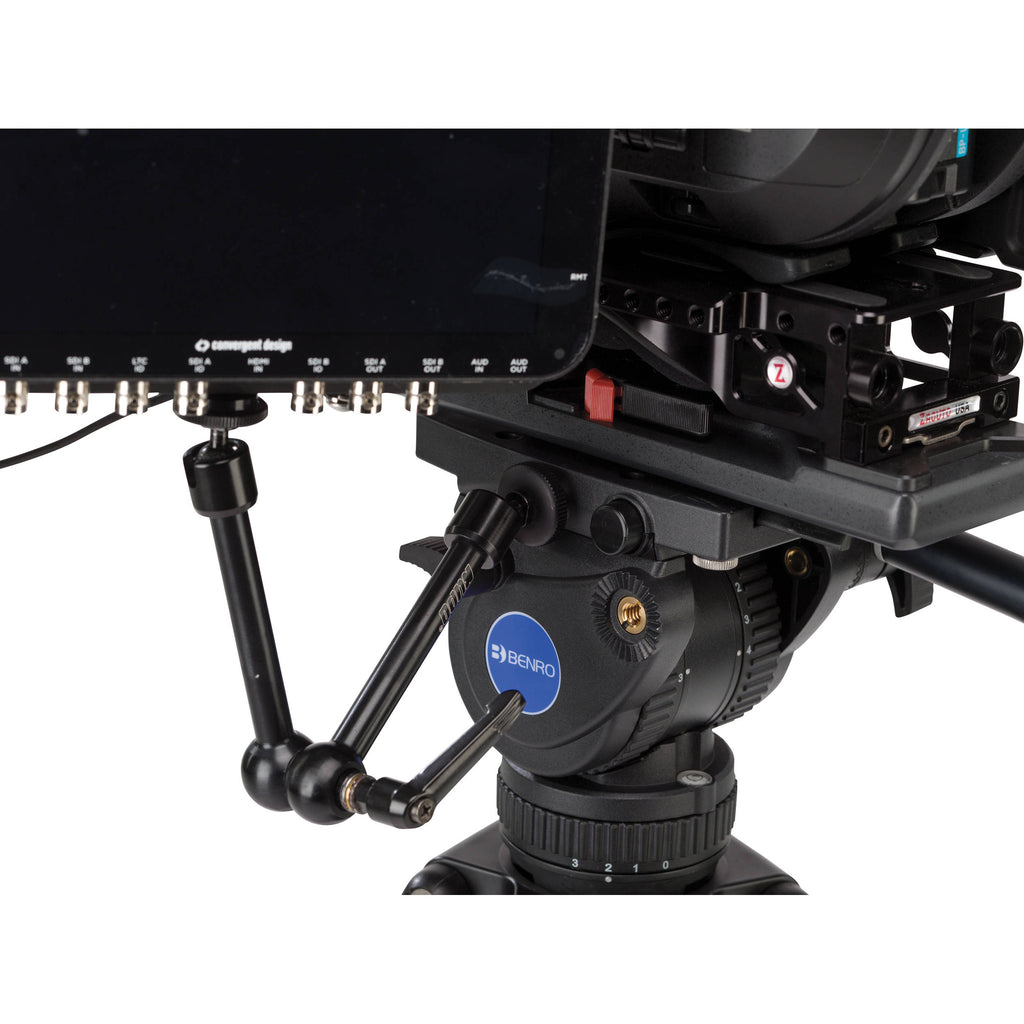

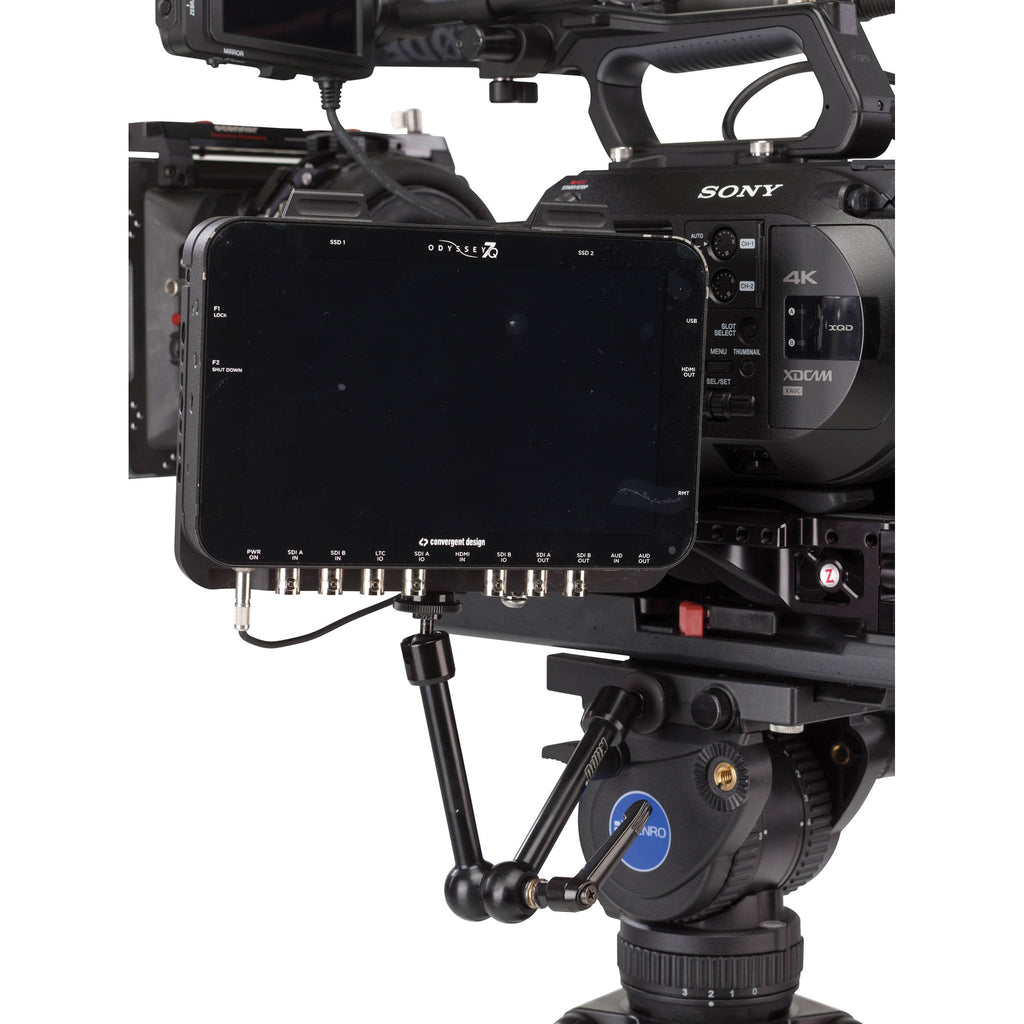

- Two 3/8"-16 accessory threads for mounting accessories, such as monitor or recorder
- Bubble level
- Legs
-
- Twin leg aluminum tripod with 100mm bowl fitting
- 29 to 64.4" height range (with head attached)
- Oversized twist lever leg locks

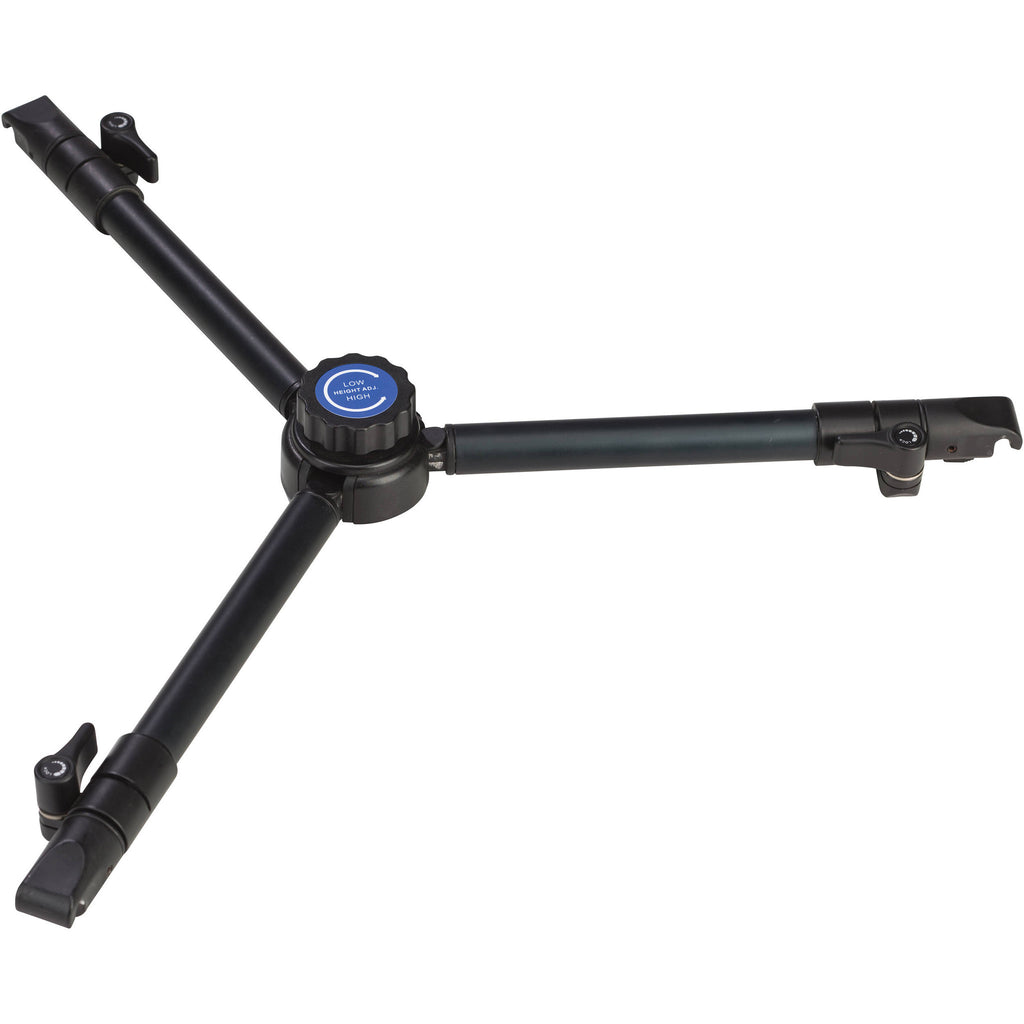

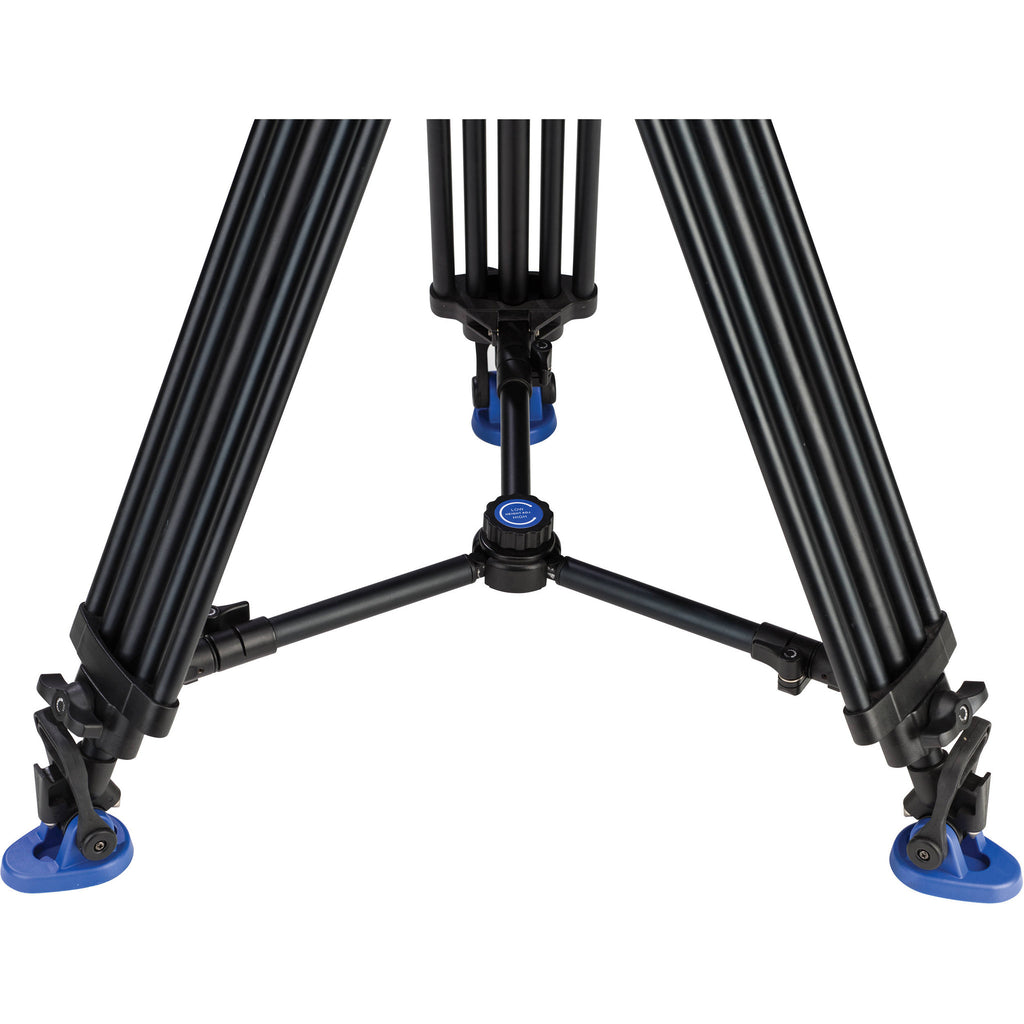

- Adjustable/removable mid-level spreader
- Dual spiked feet with removable rubber pads
| Head |
| Load Capacity | 22 lb (10 kg) |
| Head Mount | 100 mm bowl |
| Counterbalance | 5-step (0 to 4) |
| Pan Drag | 4-step (0 to 3) fluid cartridge |
| Tilt Drag | 4-step (0 to 3) fluid cartridge |
| Panning Range | 360° |
| Tilt Range | -65° to +90° |
| Quick Release Plate | QR13 (Manfrotto 501/504PL compatible)
1/4"-20 and 3/8"-16 cameras screws |
| Accessory Mounting Threads | 2 x 3/8"-16 |
| Legs |
| Material | Aluminum |
| Stages | 2 |
| Sections | 3 |
| General |
| Minimum Height | 29" (73.6 cm) |
| Maximum Height | 64.4" (163.5 cm), at 24° leg angle with column extended |
| Folded Length | 34.6" (88 cm) |
| Weight | 16 lb (7.3 kg) |
| Packaging Info |
| Package Weight | 22.45 lb |
| Box Dimensions (LxWxH) | 38.8 x 9.7 x 9.7" |
In the Box
Benro BV10 Twin Leg Aluminum Tripod Kit
