- Load Capacity: 110 lb
- Adjustment Range of +/-15°
- Spring Loaded 1/4"-20 and 3/8"-16 Top
- 3/8"-16 Bottom Mount, 1/4"-20 Adapter

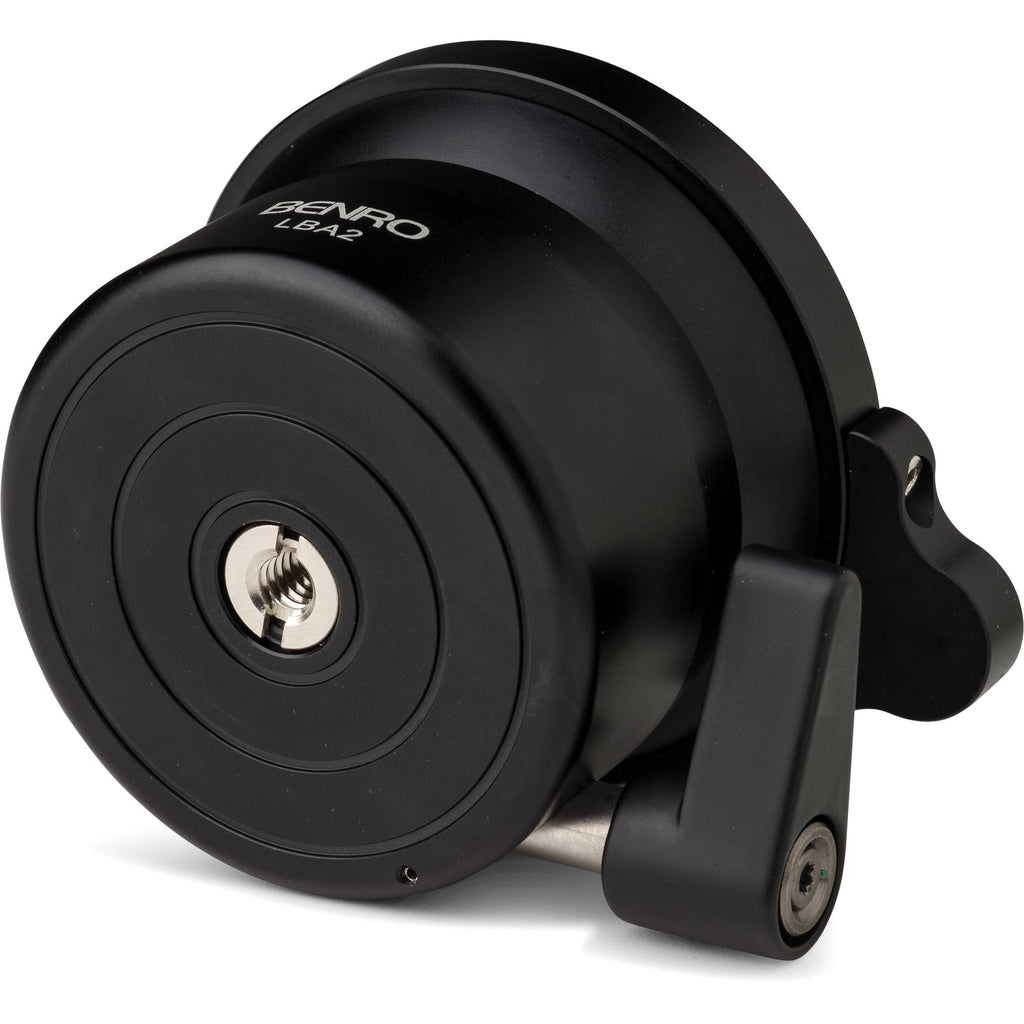

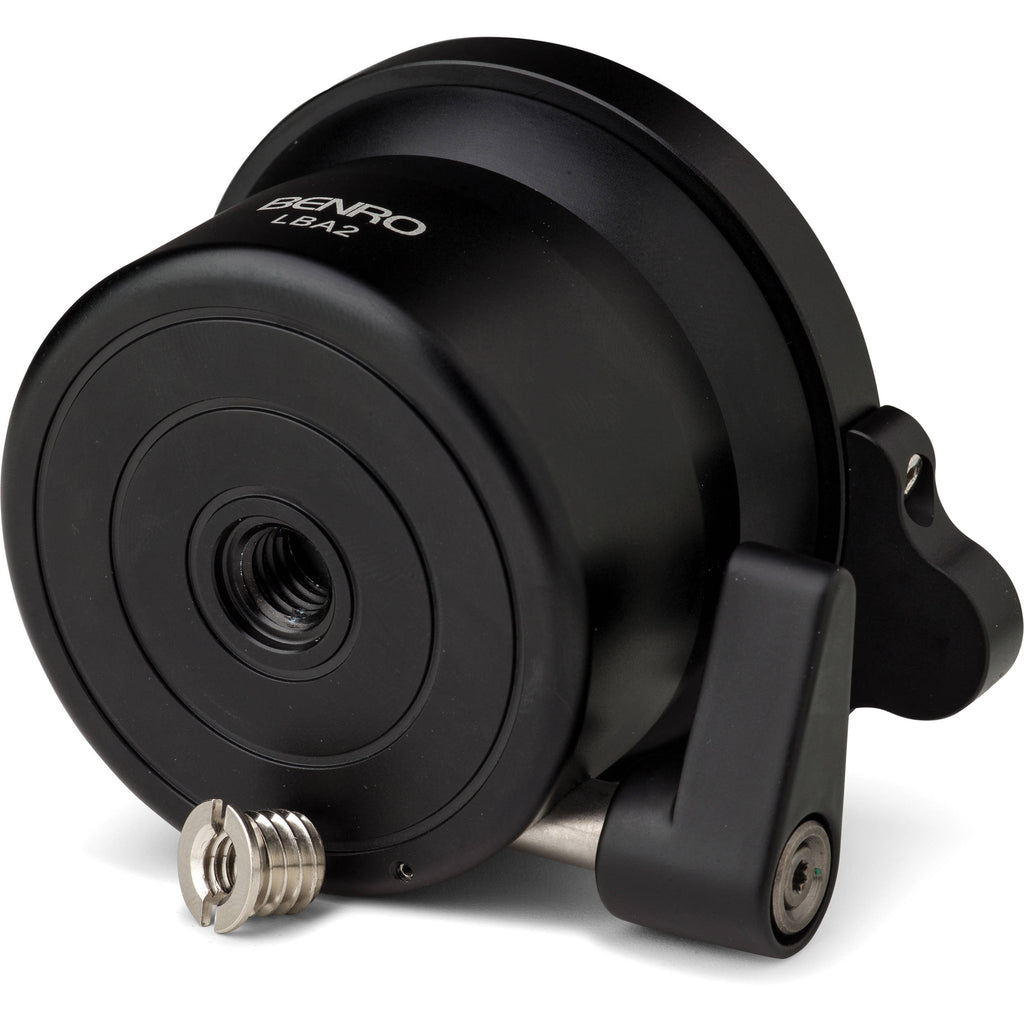

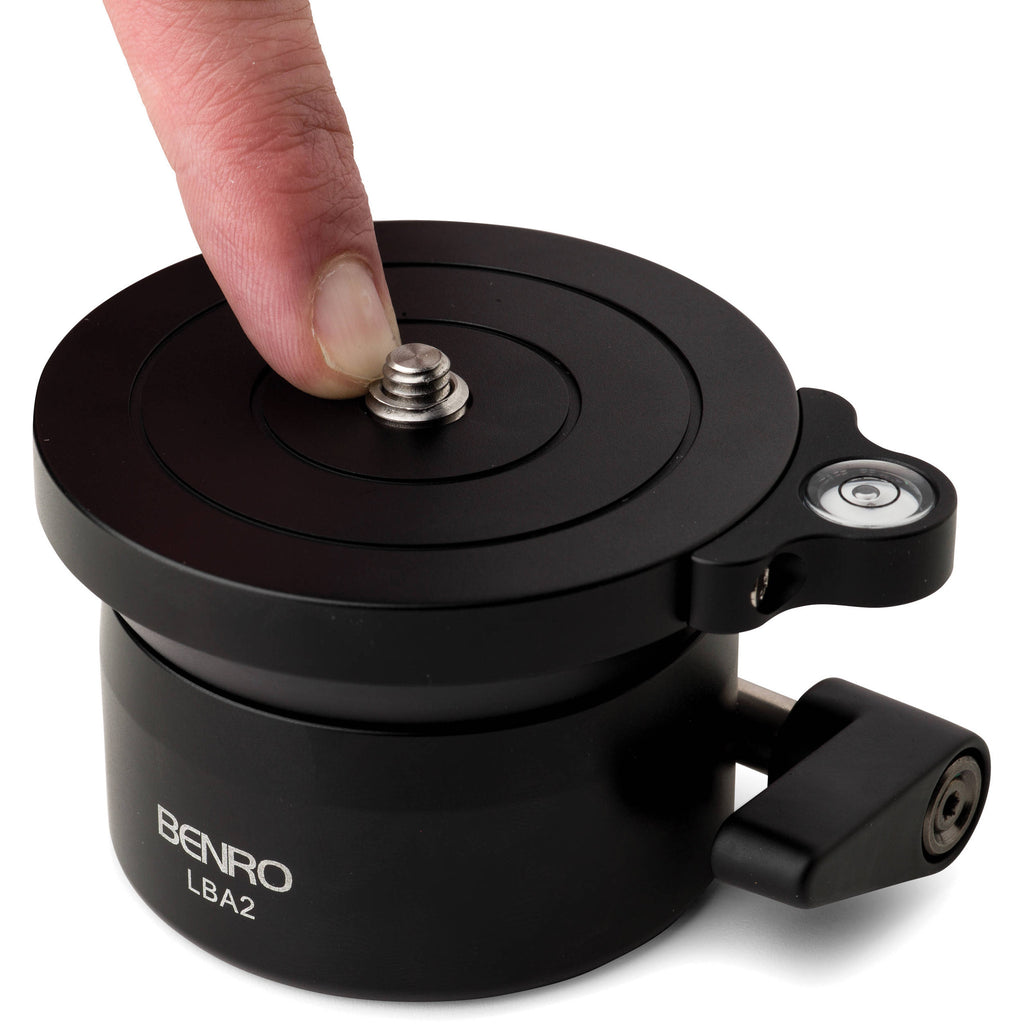

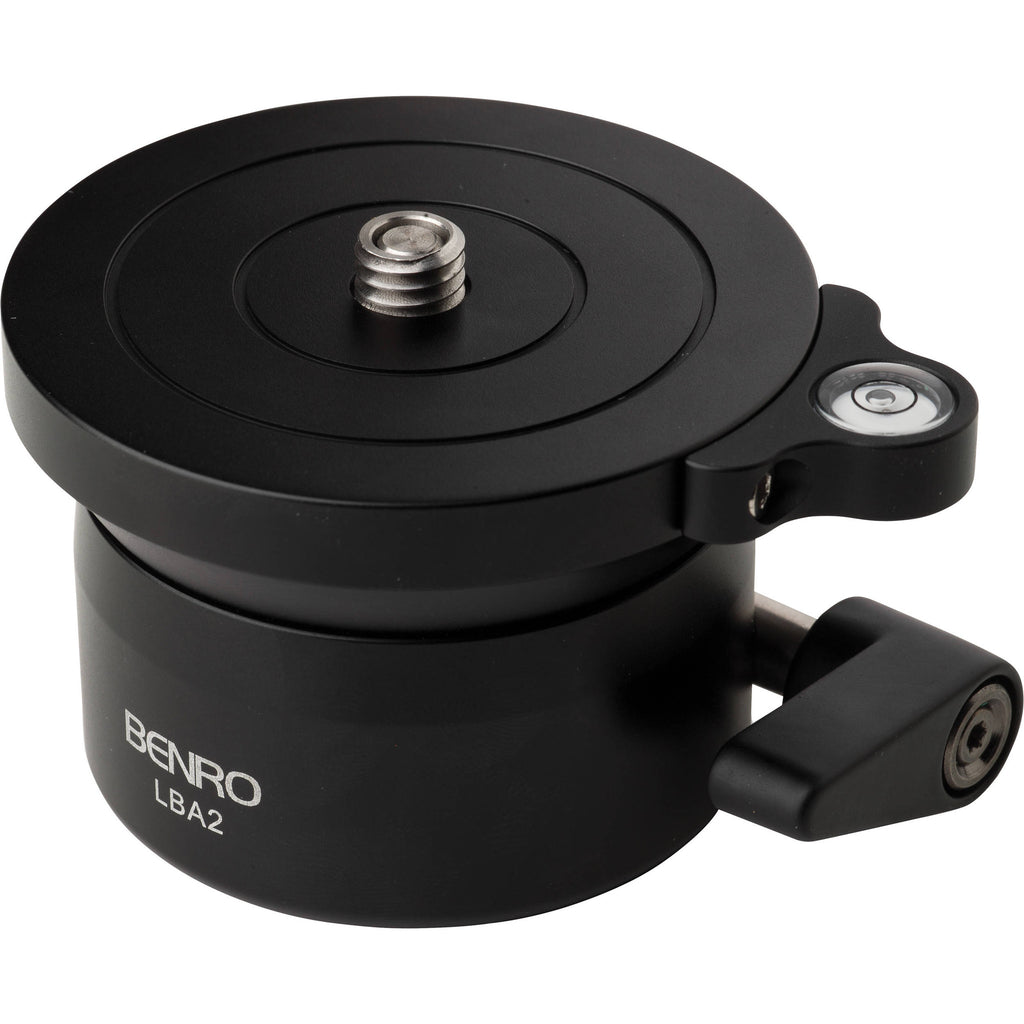

The Benro LBA2 Leveling Base is ideal for creating stitched panoramic images that require a level base for your pan head or ball head. It has a load capacity of 110 lb and can tilt +/-15° in any direction. The top of the leveling base has a spring-loaded 3/8"-16 threaded stud that can be recessed to reveal a 1/4"-20 stud, allowing you to mount a head or a camera directly to the leveling base. The bottom mount is a 3/8"-16 female thread with a 1/4"-20 bushing adapter.
Load Capacity | 110 lb (50 kg) |
Top Mount Thread Size | 1/4"-20 and 3/8"-16 |
Tripod Mount Thread Size | 3.8"-16 with 1/4"-20 bushing adapter |
Adjustment Range | +/-15° |
Height | 1.875" (4.8 cm) |
Weight | 11.2 oz (318 g) |
Packaging Info |
Package Weight | 0.8 lb |
Box Dimensions (LxWxH) | 4.5 x 3.0 x 2.0" |
In the Box
- 1/4"-20 Bushing Adapter
- Limited 3-Year Warranty, Extendable to 5 Years with Registration
