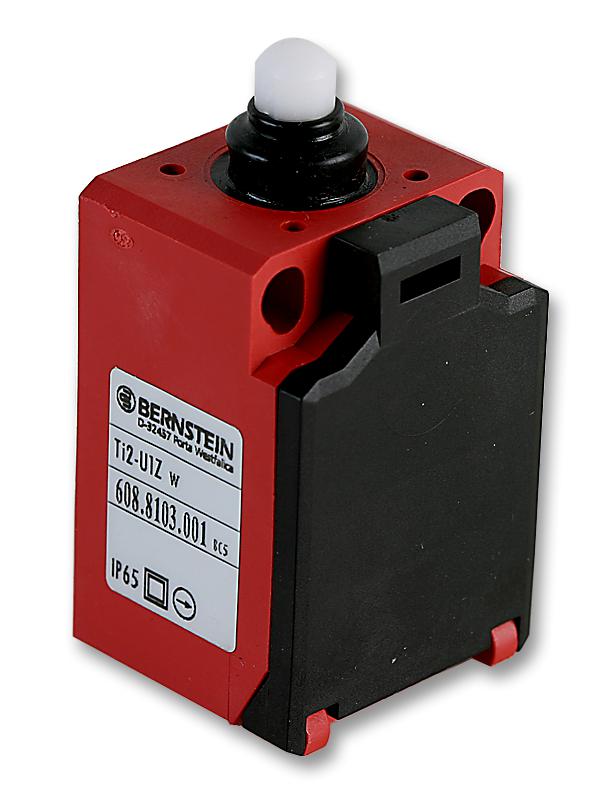

The Tiny Ti2 series plastic-bodied compact Limit Switch with 4 M3.5 screw terminals and self-lifting clamps. It has UL94V-0 rated self-extinguishing fibreglass reinforced PBT enclosure and UL94V-0 rated PA 6.6 hinged snap lid.
- Compact design
- Mounting measurements according to DIN EN 50047
- Small hysteresis on the snap-action system
- Large variety of contact functions
- Optimized size utilising proven terminal technology
- Snap-action type prevents undefined status even with very slow actuation
- 3 Different contact configurations available as slow-action or snap-action devices
- Positive break
- 2-channel Safety monitoring possible
- Type-Zb galvanic isolated terminals
- M16 x 1.5 Cable entry
- 2mm Contact opening of slow-action system according to EN 81-1 for lift construction
- Actuator mounting in 4 x 90?
- IP65 Protection rating
Applications
Safety, Automation & Process Control
Product details
| Limit Switch Actuator |
Plunger |
| Contact Configuration |
1NO / 1NC |
| Contact Current AC Max |
10A |
| Contact Voltage AC Max |
250V |
| Operating Force Max |
7N |
| Product Range |
Tiny Ti2 Series |
| Contact Current DC Max |
- |
| Contact Voltage DC Max |
- |
Other details
| Brand |
BERNSTEIN |
| Part Number |
608-8153-002 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
