Description
Bogen CSD2X2 Overview

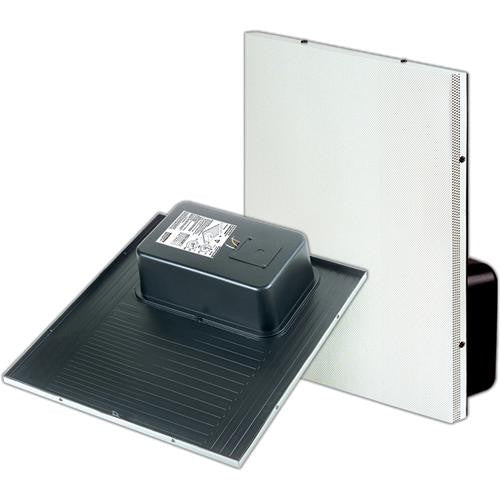

The Bogen ACD2X2U Self-Amplified Drop-In Ceiling Speaker With Back Can and Recessed Volume Control is a full-range speaker that allows for fast and easy installation, which saves installation time, effort, and cost.
The 2' x 2' speaker fits perfectly into place in 2' x 2' ceiling grids, without needing to cut ceiling tiles or requiring the use of tile support rails. The ACD2X2 can also be easily installed in 2' x 4' ceiling grids. Just make one cut to the ceiling tile, position the support rail (included), and drop the speaker into place.
- Finely perforated grille over the entire front of speaker
- Fully enclosed, industrial grade steel construction
- Enclosed back can
- Self-contained 1-watt amplifier
- 8'' main cone with secondary high-frequency cone
- Available in off-white and bright white (�U� versions) grille finish
- Recessed Volume Control (front-mounted)
- Complies with Requirements of UL-2043
- Support Rail Crossbar (included)
- Seismic attachment points
In the Box
- Bogen ACD2X2U Self-Amplified Drop-In Ceiling Speaker With Back Can and Recessed Volume Control (Pair)
- Tile Rail
Guides & Manuals
Bogen CSD2X2 Specs
| Frequency Response | 95 Hz - 12 kHz |
| Max SPL Level | 94 dB @ 1 W / 1 m |
| Dispersion | 100° @ 2 kHz (6 dB down) |
| Cone Material | Treated paper |
| Speaker | 8" main cone with secondary high frequency cone |
| Max Output Power | 1 W |
| Typical Operational Current | 1 CU (50 mA) |
| Input Impedance | 2000 ohms |
| Input Sensitivity | 125 mV rms |
| Supply Voltage | 24 V DC |
| Magnet Weight | 10 oz. |
| Connection | Via wire nuts (included in electrical box) |
| Dimensions | 23.9 x 5 x 23.9" (61 x 12.7 x 61 cm) |
| Weight | 12 lb (5.44 kg) |
| Package Weight | 30.5 lb |
| Box Dimensions (LxWxH) | 26.8 x 26.5 x 7.3" |
Bogen CSD2X2 Reviews
Fire House alert system.
This was added to a 70v system in a FireHouse, good volume. Works as expected. Good product. Limerick Fire Dept.
Easiest install ever!
I have installed 14 of these drop in speakers in various rooms to date. From classrooms to squad rooms these speakers work amazingly well. The ease of use for drop ceilings is one of the main reasons I started using this product. Just drop-in, run a speaker wire and your good to go. I have paired these speakers with Pyle Audio Amplifiers in every installation so far and am not disappointed. Would recommend to anyone!
A Great Solution
These are great speakers for adding a sound system to a room with a drop ceiling. They fit right in the footprint of a 2'X2' ceiling tile (and even have a brace for 2'X4' type tiles.) Installation could not be much easier.
Good value / Quality speaker
Easy to install and sounds good. Using 6 of them in an office with 14ft ceilings on a 25V Amp playing radio all day every day.
Quick install
Never hear much about bogen, so i have to say inam pleasantly surprised at how good these speakers sound. They provide great coverage and have a true sound. The install was my favorite part of the product. Literally as simple as replacement of the tile with the speaker and then run the speaker cable. I would definitely purchase these again.
Easy & cost effective
Easy installation in dropped ceiling and sound very good with program or presenter audio.
