Description
Bogen ASUG1 Overview

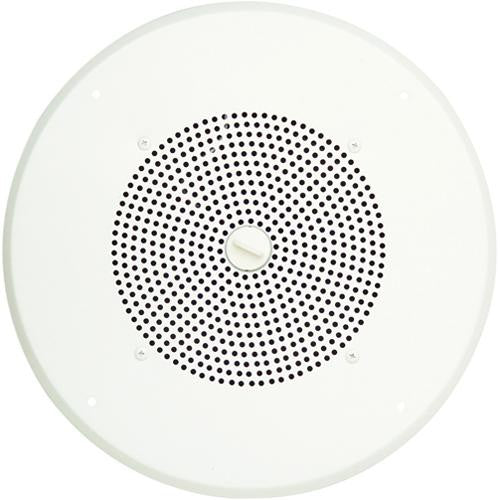

Finished in bright white, the Bogen Communications ASUG1 is an 8" 1W amplified speaker assembled on a ceiling grille for paging, talkback, background music, and security applications in schools, warehouses, offices, and more. With a built-in amplifier and an 8" cone-type loudspeaker, it delivers a 1W output, a maximum SPL of 92 dB, and a frequency response of 100 Hz to 10 kHz. It operates via a 24 VDC power source.
Integrate the ASUG1 with a standard 600-Ohm telephone line, and adjust the volume via the fixed knob without having to remove the speaker or grille. The grille is constructed of steel to maintain rigidity, and features a durable enamel coating.
8" cone-type loudspeaker
Self-contained 1W amplifier
Interfaces with standard 600-Ohm telephone line
Adjustable volume via fixed front-mounted knob
Assembled on a steel ceiling grille for recessed installation
Finished in semi-gloss enamel
UPC: 765368310306
In the Box
- Bogen ASUG1 8" 1W Amplified Ceiling Speaker with Fixed Volume Knob (Bright White)
- Limited 2-Year Manufacturer Warranty
Bogen ASUG1 Specs
| Speaker Size |
8" / 20.3 cm
|
| Maximum Output |
1 W
|
| Maximum SPL |
92 dB at 4' on axis with 1 W output at 1 kHz
|
| Frequency Response |
100 Hz to 10 kHz
|
| Input Sensitivity |
125 mV
|
| Input Impedance |
2 kOhms
|
| Dispersion |
90°
|
| Current Consumption |
1 CU / 50 mA
|
| Power Requirement |
24 VDC
|
| Construction Material |
Steel ceiling grille
|
| Diameter |
12.9" / 32.7 cm
|
| Weight |
5 lb / 2.3 kg
|
Packaging Info
| Package Weight |
3.5 lb
|
| Box Dimensions (LxWxH) |
14.8 x 14 x 4.3"
|
