Description

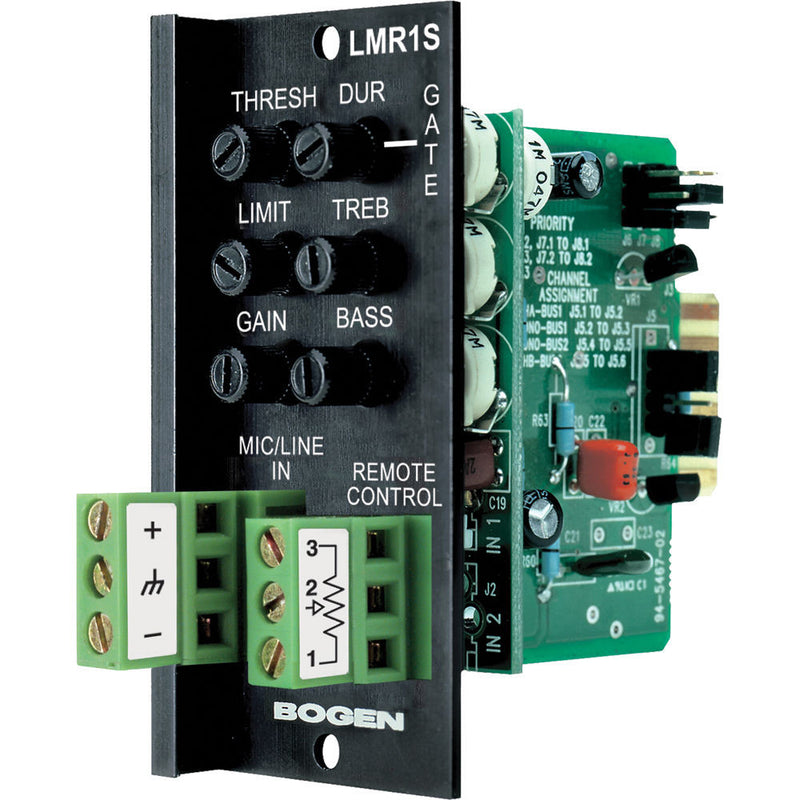

The LMR1S Microphone/Line Input Module with Remote Control from Bogen Communications is an actively balanced plug-in module designed to pre-amplify microphone inputs to line-level. It includes a remote control whcih can operate at a distance of up to 2000'. The LMR1S is compatible with the Vector mixer/pre-amplifier model VMIX. A mic/line switch sets the input gain range for the intended input device. Jumpers are used to select between 4 levels of priority; the LMM1S can mute lower priority modules and can be muted from higher priority modules plugged into the same VMIX. When using the module with condenser microphones, a jumper can be set for the module to supply 24V phantom power. This input module features bass & treble, gain/trim, and gate threshhold & duration controls.
- Actively balanced input
- Line/microphone attenuator switch
- Gain, bass, and treble controls
- Gating with threshold and duration
- 24V phantom power supply
- 4 priority levels
- Bus assignable
- Built-in limiter with LED indicator
- Remote control volume option
- Single-gang remote control panel with distance up to 2000' included
- Screw terminal connectors
- Limited 3-Year Warranty
| Compatibility | Vector mixer/pre-amplifier VMIX |
| Gain | Microphone: 18 to 60 dB Line: -2 to 40 dB |
| Frequency Response | 20 Hz - 50 kHz (+0/-3 dB) |
| S/N | 20 Hz - 20 kHz: -76 dBV @ 60 dB gain |
| Distortion | < 0.03% |
| Input Impedance | Microphone mode: 2 k? Line mode: 15 k? |
| Gate Threshold | 2 - 25 mV @ minimum gain |
| Gate | 0.5 - 5 sec duration |
| Priority | 4 levels |
| Tone | � 10 dB @ 100 Hz and 10 kHz |
| CMRR | > 80 dB @ 1 kHz |
| Controls | 1 x gain 1 x bass 1 x treble 1 x threshold 1 x duration |
| Limiter Threshold Range | -16 dBV to off |
| Remote Control Voltage | 0 - 4.5 VDC |
| Remote Control | Loop current: 0.5 mA |
| Maximum Distance | 2 conductor: 200' 3 conductor shielded: 2000' |
| Connectors | 1 x 3-position fixed Euro screw, mic/line input 1 x 3-position fixed Euro screw, control |
| Dimensions (W x H x D) | 1.4 x 3.1 x 3.5" (34.9 x 79.4 x 88.9 mm) |
| Weight | 2.6 oz (73.7 g) |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 6.0 x 4.0 x 4.0" |
