Description

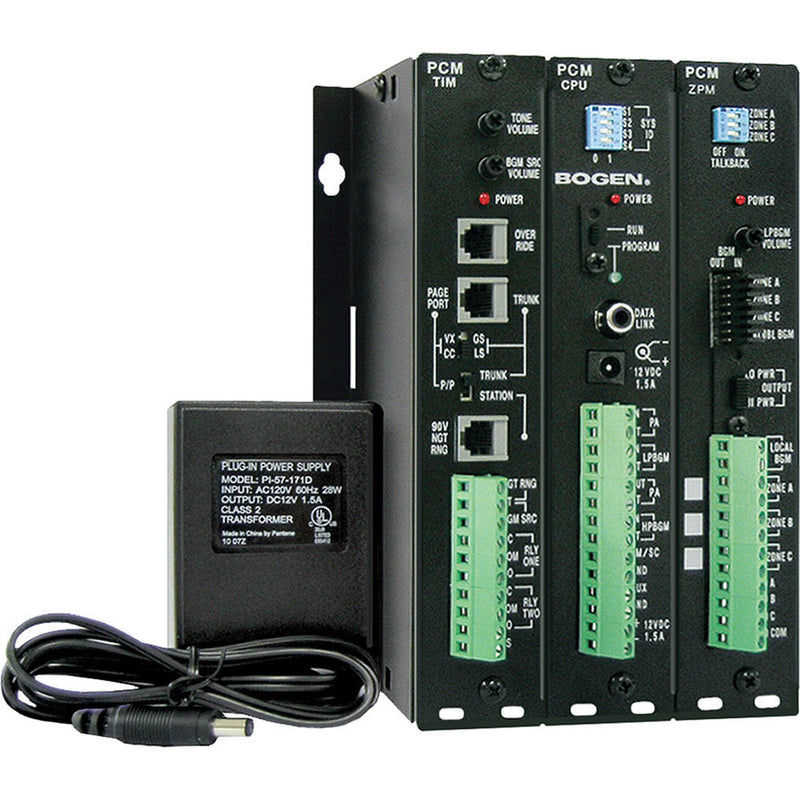

The Pre-Assembled 3-Zone PCM2000 Paging System from Bogen Communications is a pre-assembled and tested 3-zone PCM2000 system with a PCMPS2 power supply. It consists of the PCMTIM telephone interface module, PCMCPU central processor module, PCMZPM 3-zone paging module, and the PCMPS2 system power supply. You can use it right out of the box for 1 to 3 zone applications or expand it with other PCM modules.
- Paging
- Provides 1 to 3 paging zones
- Expandable up to 99 zones 1
Please Note:
Requires additional PCM modules beyond PCMSYS3 contents
close
- Up to 32 programmable paging zone groups
- Emergency all-zone override paging input
- Two-way communications 2
Please Note:
Requires additional PCM modules beyond PCMSYS3 contents
close
- 250W power handling capacity
- Code calling
- Background music distribution
- Works with systems that are central- or self-amplified
- Drives up to 40 self-amplified speakers per zone module
- Night Ringer, 90V and contact closure
- Real-time & Master clock synchronization 3
Please Note:
Requires additional PCM modules beyond PCMSYS3 contents
close
- Time triggered signaling tones 4
Please Note:
Requires additional PCM modules beyond PCMSYS3 contents
close
- Installation Features
- Operates with 70V and self-amplified (24V) paging systems
- Universal telephone interface allows simple connection to loop and ground start trunks, paging ports, and to analog 90V station lines
- RJ-11 jacks & terminal blocks
- Relay driver outputs
- 2 C-form relay contacts
- Setup tone
- Program system features via DTMF
- Wall-mountable
- Rack-mount adapters (sold separately)
- FCC Part 68 registered
- UL60950 listed
| Ringer Equivalence | 1.0B |
| Operating Voltage | 12 VDC |
| Operating Current Consumption | 1.5A (9-zone system) |
| Power Capability | Audio Power Capability: 250 W |
| Operating Temperature | 25 to 100°F (-3.8 to 37.7°C) |
| Operating Humidity | 0 to 90% non-condensing |
| Dimensions (W x H x D) | Dimensions ( W x H X D) (single module): 1.5 x 7.5 x 4.2" ( 3.8 x 19.0 x 10.6 cm) |
| Packaging Info | |
|---|---|
| Package Weight | 4.8 lb |
| Box Dimensions (LxWxH) | 13.6 x 7.4 x 6.8" |
- PCMTIM - Telephone Interface Module for the PCM2000
- PCMZPM - Three-Zone Paging Module for the PCM2000
- PCMPS2 12V/1.5A Power Supply for PCM2000 System
- PCMCPU Central Processor Module
- Limited 2-Year Warranty on Parts & Labor
Note: Add PCMZPM modules for up to 9 zones. Add PCMTBM module for talk back and realtime clock/tone applications. Add satellite assemblies for up to 99 zones.
