Description
Bogen CSD2X2U Overview

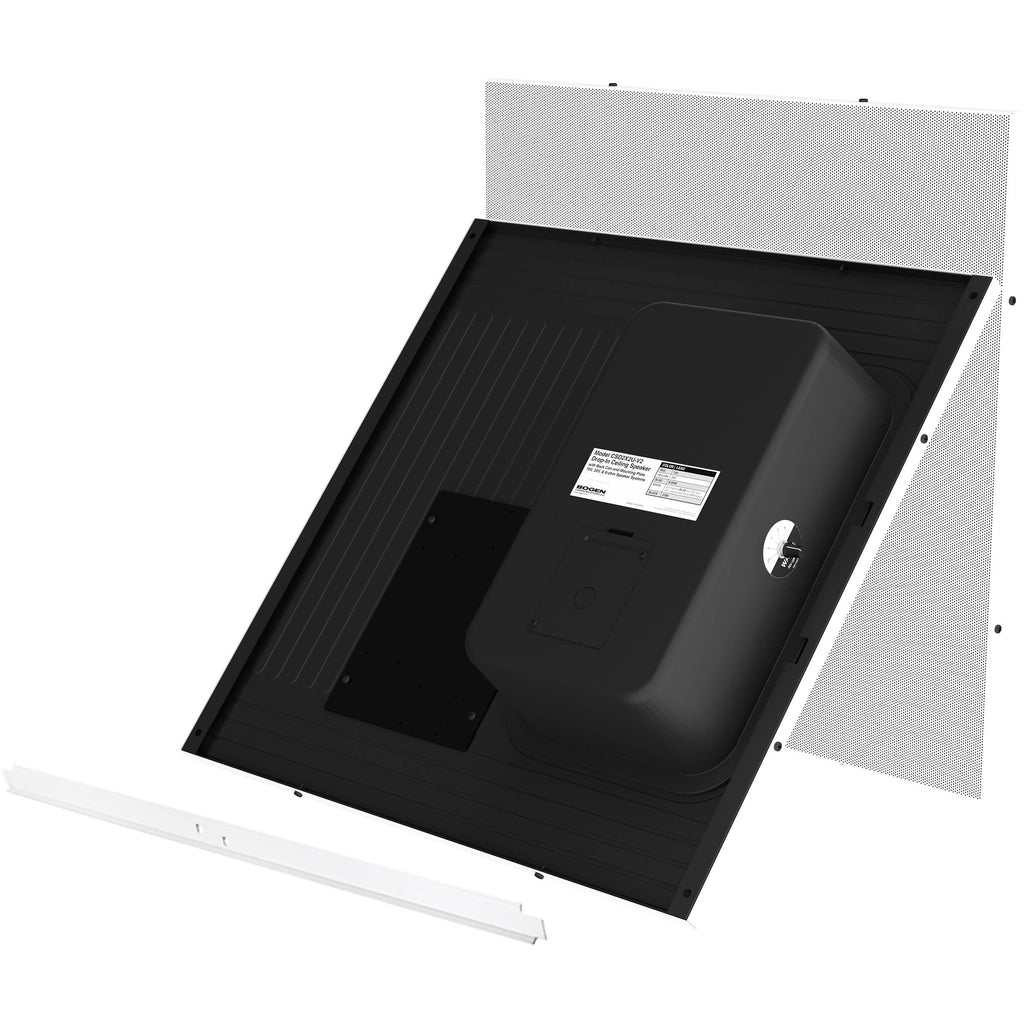

The bright white Bogen CSD2X2U-V2 Drop-In Ceiling Speaker (Pair) is an easy-to-install 2 x 2' ceiling tile speaker for use in commercial or public spaces. They accept 8-ohm or 70/25V inputs, easily install into a 2 x 2' cut-out in your existing ceiling tile, and can be easily converted into IP speakers or IP intercom speakers. To install the speaker into a 2 x 4' ceiling grid, simply cut the ceiling tile in half and install the included support rail for a precise fit. The 8" cone speaker has a 10 oz magnet with a 70/25V, 4W transformer.
At a Glance
- 2 x 2' tile size with back can enclosure
- 4W, 70/25V transformer
- 4, 2, 1, 1/2, and 1/4-watt tap settings; selectable by rotary switch
- Finely perforated grille over entire front of speaker
- Fully enclosed, industrial grade steel construction
- 8" main cone with secondary high-frequency cone; 10 oz magnet weight
- Plenum-rated�meets the requirements of UL standard 2043 for smoke and heat release
- Listed to UL Standard 60065 for U.S. & Canada; and UL Standard 1480 for U.S.
IP Network Options
- The speaker includes a purpose-built mounting plate to accommodate one of the optional Nyquist GA series VoIP PoE integrated amplifiers (available separately), effectively making this into a voice over IP (VoIP) loudspeaker.
- Use of the NQ-GA10P(V) VoIP intercom module (available separately) will also provide the speaker with half-duplex intercom capability.
- Additionally, by attaching the NQ-GAXMR1 impedance matching audio transformer to the mounting plate, the (optional) GA-series amplifiers can power additional CSD2X2U-V2 or other 70/25V speakers.
UPC: 735368483331
In the Box
- Bogen CSD2X2U-V2 Drop-In Ceiling Speaker with IP Support (Pair, Bright White)
- Tile Rail
- Limited 5-Year Manufacturer Warranty
Bogen CSD2X2U Specs
Key Specs
| Active/Passive |
Passive
|
| Number of Included Speakers |
2
|
| Speaker Configuration |
2-Way
|
| Power Handling |
4 W
|
| Constant Voltage / Transformer Taps |
25 V / 70 V:
4 / 2 / 1 / 0.5 / 0.25 W |
| Impedance |
8 Ohms
|
| LF Driver |
8" / 20 cm Paper Compression Driver
|
| Color |
White
|
Speaker
| Active/Passive |
Passive
|
| Number of Included Speakers |
2
|
| Speaker Configuration |
2-Way
|
| Power Handling |
4 W
|
| Constant Voltage / Transformer Taps |
25 V / 70 V:
4 / 2 / 1 / 0.5 / 0.25 W |
| Impedance |
8 Ohms
|
| Transformer Wattage |
4 W
|
| Shielded |
No
|
Drivers
| LF Driver |
8" / 20 cm Paper Compression Driver
|
| Magnet |
10 oz / 284 g
|
Performance
| Frequency Response |
95 Hz to 20 kHz
|
| Maximum SPL |
94 dB
|
| Coverage Angle |
100° (Conical)
|
Connectivity
| Inputs/Outputs |
Screw Terminal
|
Environmental
| Certifications |
UL62368
|
Physical
| Color |
White
|
| Mounting |
Ceiling Tile
|
| Dimensions |
24 x 24 x 4.9" / 609.6 x 609.6 x 124.5 mm
|
| Weight |
14 lb / 6.4 kg
|
Packaging Info
| Package Weight |
35.5 lb
|
| Box Dimensions (LxWxH) |
27 x 27 x 7"
|
