Description
Bogen SMS1810 Overview

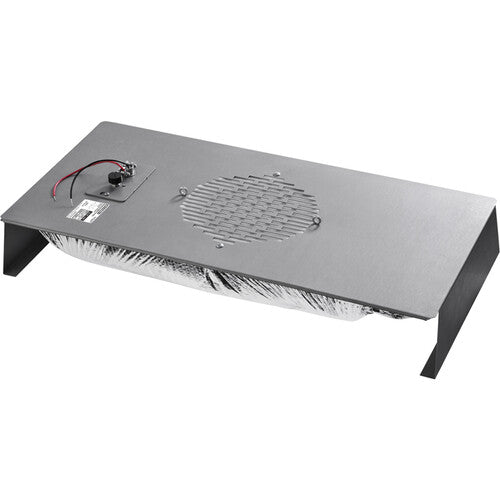

Designed for sound masking applications in commercial facilities, hospitals, educational institutions, administrative offices, libraries, student centers, and military facilities, the Bogen Nyquist Suspended Ceiling Grid Sound Masking Speaker is easy to install into standard 1x2' ceiling tile grids and may be placed on top of an existing ceiling tile.
The speaker is comprised of a ceiling grid mount and a sound masking speaker assembly, which consists of an 8" dual-cone loudspeaker and a 25V/70V, 4W maximum, five-position rotary tap selector. A seismic safety cable is supplied to secure the speaker to a solid object in the plenum space.
Key Features
- Up-firing sound masking speaker
- Fits in a standard 1x2� ceiling tile grid
- Can be placed on top of an existing ceiling tile
- 5-position rotary tap selector provides easy selection of speaker power from 0.25W to 4W in 25/70V systems.
- UL 2043 rated for plenum use above suspended ceiling systems in air handling spaces
- Includes safety cable
Applications
- Intended Use: Indoor environment
- Program Material: Equalized random noise
- Secondary Use: Signal tones or equalized voice
- Installation: Placed upward-facing on 24" wide ceiling tile on conventional suspended ceiling grid
UPC: 765368770476
In the Box
- Bogen Nyquist Suspended Ceiling Grid Sound Masking Speaker
- Safety Cable
- Limited 5-Year Manufacturer Warranty
Additional Resources
Bogen SMS1810Specs
Key Specs
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
Full-Range
|
| Power Handling |
20 W RMS
|
| Constant Voltage / Transformer Taps |
25 V / 70 V:
4 / 2 / 1 / 0.5 / 0.25 W |
| Full-Range Driver |
2x 8" / 20.3 cm
|
| Color |
Gray
|
Speaker
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
Full-Range
|
| Power Handling |
20 W RMS
|
| Constant Voltage / Transformer Taps |
25 V / 70 V:
4 / 2 / 1 / 0.5 / 0.25 W |
| Transformer Wattage |
4 W
|
Drivers
| Full-Range Driver |
2x 8" / 20.3 cm
|
| Magnet |
Ceramic, 10 oz / 0.3 kg
|
Performance
| Frequency Response |
65 Hz to 17 kHz
|
| Maximum SPL |
101 dB
|
| Sensitivity |
95 dB SPL
|
| Coverage Angle |
100° at 2 kHz (Conical)
|
Connectivity
| Inputs/Outputs |
2x Wire Lead Input
|
Physical
| Environmental Resistance |
No
|
| Color |
Gray
|
| Mounting |
In-Ceiling (Top)
|
| Dimensions |
23.75 x 11.81 x 3.44" / 60.33 x 30 x 8.74 cm
|
| Weight |
7 lb / 3.2 kg
|
