| ₹ 118750.0 includes GST and import duties. | |
| B2B customers can avail ₹ 18109.38 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

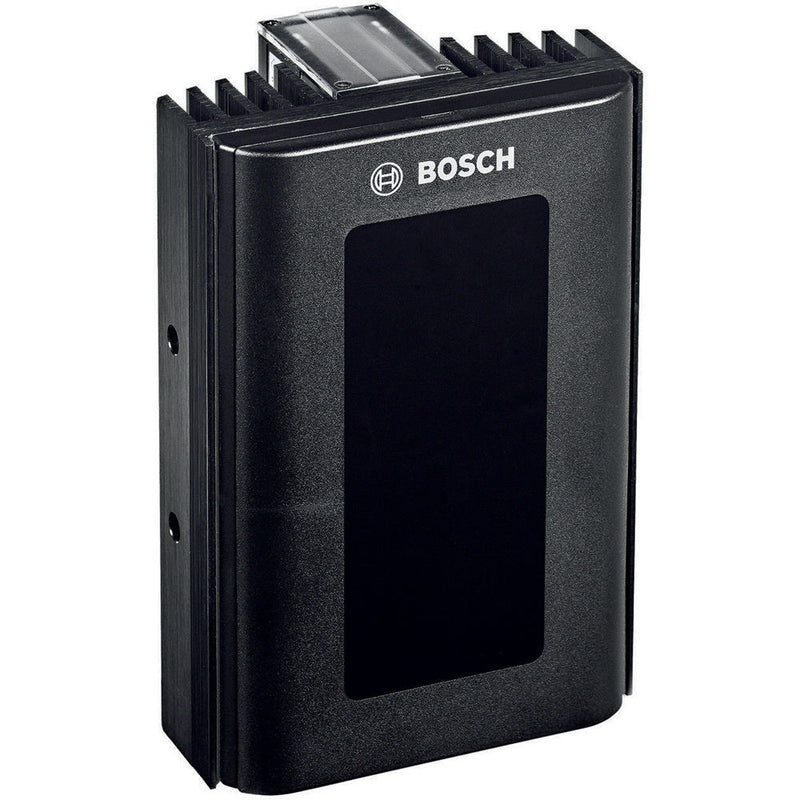

The 5000 Series Long Range IR Illuminator from Bosch provides semi-covert lighting for long range indoor and outdoor surveillance applications. The set of interchangeable diffuser lenses allows you to select beam patterns that match your application to provide accurately illuminated scenes. The self-cleaning window reduces maintenance requirements. It is specifically designed for energy efficient operation. The illuminator can be powered directly from a 12 to 32 VDC or 24 VAC supply.
The energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management and long life. A pressure equalization valve prevents thermal expansion and pressure cycling.
- Integrated adjustable photocell
- Adjustable IR intensity
- Interchangeable beam pattern diffusers to match beam to camera
- Telemetry input and photocell output for external switching
- Self-cleaning lens coating
| Wavelength | 850 nm |
| IR Control | Adjustable IR intensity (10% to 100%) |
| Day/Night Switching | Photocell, sensitivity adjustable (20 lux to 70 lux) |
| Beam Angle | 30° Distance: 440' (134 m) HFOV: 236' (72 m) 60° Distance: 280' (85 m) HFOV: 324' (99 m) 80° Distance: 200' (61 m) HFOV: 336' (102 m) 95° Distance: 140' (43 m) HFOV: 306' (93 m) |
| Housing | Robust anodized aluminum extrusion, black |
| Front Window | Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology |
| Mount | Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench) |
| Power Supply | 12 to 32 VDC or 24 VAC ±10% |
| Power Consumption | 26 W |
| Certifications & Approvals | CE-EMC: EN 61547 (Lighting Immunity), EN 55015 (Lighting Emission) EN 62493 (Lighting EMF), EN 50130-4 (Alarm EMC) USA cULus: UL 2108 Low Voltage Lighting Systems |
| Safety | CE-LVD: EN-60598-1 (Luminaires General), EN-60598-2-1 (Luminaires) LED: EN 62471 Risk group 2 (LED safety) |
| Environmental | IEC / EN 60529 IP66, IEC / EN 62262 IK09, EN50130-5 Class IV (Alarm environmental), EN 50581 RoHS, |
| Operating Temperature Range | -58 to 122°F (-50 to 50°C) |
| Protection | IP66 |
| Cable | 9' (3 m) |
| Dimensions | Unit: 4.33 x 6.34 x 2.9" (110 x 161 x 76 mm) Bracket: 4.33 x 4.92 x 1.38" (110 x 125 x 35 mm) |
| Weight | Unit: 3.1 lb (1.4 kg) Bracket: 0.44 lb (0.2 kg) |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 116375.0 |
| 3-5 | ₹ 115187.5 |
| 5-10 | ₹ 112812.5 |
| 10+ | ₹ 110437.5 |
Bulk discount will be automatically applied during checkout based on quantity.
