Description

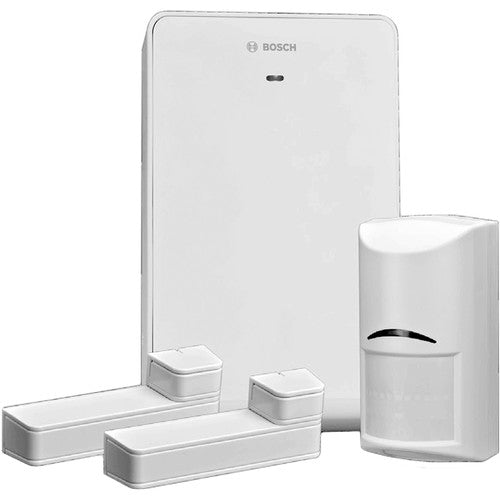

Bosch B810K Overview
The B810K RADION Kit from Bosch is a wireless security solution that offers scalability and flexible installation options to suit your needs. This kit includes a wireless receiver, two surface mount door/window contacts, and a PIR motion sensor. The wireless receiver connects RADION wireless devices like motion detectors, door/window contacts, panic buttons, repeaters, and key fobs to supported control panels via an SDI2 bus connection from up to 800' away.
The surface mount door/window contacts have an internal reed switch that is activated by an external magnet assembly to monitor doors and windows. An alarm signal is sent to the receiver and control panel when the distance between the magnet and internal reed switch exceeds 0.78".
The PIR motion sensor has a 40 x 40' coverage area. It can be mounted at heights between 7 and 9'. The sensor's 30 lb pet immunity ensures that false alarms from animals are minimized. Drafts and insects are kept out of the sensor thanks to a sealed optical chamber.
This kit is intended for indoor use. It operates on a 433.42 MHz wireless frequency. Batteries for the peripheral devices are included for operation.
- SDI2 bus interface
- Dual internal antennas provide spatial and polar RF signal reception
- Detects and reports RF interference
- Transmits a tamper signal when removed from its base or the mounting surface
- Supports supervision of wireless points, key fobs, and repeaters
- Supports signal strength and margin reporting
- Supports enroll device database management
- External status LEDs
- Address switch on the rear of the receiver's housing enables easy access and configuration from a compatible control panel
- Sliding self-locking enclosure enables a seamless installation
- Internal reed switch contact for monitoring doors and windows
- Alarm signal is sent to the receiver and control panel when the distance between the magnet and reed switch exceeds 0.78"
- Built-in wall and cover tamper switch transmits a tamper signal when contact is removed from its base or pulled away from the wall
- Battery life up to five years
- Motion Analyzer II signal processing utilizes multiple thresholds and timing windows to analyze timing, amplitude, duration, and polarity of signals to make an alarm decision
- 30 lb pet immunity minimizes false alarms
- Can be mounted on a surface or corner at heights between 7 and 9'
- Sealed optical chamber provides immunity from drafts and insects
- Temperature compensation maintains consistent catch performance at varying temperatures
- Tolerates heaters and air conditioners, hot and cold drafts, sunlight, lightning, and moving headlights
- Wall and cover tamper switch that transmits a tamper signal when sensor is removed from its base or pulled away from the wall
- LED alarm indicators
- Battery life up to five years
- Battery life extension feature thanks to three-minute lockout time between recurring alarms
Items Included
- Bosch B810K RADION Wireless Alarm Kit
- Hardware Pack for Wireless Receiver
- 2 x Magnet Assemblies for Contacts
- 2 x AAA Lithium Batteries for Contacts
- 2 x Hardware Packs for Contacts
- Lithium Battery (CR123A) for PIR Sensor
- Hardware Pack for PIR Sensor
- Limited 3-Year Warranty for Wireless Receiver and Contacts
- Limited 5-Year Warranty for PIR Sensor
Additional Resources
No additional resources available
Bosch B810K Specs
| Bus Interface |
SDI2
|
| Wiring Distance |
800' / 243 m
|
| Wire Gauge |
0.026" / 0.65 mm (22 AWG) to 0.08" / 2 mm (18 AWG)
|
| Tamper Detection |
Yes
|
| Power |
10-14 VDC, 12 VDC Nominal
|
| Maximum Current Draw |
70 mA
|
| Frequency |
433.42 MHz
|
| Operating Temperature |
32 to 120°F / 0 to 49°C
|
| Relative Humidity |
Up to 93% (Non-Condensing)
|
| Certifications |
ANSI/SIA, UL, CSFM, FCC
|
| Dimensions |
5.5 x 8.25 x 1.25" / 139.7 x 209.6 x 31.8 mm
|
| Type |
Magnetic Reed Switch Contact for Monitoring Doors & Windows
|
| Frequency |
433.42 MHz
|
| Tamper Detection |
Cover and Wall Tamper Switch
|
| Power |
1.5 VDC
|
| Battery Type |
AAA Lithium (Included)
|
| Battery Life |
Up to 5 years
|
| Certifications |
Complies with EN50130-5 Class II, UL, CSFM, and FCC
|
| Temperature |
Functional Range: 14 to 120°F / -10 to 49°C
UL Only: 32 to 120°F / 0 to 49°C EN50130-5 Class II Only: 14 to 104°F / -10 to 40°C |
| Relative Humidity |
Up to 93% (Non-Condensing)
|
| Dimensions |
Transmitter: 0.76 x 3.25 x 0.5" / 19.5 x 82.55 x 12.8 mm
Magnet: 0.72 x 0.97 x 0.49" / 18.5 x 24.5 x 12.5 mm |
| Coverage |
40 x 40' / 12 x 12 m
|
| Pet Immunity |
Up to 30 lb / 13 kg
|
| Frequency |
433.42 MHz
|
| Tamper Detection |
Cover and Wall Tamper Switch
|
| Power |
3 VDC
|
| Battery Type |
CR123A Lithium Battery (Included)
|
| Battery Life |
Up to 5 Years
|
| Certifications |
Complies with EN50130-5 Class II, UL, and FCC
|
| Temperature |
Functional Range: 14 to 120°F / -10 to 49°C
UL Only: 32 to 120°F / 0 to 49°C EN50130-5 Class II Only: 14 to 104°F / -10 to 40°C |
| Relative Humidity |
Up to 93% (Non-Condensing)
|
| Dimensions |
4.4 x 2.4 x 1.7" / 111 x 60 x 43 mm
|
| Package Weight |
2.47 lb
|
| Box Dimensions (LxWxH) |
9.11 x 6.12 x 4"
|
