Description

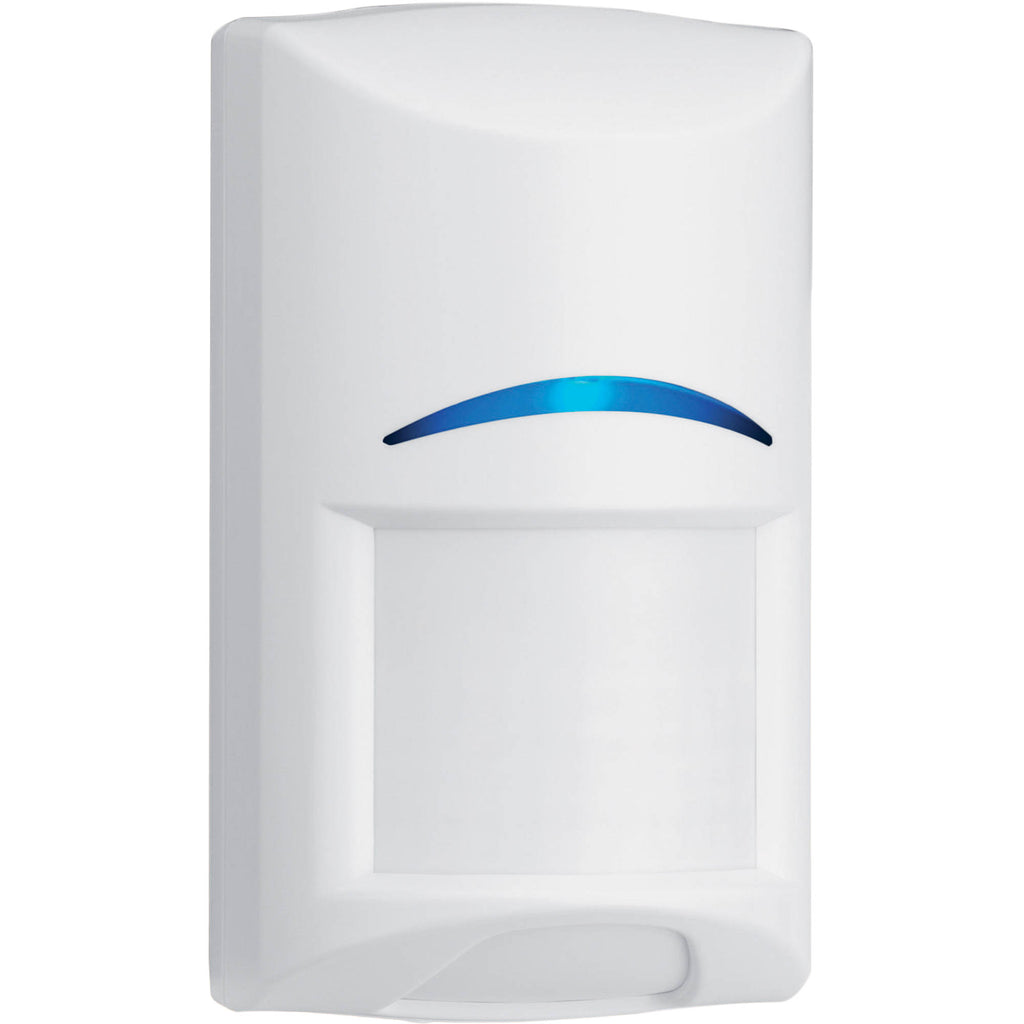

Bosch ISC-BPR2-W12 Overview
Featuring two Fresnel lenses, the ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector from Bosch provides accurate motion detection within its wide, 94° field of view. It covers a large 40 x 40' area with its 77-zone, 7-layer pattern lookdown lens and features up to three selectable lookdown zones.

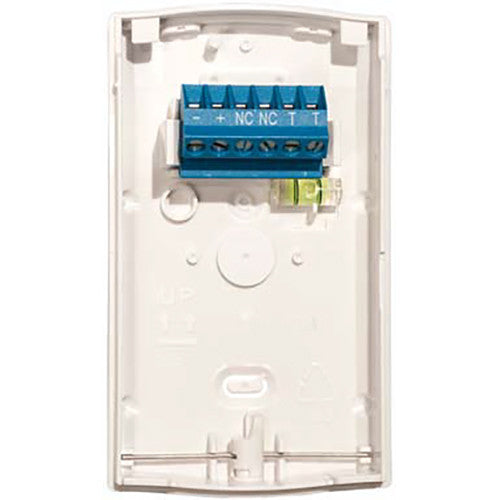

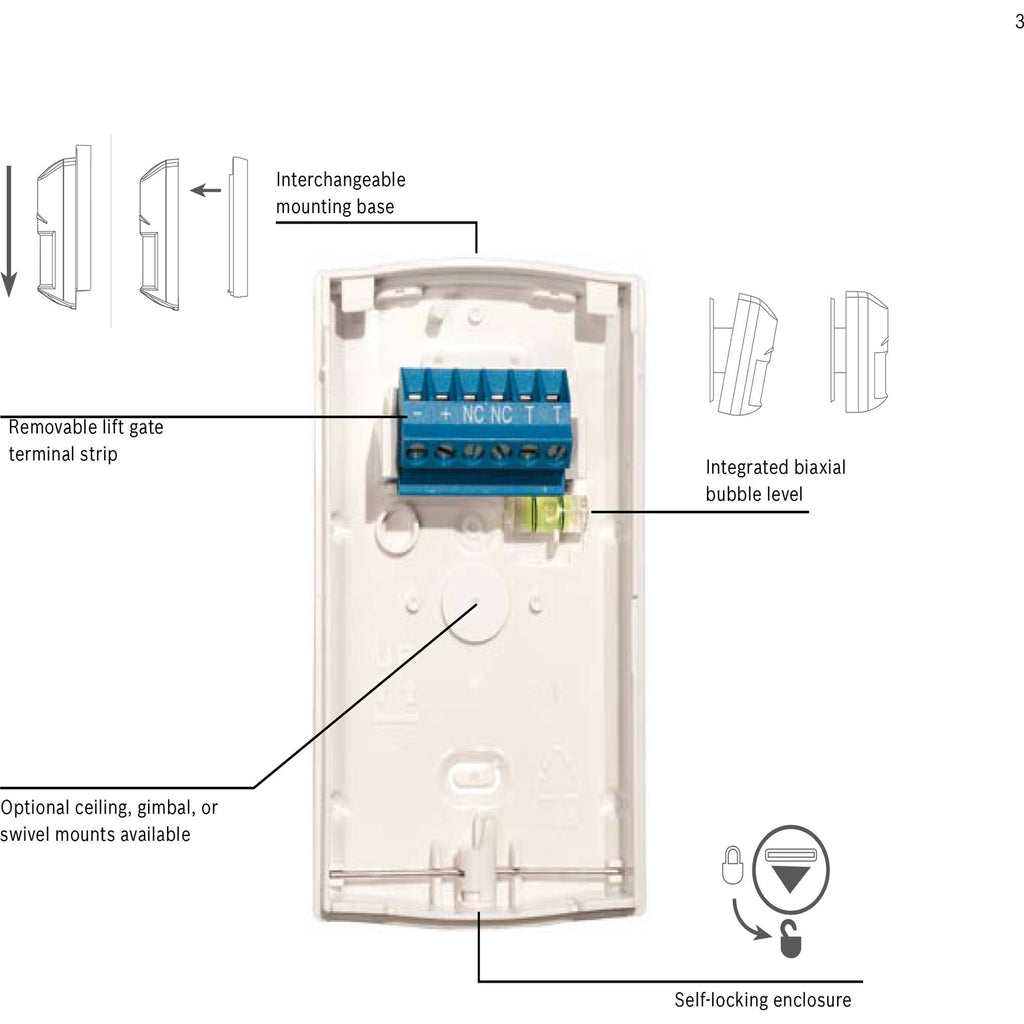

First Step Processing (FSP) technology analyzes motion, limiting false alarms. For increased reliability, the detector's sensitivity is automatically adjusted based on signal amplitude, polarity, slope, and timing. The detector also adjusts its sensitivity to compensate for weather, ensuring accurate operation in varying weather conditions. Installation is quick with its self-locking enclosure and built-in bubble level.
In the Box
- Bosch ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector
- Mounting Hardware
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Bosch ISC-BPR2-W12Specs
| Current |
Alarm/Standby: 10 mA at 12 VDC
|
| Operating Voltage |
9-15 VDC
|
| Environment |
EN50130-5 Class II
|
| Relative Humidity |
0 to 95%, non-condensing
0 to 85%, non-condensing (for UL-listed installation) |
| Operating Temperature |
-20 to 130°F (-30 to 55°C)
32 to 120°F (0 to 49°C) (for UL-listed installation) |
| Relay Output |
Solid state, supervised, Form A normally-closed (NC) contacts rated for ?100 mA, 25 VDC, 2.5 W, <20 Ohms closed
|
| Tamper Output |
Normally-closed (NC) contacts (with cover on) rated for ?100 mA, 25 VDC, 2.5 W
Connect tamper circuit to 24-hour protection circuit |
| Pattern |
7-layer, 77 zones
|
| Coverage |
40 x 40' (12 x 12 m)
|
| Mounting Height |
Recommended: 7.5 to 9' (2.2 to 2.8 m)
|
| Material |
High-impact ABS plastic
|
| Certifications & Approvals |
USA: UL 639, ULC-S306
Europe: EN50131-2-2 Grade 2, EN50130-5 Class II, EN60529, EN50102 (IP30, IK04), 2002/95/EC, CE (EMC, LVD), EN50131-2-2 Belgium: INCERT B-509-0051/d France: AFNOR 2620200001A0 Sweden: INTYG 11-269 Netherlands: NCP Bulgaria: GD FSPP GODKJENNELSESBEVIS |
| Dimensions |
4.2 x 2.4 x 1.7" (10.5 x 6.1 x 4.4 cm)
|
| Package Weight |
0.25 lb
|
| Box Dimensions (LxWxH) |
4.4 x 2.5 x 1.9"
|
