Description
Bosch NIN-63023-A3-A Overview

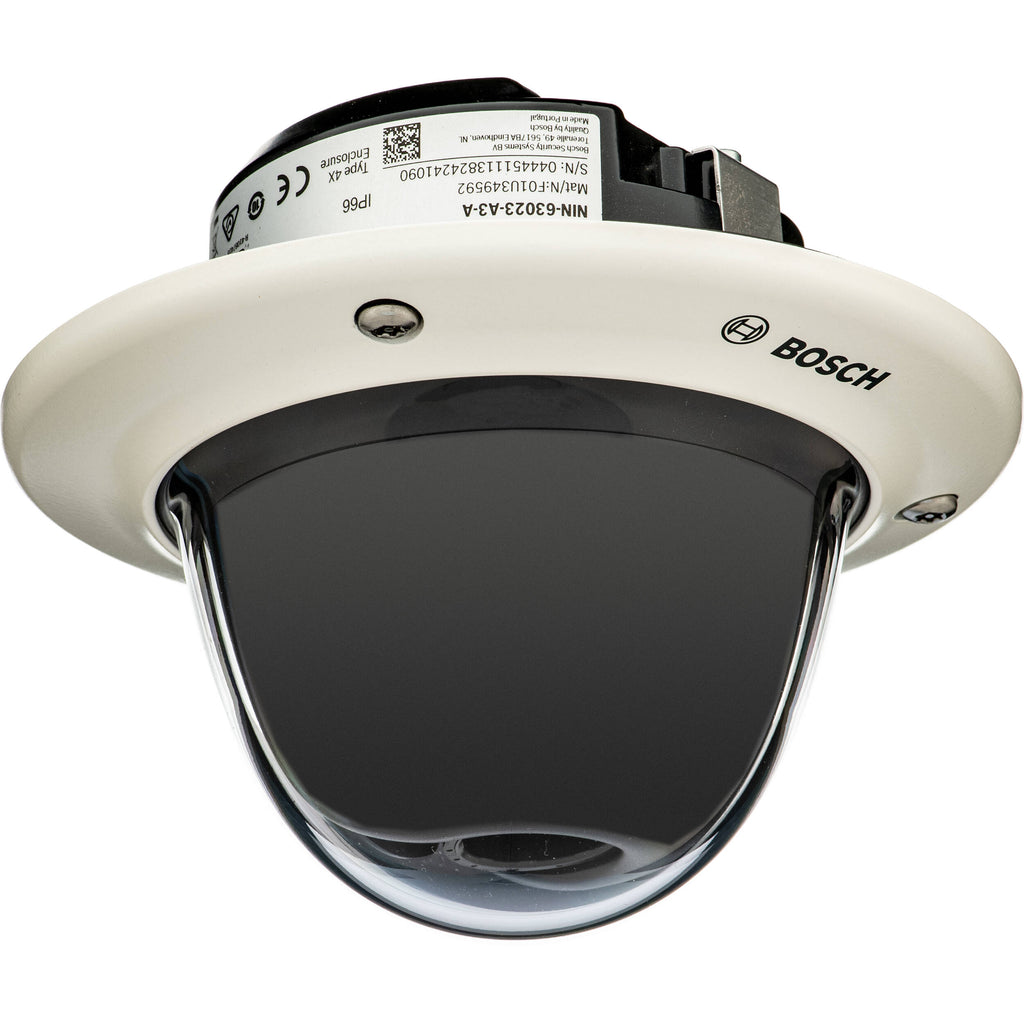

Monitor an indoor or outdoor area with the NIN-63023-A3 FLEXIDOME IP starlight 6000 VR 2MP Network Dome Camera from Bosch. This unit uses a 1/2.8" CMOS sensor to capture 1080p resolution video at 60 fps. The camera's 3-9mm motorized varifocal lens delivers a 117 to 37° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A memory card slot accepts microSD cards up to 2TB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, M, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
Surge-protected analog video output enables hybrid functionality for legacy CCTV migration to a network IP solution
IR cut filter for true day and night functionality
3-9mm motorized varifocal lens is IR corrected
Motorized zoom and focus
Three-axis angle adjustment (360° horizontal pivot, 90° vertical pivot, and ±90° twist)
0, 90, 180, and 270° rotation
Integrated gyro/accelerometer sensor corrects image orientation in steps of 90°
Built-in Essential Video Analytics enables the system to reliably detect, track, analyze object, and alert you when predefined alarms are triggered
Privacy masking for eight independent areas
Additional features include: white balance, >55 dB S/N ratio, 120 dB wide dynamic range, scene modes with scheduler, adjustable sharpness, backlight compensation, contrast enhancement, saturation, brightness, noise reduction, intelligent defog, image mirror/flip, pixel counter, video authentication, display stamping, regions of interest (ROI), and group of pictures (GOP) structure
System encryption with TLS 1.2, 128- and 256-bit AES encryption, TPM, and PKI support
Compatible with Bosch Video Management System, Bosch Video Recording Manager, Bosch Video Client, Bosch Video Security app, Windows, iOS, Android, and Dropbox
Clear polycarbonate dome bubble with UV blocking anti-scratch coating
UPC: 800549885072
In the Box
- Bosch NIN-63023-A3 FLEXIDOME IP starlight 6000 VR 2MP Outdoor Network Dome Camera
- Limited 3-Year Manufacturer Warranty
Bosch NIN-63023-A3-A Specs
Camera
| Sensor | 2 MP 1/2.8" CMOS |
| Focal Length | 3 to 9mm |
| Maximum Aperture | f/1.2 |
| Zoom | Optical: 3x |
| Lens Field of View | Horizontal: 117 to 37° Vertical: 59 to 21° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.0104 Lux B&W: 0.0039 Lux |
| Shutter Speed | 1/15,000 to 1/30 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 360° Vertical: 0 to 90° |
Video
| Streaming Resolution | 1920 x 1080 at 60 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 4 Streams |
| Video Outputs | 1 x BNC (Composite) |
Audio
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC-LC, G.711, L16 |
Pan & Tilt
| Pan/Tilt | None |
Networking
| Security | Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, Password Protection |
| Supported Protocols | APIPA, ARP, CHAP, DDNS, DHCP, DNS, DiffServ, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SNTP, SOAP, SSL/TLS, TCP, UDP, UPnP, iSCSI |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G, M, S & T |
| Analytics | Essential Video Analytics |
| Built-In Installation Aids | Camera View Wizard, Pixel Counter |
| OS Compatibility | iOS Android Windows *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 2 / 1 |
Hardware
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [2 TB Maximum] |
| External Storage Options | Cloud |
Power
| Power Source | DC, PoE 802.3af (15 W), PoE 802.3at (30 W) |
| Power Consumption | 7.2 W |
Environmental
| Operating Temperature | -22 to 131°F / -30 to 55°C |
| Startup Temperature | -4°F / -20°C |
| Storage Temperature | -58 to 158°F / -50 to 70°C |
| Operating Humidity | 5 to 100% |
| IP Rating | IP66 |
| IK Rating | IK10 |
General
| Inputs/Outputs | 1 x RJ45 1 x BNC 1 x Power |
| Video Management Software | Bosch Video Management System, Bosch Video Recording Manager, Bosch Video Client, Bosch Video Security Mobile App |
| Material of Construction | Aluminum, Polymer |
| Dimensions | ø: 6.2 x H: 4.9" / ø: 158.0 x H: 124.0 mm |
| Weight | 1.87 lb / 0.85 kg |
Packaging Info
| Package Weight | 2.885 lb |
| Box Dimensions (LxWxH) | 8.8 x 7.9 x 7.7" |
