Description

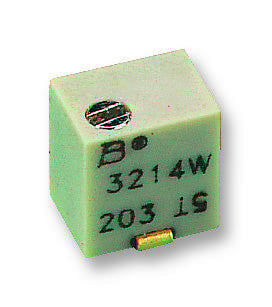

The Bourns Trimpot 3214 series are cermet, surface mount trimming potentiometers. These potentiometers are multi-turn which performs a variety of circuit adjustments in all types of electronic equipment. Typical applications are measuring linear distance, angle or rotation in production equipments.
- 4mm square potentiometer meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint
- Side or top adjustment with lead screw
- Sealed to withstand board wash processing
- 5 turns and rotational life of 200 cycles
- Resistance value ranges from 10 ohm to 2Mohm
- Tolerance of ±10%
- Temperature coefficient is ±100ppm/°C
- Operating temperature ranges from -65°C to +150°C
- Power rating is 0.25W
- Pick and place centring design with flush adjustment
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Resistance Tolerance | ± 10% |
| Product Range | Trimpot 3214 Series |
| Automotive Qualification Standard | - |
| Temperature Coefficient | ± 100ppm/°C |
| No. of Turns | 5Turns |
| Potentiometer Mounting | Surface Mount Device |
| Power Rating | 250mW |
| Track Resistance | 1Mohm |
| MSL | - |
Other details
| Brand | BOURNS |
| Part Number | 3214W-1-105E |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| 3D Product Image EN | |
| Product Change Notice EN | |
