Description

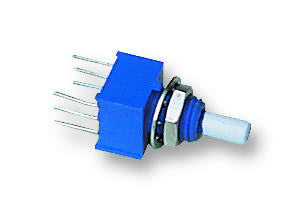

The Bourns 3310H series are through hole, panel control potentiometer. These potentiometers are single turn which is designed for frequent adjustment application. These devices are available in plastic or metal bushing and plastic shaft combination.
- DIL package straight terminals, rear exit, 2.54mm centres
- 9mm square potentiometer
- Sealing is IP67 rated
- Resistance value ranges from 1Kohm to 1Mohm
- �20% tolerance
- Operating temperature range -40�C to +125�C
- Power rating is 0.25W
- PC board and bushing mount
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Shaft Length | 12.7mm |
| Shaft Diameter | 3.18mm |
| No. of Gangs | 2 |
| Adjustment Type | Screwdriver Slot |
| Resistance Tolerance | � 20% |
| Product Range | 3310H Series |
| Track Taper | Linear |
| No. of Turns | 1Turns |
| Potentiometer Mounting | Through Hole |
| Power Rating | 250mW |
| Track Resistance | 1Mohm |
Other details
| Brand | BOURNS |
| Part Number | 3310H-001-105L |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Product Change Notice EN | |
