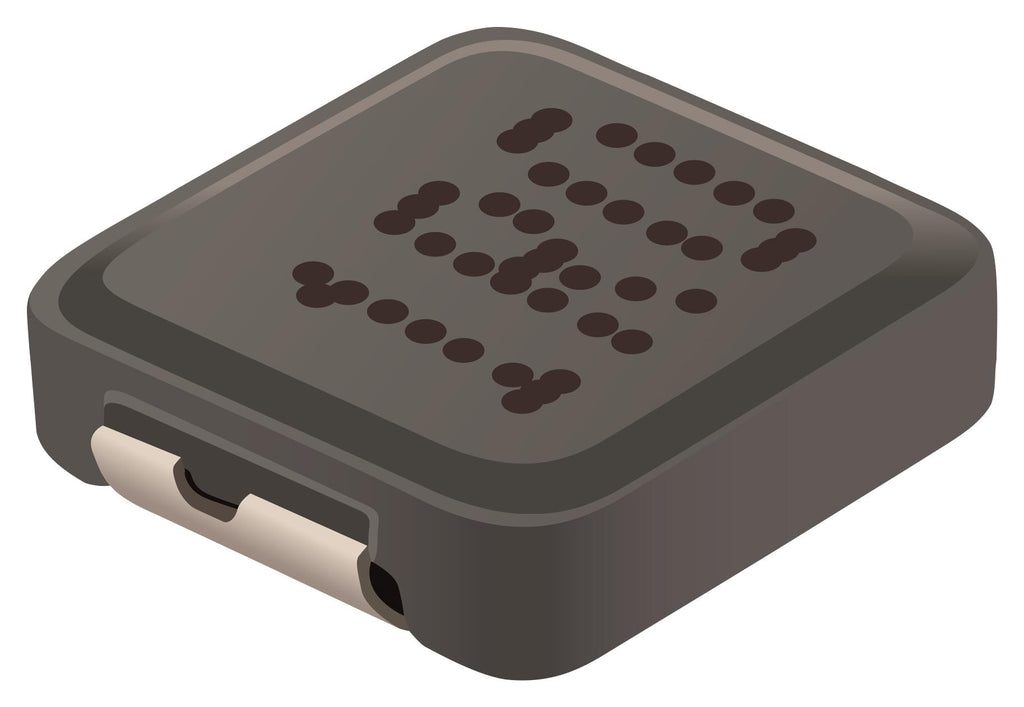

The SRP5015TA series from Bourns are automotive grade wire wound shielded SMD power inductors.
- Automotive grade AEC-Q200 qualified
- Dimension of 5.7mm (L) x 5.2mm (W) x 1.3mm (H)
- Inductance value range from 0.15µH to 22µH
- Current value (Irms) range from 1.2A to 16A
- Saturation current range from 1.7A to 25A
- DCR value range from 3.6mohm to 466mohm
- Carbonyl powder core, enamelled copper wire
- Tin(Sn) finish terminal
- High saturation current
- Operating temperature range from -40°C to 150°C
Product details
| Inductance:
4.7µH
|
| RMS Current (Irms):
2.7A
|
| Inductor Construction:
Shielded
|
| Saturation Current (Isat):
4A
|
| Product Range:
SRP5015TA
|
| Inductor Case / Package:
-
|
| DC Resistance Max:
0.118ohm
|
| Inductance Tolerance:
± 20%
|
| Product Length:
5.7mm
|
| Product Width:
5.2mm
|
| Product Height:
1.3mm
|
Other details
| Brand |
BOURNS |
| Part Number |
SRP5015TA-4R7M |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
