Description
Bright Tangerine B4003.0105 Overview

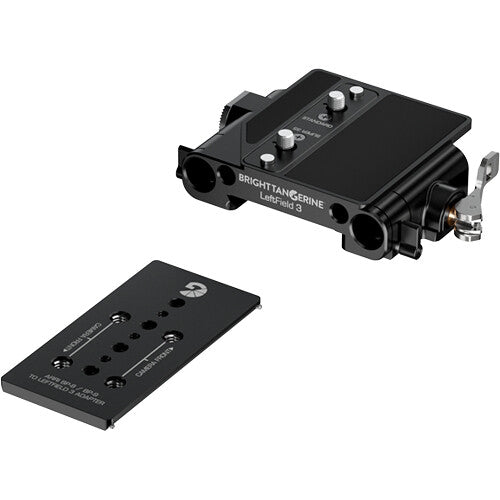

The LeftField 3 19mm Studio Quick Release Bridgeplate Base Kit from Bright Tangerine includes the LeftField 3 19mm Studio quick release bridgeplate and a 12" LeftField 3 standard dovetail. The bridgeplate features 3/8"-16 camera screws, a right-side ARRI-style rosette, and 3/8"-16 accessory threads.
The bridgeplate also includes a three-stage Open�UP locking lever and an inner plate that supports the different heights of both ARRI and RED cameras. The 12" LeftField 3 dovetail provides easy switching between rigs and it is compatible with a variety of heads that support an ARRI standard dovetail.
The LeftField 3 19mm Studio Quick Release Bridgeplate from Bright Tangerine features a three-stage Open�UP locking lever. This quick release system enables you to detach the bridgeplate vertically, saving the time and effort otherwise spent sliding your camera rig off the back of a dovetail. The vertical release feature is especially handy for heavier cameras or when switching one camera between multiple supports like a handheld rig, dolly, or tripod. It also features mounting screws for a shoulder pad such as the KASBAH.
The Quick Release bridgeplate incorporates an inner plate that can be rotated to accommodate the different camera heights. This riser adapter can be swapped for separately available plates compatible with additional cameras. Bridgeplate features include 3/8"-16 camera screws, a right-side ARRI-standard rosette, and 3/8"-16 accessory threads.
Quickly mount and remount your camera between a tripod, jib, crane, gimbal, and more with this heavy-duty, 12" long LeftField 3 ARRI Standard Dovetail from Bright Tangerine. The durable aluminum dovetail plate features laser-engraved position markings to keep track while changing lenses or balancing your camera. A front and rear safety button releases to ensure your camera does not slide off the plate.
The plate features multiple 3/8"-16 and 1/4"-20 mounting threads with inserts to prevent stripping. The dovetail is compatible with any ARRI-standard clamp, as well as OConnor 2600, 2575D, and 120EX and Sachtler Cine 30 tripod heads. The dovetail can also be used with the LeftField 3 15/19mm Studio Quick Release Bridgeplate or LeftField 3 15mm LWS Baseplate.
- Jibs, cranes, gimbals, tripods etc. compatible with ARRI standard dovetail
- LeftField 3 19mm Studio Quick Release Bridgeplate
- LeftField 3 15mm LWS Baseplate
- OConnor 2600, 2575D, and 120EX tripod heads
- Sachtler Cine 30 tripod heads
In the Box
- Bright Tangerine LeftField 3 19mm Studio Quick Release Bridgeplate
- 2 x 3/8"-16 Camera Screw
- Limited 2-Year Manufacturer Warranty
- Bright Tangerine LeftField 3 ARRI Standard Dovetail (12")
- Limited 2-Year Manufacturer Warranty
Bright Tangerine B4003.0105 Specs
| Compatibility |
ARRI Standard Dovetail Clamps
Bright Tangerine LeftField 3 Baseplates & Bridge plates OConnor 2600 Fluid Head / 2575D Fluid Head / 120EX Fluid Head Sachtler Cine 30 Fluid Heads |
| Mounting |
Multiple x 1/4"-20 Threads
Multiple x 3/8"-16 Threads |
| Material of Construction |
Aluminum
|
| Dimensions |
12 x 3.9 x 1.2" / 30.48 x 10 x 3 cm
|
| Weight |
1.3 lb / 590 g
|
| Package Weight |
1.485 lb
|
| Box Dimensions (LxWxH) |
12.4 x 5.3 x 1.1"
|
