| ₹ 111.58 includes GST and import duties. | |
| B2B customers can avail ₹ 17.02 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

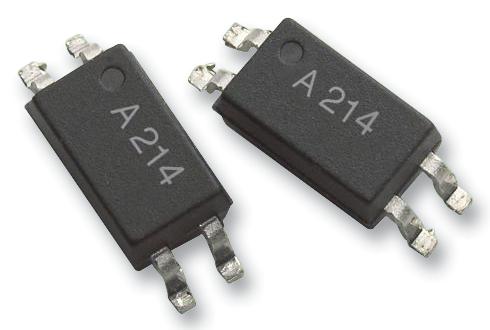

The ACPL-214-500E from Avago is a surface mount AC input single channel half pitch phototransistor optocoupler in 4 pin SO package. Optocoupler contains 2 light emitting diodes connected inversely parallel and optically coupled to a phototransistor. This optocoupler is widely used at I/O interface for programmable controllers, computers, sequence controllers and system appliances.
- Current transfer ratio CTR of 20% (min) at IF = ±5mA, VCC = 5V
- High input-output isolation voltage of VISO = 3000Vrms
- Non saturated response time (tr) is 2µs(typ) at VCC = 10V, IC = 2mA and RL= 100 ohm
- CMR of 10KV/µs (typical)
- CSA, UL and IEC/EN/DIN EN 60747-5-2 approved
- Forward current If of ±50mA
- Isolation voltage of 3KV
Applications
Test & Measurement, Industrial
Product details
| No. of Channels: 1 Channel |
| Optocoupler Case Style: SOIC |
| No. of Pins: 4Pins |
| Forward Current If Max: 50mA |
| Isolation Voltage: 3kV |
| CTR Min: 20% |
| Collector Emitter Voltage V(br)ceo: 80V |
| Product Range: - |
Other details
| Brand | BROADCOM |
| Part Number | ACPL-214-500E |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 109.35 |
| 3-5 | ₹ 108.23 |
| 5-10 | ₹ 106.0 |
| 10+ | ₹ 103.77 |
Bulk discount will be automatically applied during checkout based on quantity.
