Description

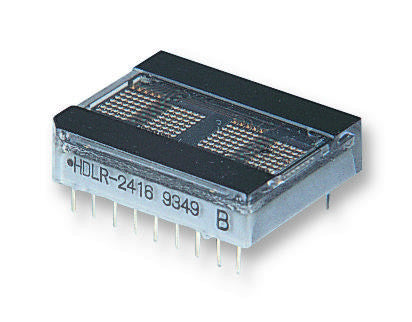

The HDLG-2416 is a 4-character 5mm smart 5 x 7 Alphanumeric Display driven by an on-board CMOS IC. The IC stores and decodes 7 bit ASCII data and displays it using a 5 x 7 font. Multiplexing circuitry and drivers are also part of the IC. The IC has fast setup and hold times which makes it easy to interface to a microprocessor. The address and data inputs can be directly connected to the microprocessor address and data buses. This has several enhancements over the HPDL-2416. Finally, the extended functions can be disabled which allows the display to operate exactly like an HPDL-2416 by disabling all of the enhancements except the expanded character set.
- Enhanced drop-in replacement to HPDL-2416
- Smart alphanumeric display built-in RAM, ASCII decoder and LED drive circuitry
- CMOS IC for low power consumption
- Software controlled dimming levels and blank
- 128 ASCII Character set
- End-stackable
- Low power and sunlight viewable AlGaAs versions
- Wave solderable
Applications
Consumer Electronics
Warnings
Standard CMOS handling precautions should be observed with the HDLX-2416.
Product details
| Display Area Width | 25.15mm |
| LED Colour | Green |
| Supply Voltage | 5V |
| Character Size | 5mm |
| Luminous Intensity | 5.6mcd |
| No. of Digits / Alpha | 4 |
| Product Range | - |
| Character Format | Dot Matrix |
| Forward Current If | 110mA |
| Display Area Height | 10.16mm |
| Packaging | Each |
Other details
| Brand | BROADCOM LIMITED |
| Part Number | HDLG-2416 |
| Quantity | Each |
| Technical Data Sheet EN |  |
