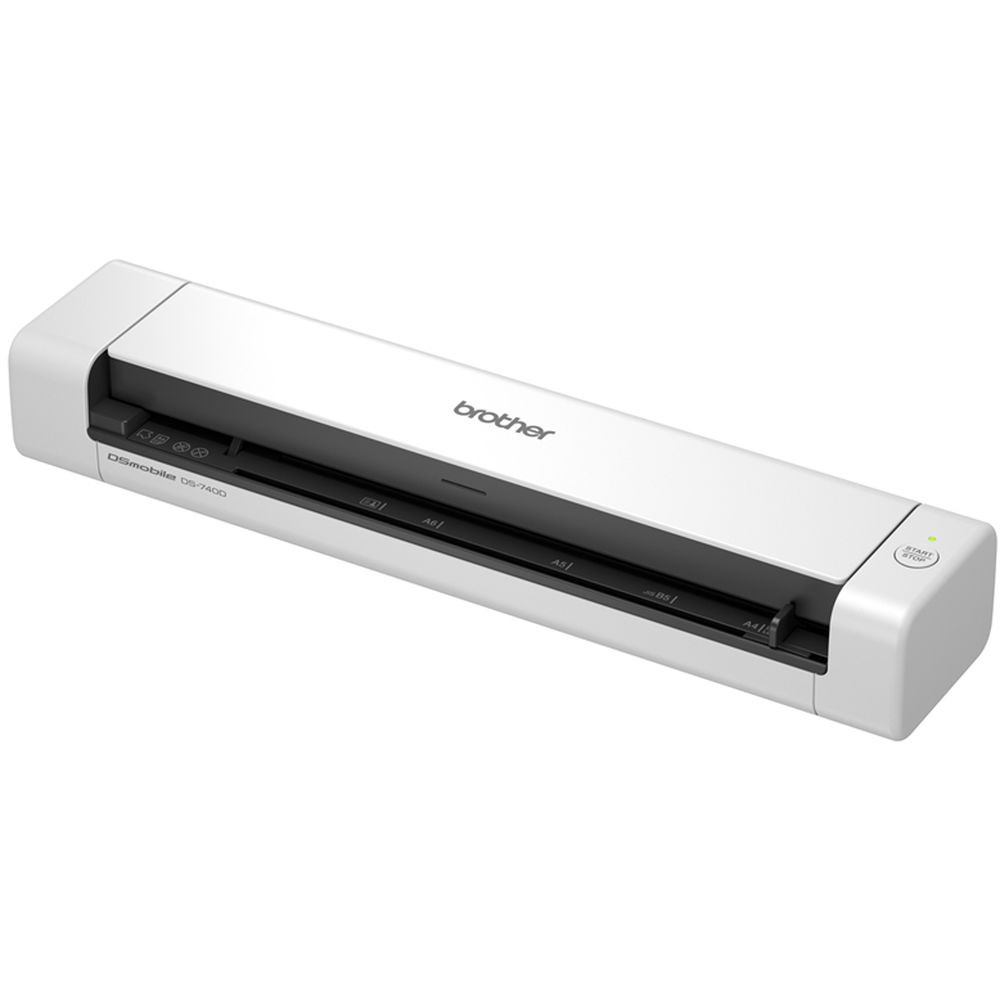

Brother DS740D Duplex Compact Mobile Document Scanner

Portable Tethered Scanning

Optical Resolution: 600 x 600 dpi

Scan Speed: 16 ppm

Maximum Scan Size: 8.5 x 72"

Scan important documents and ID cards on the go with the DS740D Duplex Compact Mobile Document Scanner from Brother . The unit features an optical resolution of 600 x 600 dpi for detailed image capture, and it scans ID cards, receipts, letter-size sheets, and documents up to 8.5 x 72". Simplex and duplex scan speeds are a fast 16 ppm when working with 8.5 x 11" sheets of paper, and the DS740D comes bundled with a software suite that includes document management and OCR software, so you can optimize scans and turn hard copy documents into editable Microsoft Word files. The software also enables you to modify scans with automatic color detection & adjustment, bleed through prevention, background removal, text enhancement, and color drop, and it also lets you scan to multiple scan-to destinations including file, image, OCR, email, and cloud services. Its compact size and portability make it a perfect fit for scanning on the road, in the home, or in a small office, and a single USB cord connects to your computer for powering the unit when scanning directly via USB.

• Scans ID cards, receipts, letter-size sheets, and documents up to 8.5 x 72"
• Simplex and duplex scan speeds as fast as 16 ppm for 8.5 x 11" sheets of paper
• Software suite includes document management and OCR software for turning hard copy documents into editable Microsoft Word files
• Settings for automatic color detection & adjustment, bleed through prevention, background removal, text enhancement, and color drop
• Scan-to destinations include file, image, OCR, email, and cloud services
• USB powered, eliminates the need for AC power cord

UPC: 012502657484

Maximum Resolution	600 dpi (Optical) 1200 x 1200 dpi (Interpolated)
Scan Modes	Color, Monochrome
Color Depth	24-Bit (Internal)
Grayscale Depth	8-Bit (Internal)
Image Sensor	2 x Contact Image Sensor (CIS)
Duplex Scanning	Yes
Single Pass Duplex	Yes
Automatic Image Corrections	Yes

Minimum Scan Size	W: 2 x L: 3.4" / W: 5.08 x L: 8.64 cm
Maximum Scan Size	W: 8.5 x L: 72" / W: 21.59 x L: 182.88 cm
Media Handling	Manual
Media Types (PHF)	Business Card, Envelopes, ID Card
Daily Duty Cycle	100 Scans

Interface	USB 3.0
File Formats	PDF, PDF/A
Wireless	None
Drivers	TWAIN, WIA, ICA, SANE
Operating System Support	Linux, Windows, macOS/OS X

Operating Temperature	41 to 95°F / 5 to 35°C
Operating Humidity	20 to 80%

Power Source	USB
Battery	None
Power Consumption	USB 2.3 W (Maximum) 1.3 W (Ready) 0.01 W (Off)
Dimensions (W x D x H)	2.5 x 11.9 x 1.8" / 6.35 x 30.23 x 4.57 cm
Weight	1.4 lb / 635.03 g

Package Weight	2.3 lb
Box Dimensions (LxWxH)	14.7 x 6.4 x 3"
