Description
BZBGear VPTZ Overview

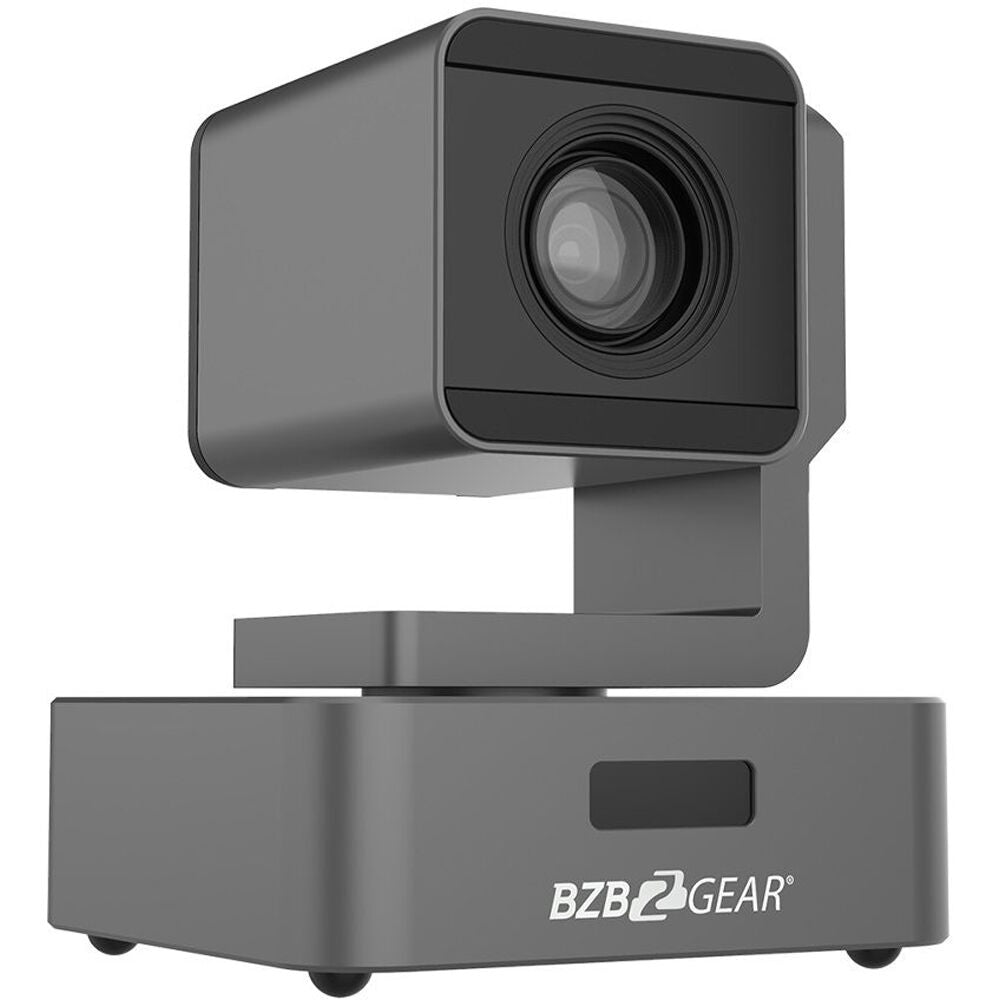

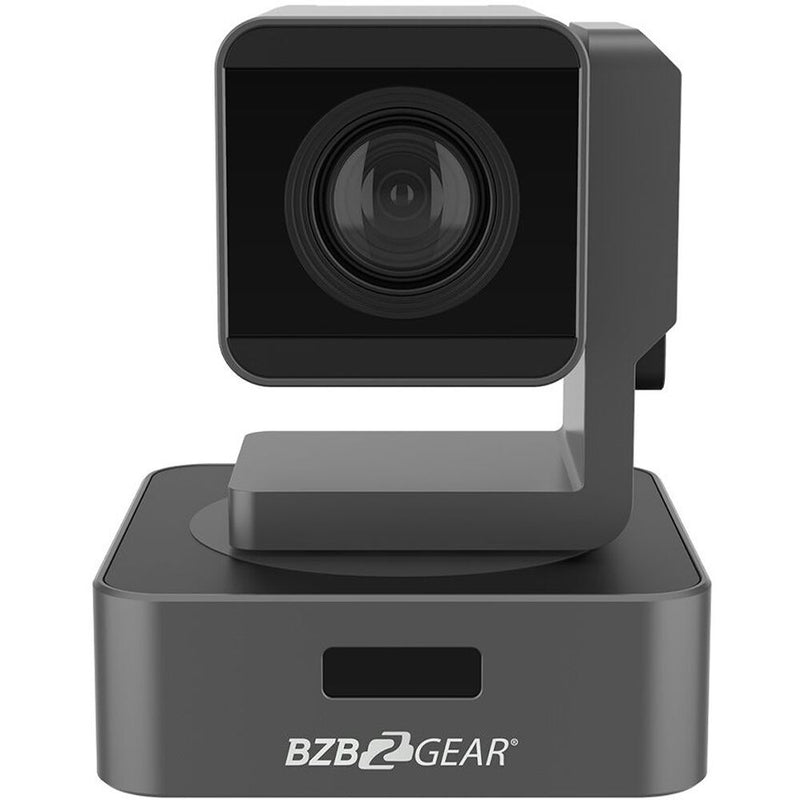

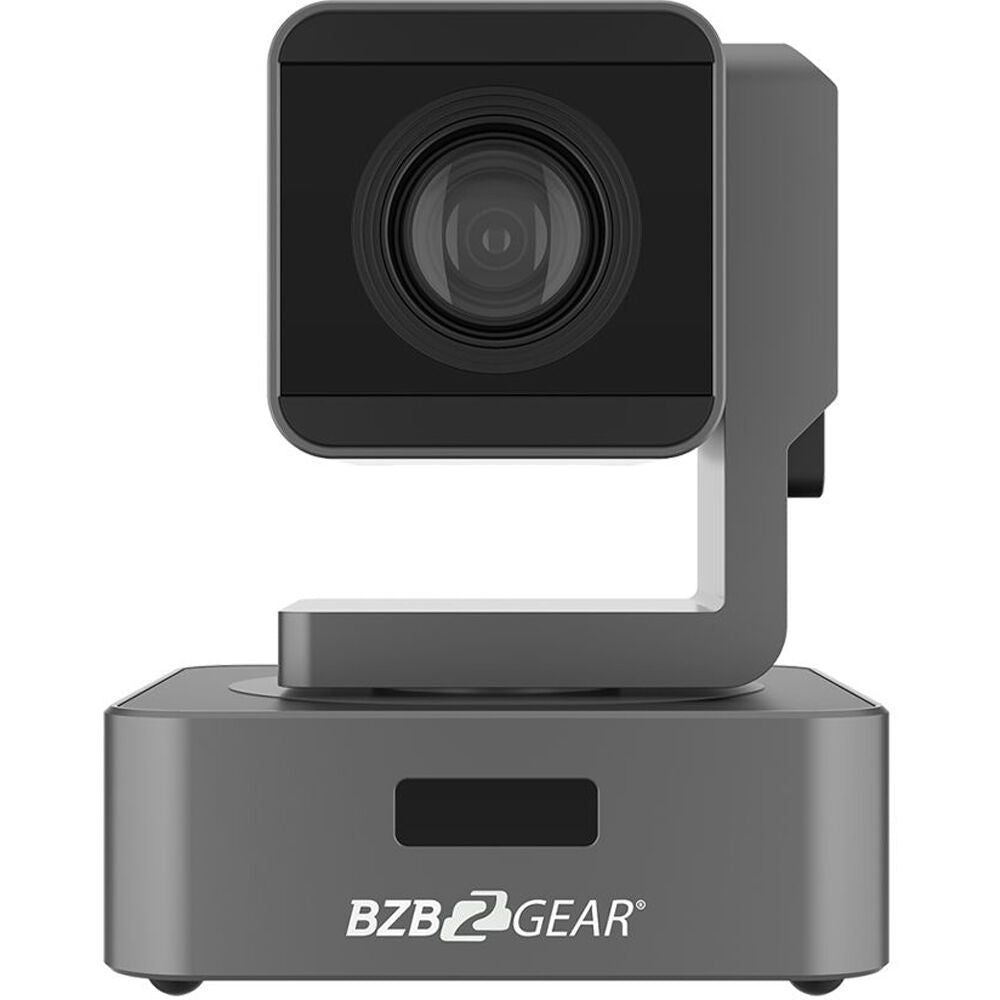

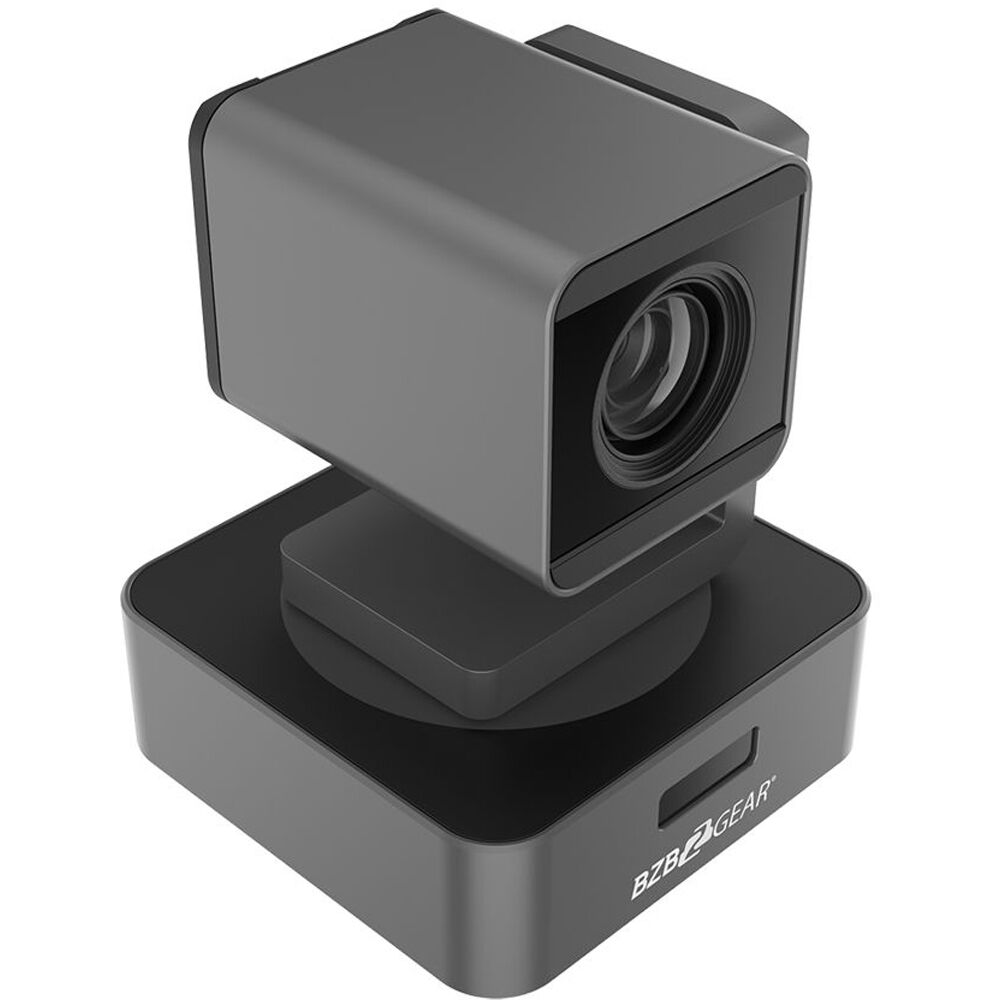

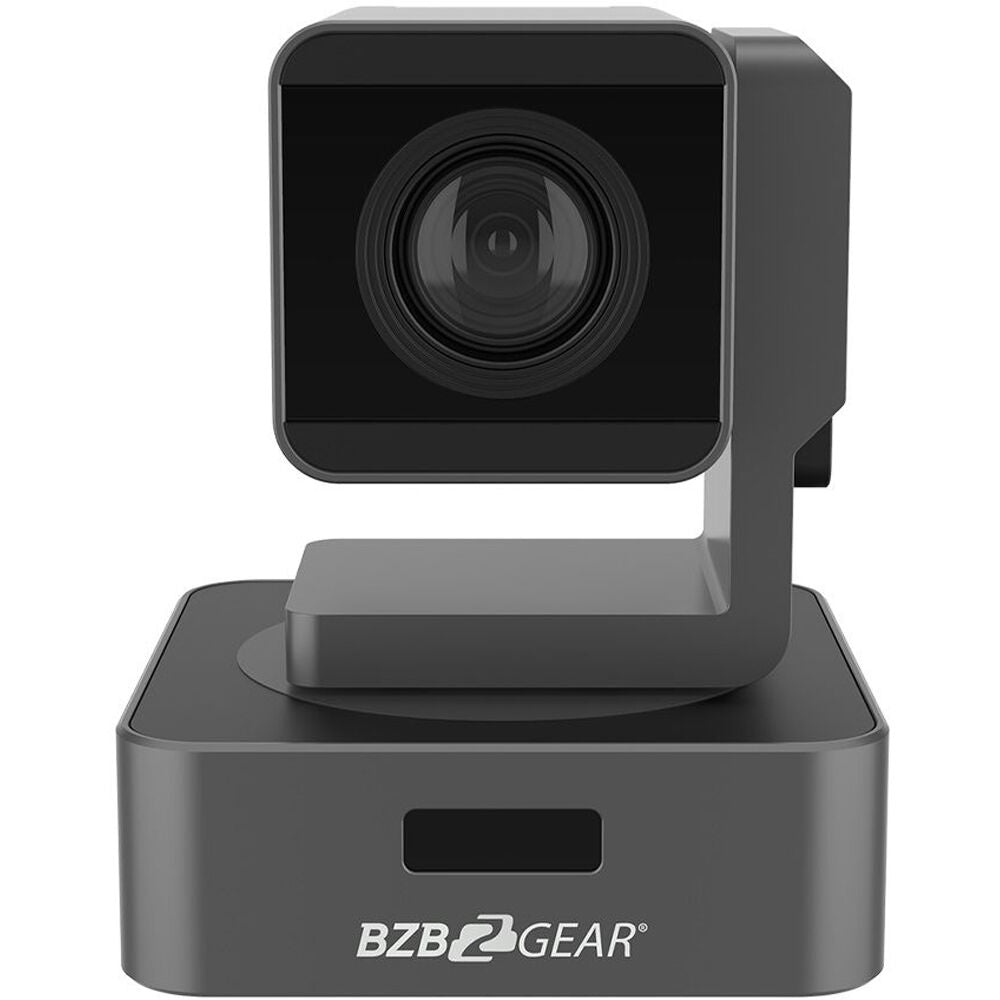

Add a high-quality, multifunction PTZ camera to your conference room, event space, education environment, or house of worship with the gray 1080p HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom & PoE from BZB Gear. The camera features a 1/2.8" CMOS sensor and outputs up to 1080p video over HDMI, SDI, USB 3.0, USB 2.0, or uses RSMP/RTSP protocols to stream video and audio to the Internet.
The camera supports uncompressed video transmission over MJPEG, H.265, and H.264 compression formats. When connected to an IP network, this camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems. You can also manage the unit by using its RS-232/RS-485 serial port with a separately available serial PTZ controller. You can power the camera with the included power adapter, or you can utilize your existing PoE (Power-over-Ethernet) LAN to save cable runs.
Key Features
Wide Applications
Control Protocols
Simultaneous Multi-Interface Video Output
All-Aluminum High-Stability Chassis
Audio Input
Advanced 2D/3D Noise Reduction Technology
Smart Menu and WebGUI Interface
30x Optical Zoom
Flexible Installation Options
Multiple Presets
In the Box
- BZBGear 1080p HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom & PoE (Gray)
- Power Adapter
- IR Remote Control
- RS-232 Adapter
- Limited 3-Year Warranty
BZBGear VPTZ Specs
| Image Sensor | 1-Chip 1/2.8" CMOS Sensor |
| Sensor Resolution | Effective: 2.7 Megapixel (1920 x 1080) |
| Minimum Illumination | 0.5 Lux |
| Max Digital Zoom | 12x |
| Built-In ND Filter | None |
| Flip / Mirror Support | Image Flip |
| Optical Zoom Ratio | 30x |
| Focal Length | 5.2 to 148.4mm |
| Field of View | Horizontal: 65.4° |
| Maximum Aperture | f/1.3 to 4.8 |
| Focus Control | Autofocus Manual Focus |
| Output Formats | SDI, HDMI, RJ45, USB: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 25, 30, 50, 59.94, 60 fps 1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps |
| Embedded Audio | HDMI/SDI: 2-Channel |
| IP Streaming | H.264, H.265, ONVIF, RTMP, RTSP: 1080p, 720p at 25p, 29.97p, 30p, 50p, 59.94p, 60p |
| Audio Recording | None |
| Presets | 255 via IP, RS-232, VISCA 9 via IR |
| Move Speed | Pan: 0.1 to 180°/sec Tilt: 0.1 to 120°/sec |
| Movement Range | Pan: 356° (-178 to 178°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP Pelco-D Pelco-P RS-232 RS-485 VISCA |

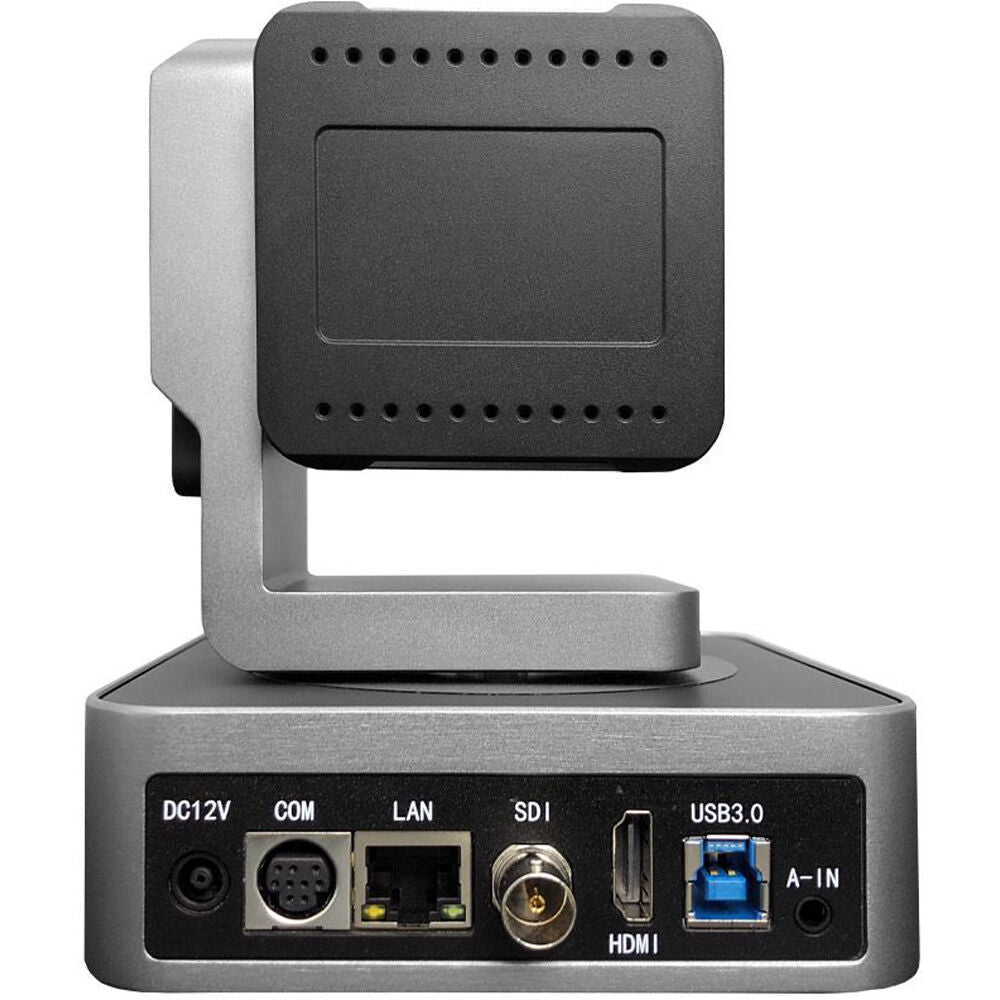

| Video Output Connectors | 1 x HDMI Type A Female 1 x BNC (3G-SDI) Female 1 x USB 3.0 Type-B (USB Video) Female |
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Line Level Input |
| Control Interface | 1 x 8-Pin Mini-DIN (Pelco-D, Pelco-P, RS-232, VISCA) Input |
| Other I/O | 1 x RJ45 (LAN) Input/Output |
| PoE Support | Yes |
| Power Connectors | 1 x Barrel / Coaxial (12 VDC up to 2 A) |
| Power Consumption | Power Supply: 100 to 240 VAC 12 W |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Dimensions | 5.7 x 4.7 x 4.7" / 145 x 120 x 120 mm |
| Weight | 3.5 lb / 1.6 kg |
