Description

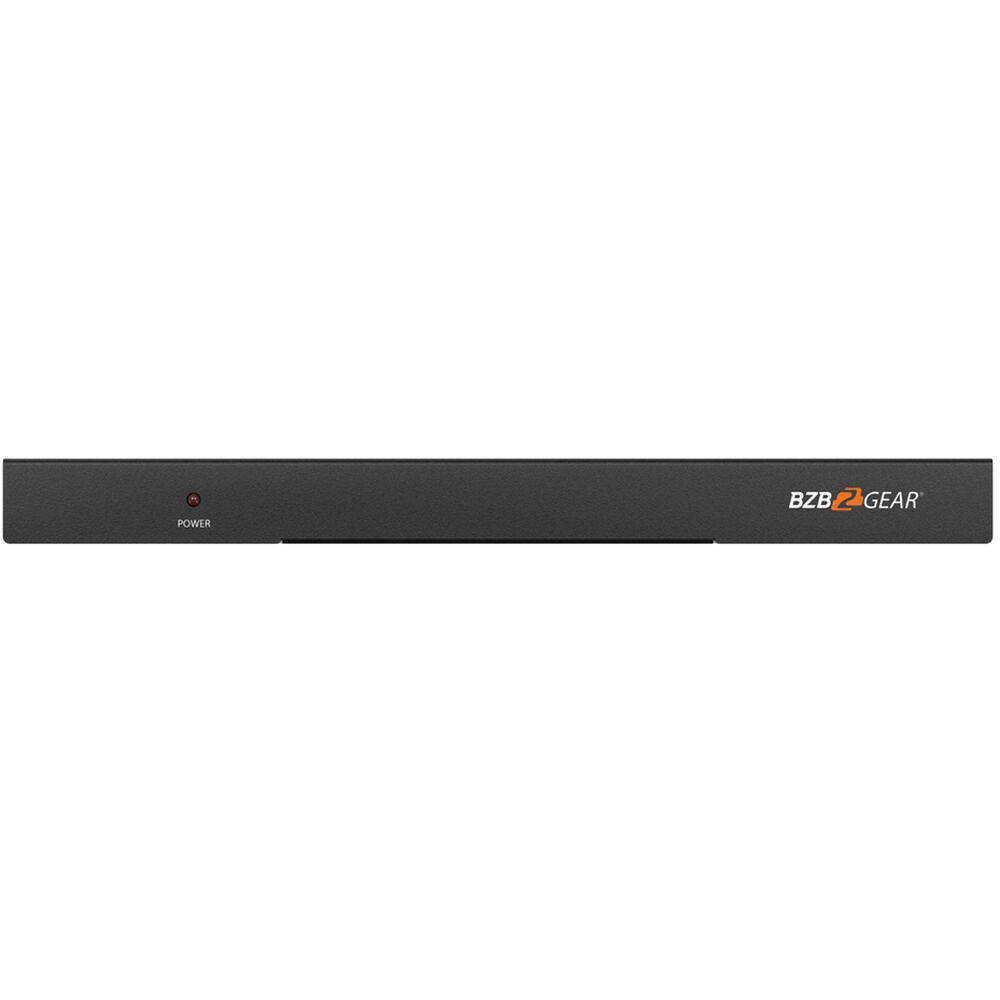

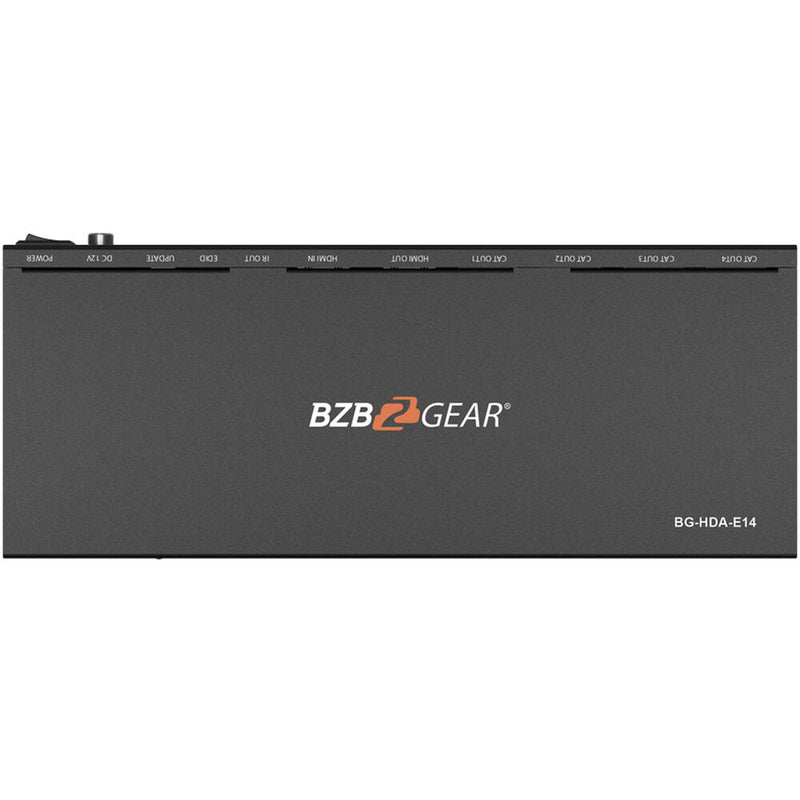

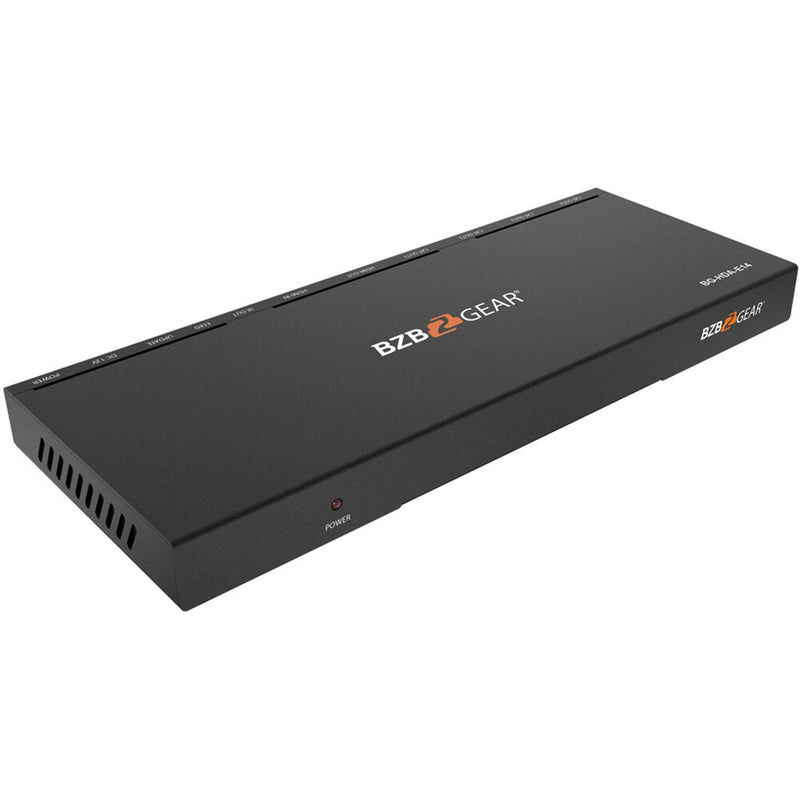

BZBGear BG-HDA-E14 Overview

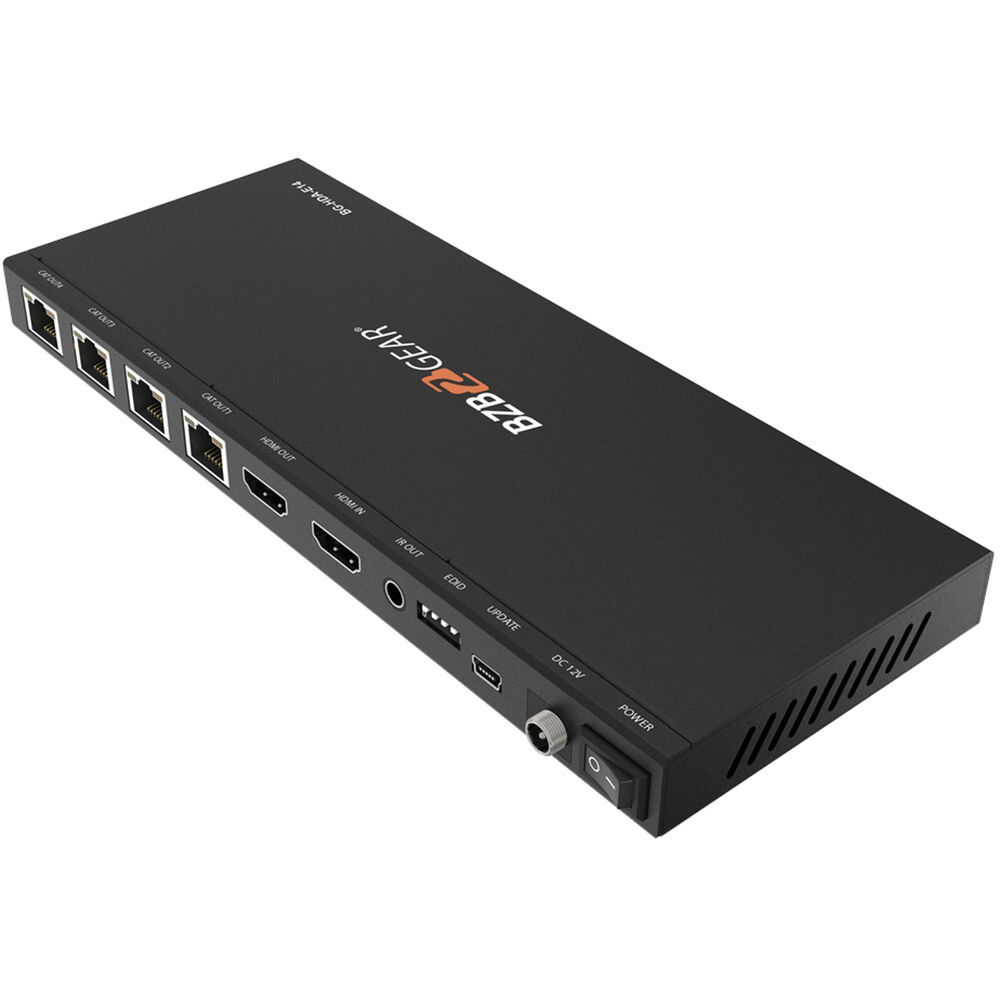

Distribute an HDMI video source to four displays using this 1x4 4K30/1080p HDMI Splitter/Distribution Amplifier with 4 Receivers from BZBGear. The kit includes a distribution amplifier/transmitter and four receivers. The distribution unit features one HDMI input, one local HDMI output, and four RJ45 outputs that support video up to 4K30 and 1080p60 4:4:4 resolutions. Each RJ45 output can deliver 4K30 video to a receiver up to 164' away and 1080p60 video up to 230' away over Cat 6 cable.
The unit also features HDCP 2.2 compliance, EDID management, and bidirectional IR pass-through. It also supports audio profiles that include compressed, lossless Dolby TrueHD, Digital Plus, DTS-HD Master Audio, and LPCM 7.1. The unit is powered using the included power supply, which also powers the four receivers using power over cable (PoC).
In the Box

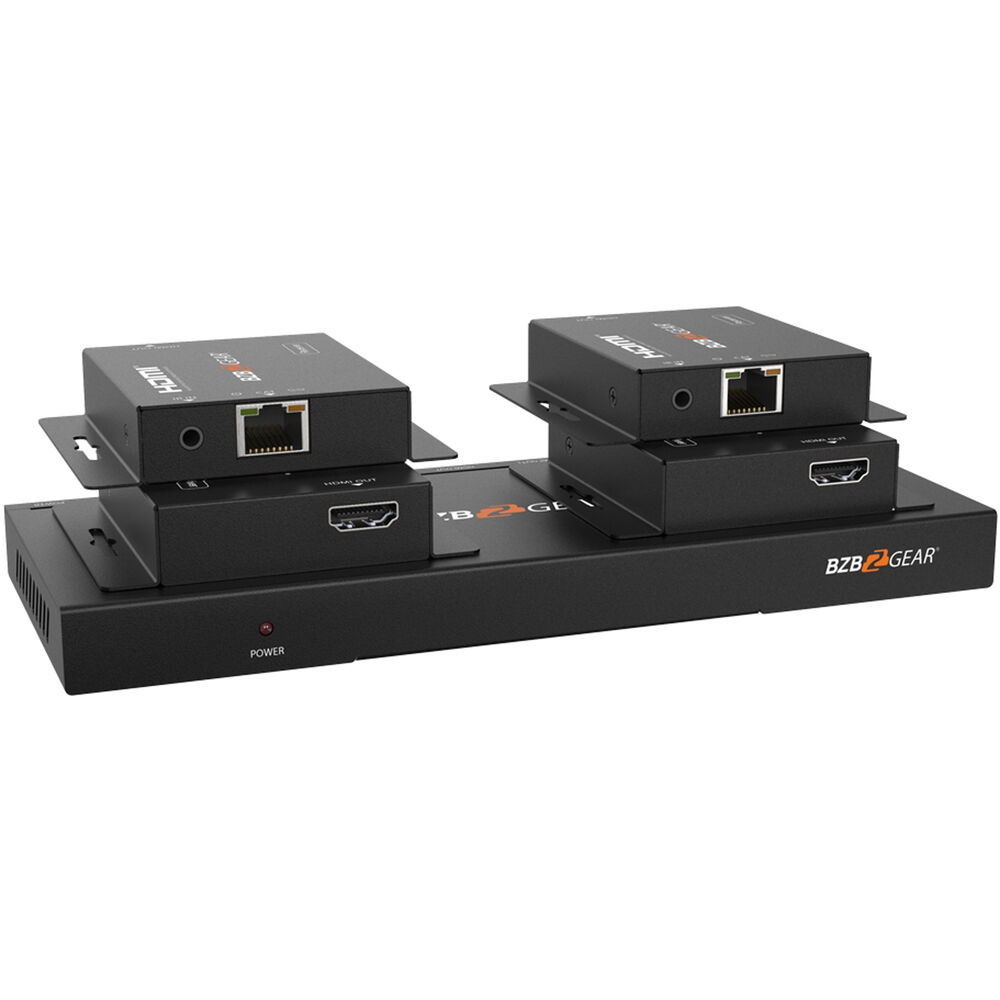

- BZBGear 1x4 4K30/1080p HDMI Splitter/Distribution Amplifier with 4 Receivers
- Amplifier/Transmitter
- 4 x Receiver
- IR Blaster Cable (59")
- 3 x IR Receiver Cable (59")
- 2 x Mounting Ear
- 12 VDC Power Supply
- 8 x Screw
BZBGear BG-HDA-E14 Specs
| Input | 1 x HDMI (HDMI 1.4) Female |
| Embedded Audio | HDMI |
| Output | 1 x HDMI (HDMI 1.4) Female 4 x RJ45 (HDBaseT) Female |
| Other I/O | 1 x 1/8" / 3.5 mm (IR) Input |
| HDR Compatibility | None |
| HDCP Support | Version 1.4 |
| EDID Support | Yes |
| Audio Decoding | DTS Digital Surround, DTS-ES, DTS-HD, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, PCM |
| Max Transmission Distance | 1080p: 229.7' / 70 m (via Cat 6) UHD 4K: 164' / 50 m (via Cat 6) |
| Video Format | HDMI Input (8-Bit 4:4:4 YUV, YCC) UHD 4K: 30 fps 1080p: 60 fps RJ45 Output (8-Bit 4:4:4 YUV, YCC) UHD 4K: 30 fps 1080p: 60 fps |
| Bandwidth | 297 MHz |
| Power Connector | 1 x Barrel (12 VDC at 2.5 A) Input |
| Power Consumption | Power Supply: 12 VDC at 2.5 A (11 W) |
| ESD Protection | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% |
| Material of Construction | Metal |
| Dimensions | 8.3 x 3.3 x 0.7" / 210.0 x 83.0 x 18.0 mm |
| Weight | 1 lb / 448 g |
